Zip-Trench Polypropylene Trench Drains 6", 12" - Light & Heavy Duty Grates

Pre-Sloped Trench Drain System for easy, fast installation

Zip-Trench^® Polypropylene Prefab Trench Drains
Watch this video to learn how the Zip-Trench drain system can save you time and money today!

Zip-Trench^® Polypropylene Trench Drains

The Zip-Trench is a polypropylene trench drain available in 6" or 12" widths. The Zip-Trench offers a less expensive, labor saving alternative to cast-in-place trench drains.

Visit 6" Zip-Trench Product Page

Visit 12" Zip-Trench Product Page

Easy Installation

Fast and Easy The 9'10" length of the channels and built-in rebar anchors make installation fast and simple. Grates are not required during the pour and alignment clips keep your installation straight.

Extra Heavy Duty

Break, Chemical, Temp-Resistant Zip-Trench has four grate choices with Class C and E load rating options. The polypropylene material is break-resistant, impermeable, and offers more chemical resistance than polyethylene used by competitors. It can also handle temperatures up to 180°F.

Flexible System

Built-in Flexibility With 16 channels (12 sloping and 4 neutral) from a depth of 7-9/16" to 22-9/16", Zip-Trench allows for unparalleled flexibility with channels that can be run as long as needed.

Less Maintenance

Easy Cleaning Zip-Trench’s deep rounded base keeps water moving at optimal efficiency. The faster movement of water keeps debris moving and reduces the frequency of servicing.

Traditional Cast-in-Place Trench vs. Zip-Trench^®

Traditional Cast-in-Place Trench	6" or 12" Zip-Trench® Drains
🛠️ Labor intensive	⏳ 75% less labor*
💰 Inexpensive materials	💵 Overall, 25% savings*
🌊 Uses permeable concrete	🛡️ Polypropylene is 100% impermeable
📐 Requires complicated wood framework	⚡ Easy installation with male/female lap joints for speed

* Based on the costs associated with installing a 100' section of cast-in-place trench drain compared to the same length using Smith 9960 Zip-Trench. Cast-in-place installation requires 48 hours of labor compared to 11.5 hours when installing a Zip-Trench Drain.

Still Want to Use Cast-in-Place?

That’s okay. Zip-Trench^® frames and grates are compatible with cast-in-place installations.

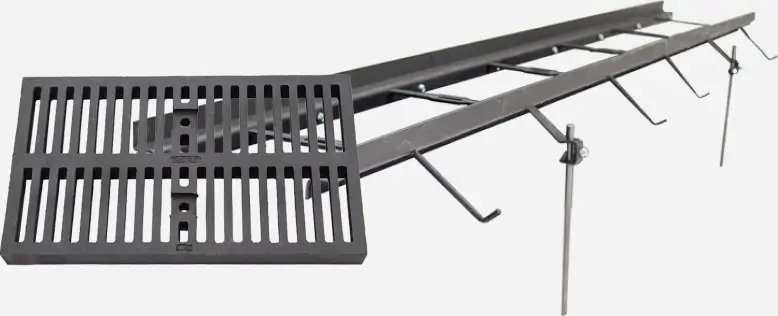

Smith Fig. 9960-LC Zip Trench Drain Frame & Grate

Figure Number 9960-LC, Zip-Trench Frame and Grate

View the Zip-Trench^® Product Pages: 6" Zip-Trench^® 12" Zip-Trench^®

Zip Trench Polypropylene Prefab Trench Drains

Enhanced Prefabrication

PROTIP - Do you have a complicated project that requires connections at different angles and varying lengths? Let us help you design your entire trench system for maximum efficiency and save you time by pre-cutting each section before packing it up and shipping everything to your job site.

Learn how to save 75% less* on labor cost.
View the Value Added Zip Trench Brochure today!

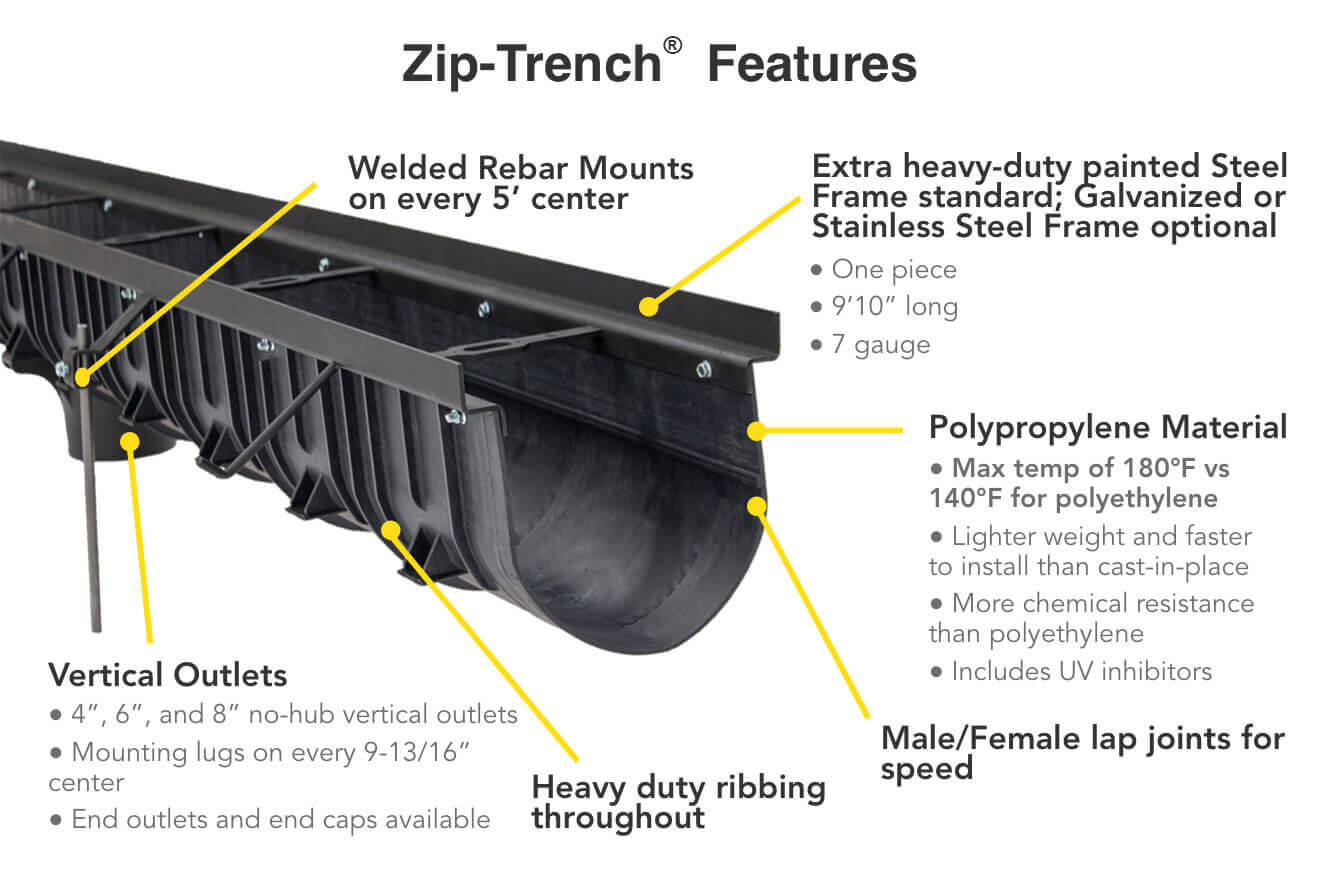

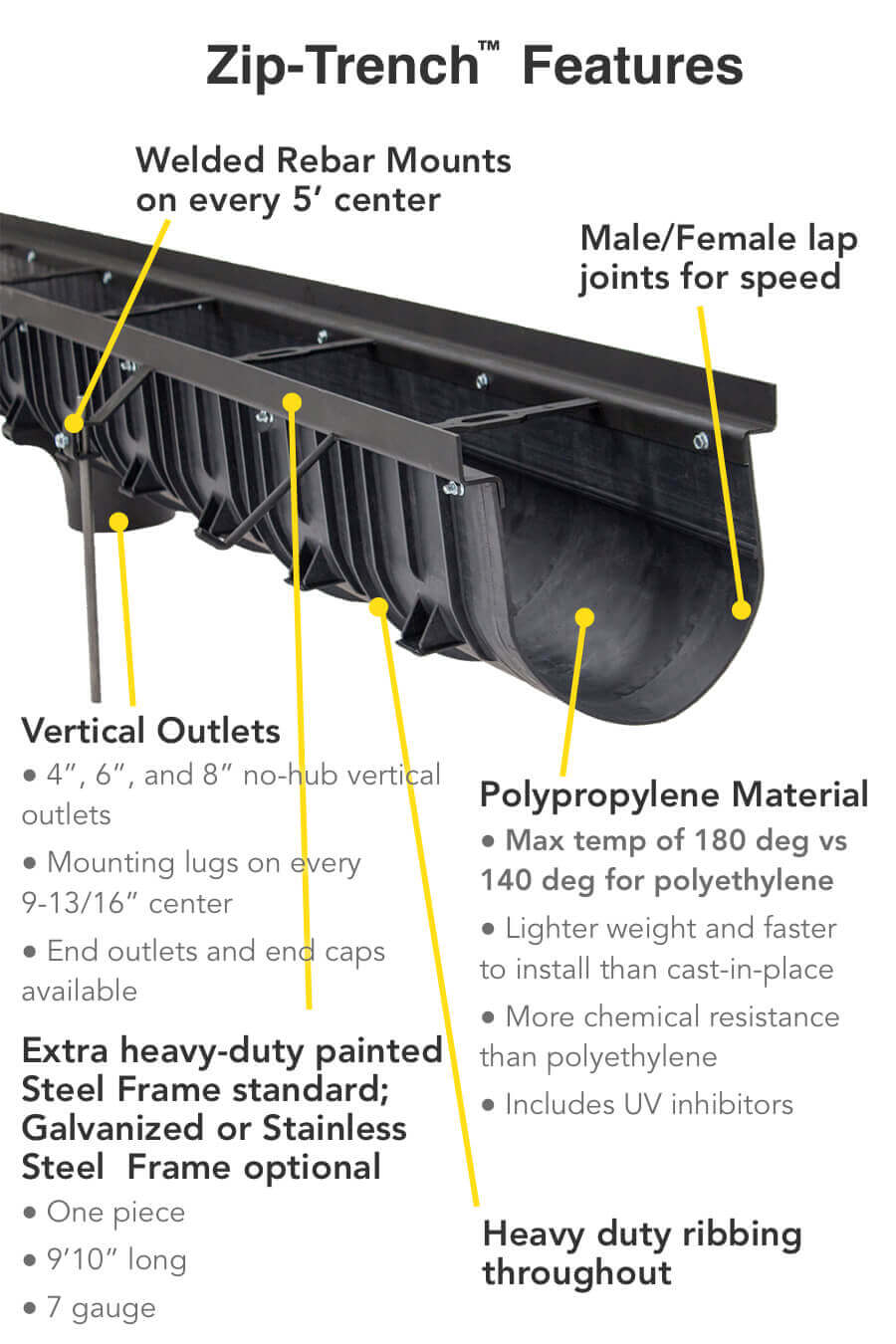

Features of the Pre-Sloped Trench Drain System, Zip Trench by Smith

Go from 0 to 60 feet in just six sections!

The fast, long, pre-assembled runs of the Zip Trench drain system get you where you're going faster, with fewer stops along the way. This light-weight, polypropylene trench drain system is much more efficient than polymer concrete and has better chemical resistance than polyethylene. Also featuring a high flow volume and storage capacity, it offers a less expensive, labor saving alternative to cast-in-place trench drains.

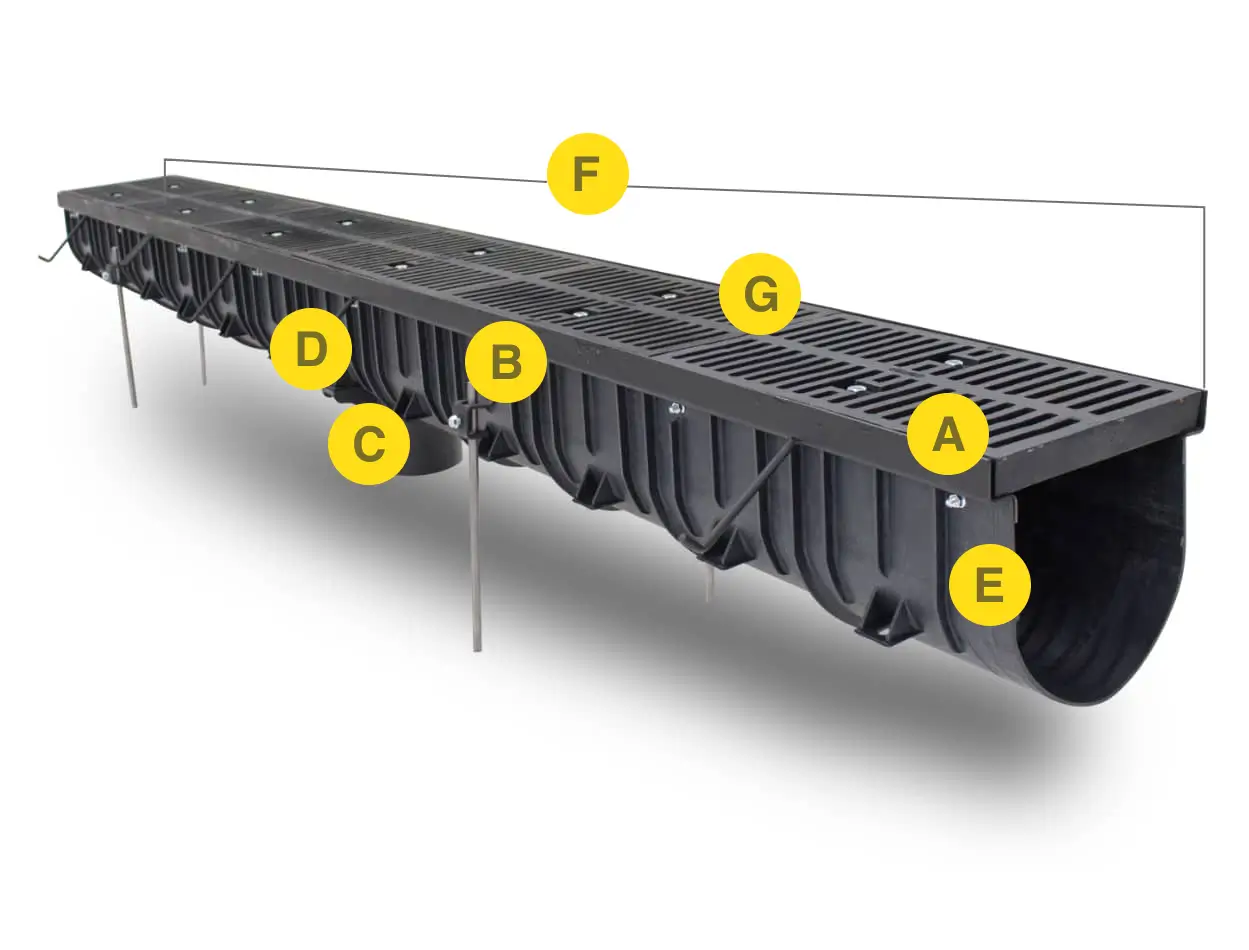

12” Wide Zip Trench Drain System

(Figure No. 9960)

12” Wide Zip Trench Drain Features

Extra-heavy-duty painted steel frame is standard, galvanized and stainless steel also available. Frame transfers traffic load to surrounding concrete
4”, 6”, and 8” no-hub vertical outlets
Mounting lugs on every 9.81” (1/4 meter) center
Polypropylene rating 180° F (vs. only 140° F with polyethylene)
Built-in slope of 1.07%
4 grate types: Class C–Stainless steel perforated and mesh - Galvanized steel perforated and mesh Class E–Ductile Iron ADA - Ductile Iron Slotted

New! 1-Meter sections now available!

View 12" Wide Zip Trench System (Fig. No. 9960)

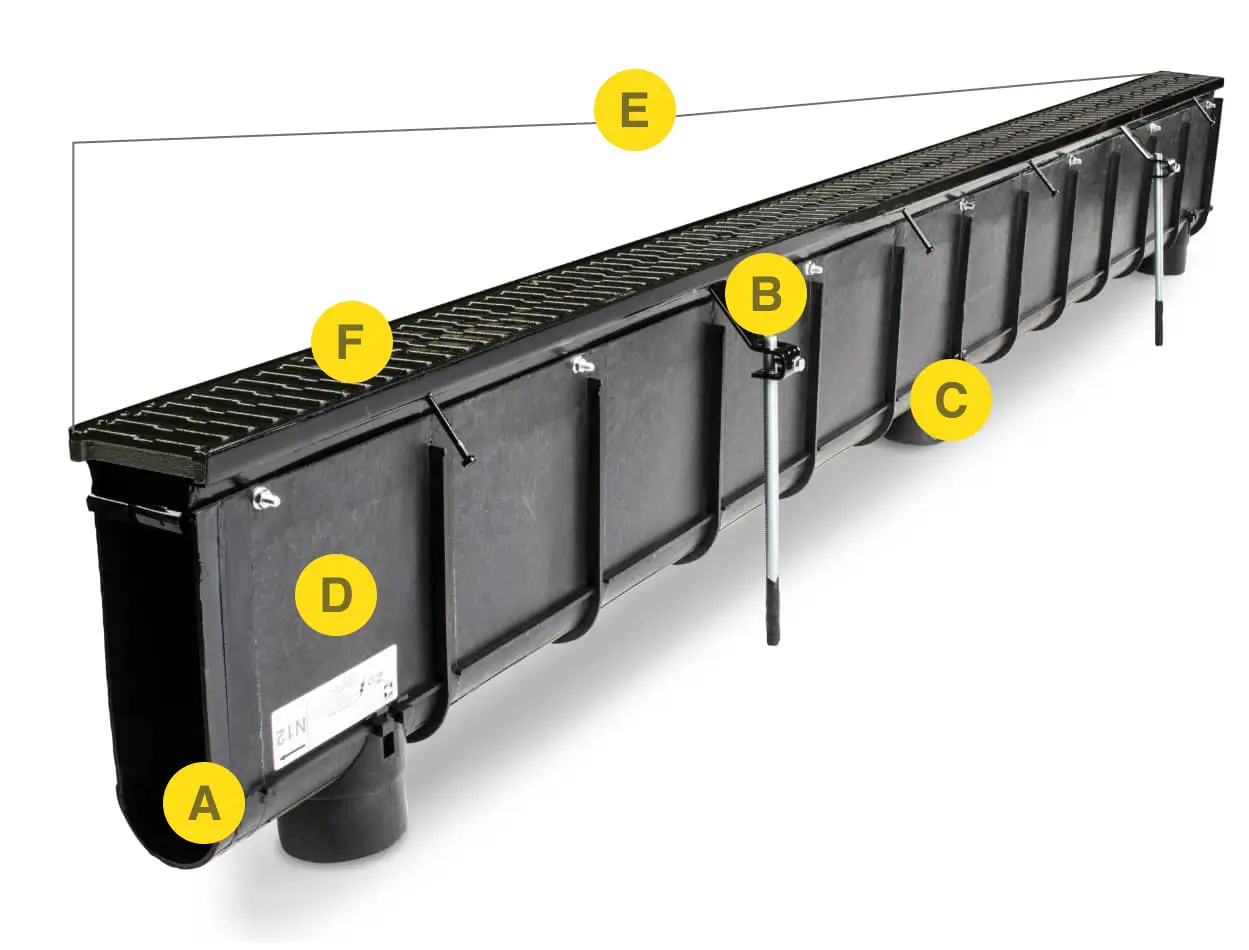

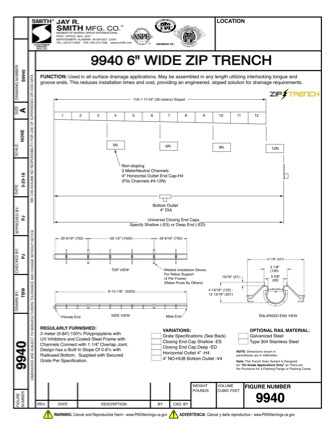

6” Wide Zip Trench Drain System

(Figure No. 9940)

6” Wide Zip Trench Features

Male/Female lap joints for speed
Welded rebar mounts on every 5’ center
Snap-on 4” no-hub vertical outlet can be located virtually
anywhere on the channel
Polypropylene rating 180° F (vs. only 140° F with polyethylene)
Pre-sloped 0.6%, 160-ft continuous slope along with neutral sections
to meet your needs
Load Classes A–E

New! 1-Meter sections now available!

View 6" Wide Zip Trench Drain System (Fig. No. 9940)

12" Zip-Trench^® Drain Grates

Heavy Duty
DIN 19580 Load Class C: 56,000 lbs - 1,162 psi. For commercial pneumatic tire traffic patterns, forklifts and tractor trailers.

Stainless Steel Mesh Trench Drain Grate 9960

Stainless Steel Mesh Grate Lengths: 1 meter, ½ meter
Also available as Perforated.

Galvanized Steel Trench Drain Grate 9960

Perforated Galv. Steel Grate Lengths: 1 meter, ½ meter
Also available as Mesh.

Extra Heavy Duty
DIN 19580 Class E: 135,000 lbs - 2,788 psi. For commercial solid tire traffic patterns, forklifts and impacts from steel struts or metal wheels.

Ductile iron ADA slotted grate for 9960 trench drains

Ductile Iron ADA Grate Length: ½ meter

Ductile iron slotted trench drain grate - 9960

Ductile Iron Slotted Grate Length: ½ meter

Looking for 6" Zip-Trench^® Grates?

Our 6" Zip-Trench^® is available with a variety of Light, Heavy, and Extra Heavy Duty grates. View the product page to explore 6" grate options.

Zip-Trench^® Drain Accessories

4”, 6” and 8” Universal Horizontal Cap Trench Drain Accessory

4", 6" and 8" Universal Horizontal Outlet Figure Number -H468

4”, 6”, and 8” No-Hub Vertical Outlet Fitting Trench Drain Accessory

4", 6", and 8" No-Hub Vertical Outlet Fitting Figure Number -V468

End Cap Figure Number -ES

Zip-Trench^® Drains Application Examples

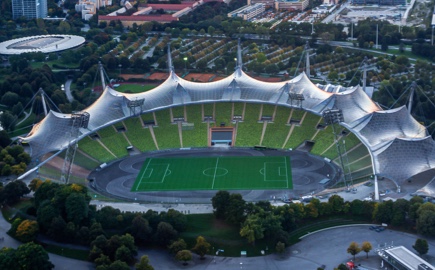

Stadium

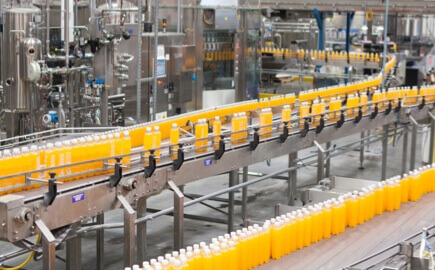

Bottling Plant

Gas Station
