12" Wide Polypropylene Trench Drain System - Zip Trench™

Figure Number:  9960
Labor Saving

Learn More on Contractor Labor Saving Products

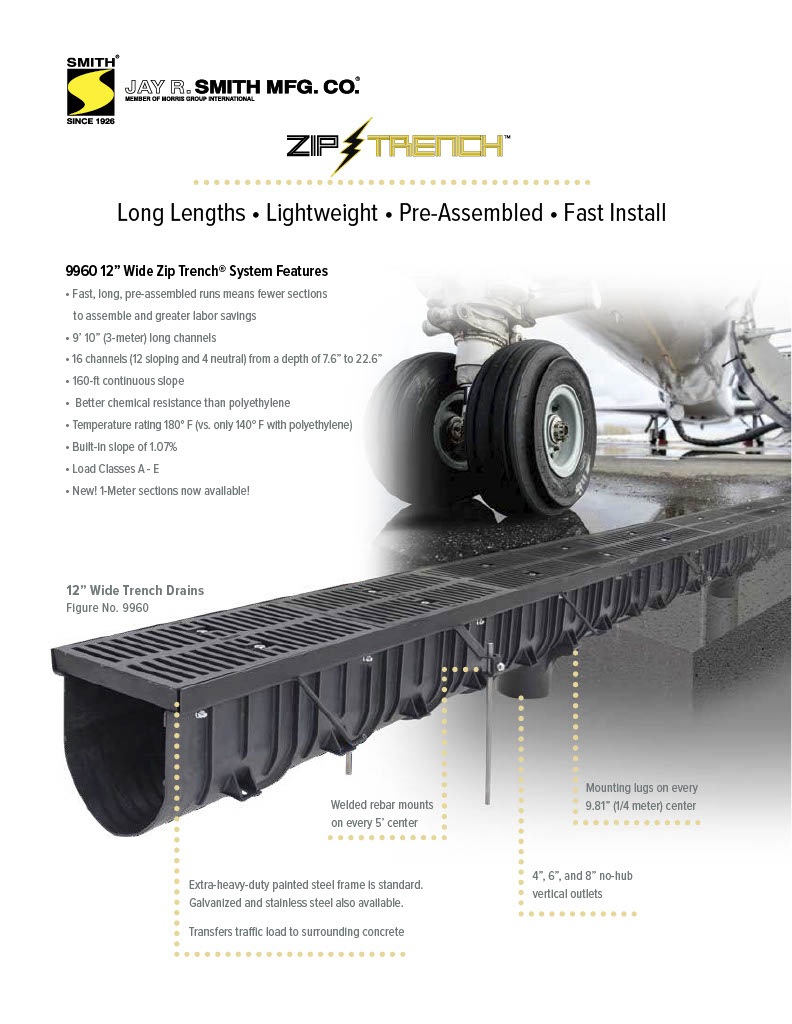

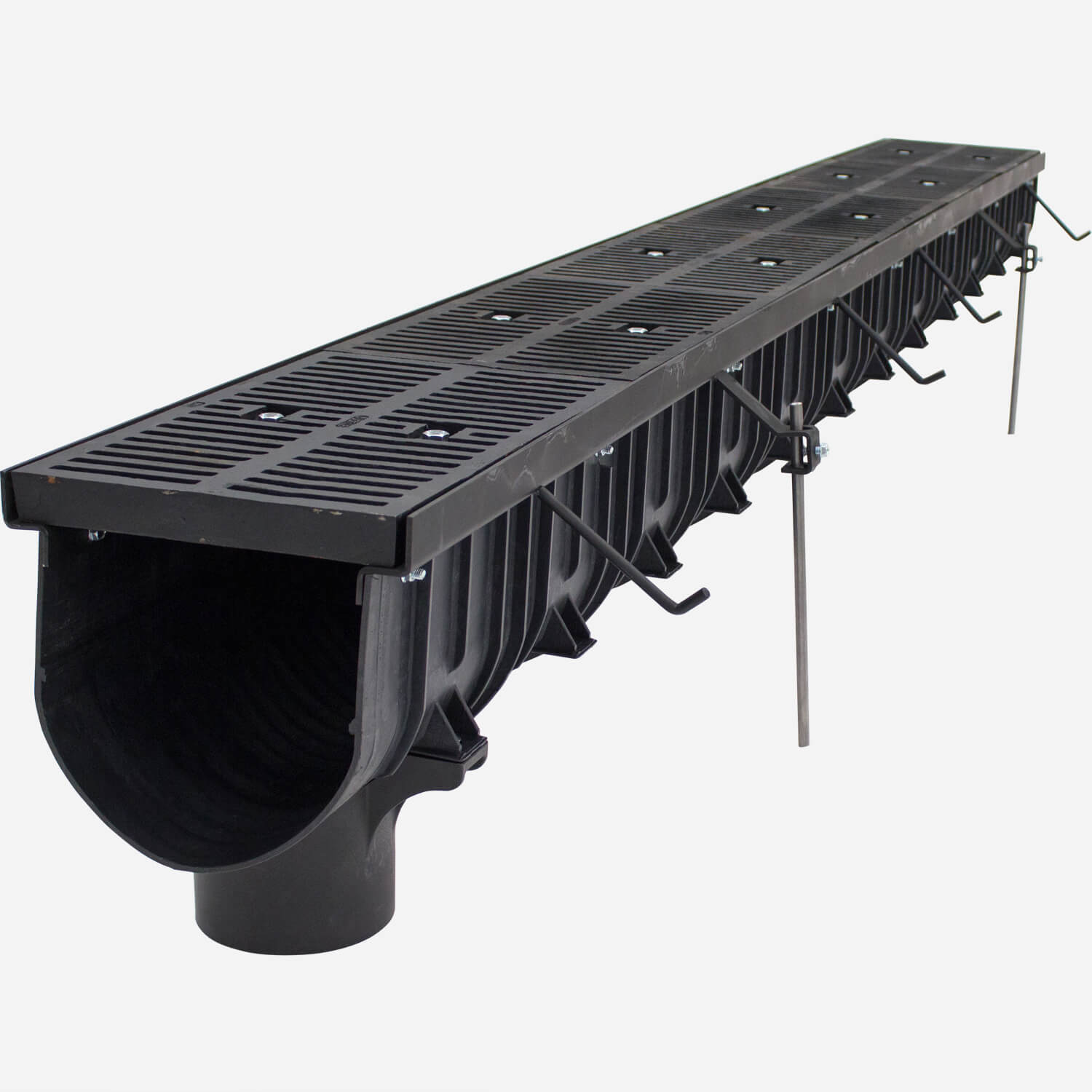

The Zip Trench™ is a 12” wide polypropylene trench drain with a high flow volume and storage capacity that offers a less expensive, labor saving alternative to cast-in-place trench drains.

View More on Zip Trench™ Drain System

Other Features and Benefits:

  • Welded rebar mounts on every 5’ center
  • Extra heavy-duty painted steel frame standard; galvanized + stainless steel frames also available
    • One piece
    • 9’ 10” long
    • 7 gauge
  • Polypropylene Material
    • Max temp of 180°F vs. 140°F for polyethylene
    • Lighter weight and faster to install than cast-in-place.
    • More chemical resistance than polyethylene
    • Includes UV inhibitors
  • Male/Female lap joints for speed
  • Heavy duty ribbing throughout
  • Vertical Outlets
    • 4”, 6”, and 8” no-hub vertical outlets
    • Mounting lugs on every 9-13/16” foot center

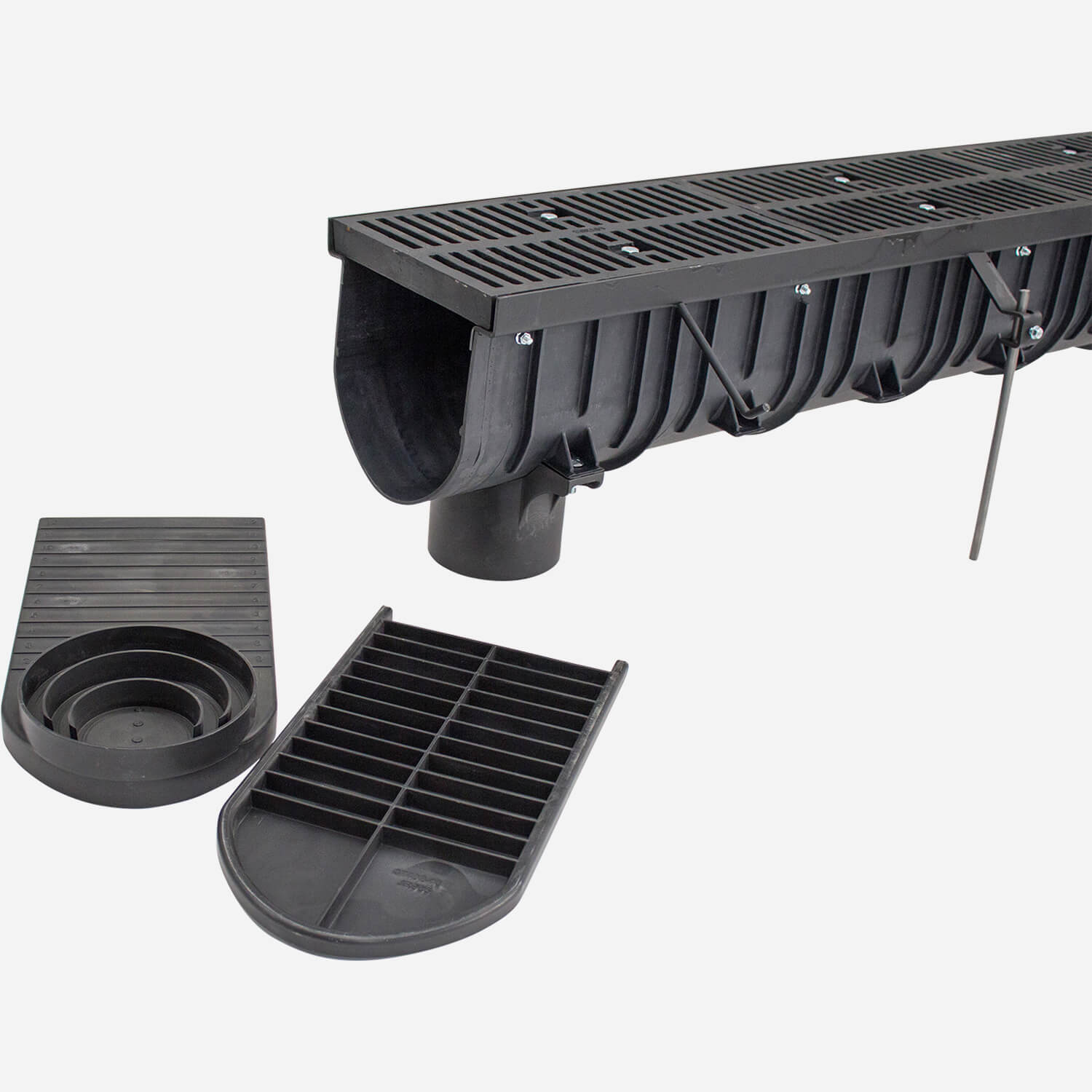

    • End outlets and end caps available

Easy Installation:

The 9’10" length of the channels and built-in rebar anchors make installation fast and simple. Grates are not required during the pour and alignment clips keep your installation straight.

Extra Heavy Duty:

Zip Trench has four grate choices with Class C and E load rating options. The polypropylene material is break-resistant, impermeable, and offers more chemical resistance than polyethylene used by competitors. It can also handle temperatures up to 180 degrees F.

Flexible System:

With 16 channels (12 sloping and 4 neutral) running from a depth of 7-9/16 “- 22-9/16”, Zip Trench allows for unparalleled flexibility with channels that can be run as long as needed.

Less Maintenance:

Zip Trench’s deep rounded base keeps water moving at optimal efficiency. The faster movement of water keeps debris moving and reduces the frequency of servicing.

Product Function:

Used in all surface drainage applications. May be assembled in any length utilizing self aligning channel ends. This reduces installation times and cost, providing an engineered, sloped solution for drainage requirements.

Regularly Furnished:

12 9/16" (319) wide, 3 meters (9.84') long,100% Polypropylene Channel with UV Inhibitors and Coated Steel Frame. Channels connect with 2" Overlap Joint. Design has a Built In Slope of 1.07% with Radiused Bottom. Supplied with Secured Grate per Specification.

Product Function:

Requires Fewer Joint Connections, Light-weight, Arrives Pre-assembled

Do you have a complicated project that requires connections at different angles and varying lengths? Let us help you design your entire trench system for maximum efficiency and save you time by pre-cutting each section before packing it up and shipping everything to your job site.

Labor Saving Feature:
  • Fast, long, pre-assembled runs: 9’-10” (3 meter) long channels

Product Details
  • Benefit:  Labor Saving
Related Figure Numbers
{{ promotion.promotionTypeName }}

{{ product.promotionCatchPhrase }}

Model Number: {{ product.modelNumber }}

{{ product.productName }}

View on {{ product.siteDisplayName }}
NameDescriptionFile Size
Specifications US Govt ComplianceItems complying with U.S. government specifications34 KBDownload
Trench Drain Chemical Resistance Guidelines (pdf)Trench Drain Chemical Resistance Guidelines (pdf)154 KBDownload
NameDescriptionFile Size
Trench Drain Chemical Resistance Guidelines (pdf)Trench Drain Chemical Resistance Guidelines (pdf)154 KBView
Technical Install Guide for 9940/9960 ZIP Trench™Technical Install Guide for 9940/9960 ZIP Trench1202 KBView

Optional Materials

  • Galvanized Steel
  • Type 304 Stainless Steel
