Get it Done Fast


Smith’s Contractor Labor Saving products are designed with the installer in mind. These products save time, require less manpower, and make the contractor’s job easier.

"We use the Smith products because they are applicable in so many different situations."

Tom Stone,
President of Braconier Mechanical & Plumbing Services


Download Contractor Labor Saving Brochure

Contractor Labor Saving Product Categories

Click on product categories below to learn more.

Quarterback

Quarterback Water Clostet Support

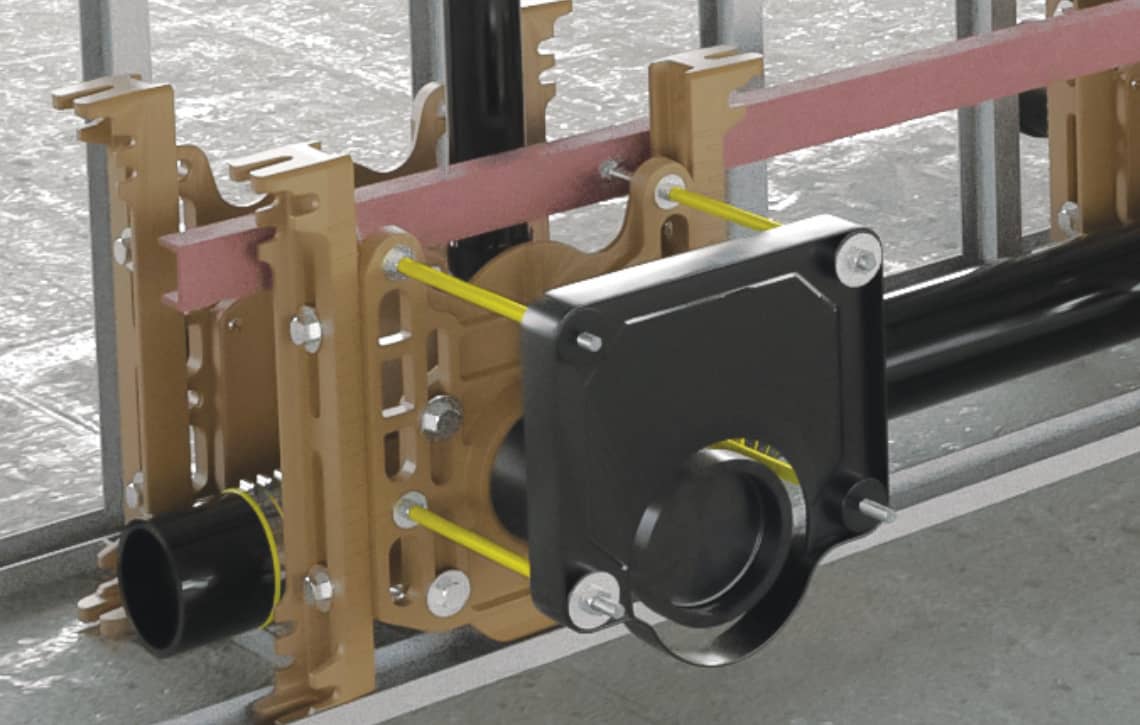

Quarterback Water Closet Support

  • Markings in 1⁄2” increments
  • M58 Faceplate with “O” Ring Seal
    • – Adjustable ABS nipple with integral removable test cap and integral molded coupling
    • – 10 inch-long nipple covers various installations
    • – Enhanced sealing with an “O” ring at the faceplate
  • One anchor per leg allows faster and easier prefabrication or installation
  • M54 Side Mounted Leg:
    • – Increased load bearing capability
    • – Faster rough-in for the installing contractor
    • – Three anchor points for secure installation
    • – Smaller chase space
0710 Labor Saver Fixture Support

Pro Tip

The legs on this support provide numerous options to secure and transport a battery and/or mount or affix the supply line for the flush valve.

View Product Page


Labor Saver Header

Labor Savor® Fixture Support

0710 Labor Saver Fixture Support

  • Ox Bow Design Series for added rigidity and stability
  • Easy front adjustment after wall is in place.
  • Reduced installation space fits narrow wall and metal stud configuration Narrow 3” footprint makes tight spaces easier to work within
0710 Labor Saver Fixture Support

Pro Tip

The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.

View Product Page

Siphonic

Siphonic Roof Drain

Siphonic Roof Drain

  • Full-bore flow within the piping enables pipe diameter to be reduced.
  • Smaller pipe diameters allow maximum use of open space and reduce material costs
siphonic drain tip

Pro Tip

The siphonic drain is just one component in a siphonic drainage system. These systems should always have the approval of a plumbing engineer, licensed in the locale where the installation is to occur.

View Product Page


Carousel

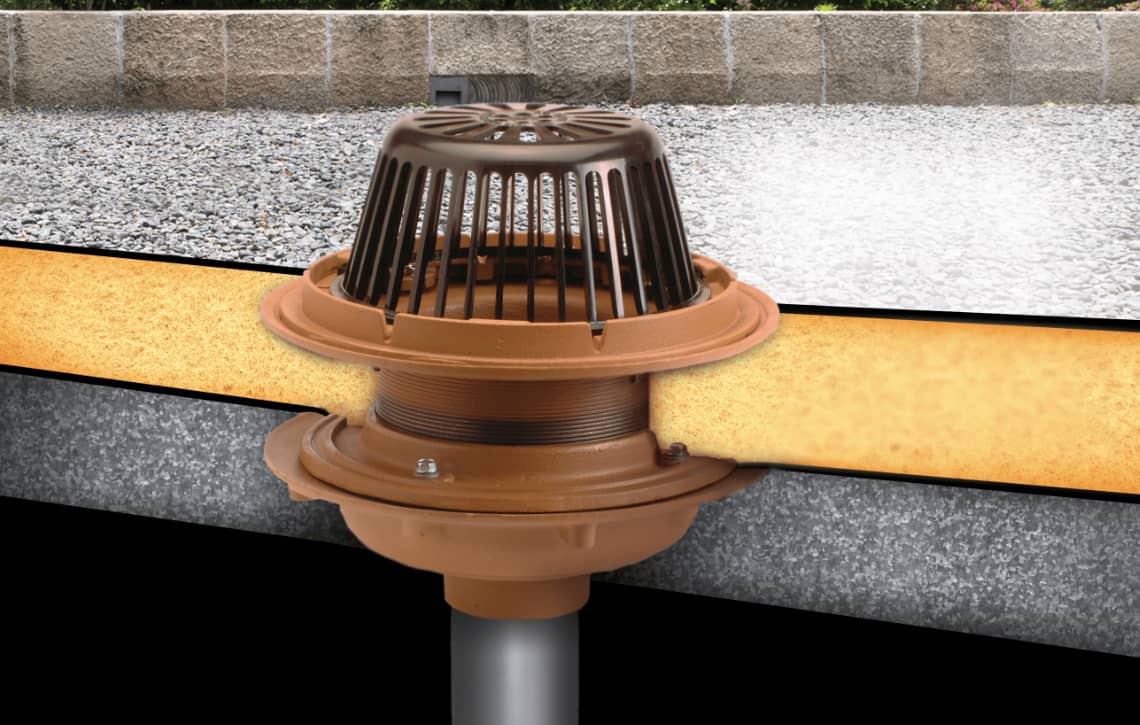

Adjustable Roof Drain

1015 Carousel Roof Drain


  • Large, low profile dome for quick drainage and protection against debris
  • Combined flashing clamp and gravel stop
  • Wide clamping surface to hold flashing and roofing materials
  • Adjustable extension for different insulation thicknesses
  • Reversible collar allows for two extension ranges:
    • – Low Position – MIN 1 1⁄4”; MAX 2 1⁄2”
    • – High Position – MIN 2 1⁄4”; MAX 4”
Carousel tip

Pro Tip

Every bit of savings counts on a big job. When you choose an adjustable roof drain you eliminate the need to order multiple extensions in varying heights. Contractors appreciate the fact that this roof drain can accommodate the inevitable inconsistencies in roof insulation thickness. Simply spin the adjustable extension to fit insulation from 1 1/4 inch to 4 inches of thickness.

View Product Page


Overflow Drain Deck Plate

Roof Drain and Overflow Drain with Deck Plate

1800 ROOF DRAIN

  • Installs from the top of the roof deck
  • Recesses drains slightly to avoid water build-up at the base
  • Requires only one rectangular roof penetration
Roof Drain and Overflow Drain

Pro Tip

This combination roof drain and overflow drain is a great labor saver on flat roofs. The attached dual drain deck plate enables both drains to be secured to the roof deck from the top of the roof, eliminates the need for an underdeck clamp, and requires only one rectangular roof penetration—all helping to reduce installation time. Your customers will love it because the dual deck plate recesses the drains just enough to prevent water build-up at the base of the drains prolonging the life of their roof.

View Product Page


Overflow Drain Deck Plate

Low Profile Dome Roof Drain With Deck Plate

1010 RDP LOW PROFILE DOME ROOF DRAIN

  • Speed. Installs using fasteners from the top of roof only. No under deck clamp required.
  • Reliability. The drain is installed in a recess to prevent a water dam.
  • Simplicity. Roof penetrations are square, not round, saving time
Roof_Drain Overflow DrainDeck Plate

Pro Tip

Time, budget, and safety are important considerations in every job. Smith’s Roof Drain and Overflow Drain with Deck Plate can help with all three.

The drain eliminates the need for underdeck clamps and is mounted directly to the top deck, so it can be installed by a single person. Because you no longer need a second installer on the floor below, you remove potential safety hazards associated with climbing and save on installation time.

Saving time and labor leads to monetary savings that will help your budget.

View Product Page


Top Mount Drain Elevator

Top Mount Drain Elevator

1010DEK DRAIN ELEVATOR

  • Top mount reversible collar eliminates the need for a conventional extension, underdeck clamp and sump receiver
  • Drain Elevator is outside of the waterway, eliminating leaks
  • Top adjustment at deck for an easier and more secure installation
  • The cast thread design provides for a quick adjustment—up or down with just one turn
  • Adjustable to compensate for insulation thickness. Overall adjustment height of 6-3/4”
Roof Drain Overflow DrainDeck Plate

Pro Tip

Eliminate any risk of leakage at your gasket seals by taking those seals out of the equation. This top mounted drain elevator, as the name suggests, lifts the drain out of the waterway. The only seal required is where the roof waterproofing material is flashed into the drain.

View Product Page


Downspout

Downspout Nozzle

1775 Downspout Nozzle

Easy Installation, Low Maintenance

Typical downspout nozzles feature a cow’s tongue design that leaves them vulnerable to nesting birds and rodents. This uniquely designed downspout cover features a preassembled design for easy installation. The cover keeps rodents and birds from nesting inside. It allows the water to flow while preventing tampering with the over- flow roof drain concealed leader. These features re- duce the maintenance required to keep the downspout nozzle functional.

Downspout Nozzle tip

Pro Tip

Building owners do not overlook even the smallest details when it comes to aesthetics. This style of downspout cover can be a better fit for a building’s motif than the more traditional downspout nozzle.

View Product Page

TWIS-TO-FLOOR_ 4000 SERIES CLEANOUTS

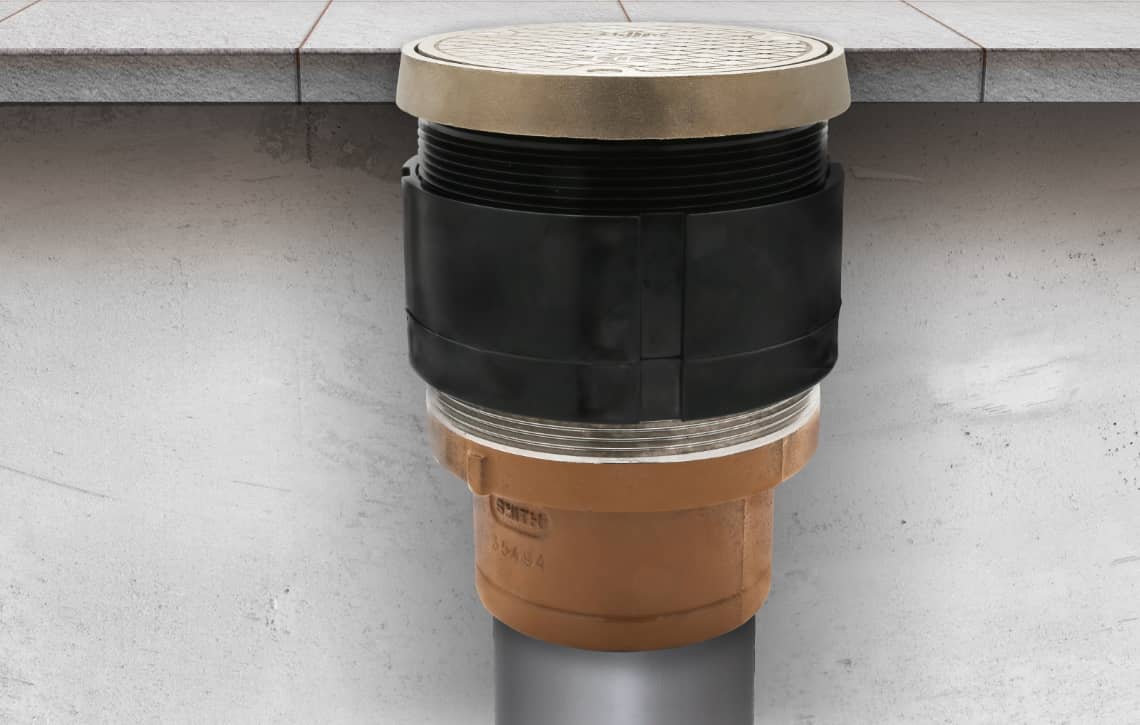

Twist-To Floor® 4000 Series Cleanouts

product 4020

  • Unique top assembly allows for interchangeability of scoriated, tile or terrazzo covers
  • One size top assembly for 2-4” outlet ferrules
  • Top frame stays in place when cover is removed
Twis-to-Floor cleanouts tip

Pro Tip

Never under estimate the importance of aesthetics to your client. Our cleanouts allow you to exchange our factory covers with scoriated tile or terrazzo covers.

Concrete pours are not a precise science. Once the surface is dry, you often find your cleanouts need adjusting—a fraction lower here, a fraction higher over there. Our Twis-to-Floor cleanouts allow you to make that adjustment with a simple twist.

View Product Page


TWIS-TO-FLOOR_ 4000 SERIES CLEANOUTS

Formit® Drain Installation Device

1015 FormIt®

  • Permits pre-assembly of the drain to the decking without connected piping below the forms.
  • After concrete has set and the forms have been stripped away, FormIt® allows easy access for final connection of the waste line piping
  • Drain elevation can be easily adjusted and leveled to meet finished floor height
  • Four anchor holes secure FormIt to the deck or sub-floor, providing stability during construction and concrete pour
Twis-to-Floor cleanouts tip

Pro Tip

We designed this labor saving floor drain stabilizer assembly with multi- story building construction in mind. Multiple floors means multiple drains and an increased risk of some of those drains falling over or being knocked out of position prior to and during the pour.

Simply mount this assembly directly onto the “fly-away” form and you eliminate the need to spend time and manpower going from floor to floor resetting misaligned drains.

View Product Page


PROTECTIVE FLOOR DRAIN TOP COVER

Protective Floor Drain Top Cover

Protective Cover

  • Each protective cover is clearly marked with the product number and the Smith logo
  • In addition to the top cover, all strainer heads shipped individually are shrink wrapped in plastic before leaving the factory
  • The cover protects the drain top during the pour, preserving the finish
Protective Floor Drain Top Cover tip

Pro Tip

Are you tired of taping up all your strainer heads before a pour? Or even worse, the time it takes to then remove all that tape? Not only will this protective cover eliminate the need to tape, but it will also protect the finish during shipping, warehousing, and on the job site.

The cover protects the drain top during shipping, warehousing and on the job site.

View Product Page


QUAD CLOSE STINK STOPPER TRAP SEAL DEVICE

Quad Close® "Stink Stopper" Trap Seal Device

Quad Close

  • Easy to Install—Insert the device in the drain outlet until it is flush with the bottom of the drain or top of the outlet piping. For strainers, insert the trap seal as low as possible into the throat of the strainer.
  • A value for the purchaser—Designed to handle a wide range of pipe and internal drain body diameters. Can be retrofitted into existing drains
Quad Close Trap Seal

Pro Tip

Instead of waiting for the inevitable call from a building owner complaining of sewer gas odor, it is better to be proactive and install the “Stink Stopper” in any drain that may be used infrequently.

An often overlooked application for a trap seal device is in institutions that close for the summer or long holidays. During these times, drains that usually don’t pose a problem will dry up and students and staff are greeted upon their return by a noxious odor.

View Product Page

HYDRANT BOX AND WALL HYDRANT

6" Diamater Cored Hole Stainless Steel Hydrant Box and Wall Hydrant

Cored Hole Boxed Hydrant

  • Frame, cover & housing are made of 16 gauge, type 304 stainless steel
  • 3/4” inlet and hose connection
  • Easy installation in core drilled concrete wall. Fits 6” diameter cored drill hole
  • Locking hinged cover opens 180°
  • Flush installation to eliminate catch points
  • Quarter-turn full-flow feature
  • Regularly furnished with the 5609QT hydrant
    • – Mild climate or non-freeze hydrant with integral vacuum breaker and vandal-resistant cap
Twis-to-Floor cleanouts tip

Pro Tip

Save the drilling until after the building has been erected and the plumbing is in place. As you know, even approved final drawings have a way of changing at the last minute.
Specifically designed with tilt-up concrete buildings in mind, this hydrant box will cut your wall hydrant installation labor time by at least 75 percent. Once your walls are in place, you simply core drill a six-inch hole in the wall and slide the hydrant box right in.

View Product Page


TWIS-TO-FLOOR_ 4000 SERIES CLEANOUTS

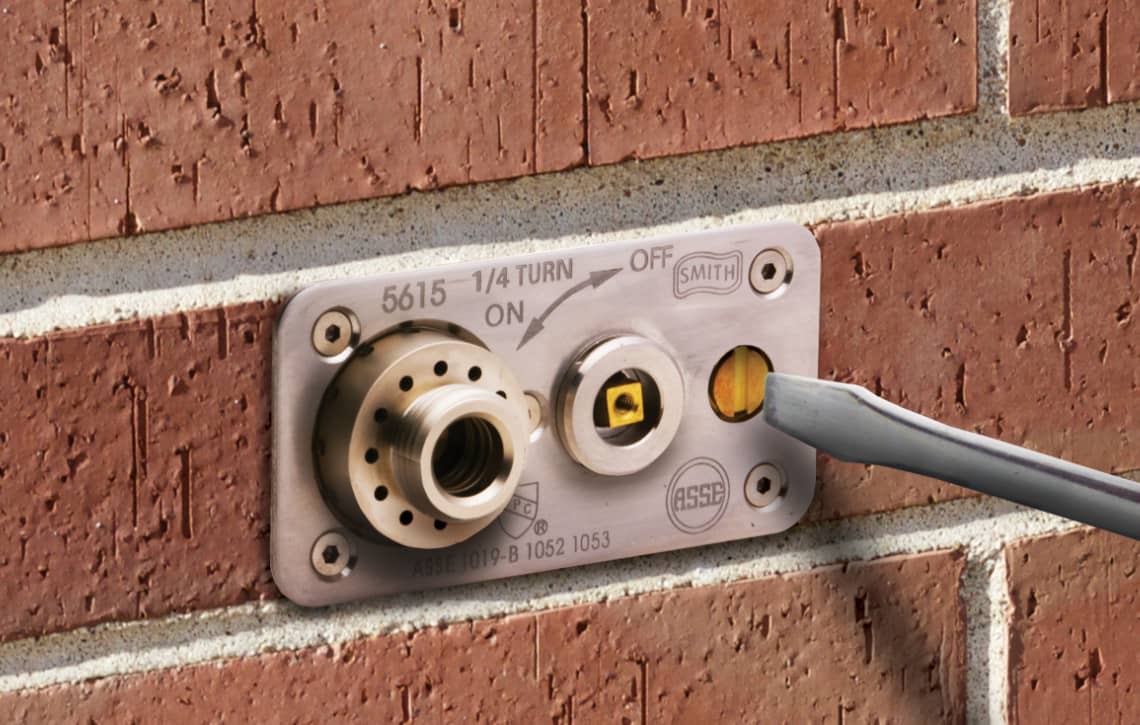

Guardian Duel Check® Hydrant

5515


  • Flush installation to eliminate catch points .
  • Self draining non-freeze hydrant with dual check valve & integral vacuum breaker -3/4” inlet and hose connection
  • Quarter-turn full-flow feature
  • Drop down locking hinged cover opens 180° to allow access without damaging cover
  • 16 gauge type 304 stainless steel frame & cover with 20 gauge housing and stainless steel face
Guardian Dual Check hydrant tip

Pro Tip

The Guardian Dual Check hydrant, with the box, is the go-to choice for contractors working on brick façade buildings. This ergonomic hydrant is designed to fit into the space of one standard brick for easy installation. That adds up to significant time savings because you eliminate extra cuts and mortar repair.

View Product Page


TWIS-TO-FLOOR_ 4000 SERIES CLEANOUTS

Guardian Duel Check® Hydrant

5515


  • Self draining, non-freeze hydrant with dual check valve and integral vacuum breaker - 3/4” (19) inlet and hose connection
  • Quarter-turn full-flow feature
  • Service shut-off valve for easy maintenance
  • Bronze hydrant with stainless steel face
  • Flush installation eliminates catch points
  • Drop down locking hinged cover opens 180°
  • 16 gauge stainless steel frame cover & 20 gauge housing, type 304 stainless
Twis-to-Floor cleanouts tip

Pro Tip

No more shutting off water service to the entire building when performing routine maintenance on hydrants. The Guardian Plus has its own shutoff valve meaning the water will continue to flow everywhere except at the hydrant.

View Product Page

TWIS-TO-FLOOR_ 4000 SERIES CLEANOUTS

Zip Trench

Zip-Trench  1040
9940 6” Wide Zip Trench™ System Features
  • Fast, long, pre-assembled runs shipped from factory: 9’-10” (3 meter) long channels
  • 16 Channels - 12 sloping channels and 4 neutral channels from a depth of 4.81” to 13.81”
  • Lighter weight and faster to install than polymer concrete
  • Better chemical resistance than polyethylene
  • Temperature rating of 180 degrees vs 140 degrees F with polyethylene
  • Load Class A–E
  • Built-in slope .6%

9960 12” Wide Zip Trench™ System Features
  • Fast, long, pre-assembled runs: 9’-10” (3 meter) long channels
  • 16 channels–12 sloping and 4 neutral from a depth of 7-9/16 “- 22-9/16”
  • Better chemical resistance than polyethylene
  • Temperature rating of 180 degrees vs 140 degrees F with polyethylene
  • Built-in slope 1.07%
  • 4 grate types:
    • – Class C–Stainless steel perforated and mesh - Galvanized steel perforated and mesh
    • – Class E–Ductile Iron ADA - Ductile Iron Slotted
Trench with Drains and Frame

Pro Tip

Do you have a complicated project that requires connections at different angles and varying lengths? Let us help you design your entire trench system for maximum efficiency and save you time by pre-cutting each section before packing it up and shipping everything to your job site.

View Product Page
