Labor Saving & Prefabricated Hydrants

No-Fuss Install & Maintenance! No more shutting off water service to the entire building when performing routine maintenance on hydrants. The Guardian Plus Dual Check^® Hydrant has its own shutoff valve, meaning the water will continue to flow everywhere except at the hydrant.

Enhanced Prefabrication

PRO TIP - The Guardian Plus Dual Check^® Hydrant allows water to be shut off at the hydrant, preventing building-wide service disruptions. Sized to one standard brick (or with a 6” circular housing for core drilling in concrete), installation is as simple as a slide-in.

Want to cut labor time by 75%?
View Value Added Hydrants Brochure today!

Save Money

Pre-Assembly

Quick Installation

Easy Maintenance

Designed for Contractors

Enhanced Prefabrication Capabilities

For tilt-up concrete buildings, select the Stainless Steel Cored Hole Drill Hydrant Box to house the Guardian Plus Dual Check Hydrant. Once the building is erected and plumbed, simply drill a 6" hole in the wall and slide the hydrant and box right in.

Learn how to save time and money
View Labor Saving Products Brochure today!

Prefabrication Saves

• Convenient dimensions for brick or concrete
• Install more hydrants more quickly
• Stay on schedule and on budget

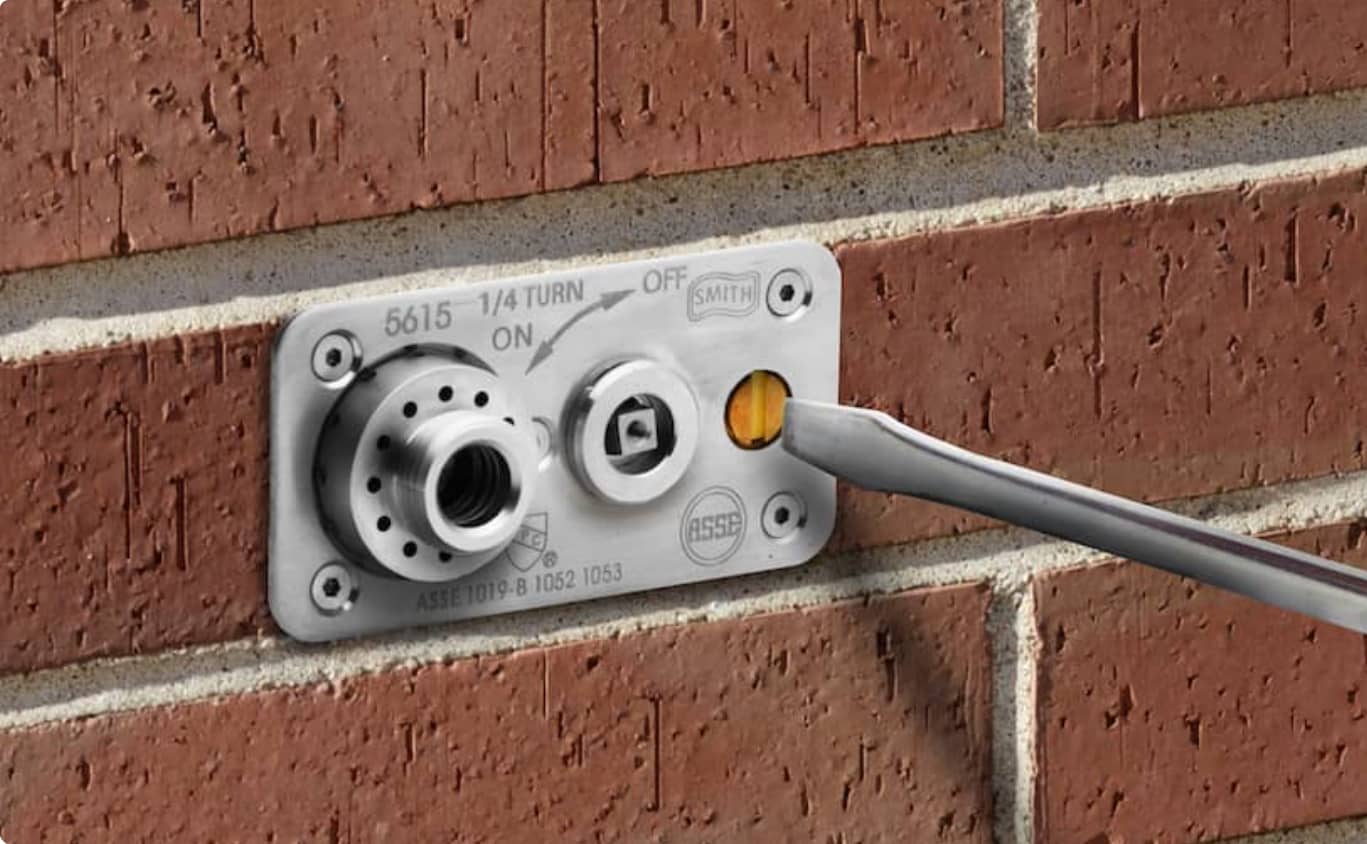

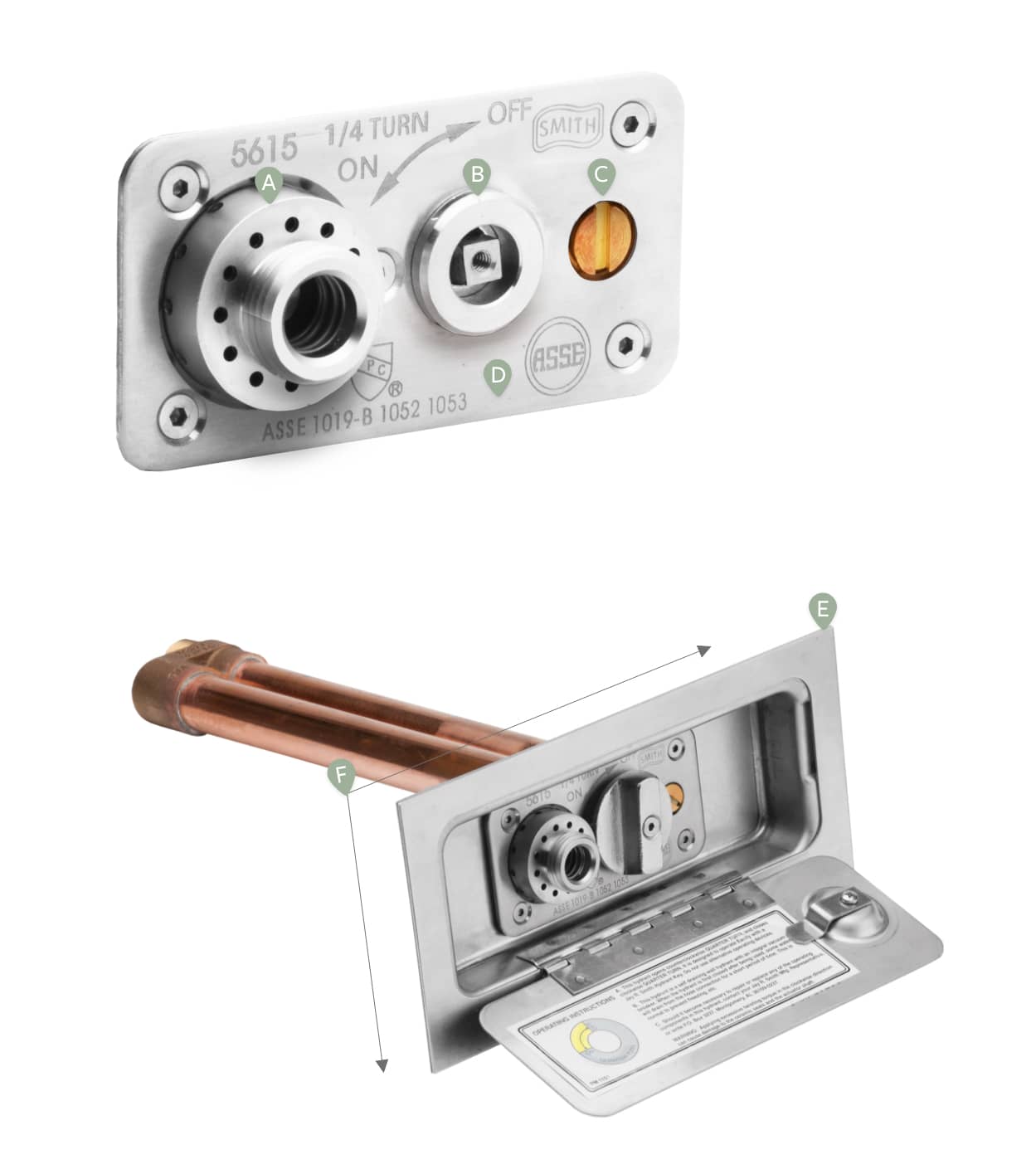

Guardian Plus Dual Check Hydrant & Box Hydrant

The Guardian Plus Dual Check Hydrant stands out from the crowd with its integrated water service shut-off valve. This handy feature allows maintenance personnel to shut off water right at the hydrant without denying service to the rest of the building. This eliminates the need to schedule disruptive, large-scale water shut-offs. Sized to one standard brick, the Guardian Plus Dual Check Hydrant (Figure No. 5615) is quick and easy to install. For extra protection, select the tamper-proof, locking enclosure to prevent unauthorized access (Figure No. 5515).

Guardian Plus Dual Check Features

1. Self-draining, non-freeze hydrant with dual check valve and integral
   vacuum breaker
2. Quarter-turn full-flow feature
3. Integral water service shut-off valve for easy maintenance
4. Bronze hydrant with stainless steel face
5. Flush installation eliminates catch points
6. Sized to one standard brick

Available with or without tamper-proof, locking enclosure

View Guardian Plus Dual Check Hydrant (Figure No. 5615)
View Guardian Plus Dual Check Hydrant wtih Stainless Steel, Tamper-Proof Box (Figure No. 5515)

Commercial Hydrant Product Line Overview
See all of the benefits for yourself in this short video!

Back to Top

Stainless Steel Cored Hole Drill Hydrant Box

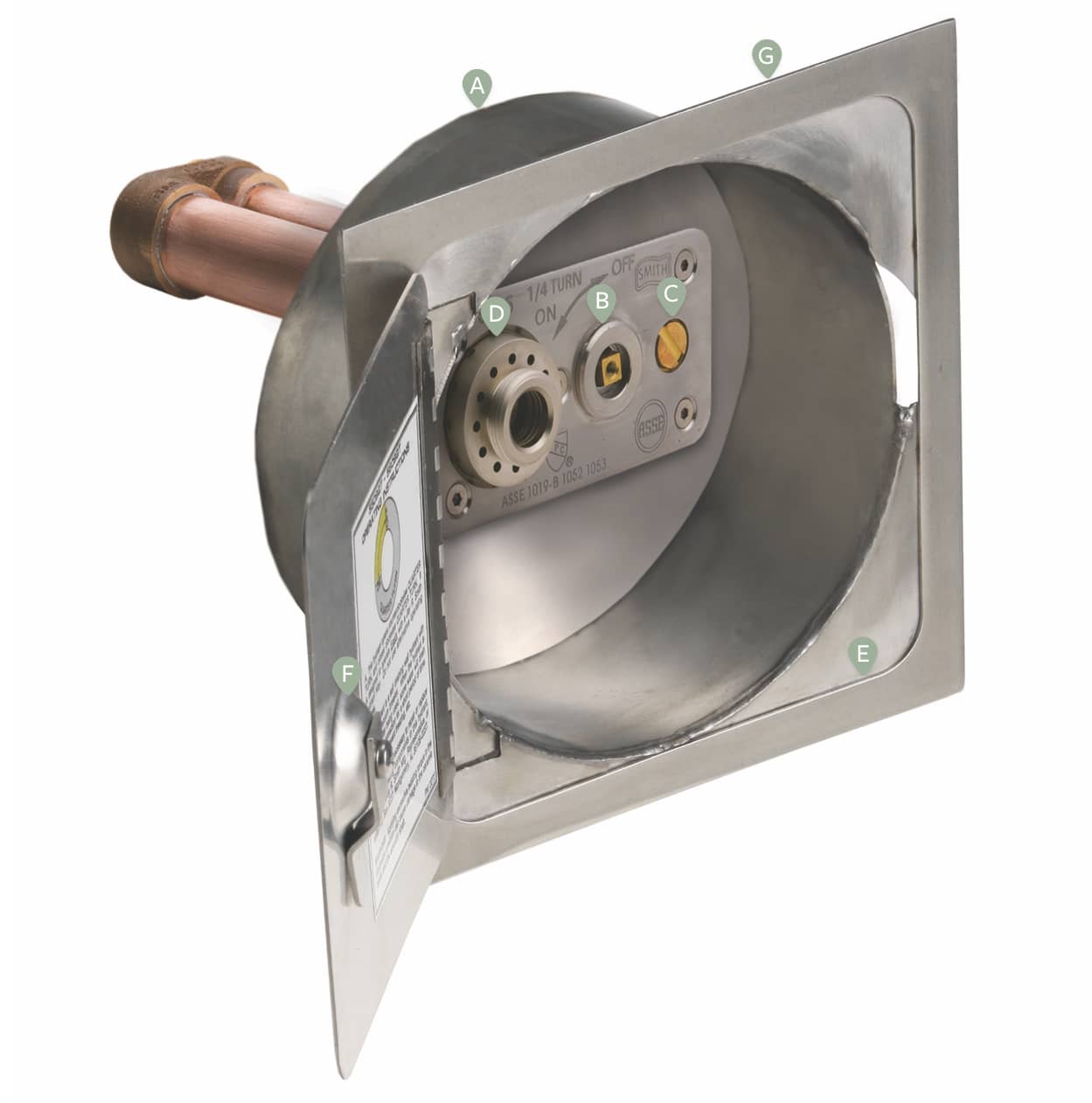

PRO TIP - Save the drilling until after the building has been erected and the plumbing is in place! As you know, even approved final drawings have a way of changing at the last minute. Specifically designed with tilt-up concrete buildings in mind, this hydrant box will cut your wall hydrant installation labor time by at least 75 percent. Once your walls are in place, you simply core drill a six-inch hole in the wall and slide the hydrant box right in. Shown below: The Guardian Plus Dual Check Hydrant Box for 6” Cored Hole in Concrete Wall (Figure No. 5515-R).

Cored Hole Drill Hydrant Box Features

1. Fits 6” diameter cored drill hole
2. Quarter-turn, full-flow feature
3. Integral water service shut-off valve for easy maintenance
4. Self-draining, non-freeze hydrant with dual check valve and integral
   vacuum breaker
5. Frame, cover & housing are made of 16 gauge, type 304 stainless steel
6. 3/4” inlet and hose connection
7. Locking hinged cover opens 180º
8. Flush installation eliminates catch points

View Cored Hole Drill Hydrant Box (Figure No. 5515-R)

Wall Hydrant Product Demonstration
Watch this video for a full overview of Jay R. Smith Mfg. Co.® hydrants.

Wall Hydrant Product Demonstration
