6" Wide Polypropylene Trench Drain System - Zip Trench™

Figure Number: 9940

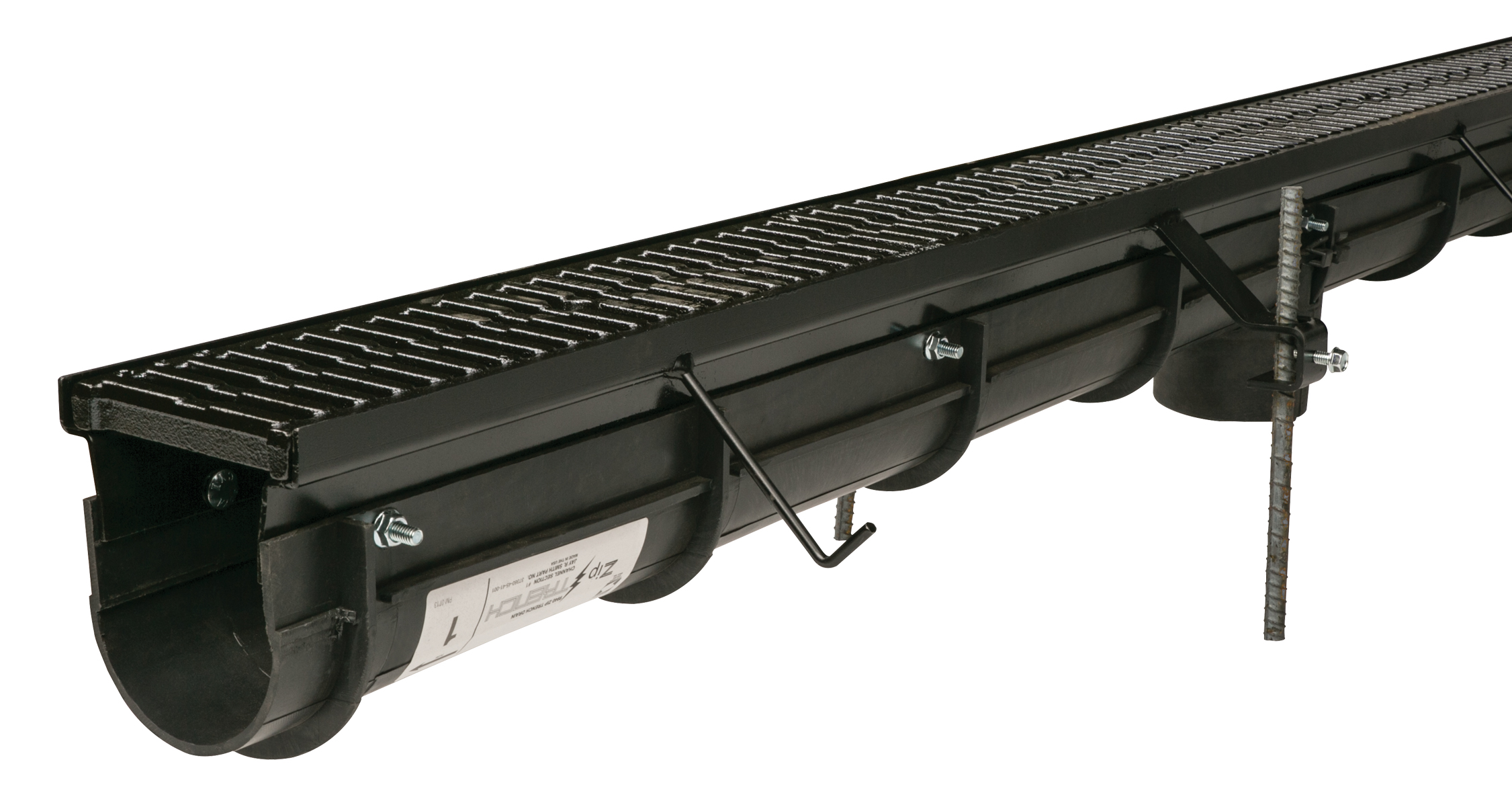

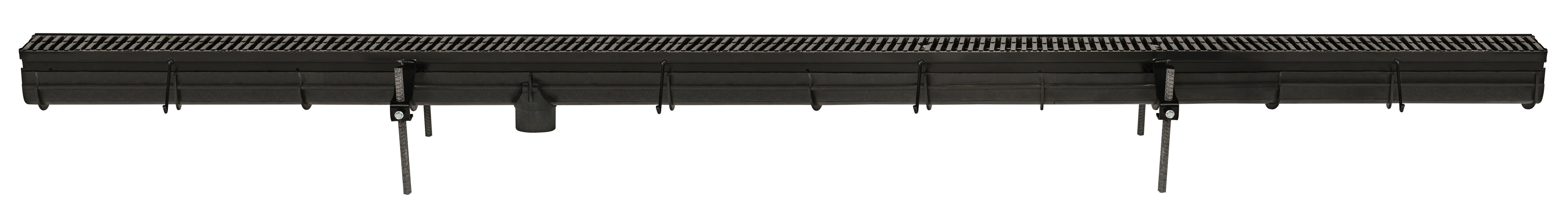

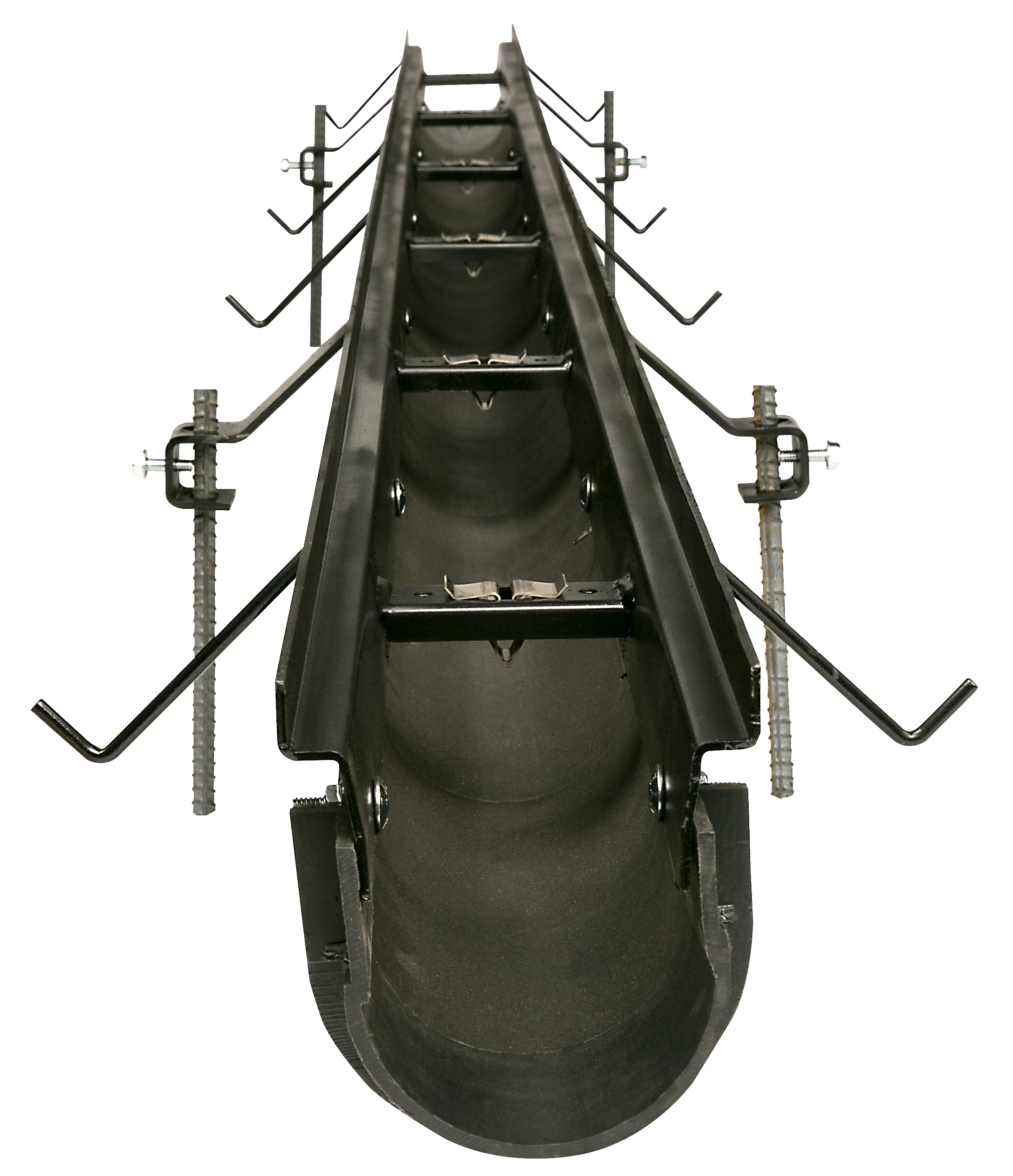

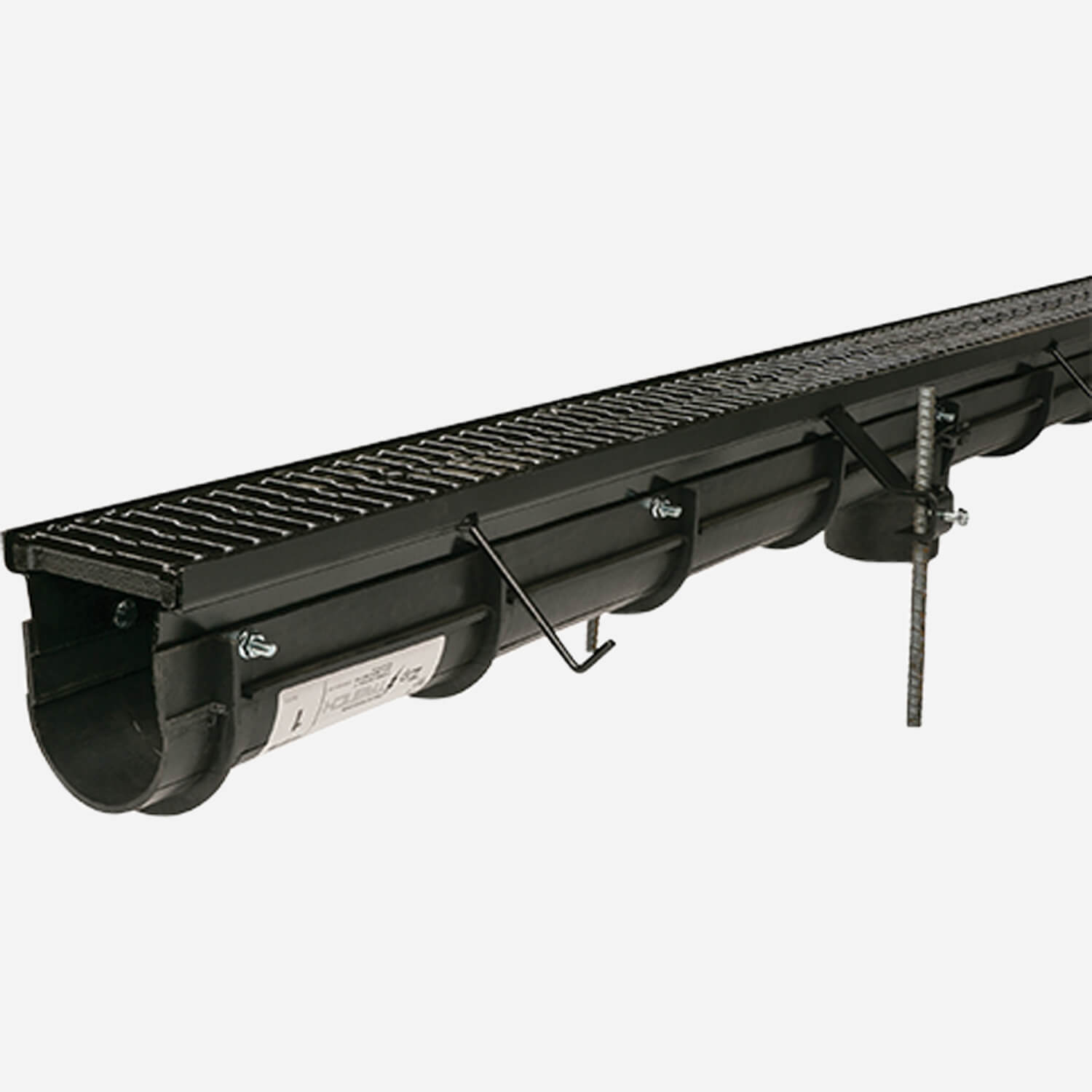

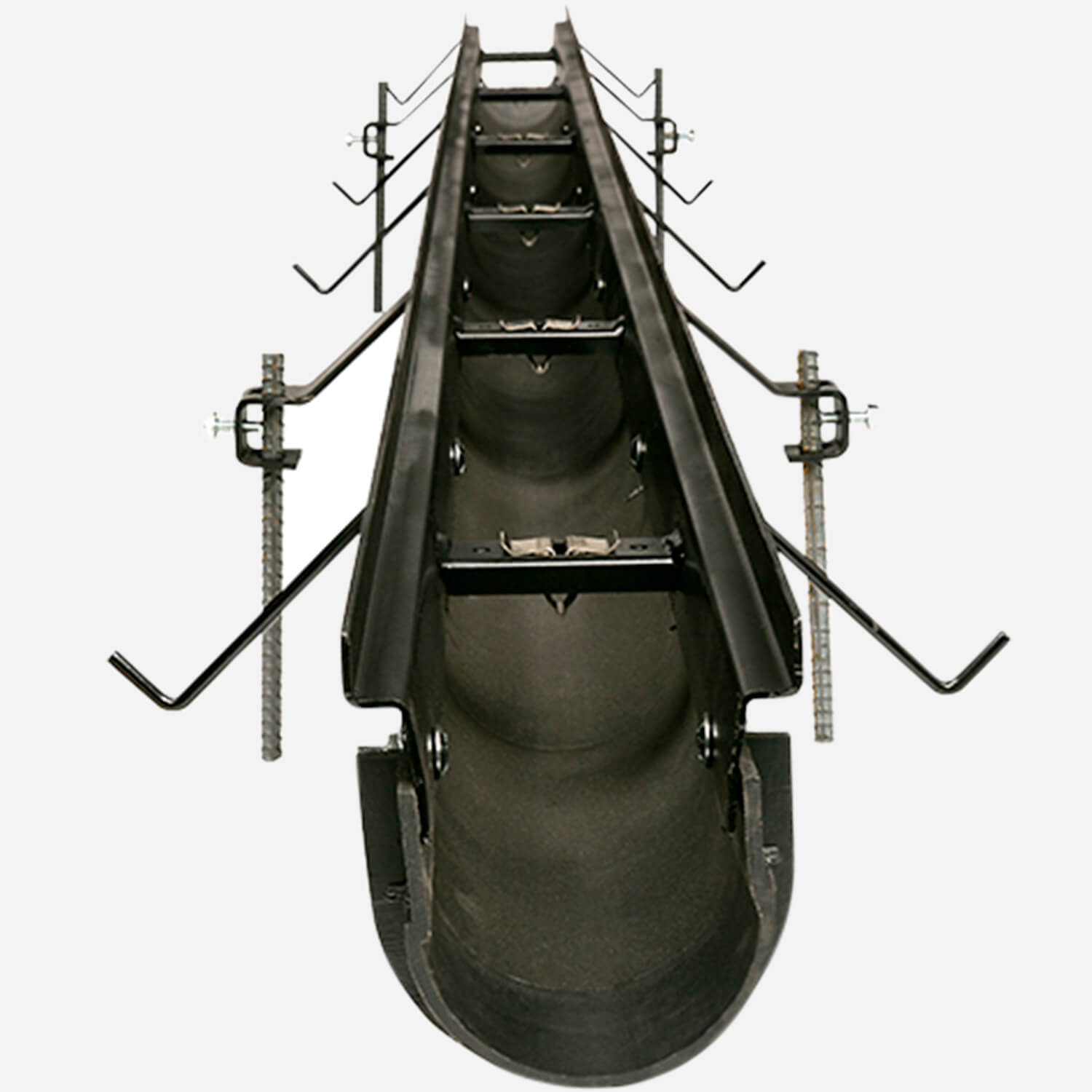

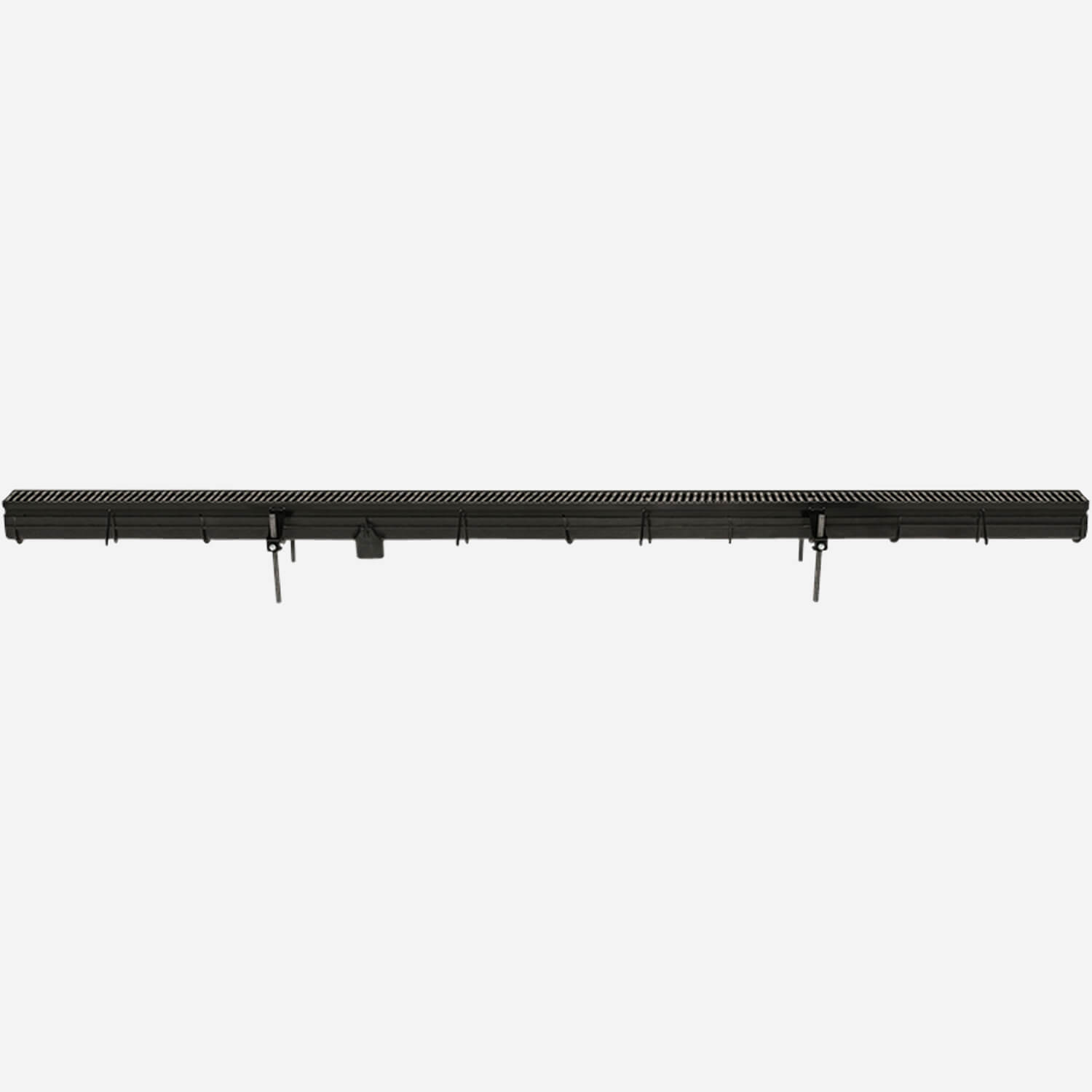

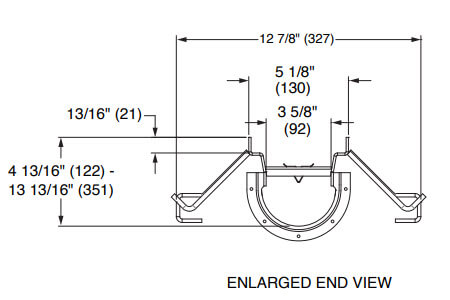

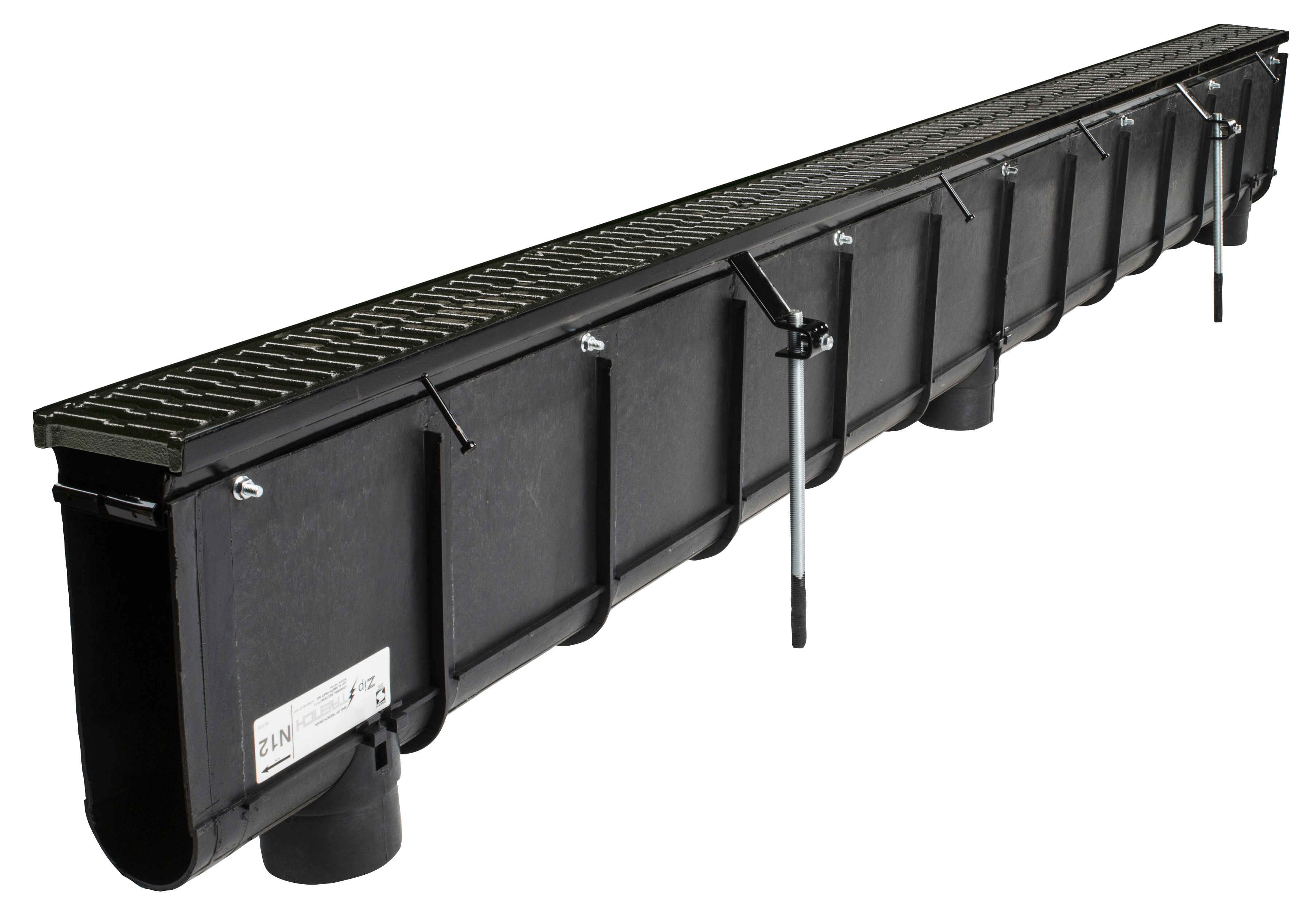

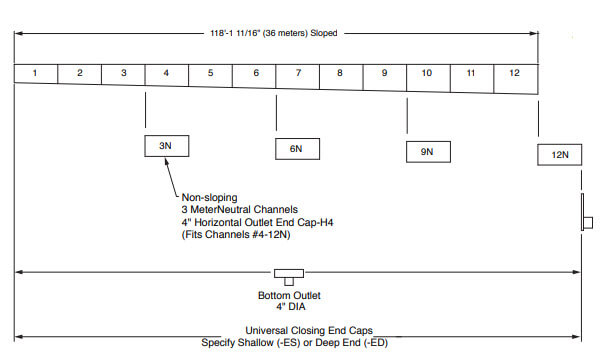

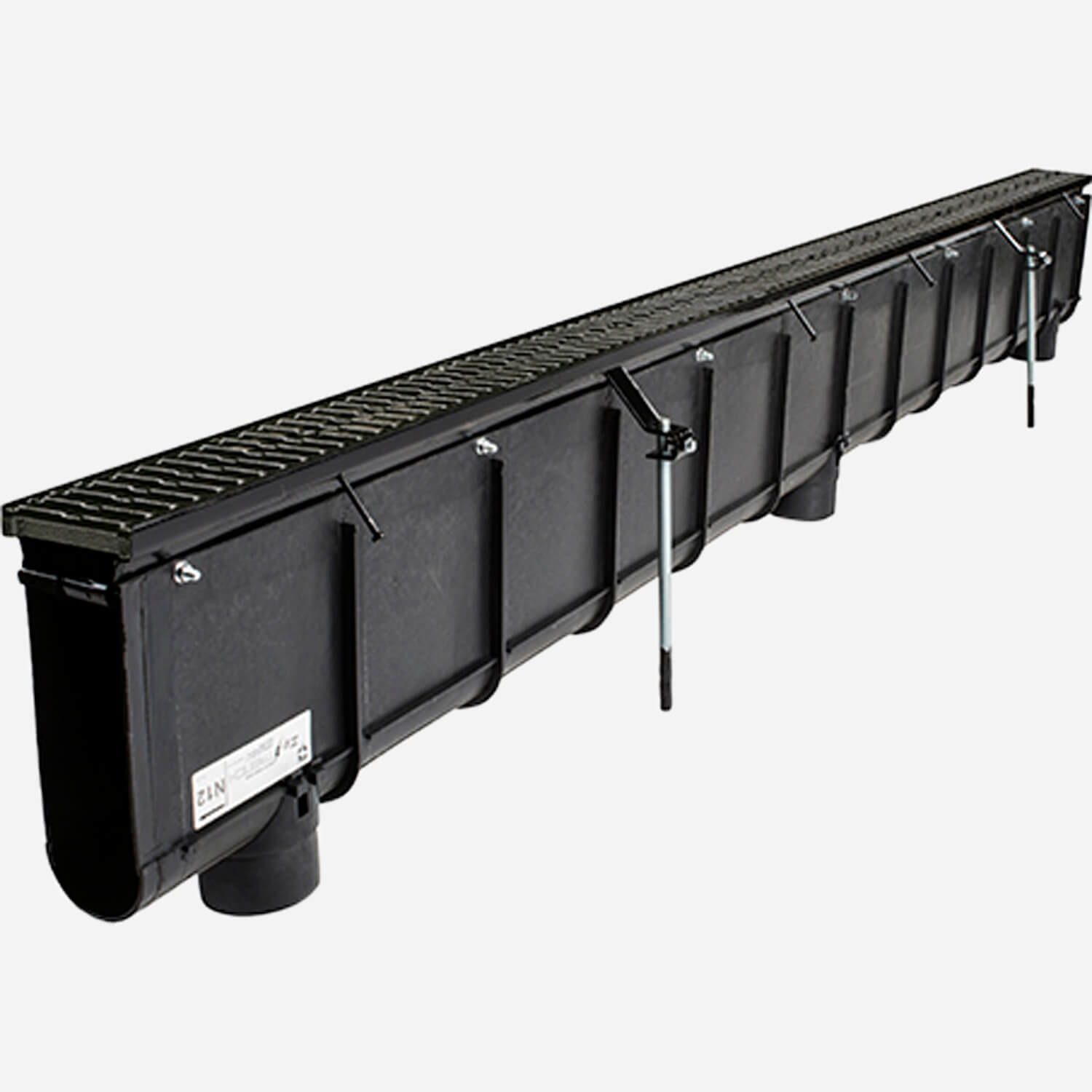

Zip Trench™ is available in a 6 inch (15.24 cm) wide polypropylene trench drain system. It is shipped in pre-assembled 9 ft 10 inches (3 meter) length channels. 12 sloping channels and 4 neutral channels are available varying from 4.81 to 13.81 inches (12.22 to 35.08 cm) depths. Each section has 11 gauge steel frame to mount desired grates.

steel frame

Product Function:

Used in all surface drainage applications. May be assembled in any length utilizing interlocking tongue and groove ends. This reduces installation times and cost, providing an engineered, sloped solution for drainage requirements.

View More on Zip Trench™ Drain Systems

Regularly Furnished:

3 meter (9.84') 100% Polypropylene with UV inhibitors and coated steel frame with channels connect with 1-1/4" overlap joint. Design has a built-in slope of 0.6% with radiused bottom. Supplied with secured grate per specification.

Related Figure Numbers

9870-405-GM - (Load Class C: Heavy Duty Grate) Mesh Galvanized Steel Grate
9870-455-SSHD - (Load Class C: Heavy Duty Grate) Slotted Stainless Steel
9870-410-GP - (Load Class A: Light Duty Grate) Perforated Galvanized Steel
9870-411-GPHD - (Load Class C: Heavy Duty Grate) Perforated galv. steel
9870-420-G - (Load Class A: Light Duty Grate) Slotted Galvanized Steel
9870-425-GHD - (Load Class C: Heavy Duty Grate) Slotted Galvanized Steel
9870-430-SSM - (Load Class C: Heavy Duty Grate) Mesh Stainless Steel
9870-447-SSADA - (Load Class B: Light Duty Grate) Mesh Stainless Steel
9870-450-SS - (Load Class A: Light Duty Grate) Slotted Galvanized Steel
9870-451-SSPA - (Load Class A: Light Duty Grate) Perforated Stainless Steel
9870-461-M - (Load Class E: Extra Heavy Duty Grate) Slotted Ductile Iron
9870-465-SSP - (Load Class C: Heavy Duty Grate) Perforated Stainless Steel
9870-479-MD - (Load Class C: Heavy Duty Grate) MOSAIC Ductile Iron
9870-481-ID - (Load Class C: Heavy Duty Grate) Iron Decorative Ductile Iron
9870-491-HPP - (Load Class A: Light Duty Grate) Slotted Black Polypropylene Grate
9870-492-RC - (Load Class C: Heavy Duty Grate) Slotted Resin Composite
9870-494-PADAB - (Load Class A: Light Duty Grate) ADA longitudinal slotted black polypropylene
9870-494-PADAG - Opt. ADA Longitudinal Slotted Gray (Load Class A: Light Duty Grate)

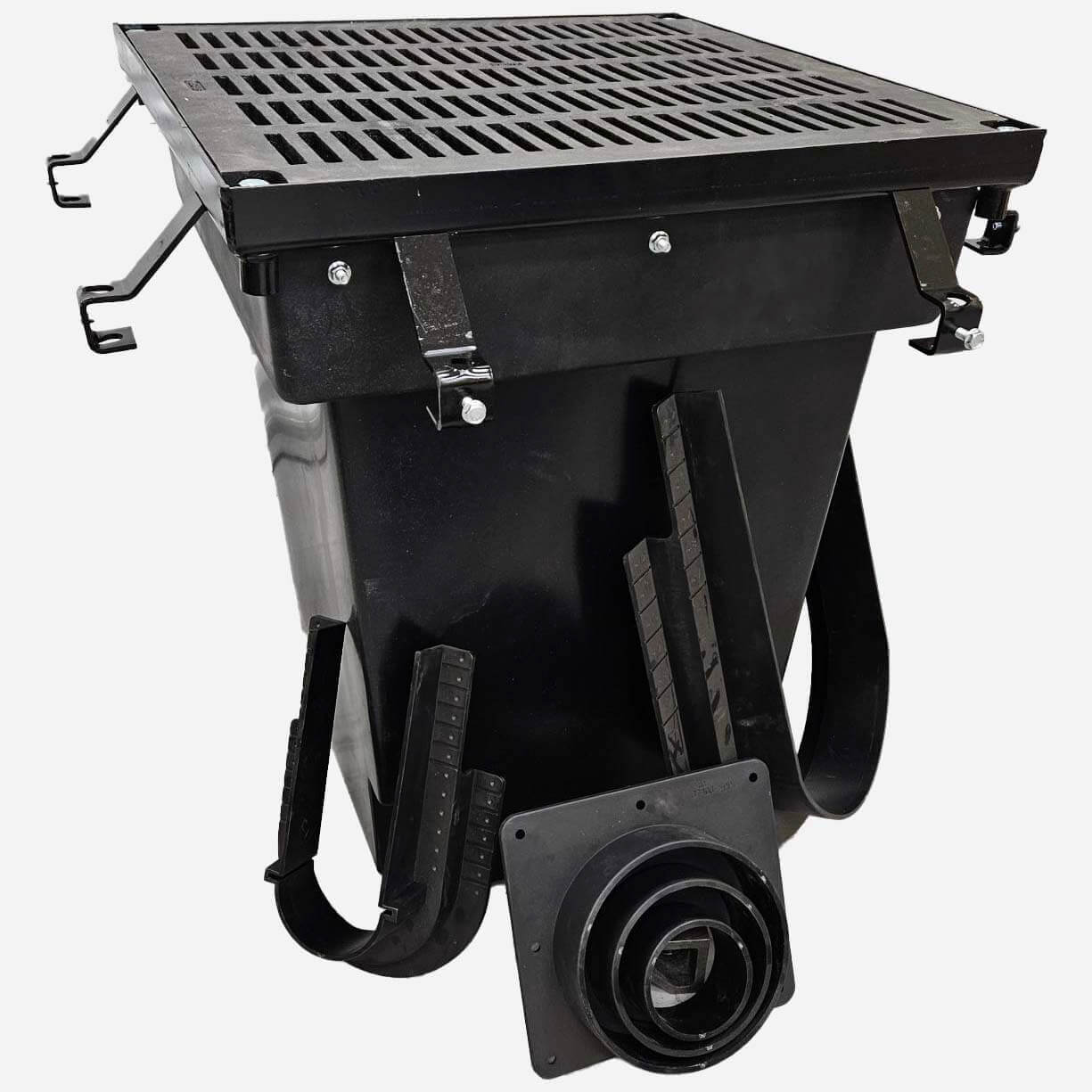

9935 - Catch Basin
