Model 9960CB
2' x 2' Polyethylene Catch Basin - Zip Trench®
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 2 Feet x 2 Feet Polyethylene Catch Basin with Adaptors for 9940 (6 inch) or 9960 (12 inch) Polypropylene Trench Drain System - Zip Trench® [Featured Grates 9960CB-MC | Ductile Iron Slotted Grate Load Class C; 9960CB-ME | Ductile Iron Slotted Grate Load Class E; 9960CB-ADAC | Ductile Iron ADA Grate Load Class C; 9960CB-ADAE | Ductile Iron ADA Grate Load Class E] | 2 MB | ||
| | Smith Trench Drain Polypropylene Trench Drain Brochure [9960, 9940, 9930, 9931, Grates, Catch Basins] Document #L1001737 | 24 MB |
Specifications

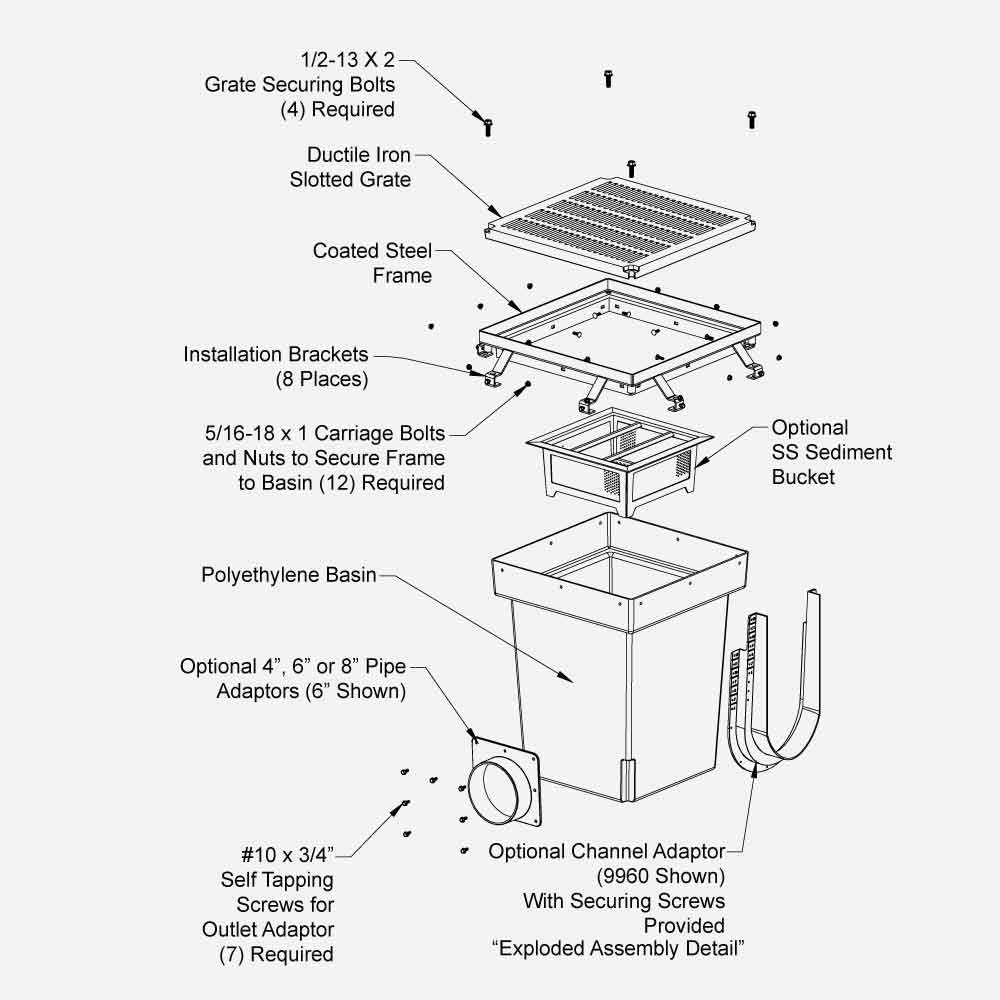

| Variations | Stainless Steel Sediment Bucket -BSS, 9940 Channel/Catch Basin Adaptor, 9960 Channel/Catch Basin Adaptor, 4" Schedule 40 Pipe Adaptor PE-PA4, 6" Schedule 40 Pipe Adaptor PE-PA6, 8" Schedule 40 Pipe Adaptor PE-PA8 |
| Optional Materials | Type 304 Stainless Steel, Cold Spray Galvanized Steel |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 9960CB-ADAC | 25-11/16" Square Iron ADA Grate for Zip Trench® Catch Basin - Load Class C | ||
 | 9960CB-ADAE | 25-11/16" Square Iron ADA Grate for Zip Trench® Catch Basin - Load Class E | ||
 | 9960CB-MC | 25-11/16" Square Iron Grate for Zip Trench® Catch Basin - Load Class C | ||
 | 9960CB-ME | 25-11/16" Square Iron Grate for Zip Trench® Catch Basin - Load Class E |
Models
Typical models are shown below
Shown with Adaptor for
Figure 9960
12-Inch Wide Zip Trench®

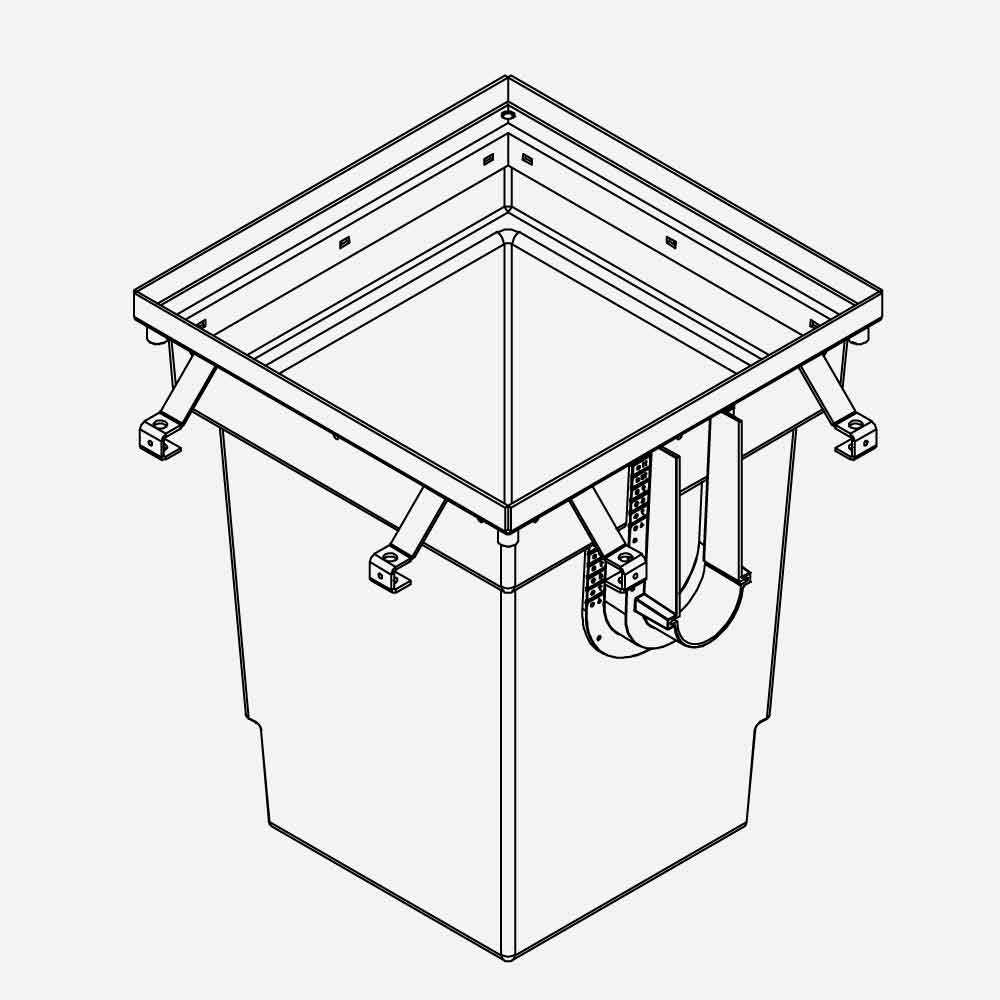

Shown with Adaptor
Figure 9940
6-Inch Wide Zip Trench®
