Model 9960

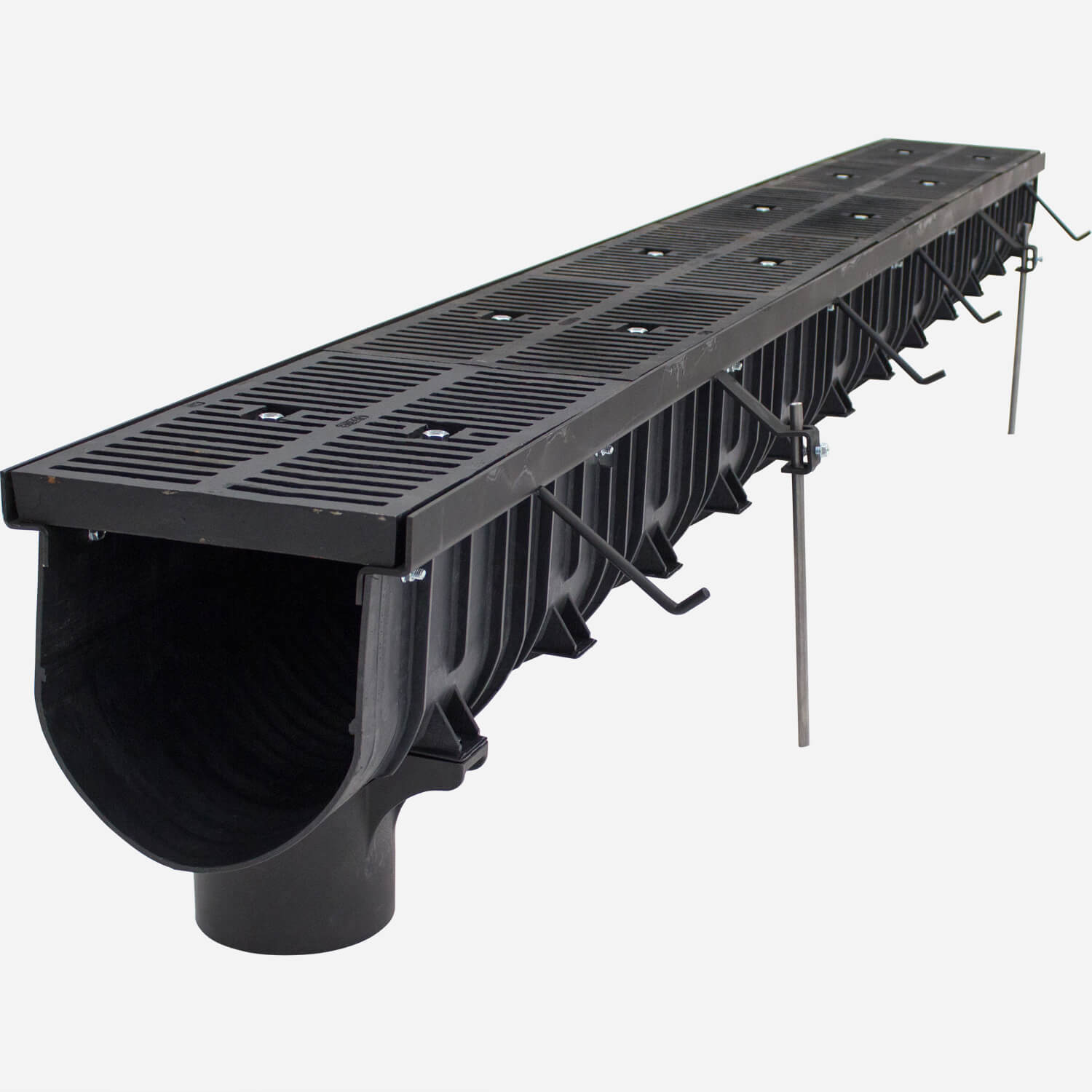

12" Wide Polypropylene Trench Drain System - Zip Trench®
The Jay R. Smith 12" wide polypropylene Zip Trench® will take you from 0-60 feet in just six sections. Designed with the contractor in mind, these prefabricated trench drains offer a less expensive, labor saving alternative to cast-in-place trench drains.
The polypropylene material is break-resistant, impermeable, and offers more chemical resistance than polyethylene used by competitors. It can also handle temperatures up to 180 degrees.
The Zip Trench drainage system allows for unparalleled flexibility with pre-sloped channels that can be run as long as needed.
This trench drain system is ideal for industrial plants, warehousing, pedestrian walkways, fire and police stations, hangars, airports, commercial and industrial driveway entrances, petrochemical processing plants, and greenhouses.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 2 Feet x 2 Feet Polyethylene Catch Basin for Polypropylene Trench Drain System - Zip Trench® - shown with 9940CBCA (channel adapter for 9940), 9960CBCA (channel adapters for 9960), 9960CB-PA4, 9960CB-PA6, 9960CB-PA8 outlet pipe adapter | 95 KB | ||
| | 2 Feet x 2 Feet Polyethylene Catch Basin for Polypropylene Trench Drain System - Zip Trench® - shown with 9940CBCA (channel adapter for 9940), 9960CBCA (channel adapters for 9960), 9960CB-PA4, 9960CB-PA6, 9960CB-PA8 outlet pipe adapter | 95 KB | ||
 | | Polypropylene Trench Drain System - Zip Trench® [9940 | 6" Wide Series; 9960 | 12" Wide Series] | 7 MB | ||
| | 12" Wide Polypropylene Trench Drain System - Zip Trench® | 2 MB | ||
| | 12" Wide Polypropylene Trench Drain System - Zip Trench® - [9960-LC Frame and Grate System] | 175 KB | ||
| | 2 Feet x 2 Feet Polyethylene Catch Basin with Adaptors for 9940 (6 inch) or 9960 (12 inch) Polypropylene Trench Drain System - Zip Trench® [Featured Grates 9960CB-MC | Ductile Iron Slotted Grate Load Class C; 9960CB-ME | Ductile Iron Slotted Grate Load Class E; 9960CB-ADAC | Ductile Iron ADA Grate Load Class C; 9960CB-ADAE | Ductile Iron ADA Grate Load Class E] | 2 MB | ||
| | 2 Feet x 2 Feet Polyethylene Catch Basin with Adaptors for 9940 (6 inch) or 9960 (12 inch) Polypropylene Trench Drain System - Zip Trench® | 344 KB | ||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 497 KB | ||
| | 12" Wide Polypropylene Trench Drain System - Zip Trench® | 659 KB | ||
| | The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications. | 155 KB | ||
| | Your complete trench drain source. Solutions and materials | 13 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 5 MB | ||
| | Smith Trench Drain Complete Source Flyer (pdf) | 547 KB | ||
| | Smith Trench Drain Polypropylene Trench Drain Brochure [9960, 9940, 9930, 9931, Grates, Catch Basins] Document #L1001737 | 24 MB | ||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 497 KB | ||
| | 12" Wide Polypropylene Trench Drain System - Zip Trench® | 659 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 5 MB | ||
| | Your complete trench drain source. Solutions and materials | 13 MB | ||
| | Smith Trench Drain Complete Source Flyer (pdf) | 547 KB | ||
| | 2 Feet x 2 Feet Polyethylene Catch Basin with Adaptors for 9940 (6 inch) or 9960 (12 inch) Polypropylene Trench Drain System - Zip Trench® | 344 KB | ||
| | 12" Wide Polypropylene Trench Drain System - Zip Trench® - [9960-LC Frame and Grate System] | 175 KB | ||
| | 2 Feet x 2 Feet Polyethylene Catch Basin with Adaptors for 9940 (6 inch) or 9960 (12 inch) Polypropylene Trench Drain System - Zip Trench® [Featured Grates 9960CB-MC | Ductile Iron Slotted Grate Load Class C; 9960CB-ME | Ductile Iron Slotted Grate Load Class E; 9960CB-ADAC | Ductile Iron ADA Grate Load Class C; 9960CB-ADAE | Ductile Iron ADA Grate Load Class E] | 2 MB | ||
| | Alignment Bracket for Figure 9960 Drench Drain Channels | 90 KB | ||
 | | 12" Wide Polypropylene Trench Drain System - Zip Trench® | 836 KB | ||
| | 12" Wide Polypropylene Trench Drain System - Zip Trench® | 836 KB |
Specifications
| Variations | Closing End Cap Shallow -ES, Closing End Cap Deep -ED, Horizontal Outlet 4" -H4, Horizontal Outlet 6" -H6, Horizontal Outlet 8" -H8, 4”, 6”, and 8” No-Hub Vertical Outlet Fitting -V468, Stainless steel mesh grate (256.00 sq. in.) 1 meter, Stainless steel mesh grate (128.00 sq. in.) 1/2 meter, Zip Trench Frame and Grate - 9960-LC, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Steel, Type 304 Stainless Steel |
| Benefit | Labor Saving |
| Product Type | Trench Drains |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|

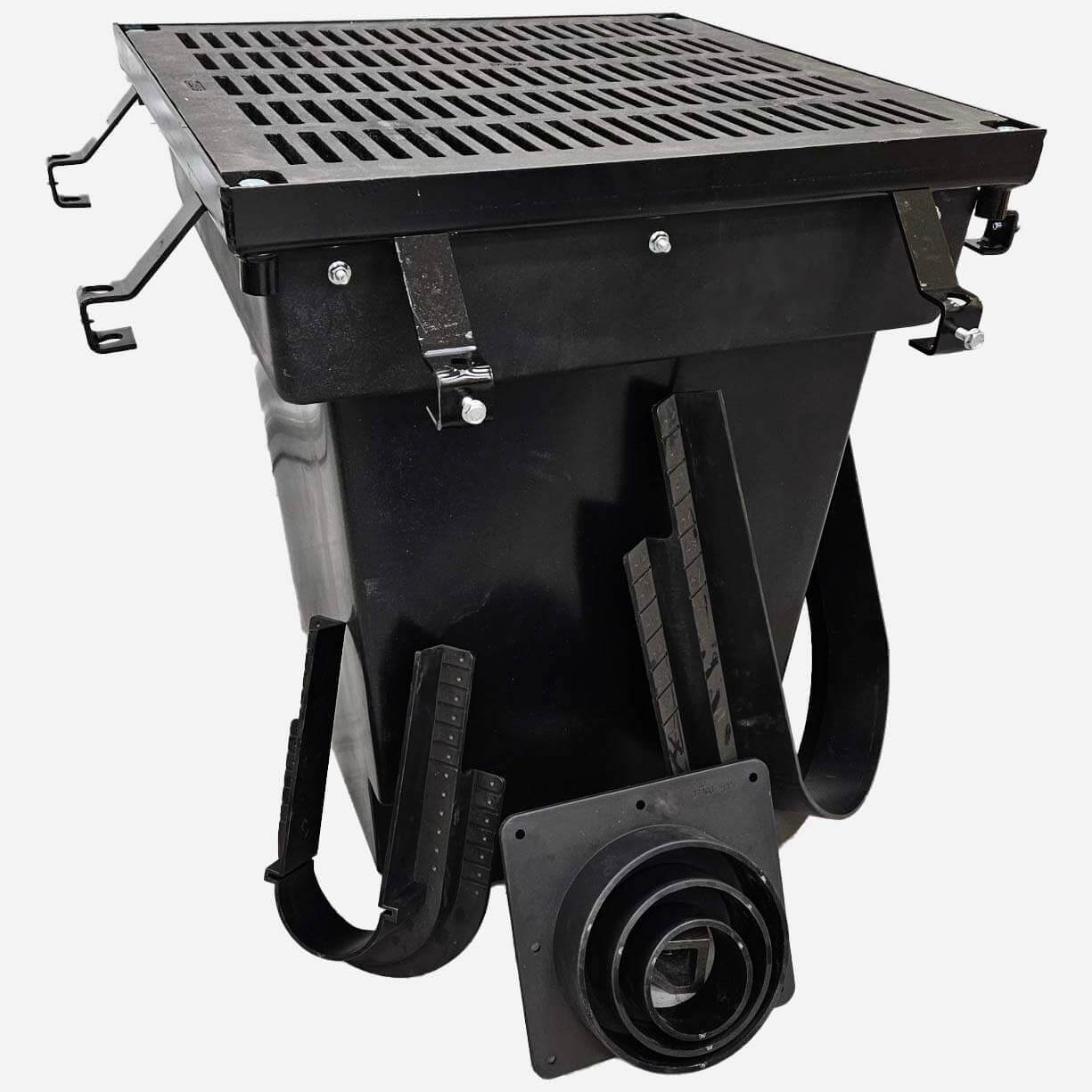

 | 9960CB | 2' x 2' Polyethylene Catch Basin - Zip Trench® | ||
 | 9960-GM | 1 Meter Galv. Steel Mesh Grate (Load Class C: Heavy Duty Grate) | ||
 | 9960-GM-5 | 1/2 Meter Galvanized Steel Mesh Grate (Load Class C: Heavy Duty Grate) | ||
 | 9960-GP | Perforated Galv. Steel Grate (Load Class C: Heavy Duty Grate) | ||
 | 9960-GP-5 | Stainless Steel Mesh Grate (Load Class C: Heavy Duty Grate) | ||

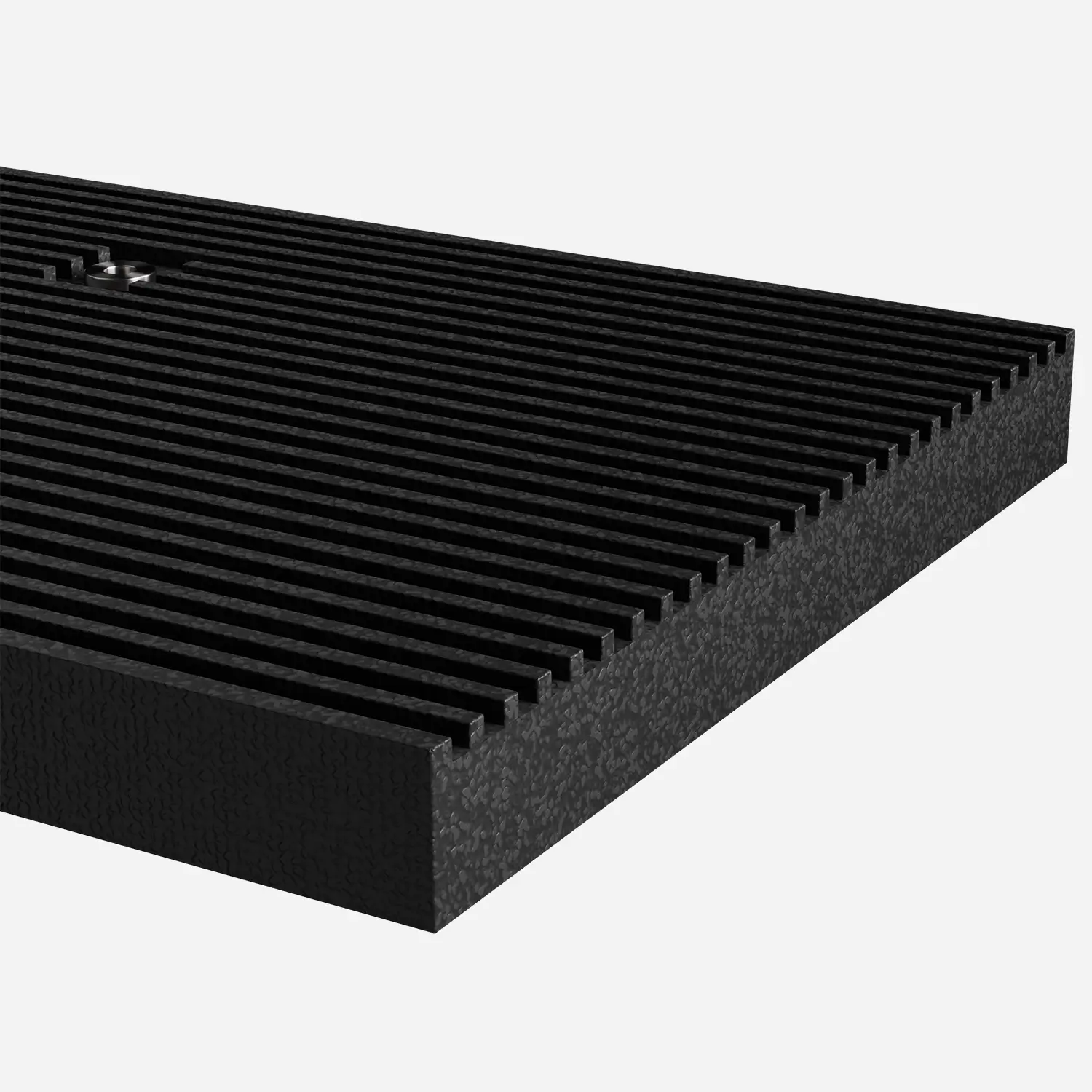

 | 9960-M | Extra Heavy Duty Ductile Iron Slotted Grate (Load Class E: Extra Heavy Duty Grate) | ||
 | 9960-MADA | Ductile Iron ADA Slotted Grate (Load Class E: Extra Heavy Duty Grate) | ||

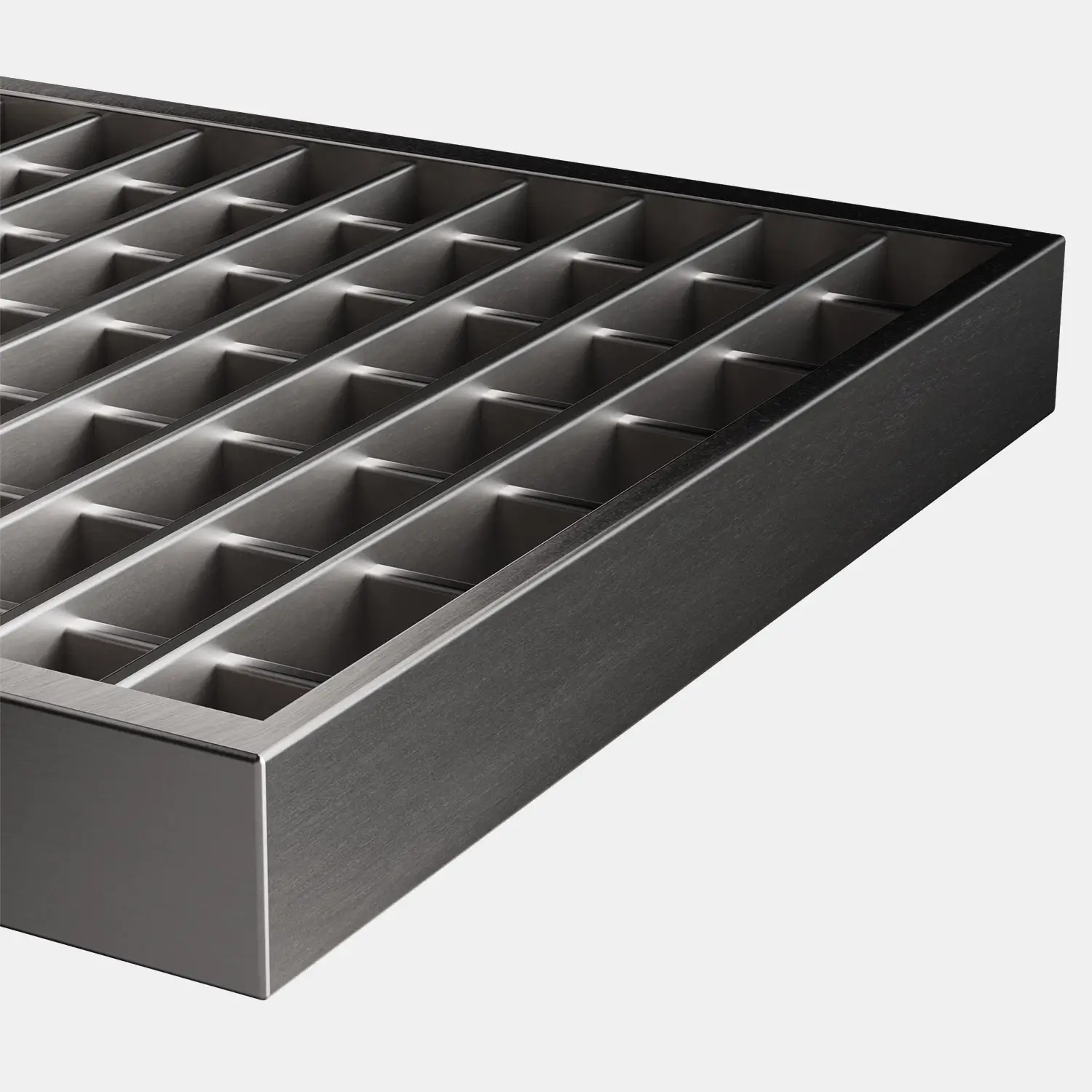

 | 9960-SSM | Heavy Duty Stainless Steel Mesh Grate (Load Class C: Heavy Duty Grate) | ||
 | 9960-SSP | Perforated Stainless Steel Grate (Load Class C: Heavy Duty Grate) | ||
 | 9960-SSP-5 | Heavy Duty Perforated Steel Grate (Load Class C: Heavy Duty Grate) |
