Figure Number: 1010 and 1020
Contact a Representative

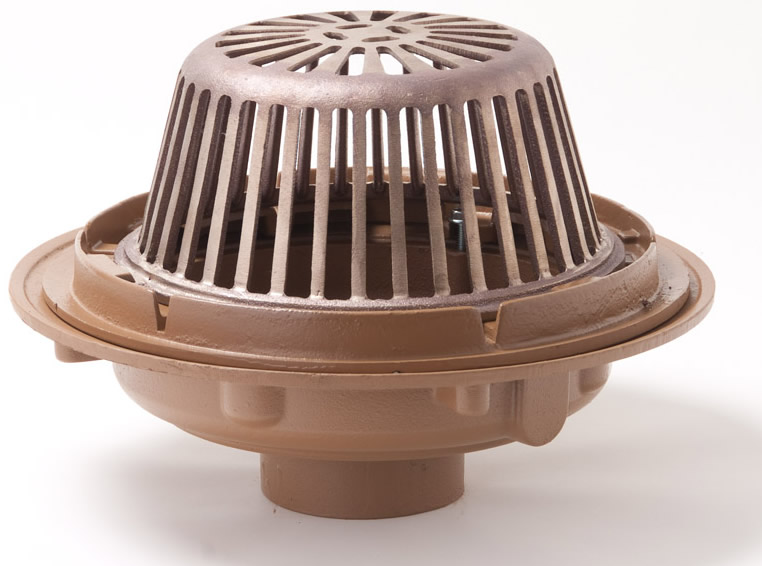

1010 and 102015.25" Diameter Body Roof Drain and Low Profile Dome

Requires Less Manpower, Safer Install from Top of Roof Deck

Installed entirely from above deck on flat roofs of any construction, our labor-saving roof drain simplifies installation, saving steps and the need for a second technician. This 15-1/4" (390) Duco coated cast iron drain will quickly clear large runoff accumulations. The combined flashing clamp and gravel stop protects drain lines from debris and securely grips flashing and roofing materials without puncturing for a leak proof installation. The drain is protected by a low profile, polyethylene dome strainer.

Pro Tip: Time, budget, and safety are important considerations in every job. Smith’s Roof Drain and Overflow Drain with Deck Plate can help with all three.

The drain eliminates the need for underdeck clamps and is mounted directly to the top deck, so it can be installed by a single person. Because you no longer need a second installer on the floor below, you remove potential safety hazards associated with climbing and save on installation time.

Saving time and labor leads to monetary savings that will help your budget.

  • Speed of installation. Roof drains can be pre-assembled to deck plate and placed as one unit from the top roof surface, saving time.
  • Secure Installation. Large Roof Deck Plate is easy to install using fasteners from the top of roof only. No underdeck clamp required means less hardware and time savings.
  • Installation from above means less time on ladders or lifts and less overhead work. The only task after installation is the actual pipe connection, made to a secured assembly.
  • Reliability. The drains are installed in a recess to prevent a water dam.
  • Simplicity. Roof penetrations are square, not round, saving time.

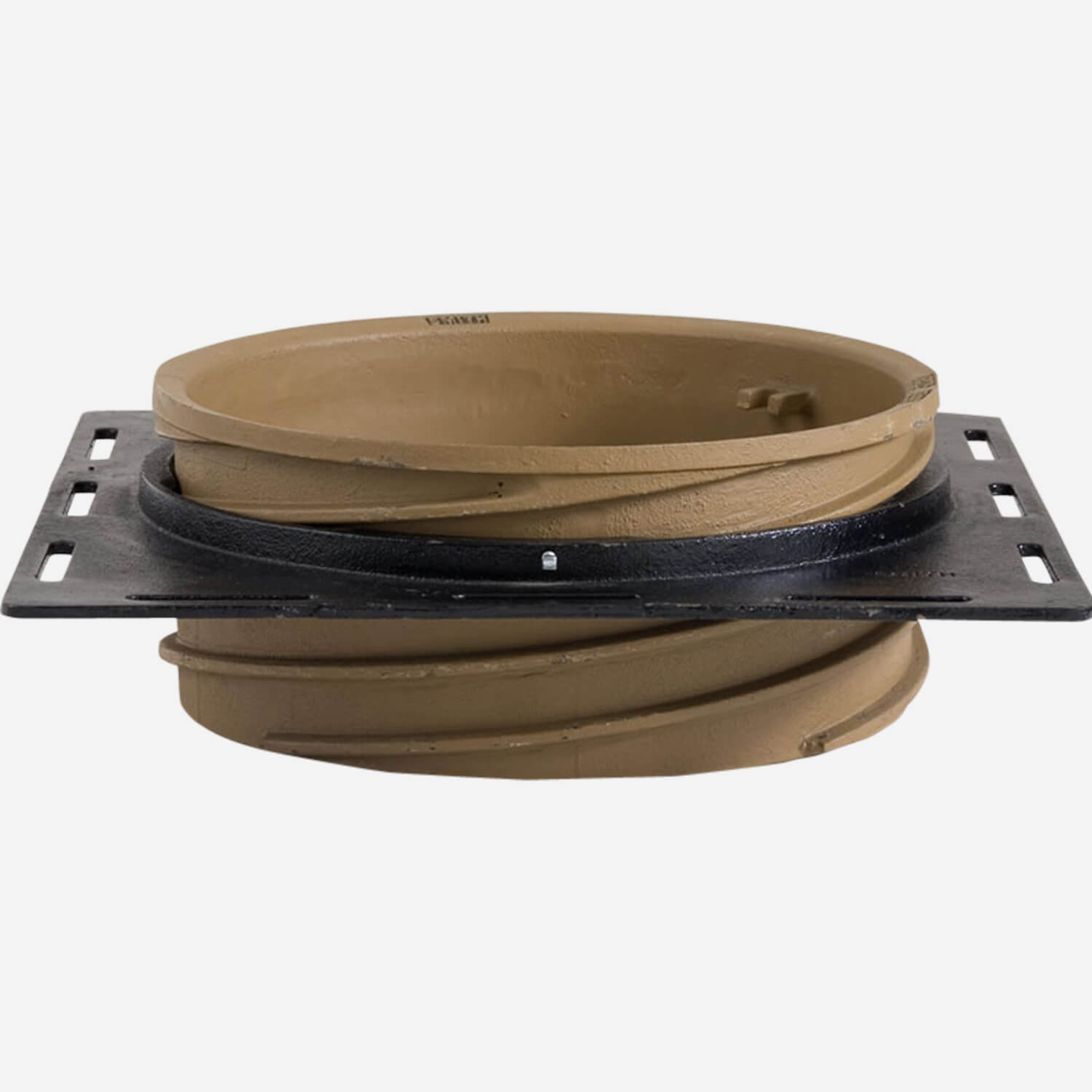

Specifically Figure 1010DEK

Top Mount, Adjustable, Eliminates the Underdeck Clamp,Eliminates Leaks Associated with Gaskets

Pro Tip: Eliminate any risk of leakage at your gasket seals by taking those seals out of the equation. This top mounted drain elevator, as the name suggests, lifts the drain out of the waterway. The only seal requiredis where the roof waterproofing material is flashed into the drain.

  • Elevates Figure Numbers 1005, 1010, 1070 and 1080 type roof drains
  • Adjustable to compensate for insulation thickness
  • Top adjustment at deck for an easier and more secure installation
  • Overall adjustment height of 6-3/4”
  • Drain Elevator is outside of the waterway, eliminating leaks
  • The cast thread design provides for a quick adjustment - up or down; full adjustment achieved with one full turn
  • Top mount reversible collar eliminates the need for a conventional extension, underdeck clamp and sump receiver

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Expansion Joint (Specify Fig. 1710) - (Fig. 1010 Only), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1010 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1010 Only), NO-HUB Adaptor - Fig. 1020 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Longer Center Screw - (Specify Length) -LS, Roof Deck Plate -RDP
  • Optional Materials
    Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron Dome -CIDG, Galvanized Cast Iron -G - Body & Collar, Rough Bronze Dome -RBD, Stainless Steel -SS - (Specify Fig. 9780)
  • Product Type
    Roof Drain
SubmittalSubmittal 1010, 1020 Roof Drain (pdf)
View
Technical Drawings
1020 Roof Drain [dwg]Large General Purpose Roof Drain - Low Profile Dome, Side Outlet [1020C | Caulked Side Outlet; 1020T | Threaded Side Outlet; (shown 02, 03, 04 pipe size vs 05, 06 pipe size)] also shown 1010C | Caulked Bottom Outlet and 1010Y | No-Hub Bottom Outlet DWG221 KB
1010DEK Sleeve and Plate (dwg)Top Mount Drain Elevator Sleeve and Deck Plate for Large General-Purpose Roof Drain; Used to elevate the Figure 1010 type roof drains on top side of roof deck to compensate for insulation thickness [1010DEK | Cast Iron Sleeve and Deck Plate]DWG484 KB
1010-E-W Roof Drain (dwg)Large Drain for Insulated “Built-Up Membrane Roof [1010C-E-W | Caulk Bottom Outlet; 1010Y-E-W | No-Hub Bottom Outlet] DWG125 KB
1010-83 Roof Drain [dwg]15-1/4" Flow Regulating Roof Drain [1010-83C | Caulked Bottom Outlet; 1010-83Y | No-Hub Bottom Outlet] DWG158 KB
1010-DEP Roof Drain (dwg)Large General-Purpose Roof Drain – 15-1/4” Diameter Low-Profile Dome with Deck Extension Plate [1010C-DEP | Caulk Bottom Outlet; 1010T-DEP | Threaded Bottom Outlet; 1010Y-DEP | No-Hub Bottom Outlet]DWG86 KB
1010 Roof Drain (dwg)Large General Purpose Roof Drain - Low Profile Dome [1010C | Caulked Bottom Outlet; 1010Y | No-Hub Bottom Outlet] DWG271 KB
1010 Roof Drain (rfa)Large General Purpose Roof Drain - Low Profile Dome [1010C | Caulked Bottom Outlet; 1010Y | No-Hub Bottom Outlet; 1020C | Caulked Side Outlet; 1020T | Threaded Side Outlet] RFA272 KB
Literature / Videos
Submittal 1010DEK Sleeve and Plate (pdf)Top Mount Drain Elevator Sleeve and Deck Plate for Large General-Purpose Roof Drain; Used to elevate the Figure 1010 type roof drains on top side of roof deck to compensate for insulation thickness [1010DEK | Cast Iron Sleeve and Deck Plate]PDF494 KB
Submittal 1010-E-W Roof Drain (pdf)Large Drain for Insulated “Built-Up Membrane Roof [1010C-E-W | Caulk Bottom Outlet; 1010Y-E-W | No-Hub Bottom Outlet] PDF274 KB
Submittal 1010-R Plate (pdf)Roof Drain Sump Receiver Plate 1010-R | 24" x 24" Plate PDF146 KB
Submittal 1010-83 Roof Drain (pdf)15-1/4" Flow Regulating Roof Drain [1010-83C | Caulked Bottom Outlet; 1010-83Y | No-Hub Bottom Outlet]PDF369 KB
Submittal 1010-E, 1020-E Roof Drain (pdf)Large General-Purpose Roof Drain – Low-Profile Dome [Fig. 1010C-E | Bottom Caulk Outlet; Fig. 1010Y-E | Bottom No-Hub Outlet; Fig. 1020C-E | Side Caulk Outlet; Fig. 1020Y-E | Side No-Hub Outlet] PDF753 KB
Submittal 1010-DEP Roof Drain (pdf)Large General-Purpose Roof Drain – 15-1/4” Diameter Low-Profile Dome with Deck Extension Plate [1010C-DEP | Caulk Bottom Outlet; 1010T-DEP | Threaded Bottom Outlet; 1010Y-DEP | No-Hub Bottom Outlet] PDF2 MB
Submittal 1010-GRT Roof Drain (pdf)Large Roof Drain - 16” Diameter Low-Profile Flat Grate [1010C-GRT | Caulk Bottom Outlet; 1010Y-GRT | No-Hub Bottom Outlet]PDF708 KB
Canadian Submittal 1010-E-C2 Roof Drain (pdf)Large General-Purpose Roof Drain – Low-Profile Dome, Secondary Flashing Clamp, Four 1/4“ Seepage Openings [Fig. 1010C-E-C2 | Caulk Outlet; Fig. 1010Y-E-C2 | No-Hub Outlet]PDF774 KB
Submittal 1010-E-R-C Roof Drain (pdf)Large General-Purpose Roof Drain – Low-Profile Dome with Extension Installation suggested with Waterproof Membrane by Others [1010C-E-R-C | Caulk Bottom Outlet; 1010Y-E-R-C | No-Hub Bottom Outlet]PDF730 KB
Submittal 1010-LPD Roof Drain (pdf)Large General-Purpose Roof Drain – 2-1/2” High Cast Iron Low-Profile Dome [1010C-LPD | Caulk Bottom Outlet; 1010Y-LPD | No-Hub Bottom Outlet]PDF441 KB
Submittal 1010-LPDM Roof Drain (pdf)Large Low Profile Dome Roof Drain with Stainless Steel Mesh Dome Cover [1010C-LPDM | Caulk Bottom Outlet; 1010Y-LPDM | No-Hub Bottom Outlet]PDF664 KB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
1010 Roof Drain (hi res jpg)Large General Purpose Roof Drain - Low Profile Dome [1010C | Caulked Bottom Outlet; 1010Y | No-Hub Bottom Outlet] JPG74 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Engineering Newsletter: Vol. 3, Issue 2 (March 2013)Fig. Nos. 1010 and 1080 Large-Capacity Roof DrainsPDF2 MB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Canadian Submittal 1010-E-C2-W Roof Drain (pdf)Large General-Purpose Roof Drain – Low-Profile Dome, Secondary Flashing Clamp, Extension with Two Rows of 1/4” Seepage Openings [1010C-E-C2-W | Caulk Outlet; 1010Y-E-C2-W | No-Hub Outlet] PDF611 KB
Can't find what you are looking for? Get in touch

Large General Purpose Roof Drain - Low Profile Dome [submittal]
1010C | Caulked Bottom Outlet
1010Y | No-Hub Bottom Outlet
1010T | Threaded Bottom Outlet
1020C | Caulked Side Outlet
1020T | Threaded Side Outlet

15-1/4" Flow Regulating Roof Drain [submittal]
1010-83C | Caulked Bottom Outlet
1010-83Y | No-Hub Bottom Outlet
1010-83T | Threaded Bottom Outlet

Top Mount Drain Elevator Sleeve and Deck Plate for Large General-Purpose Roof Drain [submittal | see other resources]
Used to elevate the Figure 1010 type roof drains on top side of roof deck to compensate for insulation thickness
1010DEK | Cast Iron Sleeve and Deck Plate]

Large General-Purpose Roof Drain –
15-1/4” Diameter Low-Profile Dome with Deck Extension Plate [submittal]
1010C-DEP | Caulk Bottom Outlet
1010T-DEP | Threaded Bottom Outlet
1010Y-DEP | No-Hub Bottom Outlet]

Large General-Purpose Roof Drain –
Low-Profile Dome with Vertical Extension [submittal]
1010C-E | Caulked Bottom Outlet
1010Y-E | No-Hub Bottom Outlet
1010T-E | Threaded Bottom Outlet
1020C-E | Caulked Side Outlet
1020T-E | Threaded Bottom Outlet

Large General-Purpose Roof Drain –Low-Profile Dome with Extension [submittal]
Installation suggested with Waterproof Membrane by Others
1010C-E-R-C | Caulk Bottom Outlet
1010T-E-R-C | Threaded Bottom Outlet
1010Y-E-R-C | No-Hub Bottom Outlet

Large Drain for Insulated “Built-Up Membrane Roof [submittal]
1010C-E-W | Caulk Bottom Outlet
1010Y-E-W | No-Hub Bottom Outlet
1010T-E-W | Threaded Bottom Outlet

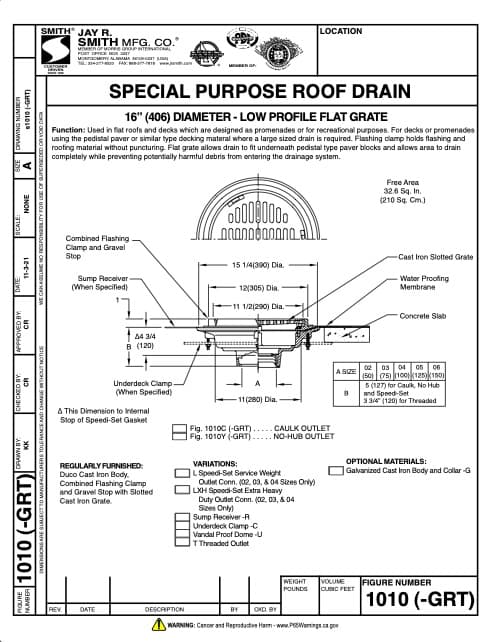

Large Roof Drain - 16” Diameter Low-Profile Flat Grate [submittal]
1010C-GRT | Caulk Bottom Outlet
1010Y-GRT | No-Hub Bottom Outlet
1010T-GRT | Threaded Bottom Outlet

Large General-Purpose Roof Drain –
2-1/2” High Cast Iron Low-Profile Dome [submittal]
1010C-LPD | Caulk Bottom Outlet
1010Y-LPD | No-Hub Bottom Outlet
1010T-LPD | Threaded Bottom Outlet

Large Low Profile Dome Roof Drain
with Stainless Steel Mesh Dome Cover [submittal]
1010C-LPDM | Caulk Bottom Outlet
1010Y-LPDM | No-Hub Bottom Outlet
1010T-LPDM |  Threaded Bottom Outlet

Roof Drain Sump Receiver Plate [submittal]
1010-R |24" x 24" Plate

Large Roof Drain with Low-Profile Dome and Deck Plate [submittal | see other resources]
1010Y-RDP | No-Hub Bottom Outlet
1010C-RDP | Caulk Bottom Outlet

====================================

[CANADIAN SPECIFICATIONS]
Large General-Purpose Roof Drain – Low-Profile Dome,
Secondary Flashing Clamp, Four 1/4“ Seepage Openings [submittal]
1010C-E-C2 | Caulk Bottom Outlet
1010Y-E-C2 | No-Hub Bottom Outlet
1010T-E-C2 |  Threaded Bottom Outlet

[CANADIAN SPECIFICATIONS]
Large General-Purpose Roof Drain –Low-Profile Dome,
Secondary Flashing Clamp, Extension with Two Rows of 1/4” Seepage Openings [submittal]
1010C-E-C2-W | Caulk Bottom Outlet
1010T-E-C2-W | Threaded Bottom Outlet
1010Y-E-C2-W | No-Hub Bottom Outlet
