Model 1010-RDP

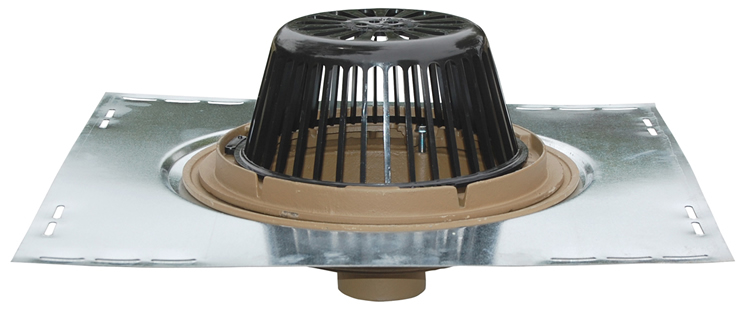

Large Roof Drain with Low-Profile Dome and Deck Plate
Duco Cast Iron Body with attached Deck Plate with Securing Holes, combined Flashing Clamp and Gravel Stop with Polyethylene Dome
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Large Roof Drain with Low-Profile Dome and Deck Plate [1010C-RDP | Caulk Bottom Outlet; 1010Y-RDP | No-Hub Bottom Outlet] | 882 KB | |||
 | | Large Roof Drain with Low-Profile Dome and Deck Plate [1010C-RDP | Caulk Bottom Outlet; 1010Y-RDP | No-Hub Bottom Outlet] | 0 | 68 KB | ||
| | Specifications for Roof Drains | 0 | 230 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 0 | 5 MB | ||
 | | Large Roof Drain with Low-Profile Dome and Deck Plate | 0 | 97 KB | ||
| | Technical Data for Roof Drains | 0 | 2 MB | ||
| | Fig. Nos. 1010 and 1080 Large-Capacity Roof Drains | 0 | 1 MB | ||
| | Order Guidelines for Roof Drains | 0 | 120 KB |
Specifications
| Variations | L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1010 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1010 Only), T Threaded Outlet, Extension -E - (Specify Height), Secondary Flashing Clamp -C2, Vandal Proof - Dome - U |
| Optional Materials | Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron Dome -CIDG, Galvanized Cast Iron Collar -CG, Rough Bronze Dome -RBD, Stainless Steel -SS - (Specify Fig. 9780) |
| Product Type | Roof Drain |
Models
1010Y-RDP | No-Hub Bottom Outlet
1010C-RDP | Caulk Bottom Outlet
1010C-RDP | Caulk Bottom Outlet
