Ductile Iron ADA Slotted Grate for Zip Trench Drain

Name: Ductile Iron ADA Slotted Grate for Zip Trench Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 9960-MADA

Find A Representative

Figure 9960-MADA

Submittal

9960-MADA Grate Submittal (pdf)

Model 9960-MADA

Ductile Iron ADA Slotted Grate for Zip Trench Drain

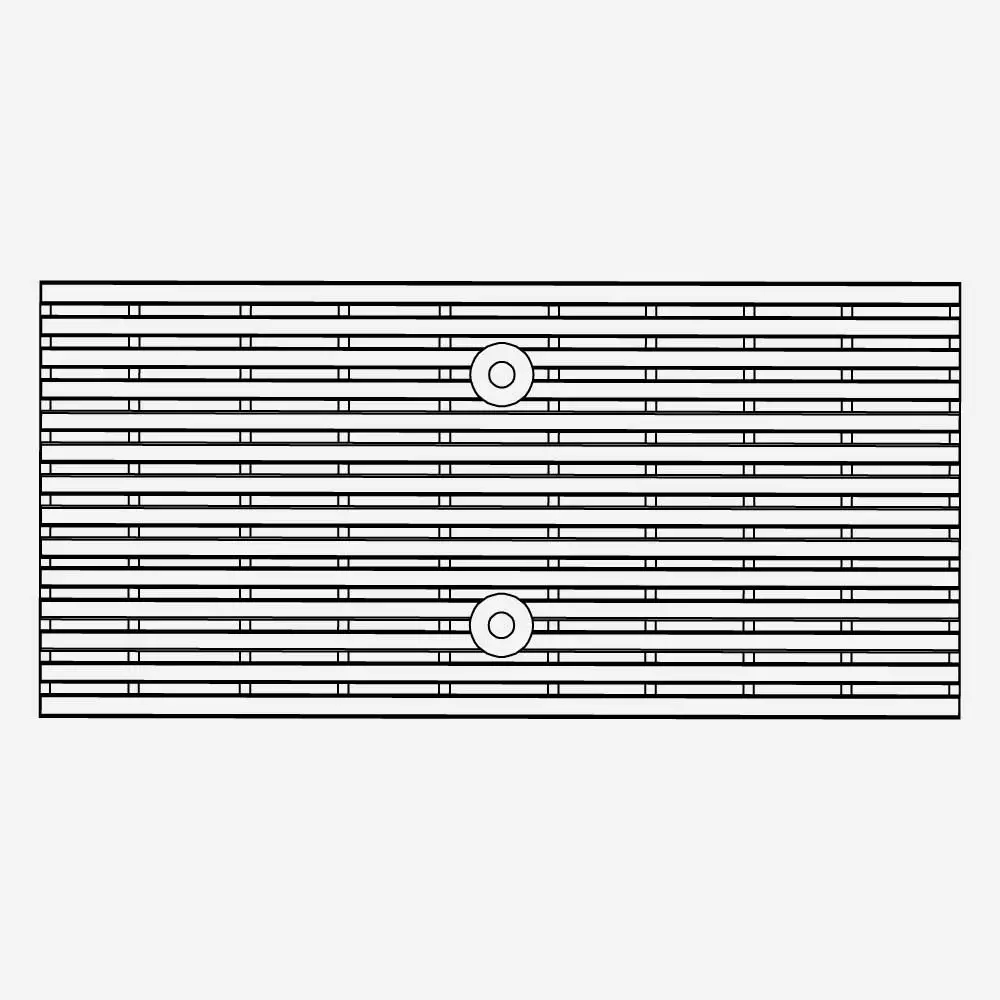

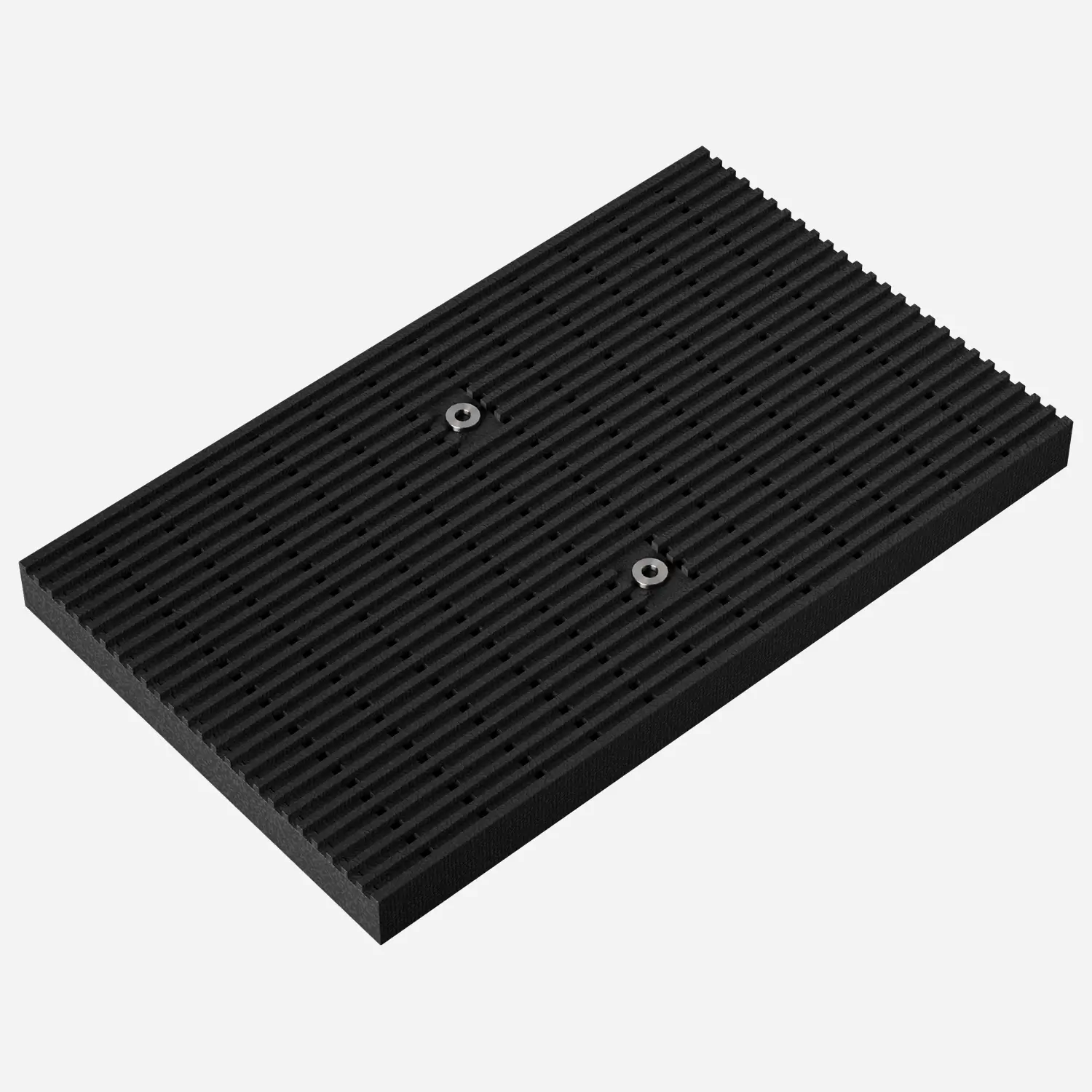

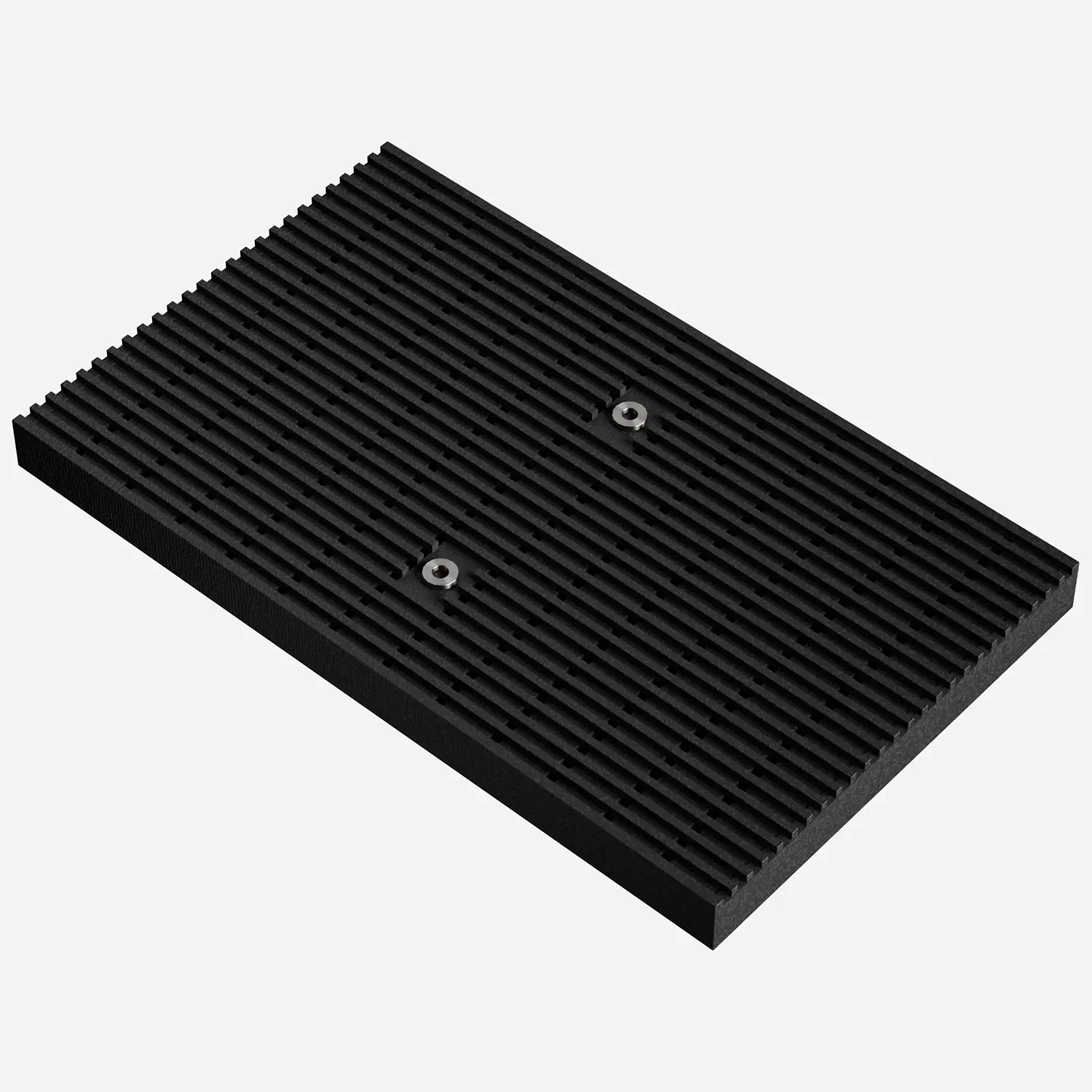

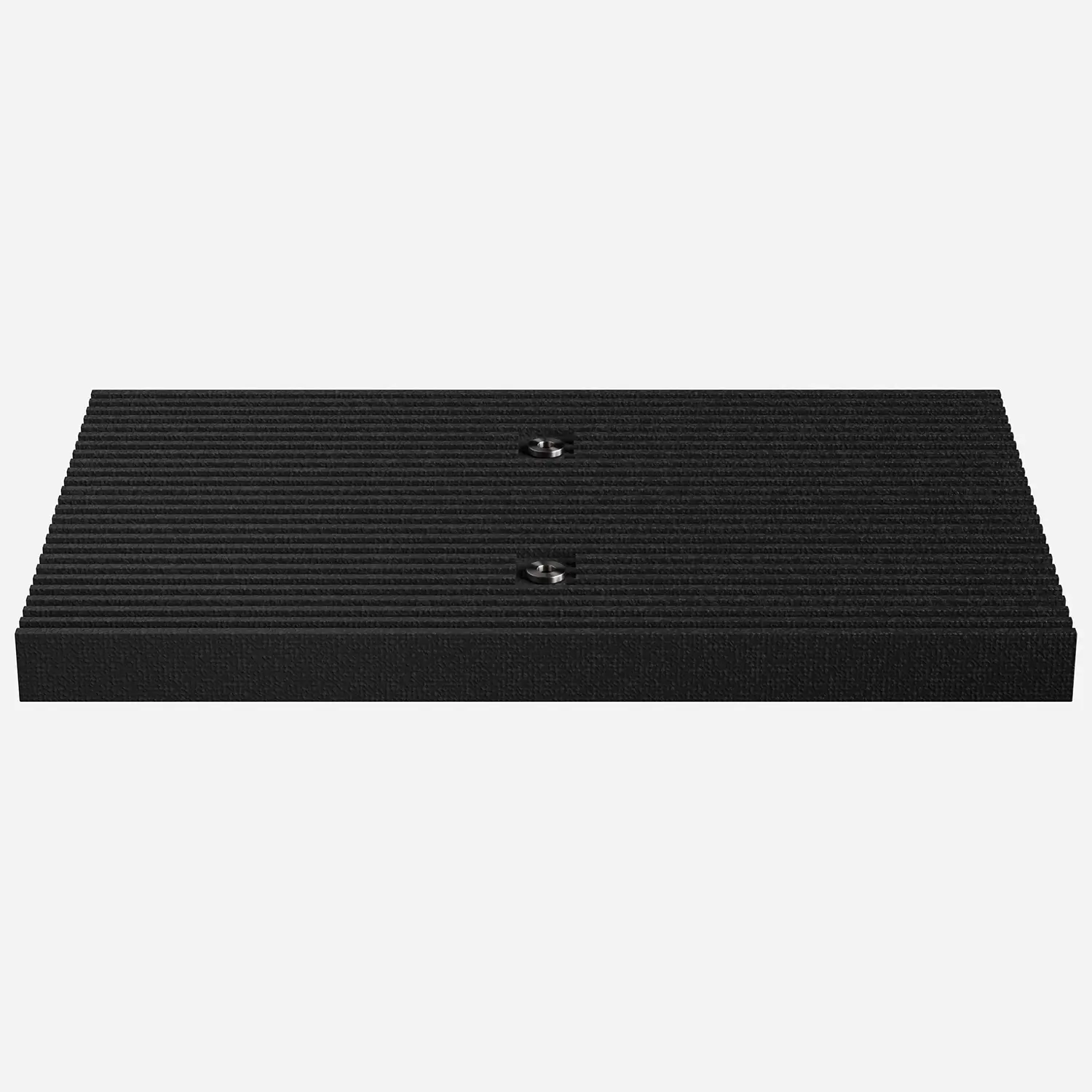

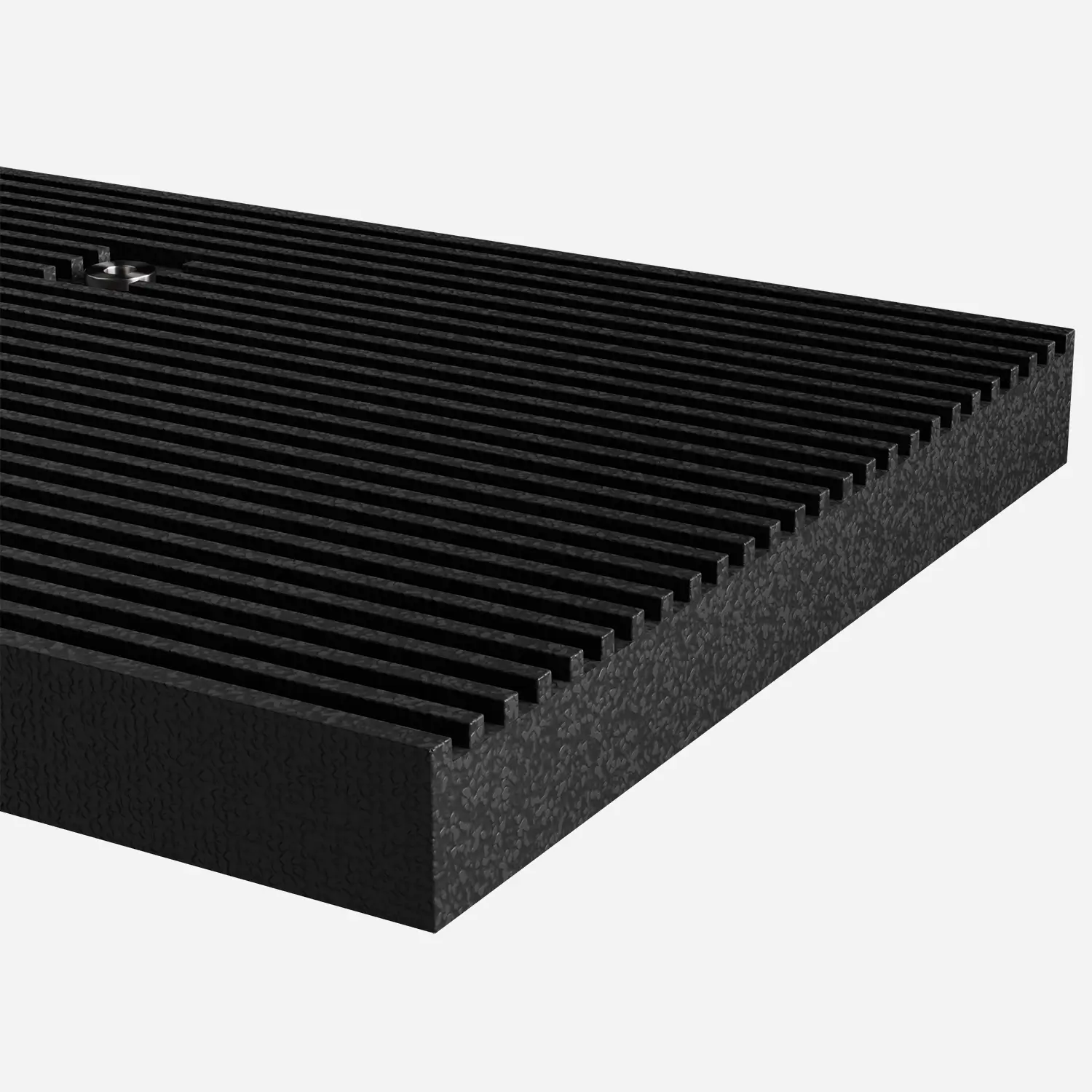

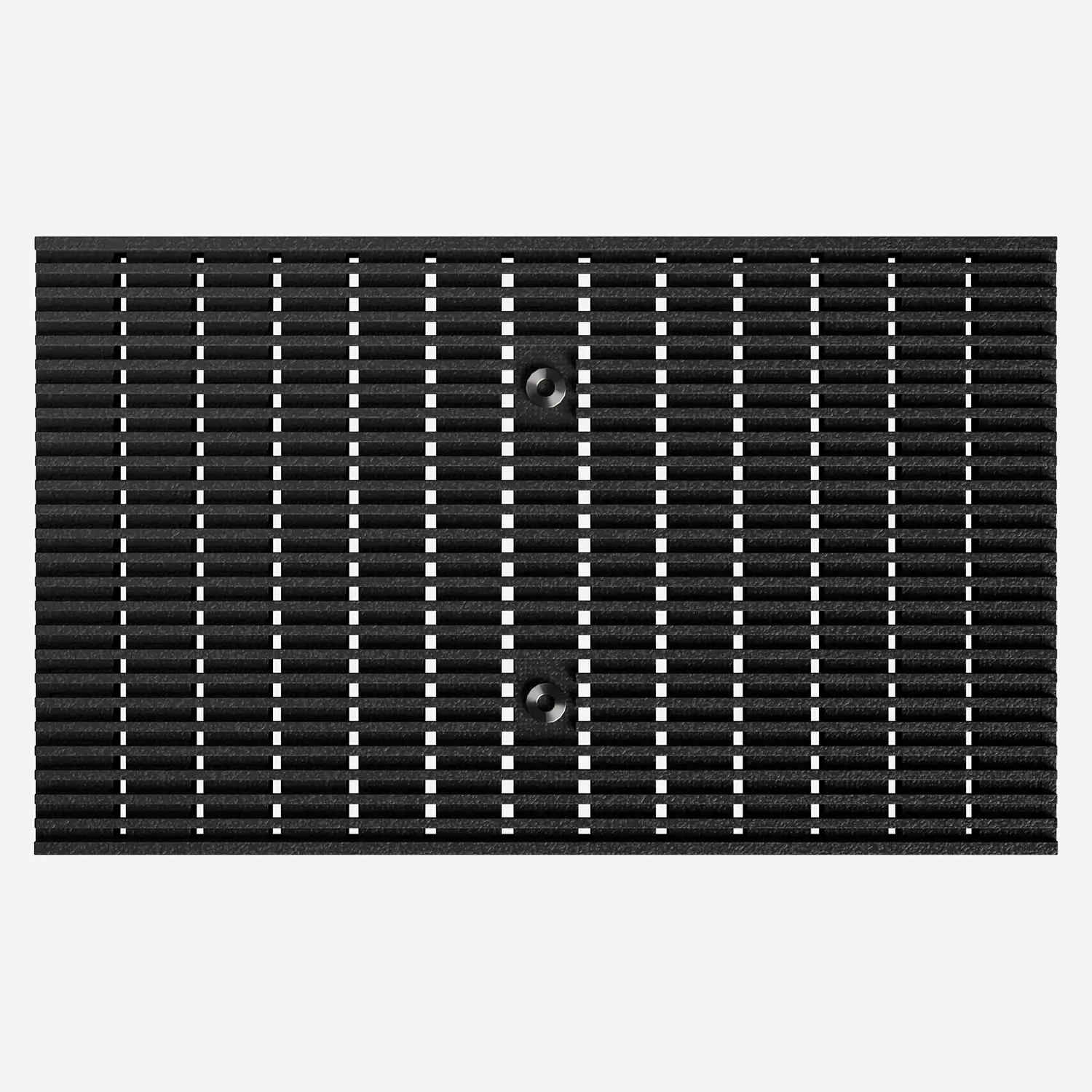

This half-meter, extra-heavy-duty, ductile iron ADA-compliant, slotted grate is designed for use with the Smith 9960 12" wide Zip Trench® polypropylene trench drain system. It is ideal for commercial solid tire traffic patterns, forklifts, and impacts from steel struts or metal wheels.

Available Figure

9960-MADA.5, 9960-MADA.5G, 9960-MADA.5D, 9960-MADA.5GD
9960-MADAC.5, 9960-MADAC.5G
Refer to the submittals and/or "Product Models" Section below for more information.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	9960-MADA Grate Submittal (pdf)	12" (305 mm) Wide Ductile Iron ADA Compliant Slotted Grate - Heelproof, Extra Heavy Duty Load Class E [9960-MADA.5G \| 1/2 meter (18-11/16")]	426 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
Brochures/Flyers	Smith Trench Drain Polypropylene Trench Drain Brochure (pdf)	Smith Trench Drain Polypropylene Trench Drain Brochure [9960, 9940, 9930, 9931, Grates, Catch Basins] Document #L1001737	24 MB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB

Can't find what you are looking for? Get in touch

Models

9960-MADA.5
EN 1433 Load Class E:
Extra Heavy Duty
135,000 lbs - 2,788 psi
for commercial solid tire traffic patterns, forklifts, and impacts from steel struts or metal wheels

Weight 58.50 lbs (26.54 kg)
Intake Area: 103.10 Sq Inch
Percent Opening: 39%
Material: Ductile Iron
Length: 19-11/16" (1/2 meter)
Width: 12" (305 mm)
Height: 1-1/2" (38 mm)
Secured with 1/2-13 locking bolts

Accommodations: Heelproof, Bicycles

Accessibility: ADA compliant

9960-MADA.5G
With Galvanized Spray Coating

9960-MADA.5D
Domestic Made

9960-MADA.5GD
With Galvanized Spray Coating,
Domestic Made

9960-MADAC.5
EN 1433 Load Class C:
Heavy Duty
56,000 lbs - 1,162 psi
for commercial pneumatic tire traffic patterns, forklifts, and tractor trailers

Weight: 25 lbs (11.34 kg)
Intake Area: 57 Sq Inch
Percent Opening: 24%
Material: Ductile Iron
Length: 19-11/16" (1/2 meter)
Width: 12" (305 mm)
Height: 1-1/2" (38 mm)
Secured with 1/2-13 locking bolts

Accommodations: Heelproof, Bicycles

Accessibility: ADA compliant

9960-MADAC.5G
With Galvanized Spray Coating

Details

9960-MADA

Load Class E (Extra Heavy Duty)

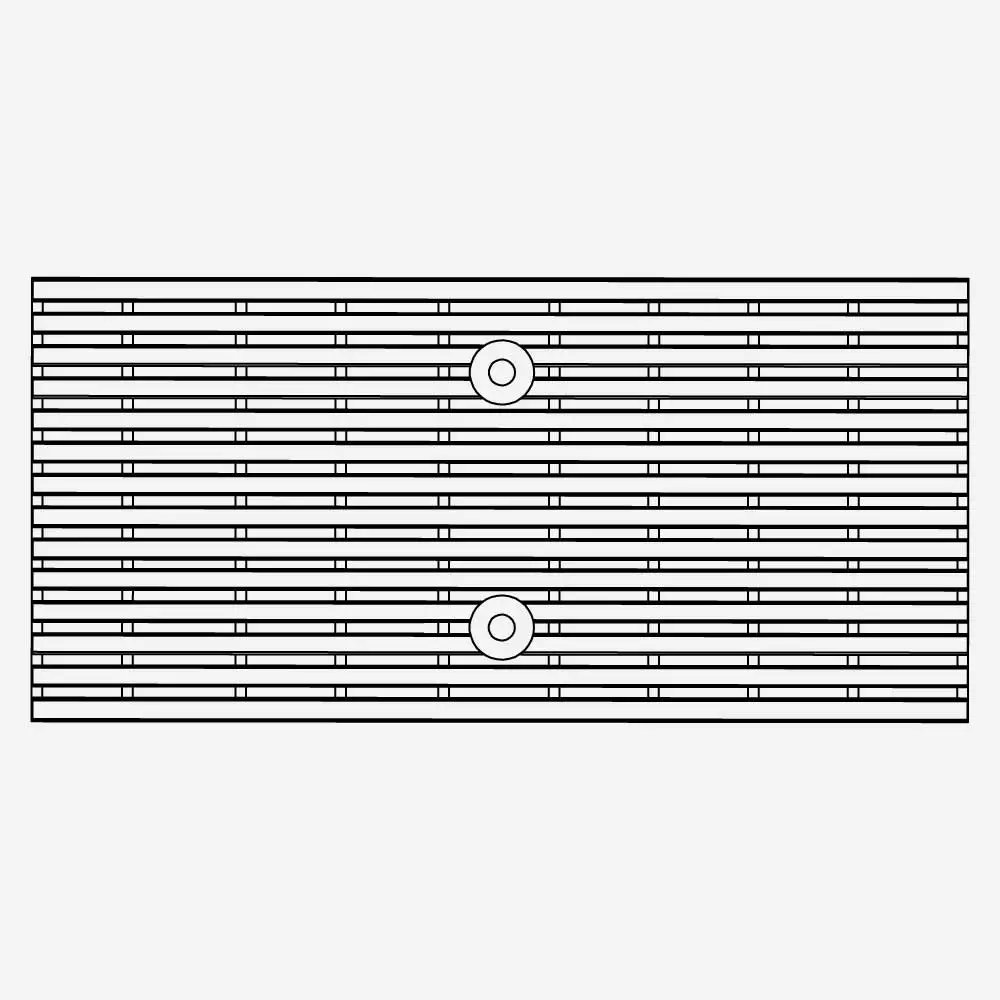

9960-MADAC

Load Class C (Heavy Duty)

Ductile Iron ADA Slotted Grate for Zip Trench Drain

Available Figure

Downloads

Models

Details

9960-MADA

9960-MADAC
