Floor Drains with Adjustable Strainer Heads

Find A Representative
Figure 2010
Submittal
3 available
2010 Preview

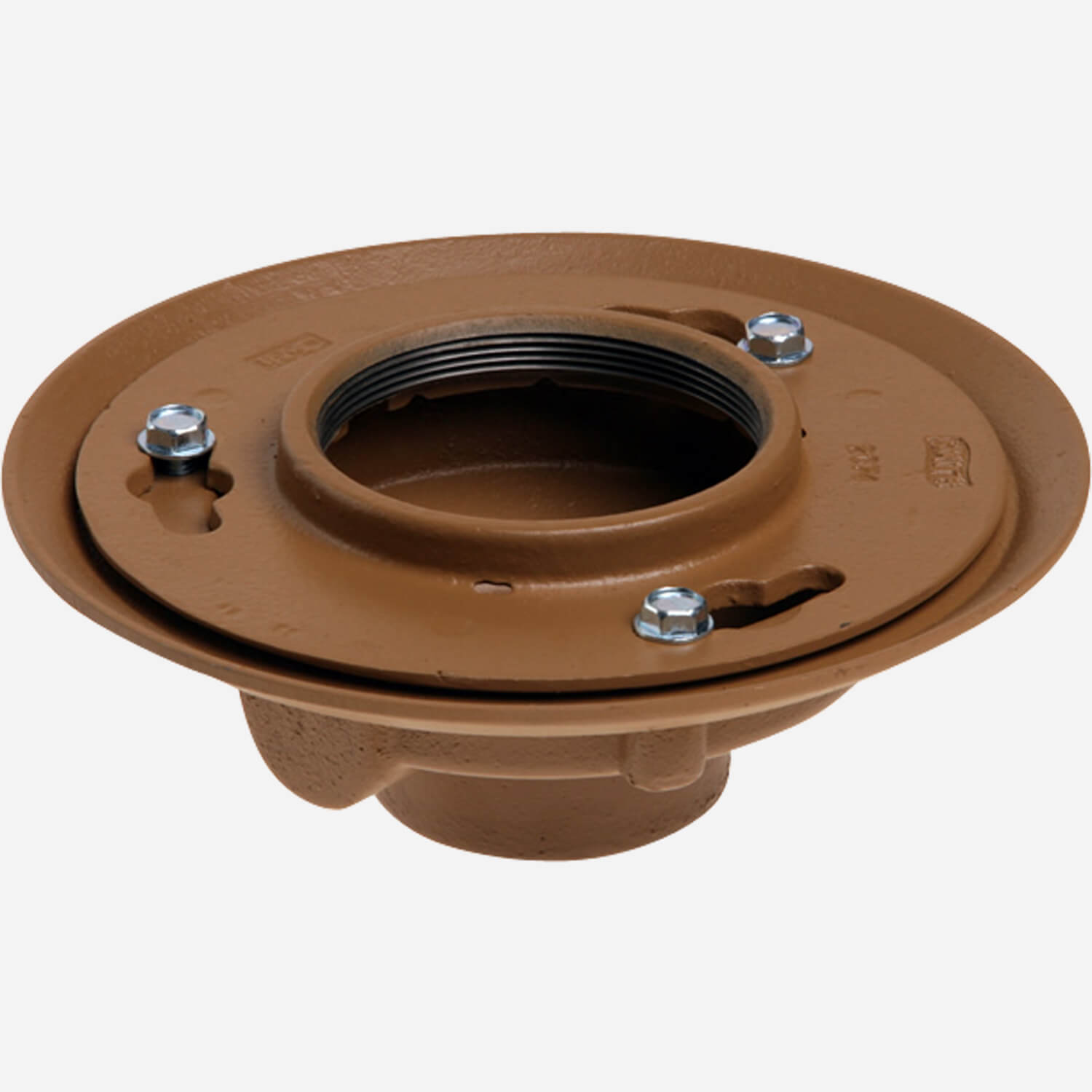

Model 2010

Floor Drains with Adjustable Strainer Heads

Designed for installation in showers, kitchens and other light traffic areas, this versatile drain is available in several materials and a variety of round and square strainer heads. Strainers easily adjust from above to the level of adjacent floors to prevent trip or laceration hazards. This drain joins to plumbing through caulk or threaded connections.

Downloads

Resource Type
Title
Description
File Size
Action
drawing/dwg icon
Drawings
drawing/dwg icon
2010, 2015 Floor Drain (dwg)
Floor Drains with Adjustable Strainer Heads [2015 | Side Outlet; 2010 | Bottom Outlet]126 KB
JPG icon
Images
JPG icon

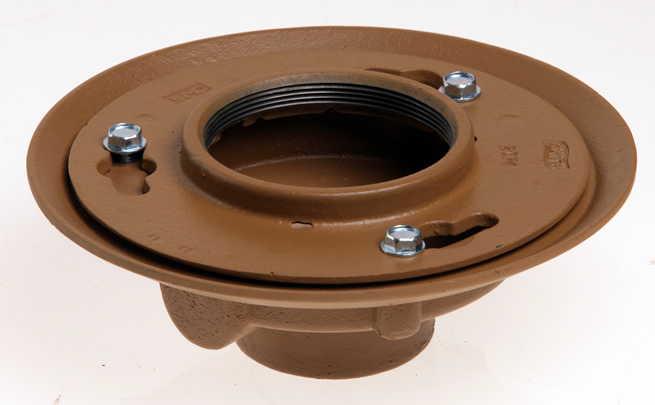

2010 Floor Drain (hi res jpg)
Floor Drains with Adjustable Strainer Heads67 KB
PDF icon
Submittals
PDF icon
Submittal 2010, 2015 Floor Drain (pdf)
Floor Drains with Adjustable Strainer Heads [2010 | Bottom Outlet; 2015 | Side Outlet]5 MB
PDF icon
Submittals
PDF icon
Submittal 2010-TT Floor Drain (pdf)
Floor Drains with Adjustable Leveling Strainer590 KB
PDF icon
Submittals
PDF icon
Submittal DX2005 DX2010
Floor Drain with Adjustable Strainer Head NO-HUB, with Wide Flange (DX2005) and With Caulk Outlet and Wide Flange (DX2010)1 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today27 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
PDF icon
Manuals
PDF icon
Technical Data for Floor Drains (pdf)
Technical Data for Floor Drains637 KB
PDF icon
Parts Manuals
PDF icon
Parts Order Guide for Floor Drains (pdf)
Parts Order Guide for Floor Drains6 MB
PDF icon
Parts Manuals
PDF icon
Additional Options Strainer Heads for Floor Drains (pdf)
Optional Strainer Heads [Suffixes -A, -AV, -B, -BS, -C, -D-E,-F, -F37, -F38, -G, -H, -J, -K, -L, -M, -N, -P,-R, -T, -V, -W, -X, -Y, -Z, -69] applicable on Figures 2005, 2010, 2020, 2038, 2095451 KB
PDF icon
Ordering
PDF icon
Order Guidelines for Floor Drains (pdf)
Order Guidelines for Floor Drains120 KB
PDF icon
Manuals
PDF icon
Technical Data for Floor Drains (pdf)
Technical Data for Floor Drains637 KB
PDF icon
Ordering
PDF icon
Order Guidelines for Floor Drains (pdf)
Order Guidelines for Floor Drains120 KB
PDF icon
Parts Manuals
PDF icon
Parts Order Guide for Floor Drains (pdf)
Parts Order Guide for Floor Drains6 MB
RFA icon
Revit/BIM/ITM Files
RFA icon
DX2005/DX2010-Suffix A Revit Drawing
Floor or Shower Drains with Adjustable Strainer Heads, 4"(100) Wide Flange, Secondary Flashing Flange [DX2005 | No-Hub Outlet; DX2010 | Caulk Outlet] [Suffix A | Round Strainer]432 KB
RFA icon
Revit/BIM/ITM Files
RFA icon
DX2005/DX2010-Suffix B Revit Drawing
Floor or Shower Drains with Adjustable Strainer Heads, 4"(100) Wide Flange, Secondary Flashing Flange [DX2005 | No-Hub Outlet; DX2010 | Caulk Outlet] [Suffix B | Square Strainer]444 KB

Specifications

VariationsBall Float Backwater Valve -BFV, Flapper Type Backwater Valve -V, Hinged Grate -H, Sediment Bucket -B, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof -U - Screws, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
Optional MaterialsA05 -PB Strainer, Bronze Body -BB, Chrome Plated Strainer -CP, Galvanized Cast Iron Body -G, Nickel Bronze Strainer -NB, Polished Bronze -PB - Strainer
Product TypeFloor Drain

Models

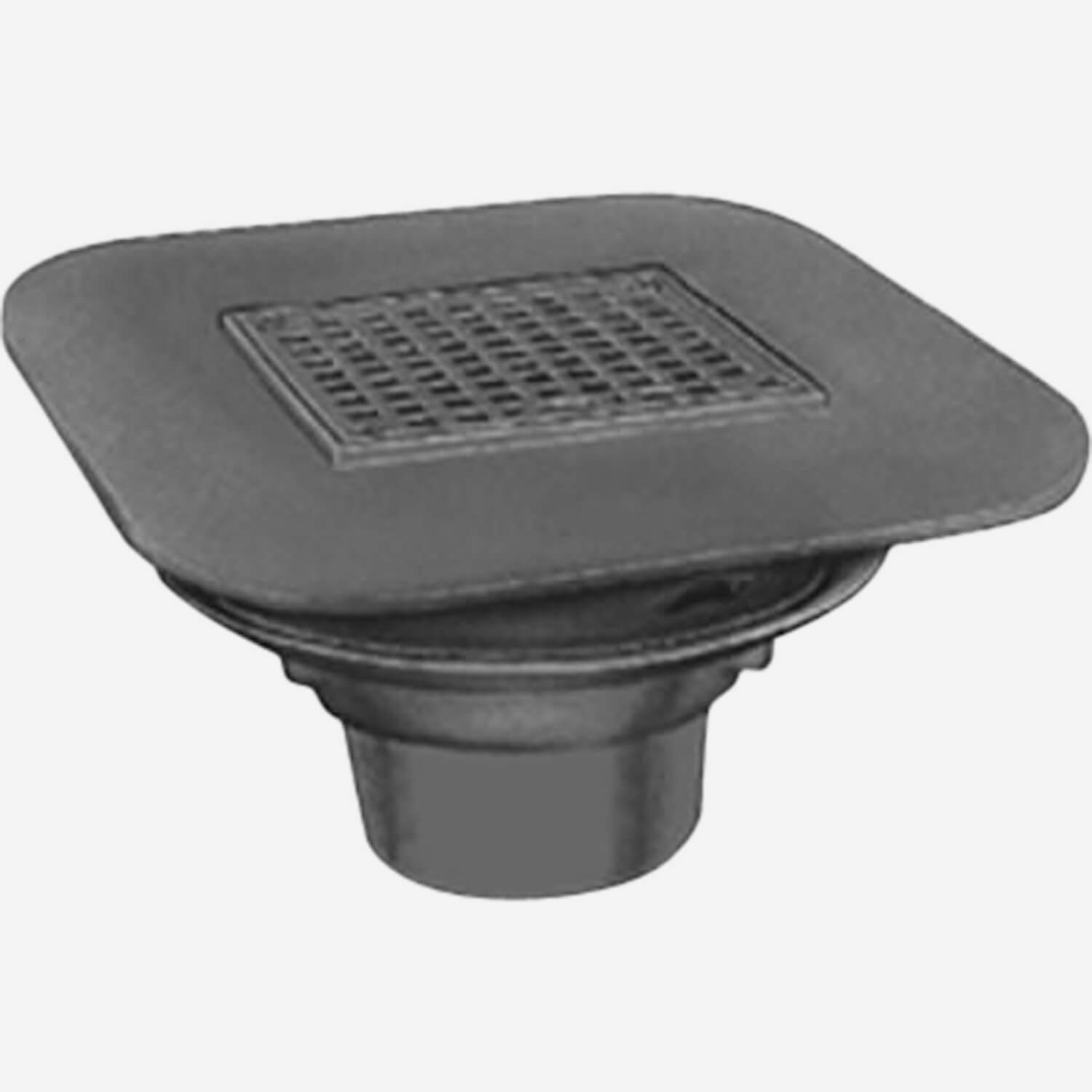

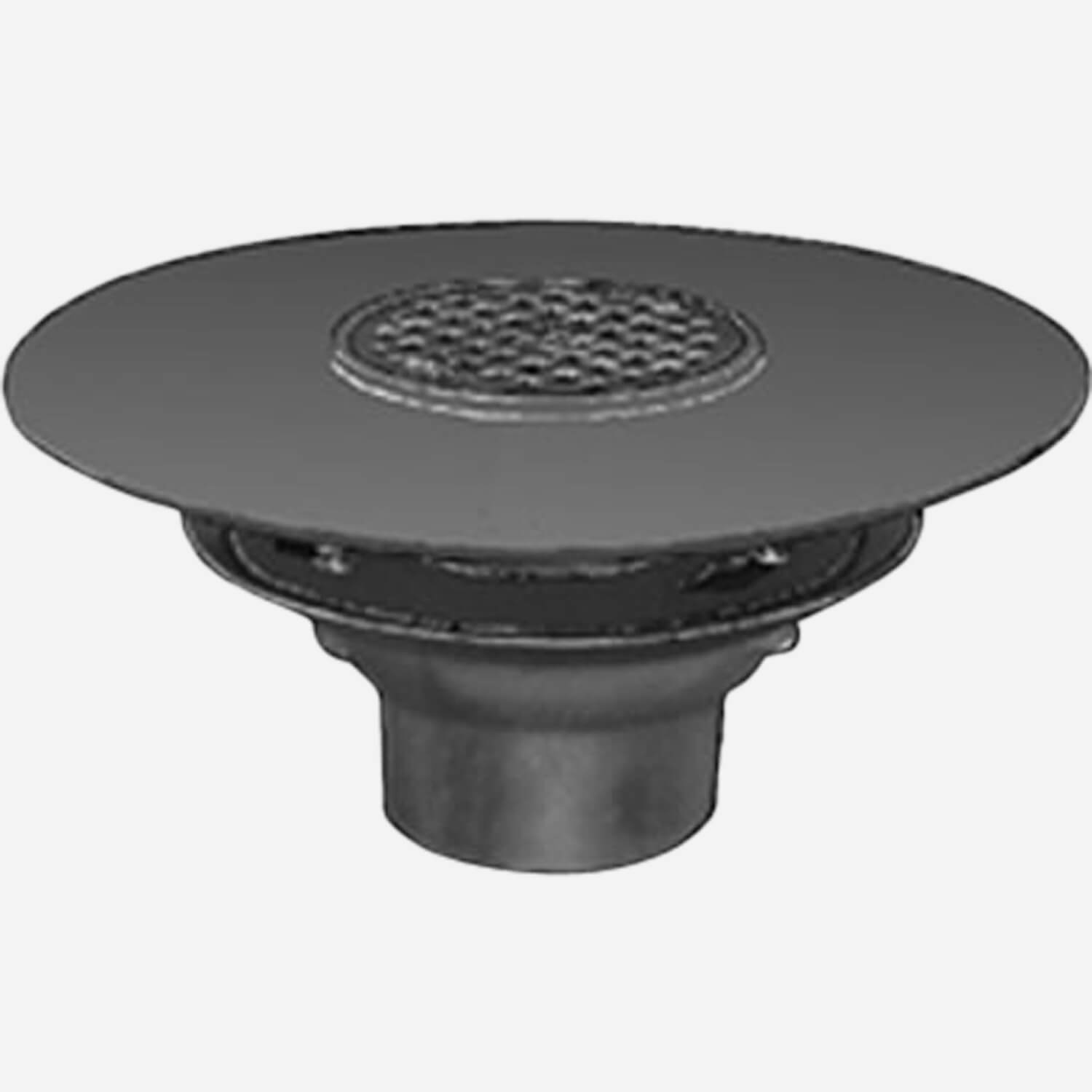

<p>Floor or Shower Drain with Adjustable Strainer Heads [<a href="../../uploads/fileLibrary/d2010.pdf" title="Submittal 2010, 2015 Floor Drain" target="_blank">submittal</a>]<br /><strong>2010C</strong> | Caulk Outlet<br /><strong>2015T</strong> | Threaded Outlet<br /><br />Floor Drain with Adjustable Leveling Strainer [<a href="../../uploads/fileLibrary/d2010_tt.pdf" title="Submittal 2010-TT Floor Drain" target="_blank">submittal</a>]<br /><strong>2010C-TT</strong> | Caulk Outlet<br /><strong>2010T-TT</strong> | Threaded Outlet</p> <p>Floor Drain with Adjustable Strainer Head with Caulk Outlet and Wide Flange [<a href="../../uploads/fileLibrary/ddx2005.pdf" title="Submittal DX2010C Floor Drain" target="_blank">submitta</a>l]<br /><strong>DX2010C</strong> | Caulk Outlet</p> <p><strong>OPTIONAL STRAINER HEADS</strong><br />Suffix&nbsp;<strong>A</strong>&nbsp;| Round Strain<br />Suffix <strong>B</strong> | Square Strainer<br />Suffix <strong>AV</strong> | Square Strainer which works with Flapper Backwater Valve <br />Suffix <strong>BS&nbsp;</strong>| Strainer Head with Square Hinged Cover<br />Suffix <strong>C</strong> | Reinforced Round Strainer<br />Suffix <strong>D</strong> | 7" Diameter Reinforced Tractor Round Strainer<br />Suffix <strong>E</strong> | 9" Diameter Reinforced Tractor Round Strainer<br />Suffix <strong>F</strong> | Round Tile Flange Strainer<br />Suffix <strong>F37</strong> | 7" Diameter Adjustable Strainer Head<br />Suffix <strong>F38</strong> | 9" Diameter Adjustable Strainer Head<br />Suffix <strong>G</strong> | Low Dome Strainer<br />Suffix <strong>H</strong> | Round Solid Hinged Cover Strainer<br />Suffix <strong>K</strong> | Reinforced Square Strainer<br />Suffix <strong>L</strong> | 4-1/2" x 8" Rectangular Strainer<br />Suffix <strong>M</strong> | 4" x 12" Rectangular Strainer<br />Suffix <strong>N</strong> | 5" x 9" Rectangular Strainer<br />Suffix <strong>P</strong> | 5" x 13" Rectangular Strainer<br />Suffix <strong>R</strong> | 6" x 10" Rectangular Strainer<br />Suffix <strong>T</strong> | 5" x 17" Rectangular Strainer<br />Suffix <strong>V</strong> | 3-1/2" x 3-1/2" x 4-1/2" Angle Strainer<br />Suffix <strong>W</strong> | 6-3/4" x 6-3/4" x 6-1/2" Angle Strainer<br />Suffix <strong>X</strong> | Extension Adaptor<br />Suffix <strong>Y</strong> | 2" Pipe Size Overflow with Standpipe<br />Suffix <strong>Z</strong> | 3" Pipe Size Overflow with Standpipe</p>

Answers

What types of Smith vertically installed backwater valves are available for floor drain applications?
Anonymous

Figure 7080 BWV is a ball float BWV designed to connect to a vertical outlet floor drain. There are flapper and ball float BWV’s available for figures 2005 and 2010 adjustable floor drains. They are located in the throats of both round and square strainers. Example: AV05NB for a flapper type BWV and ABF05NB for ball float type BWV.
