Commercial Floor Drain with Adjustable Strainer Head
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Floor Drain with Adjustable Strainer Head [2005Y | No-Hub Bottom Outlet; 2005L | Speedi-Set® Bottom Outlet] | 5 MB | |||
 | | Floor Drain with Adjustable Strainer Head [2005Y | No-Hub Bottom Outlet; 2005L | Speedi-Set® Bottom Outlet] | 0 | 164 KB | ||
| | Floor Drain with Adjustable Strainer Head and Wide Flange Body [2009C | Caulk Outlet; 2009T | Threaded Outlet; 2009Y | No-Hub Outlet; Suffix A | Round Top; Suffix B | Square Top] | 0 | 19 KB | ||
 | | Floor Drain with Round Adjustable Strainer Head - Shown with Round Grate | 0 | 308 KB | ||
| | Floor Drain with Square Adjustable Strainer Head - Shown with Square Grate | 0 | 544 KB | ||
| | Floor or Shower Drains with Adjustable Strainer Heads, 4"(100) Wide Flange, Secondary Flashing Flange [DX2005 | No-Hub Outlet; DX2010 | Caulk Outlet] [Suffix A | Round Strainer] | 0 | 432 KB | ||
| | Floor or Shower Drains with Adjustable Strainer Heads, 4"(100) Wide Flange, Secondary Flashing Flange [DX2005 | No-Hub Outlet; DX2010 | Caulk Outlet] [Suffix B | Square Strainer] | 0 | 444 KB | ||
| | Floor Drain with Adjustable Strainer Head and Wide Flange Body [2009C | Caulk Outlet; 2009T | Threaded Outlet; 2009Y | No-Hub Outlet; Suffix A | Round Top; Suffix B | Square Top] | 0 | 642 KB | ||
| | Floor Drain with Under Deck Clamp, Adjustable Strainer Head [2005Y-UDC | No-Hub Outlet; 2005L-UDC | Speedi-Set® Outlet; Suffix A | Round Top; Suffix B | Square Top] | 0 | 3 MB | ||
| | Floor Drain with Anti-Flood Rim, Adjustable Strainer Head | 0 | 368 KB | ||
| | Floor Drain with Adjustable Strainer Head NO-HUB, with Wide Flange (DX2005) and With Caulk Outlet and Wide Flange (DX2010) | 0 | 1 MB | ||
| | Floor Drain with Adjustable Strainer Head, Ball Float Backwater Valve | 0 | 620 KB | ||
 | | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 0 | 98 KB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 0 | 145 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||

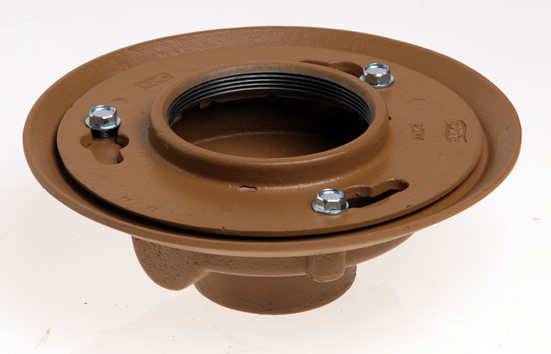

 | | Floor Drain with Adjustable Strainer Head - Drain Body shown only | 0 | 49 KB | ||
| | Technical Data for Floor Drains | 0 | 637 KB | ||
| | Parts Order Guide for Floor Drains | 0 | 6 MB | ||
| | Optional Strainer Heads [Suffixes -A, -AV, -B, -BS, -C, -D-E,-F, -F37, -F38, -G, -H, -J, -K, -L, -M, -N, -P,-R, -T, -V, -W, -X, -Y, -Z, -69] applicable on Figures 2005, 2010, 2020, 2038, 2095 | 0 | 451 KB | ||
| | Order Guidelines for Floor Drains | 0 | 120 KB |
Specifications
| Variations | Flapper Type Backwater Valve -V, Hinged Grate -H, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Sediment Bucket -B, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof -U - Screws, Wide Flanged Strainer, T Threaded Outlet, Heelproof Grate -HP -AHP (Round) or -BHP (Square), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | A05 -PB Strainer, Bronze Body -BB, Chrome Plated Strainer -CP, Galvanized Cast Iron Body -G, Nickel Bronze Strainer -NB, Polished Bronze -PB - Strainer |
| Product Type | Floor Drain |
Models
Floor Drain with Adjustable Strainer Head [submittal]
2005Y | No-Hub Outlet
2005L | Speedi-Set® Outlet
Floor Drain with Under Deck Clamp, Adjustable Strainer Head [submittal]
2005Y-UDC | No-Hub Outlet
2005L-UDC | Speedi-Set® Outlet
Floor Drain with Anti-Flood Rim, Adjustable Strainer Head [submittal]
2005Y-F37 | No-Hub Outlet
Floor Drain with Adjustable Strainer Head, Ball Float Backwater Valve [submittal]
2005Y-ABFV | No-Hub Outlet, Round Top
2005Y-BBFV | No-Hub Outlet, Square Top
2005L-ABFV | Speedi-Set® Outlet, Round Top
2005L-BBFV | Speedi-Set® Outlet, Square Top
Floor Drain with Adjustable Strainer Head, Wide Flange [submittal]
DX2005Y | No-Hub Outlet
Floor Drain with Adjustable Strainer Head and Wide Flange Body [submittal]
2009C | Caulk Outlet
2009T | Threaded Outlet
2009Y | No-Hub Outlet
OPTIONAL STRAINER HEADS
Suffix A | Round Strainer
Suffix B | Square Strainer
Suffix AV | Square Strainer which works with Flapper Backwater Valve
Suffix BS| Strainer Head with Square Hinged Cover
Suffix C | Reinforced Round Strainer
Suffix D | 7" Diameter Reinforced Tractor Round Strainer
Suffix E | 9" Diameter Reinforced Tractor Round Strainer
Suffix F | Round Tile Flange Strainer
Suffix F37 | 7" Diameter Adjustable Strainer Head
Suffix F38 | 9" Diameter Adjustable Strainer Head
Suffix G | Low Dome Strainer
Suffix H | Round Solid Hinged Cover Strainer
Suffix K | Reinforced Square Strainer
Suffix L | 4-1/2" x 8" Rectangular Strainer
Suffix M | 4" x 12" Rectangular Strainer
Suffix N | 5" x 9" Rectangular Strainer
Suffix P | 5" x 13" Rectangular Strainer
Suffix R | 6" x 10" Rectangular Strainer
Suffix T | 5" x 17" Rectangular Strainer
Suffix V | 3-1/2" x 3-1/2" x 4-1/2" Angle Strainer
Suffix W | 6-3/4" x 6-3/4" x 6-1/2" Angle Strainer
Suffix X | Extension Adaptor
Suffix Y | 2" Pipe Size Overflow with Standpipe
Suffix Z | 3" Pipe Size Overflow with Standpipe
Answers
Figure 7080 BWV is a ball float BWV designed to connect to a vertical outlet floor drain. There are flapper and ball float BWV’s available for figures 2005 and 2010 adjustable floor drains. They are located in the throats of both round and square strainers. Example: AV05NB for a flapper type BWV and ABF05NB for ball float type BWV.
