Figure Number: 2624
Contact a Representative

2624Large Parking Deck Floor Drain with Heavy-Duty Wide Flange Collar for Precast Slabs

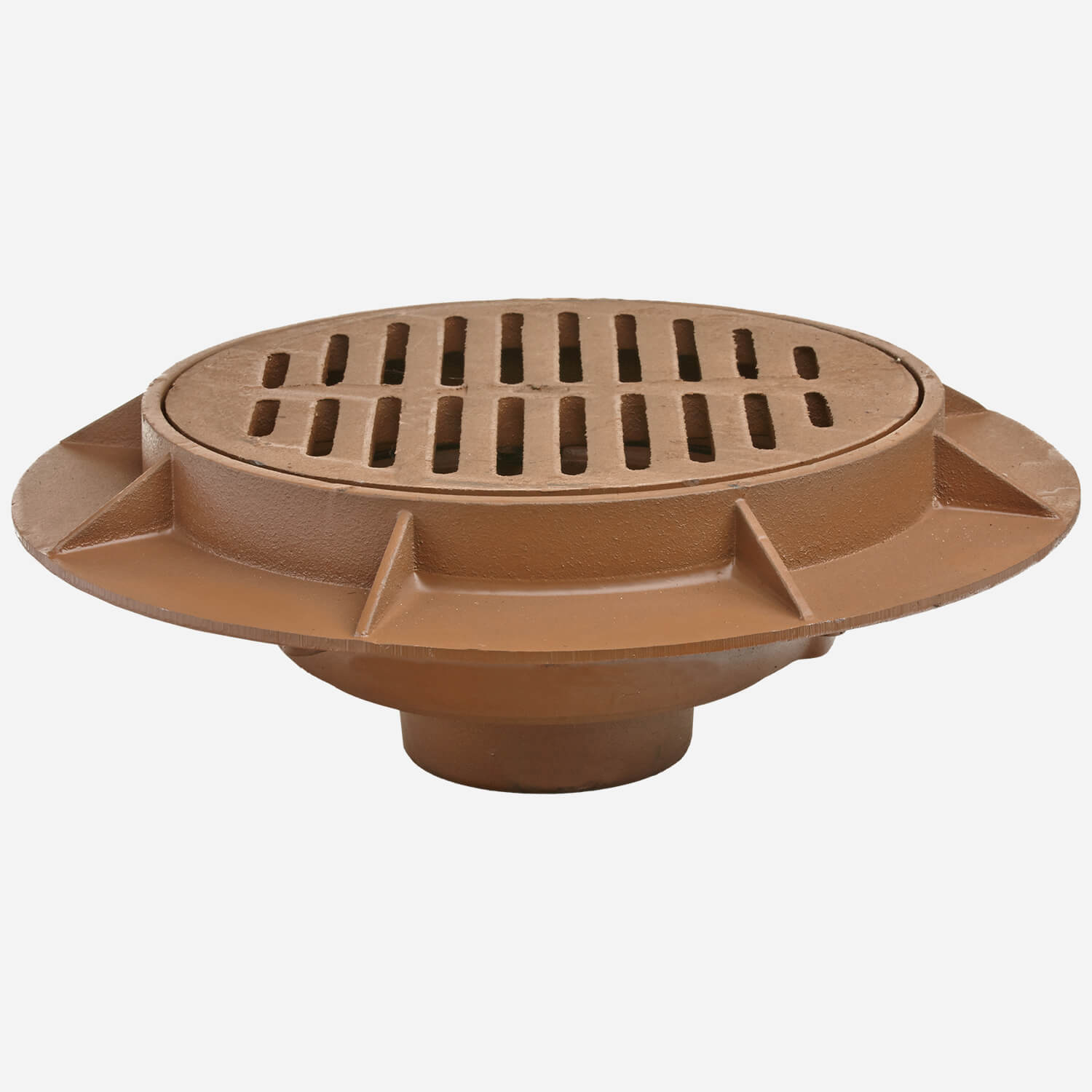

Duco Cast Iron Body, Heavy Duty Wide Flange Collar with Heavy Duty ADA Tractor Grate. Gasket Seal Between Body and Collar. Figure 2624 features 14" (355 mm) heavy-duty ADA tractor grate with 20" (510 mm). The bottom outlet can be Caulk, No-Hub, Threaded. The drain is designed for installation in precast stab.

Smaller 8" (205 mm) Grate with 16" (405 mm) Collar is available with Figure 2614

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Dome Bottom Strainer -DBS, Cast Iron Flat Bottom Strainer -FBSCI, Side Outlet (Specify Fig. 2629), Square Top -S, Vandal Proof -U, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only on Bottom Outlet Drains, Bucket -B, Quad Close Trap Seal (Specify Fig. 2692)
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top -PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2624 Floor Drain (pdf)
View
Technical Drawings
2624 Floor Drain (dwg)Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 14" Grate/20" Collar [2624C | Caulk Outlet; 2624Y | No-Hub Outlet; 2624T | Threaded Outlet]DWG239 KB
Literature / Videos
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Can't find what you are looking for? Get in touch
Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 14" Grate/20" Collar
2624C | Caulk Bottom Outlet
2624Y | No-Hub Bottom Outlet
2624T | Threaded Bottom Outlet
2629 | Side Outlet
