Name: Parking Deck Floor Drain with Heavy-Duty Wide Flange Collar for Precast Slabs
Brand: Jay R. Smith Mfg. Co.
SKU: 2614

Model 2614

Parking Deck Floor Drain with Heavy-Duty Wide Flange Collar for Precast Slabs

Duco-Cast Iron Body, Heavy Duty Wide Flange Collar with Heavy-Duty Tractor Grate. Gasket Seal Between Body and Collar. Featured an 8" (205 mm) diameter heavy-duty Tractor grate with a 16" (405 mm) diameter collar.

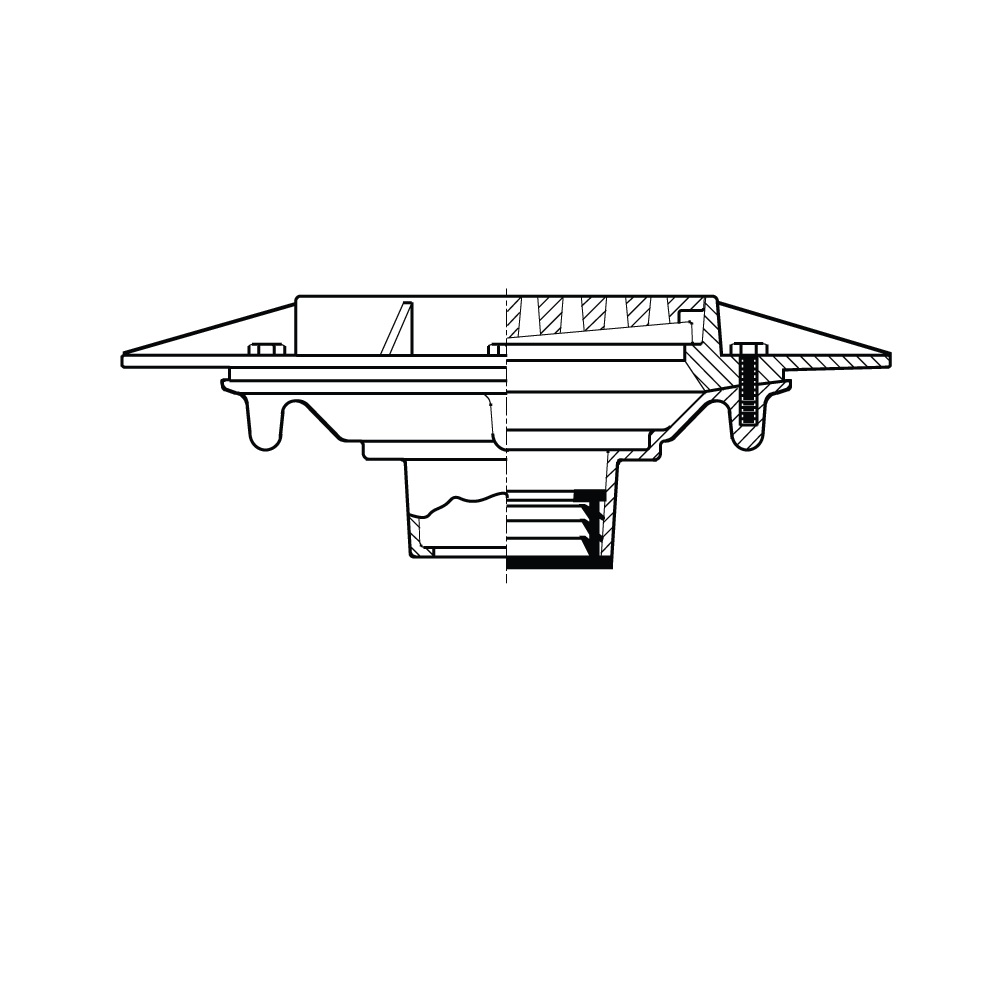

Figure 2614 has a bottom outlet. Drain is available in caulked, threaded, or no-hub styles.

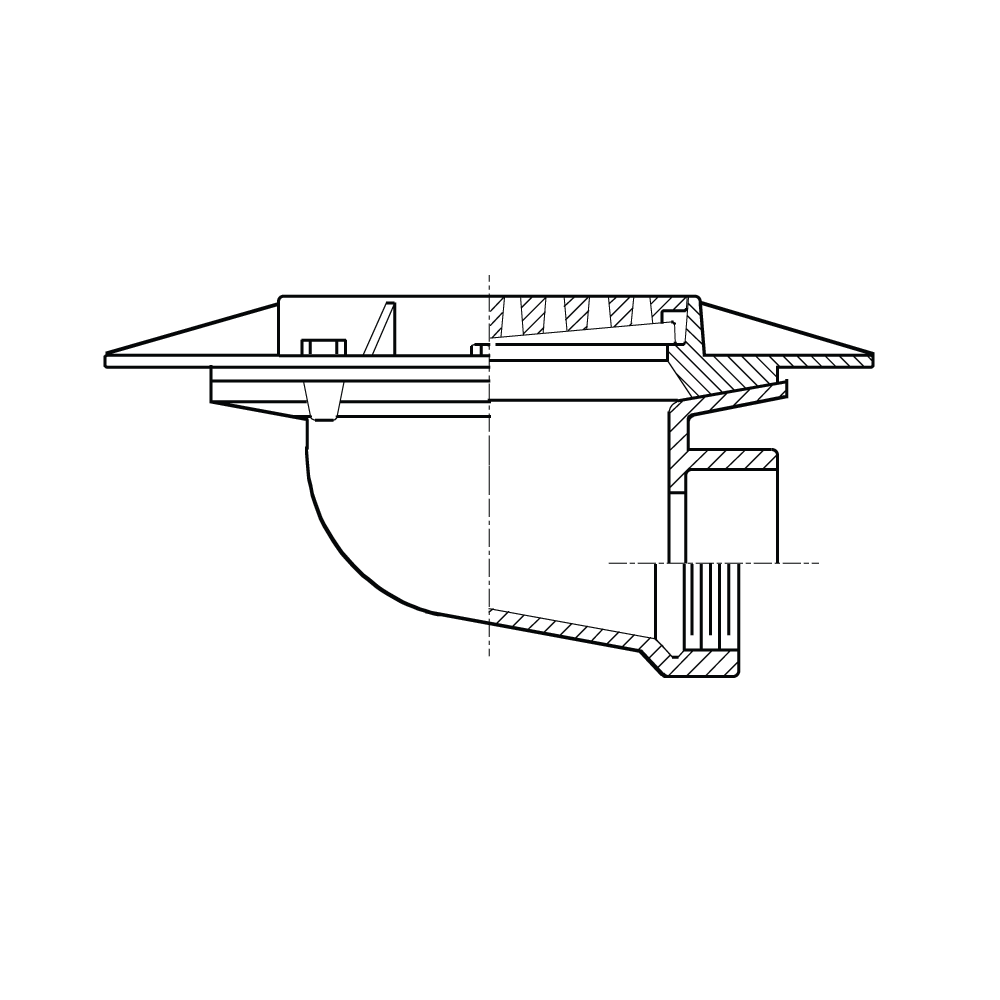

Figure 2619 has a side outlet. Drain is available in a caulked or threaded style.

This drain is designed for installation in a precast slab.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	2614 Floor Drain (dwg)	Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 8" Grate and 16" Collar [2614C \| Caulk Bottom Outlet; 2614T \| Threaded Bottom Outlet; 2614Y \| No-Hub Bottom Outlet]	62 KB
Submittals	Submittal 2614 Floor Drain (pdf)	Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 8" Grate and 16" Collar [2614C \| Caulk Bottom Outlet; 2614T \| Threaded Bottom Outlet; 2614Y \| No-Hub Bottom Outlet]	480 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Submittals	Submittal 2619 Floor Drain (pdf)	Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 8" Grate and 16" Collar [2619C \| Caulk Side Outlet; 2619T \| Thread Side Outlet]	104 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Dome Bottom Strainer -DBS, Cast Iron Flat Bottom Strainer -FBSCI, Square Top -S, Vandal Proof -U, T Threaded Outlet, Underdeck Clamp -C, Side Outlet (Specify Fig. 2619), Quad Close Trap Seal (Specify Fig. 2692), LXH Speedi-Set® Extra Heavy, L Speedi-Set® Service Weight
Optional Materials	Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Floor Drain

Models

Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs 8" (205 mm) Grate and 16" (405 mm) Collar

Bottom Outlet [ submittal ]
2614C | Caulked
2614T | Threaded
2614Y | No-Hub

Side Outlet [ submittal ]
2619C | Caulked
2619T | Threaded

Parking Deck Floor Drain with Heavy-Duty Wide Flange Collar for Precast Slabs
