Large Parking Deck Floor Drain with Heavy-Duty Wide Flange Collar for Precast Slabs

Name: Large Parking Deck Floor Drain with Heavy-Duty Wide Flange Collar for Precast Slabs
Brand: Jay R. Smith Mfg. Co.
SKU: 2624

Find A Representative

Figure 2624

Submittal

2 available

Model 2624

Large Parking Deck Floor Drain with Heavy-Duty Wide Flange Collar for Precast Slabs

Duco-Cast Iron Body, Heavy Duty Wide Flange Collar with Heavy Duty ADA Tractor Grate. Gasket Seal Between Body and Collar. It features a 14" (355 mm) heavy-duty ADA tractor grate with a 20" (510 mm) opening.

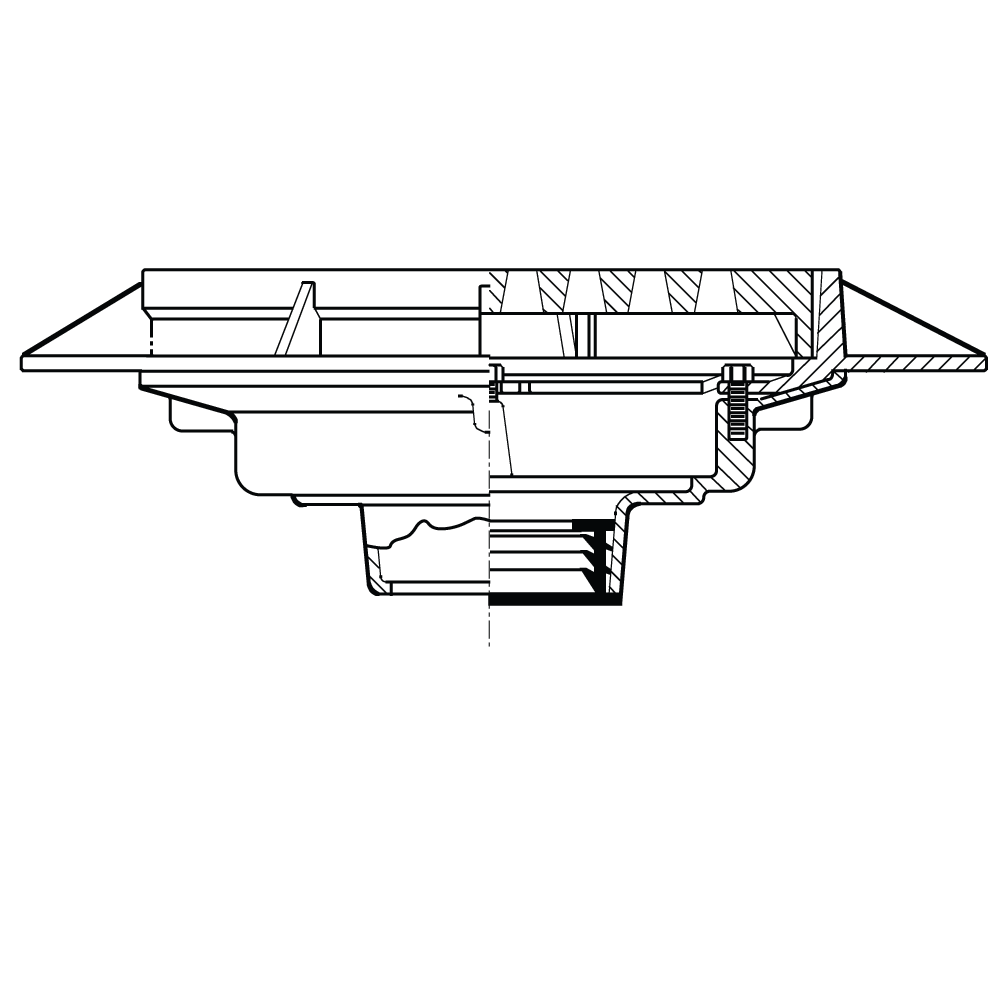

Figure 2624 has a bottom outlet. Drain is available in caulked, threaded, or no-hub styles.

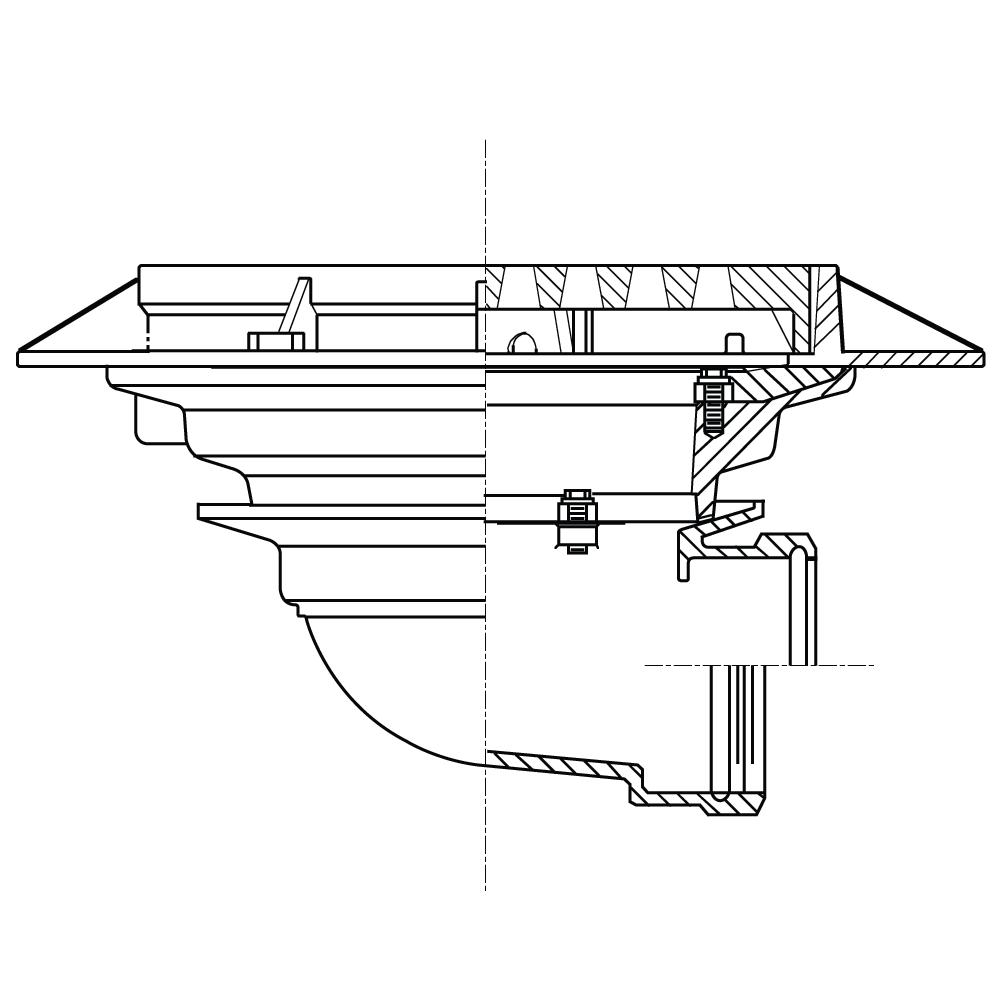

Figure 2629 has a side outlet. Drain is available in a caulked or threaded style.

The drain is designed for installation in a precast slab.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	2624 Floor Drain (dwg)	Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 14" Grate/20" Collar [2624C \| Caulk Outlet; 2624Y \| No-Hub Outlet; 2624T \| Threaded Outlet]	240 KB
Submittals	Submittal 2624 Floor Drain (pdf)	Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 14" Grate/20" Collar [2624C \| Caulk Outlet; 2624Y \| No-Hub Outlet; 2624T \| Threaded Outlet]	234 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Submittals	Submittal 2629 Floor Drain (pdf)	Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 14" Grate/20" Collar [2629C \| Caulk Outlet; 2629T \| Thread Outlet]	435 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Dome Bottom Strainer -DBS, Cast Iron Flat Bottom Strainer -FBSCI, Side Outlet (Specify Fig. 2629), Square Top -S, Vandal Proof -U, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only on Bottom Outlet Drains, Bucket -B, Quad Close Trap Seal (Specify Fig. 2692)
Optional Materials	Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top -PB
Product Type	Floor Drain

Models

Parking Deck Floor Drains with Heavy-Duty Wide Flange Collar for Precast Slabs - 14" Grate/20" Collar

Bottom Outlet [ submittal ]
2624C | Caulked
2624T | Threaded
2624Y | No-Hub

Side Outlet [ submittal ]
2629C | Caulked
2629T | Threaded
