Figure Number: 2010
Contact a Representative

2010Floor Drains with Adjustable Strainer Heads

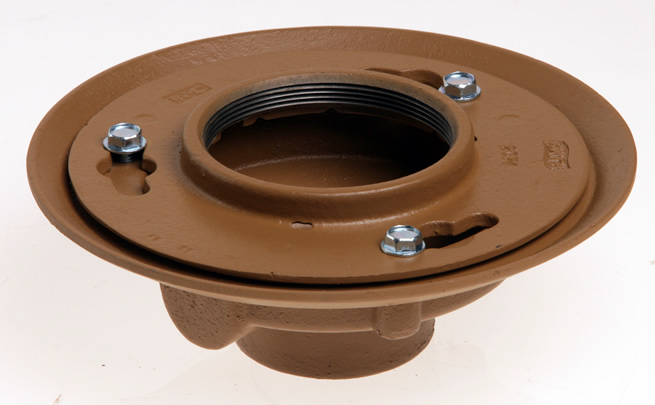

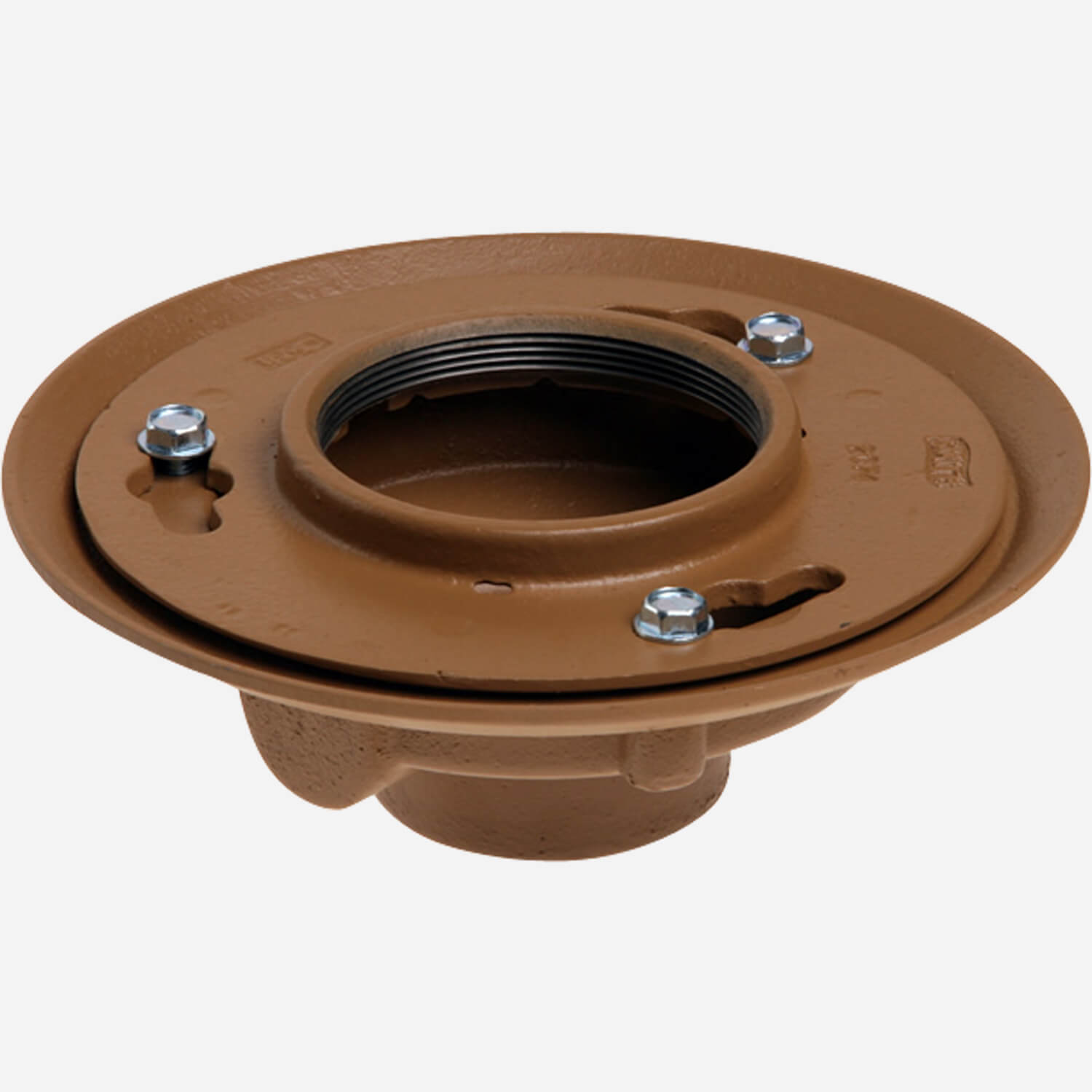

Designed for installation in showers, kitchens and other light traffic areas, this versatile drain is available in several materials and a variety of round and square strainer heads. Strainers easily adjust from above to the level of adjacent floors to prevent trip or laceration hazards. This drain joins to plumbing through caulk or threaded connections.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Ball Float Backwater Valve -BFV, Flapper Type Backwater Valve -V, Hinged Grate -H, Sediment Bucket -B, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof -U - Screws, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    A05 -PB Strainer, Bronze Body -BB, Chrome Plated Strainer -CP, Galvanized Cast Iron Body -G, Nickel Bronze Strainer -NB, Polished Bronze -PB - Strainer
  • Product Type
    Floor Drain
SubmittalSubmittal 2010, 2015 Floor Drain (pdf)
View
Technical Drawings

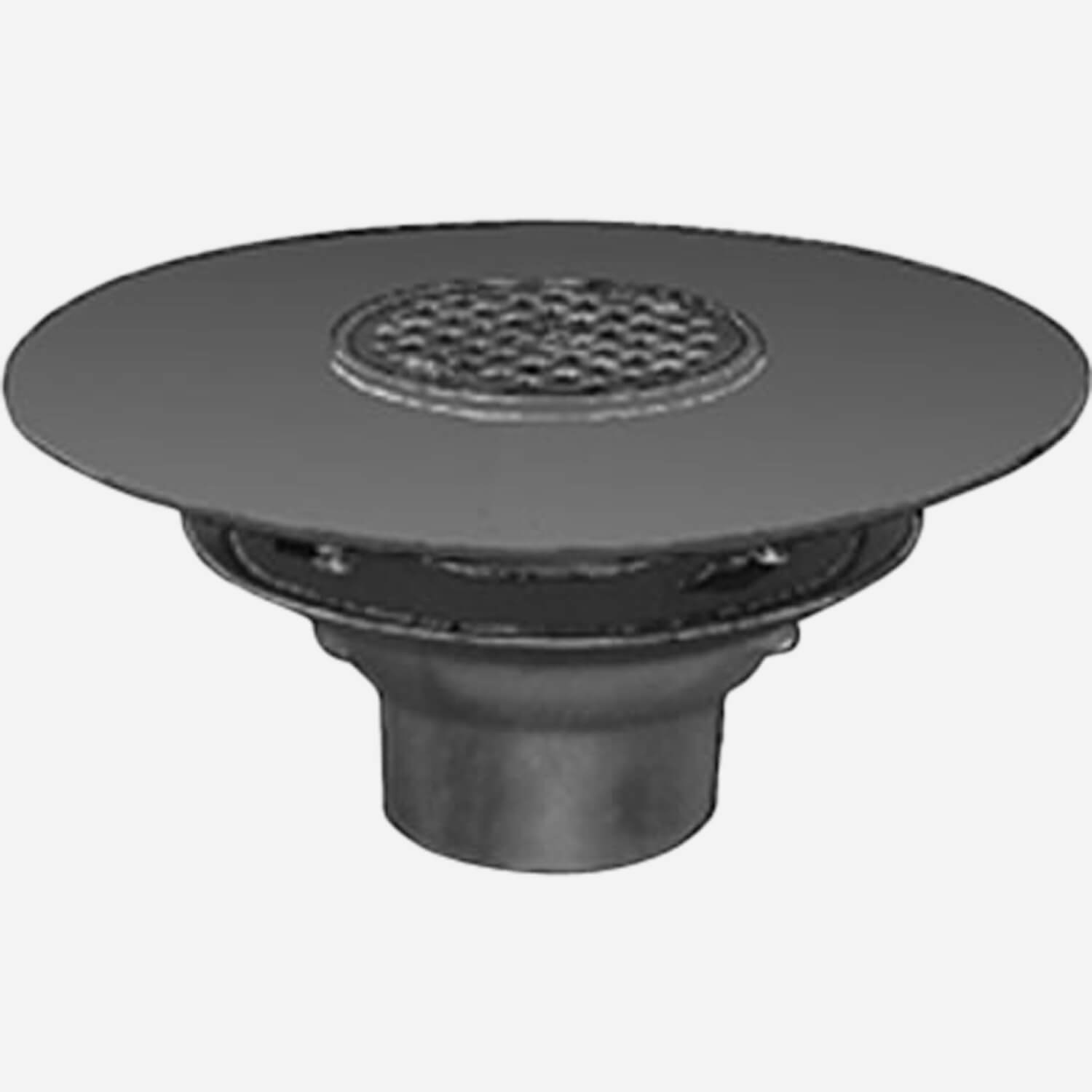

2010, 2015 Floor Drain CAD DrawingFloor Drains with Adjustable Strainer Heads [2015 | Side Outlet; 2010 | Bottom Outlet]DWG125 KB

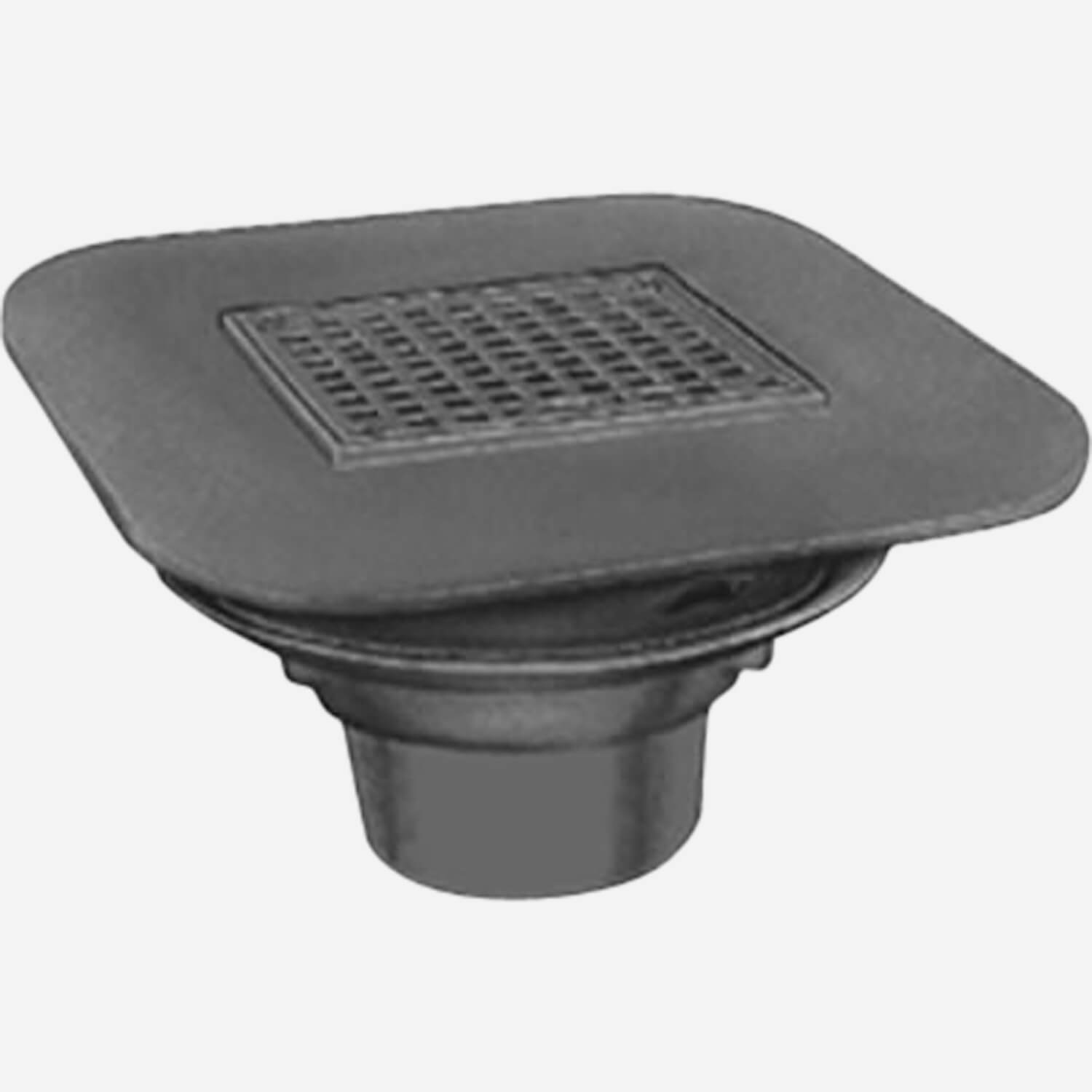

DX2005/DX2010-Suffix A Revit DrawingFloor or Shower Drains with Adjustable Strainer Heads, 4"(100) Wide Flange, Secondary Flashing Flange [DX2005 | No-Hub Outlet; DX2010 | Caulk Outlet] [Suffix A | Round Strainer]RFA432 KB
DX2005/DX2010-Suffix B Revit DrawingFloor or Shower Drains with Adjustable Strainer Heads, 4"(100) Wide Flange, Secondary Flashing Flange [DX2005 | No-Hub Outlet; DX2010 | Caulk Outlet] [Suffix B | Square Strainer]RFA444 KB
Literature / Videos
Submittal 2010-TT Floor Drain (pdf)Floor Drains with Adjustable Leveling StrainerPDF590 KB
Submittal DX2005 DX2010Floor Drain with Adjustable Strainer Head NO-HUB, with Wide Flange (DX2005) and With Caulk Outlet and Wide Flange (DX2010)PDF2 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
2010 Floor Drain (hi res jpg)Floor Drains with Adjustable Strainer HeadsJPG67 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Additional Options Strainer Heads for Floor Drains (pdf)Optional Strainer Heads [Suffixes -A, -AV, -B, -BS, -C, -D-E,-F, -F37, -F38, -G, -H, -J, -K, -L, -M, -N, -P,-R, -T, -V, -W, -X, -Y, -Z, -69] applicable on Figures 2005, 2010, 2020, 2038, 2095PDF451 KB
