Figure Number: 9660CB-ADAE

9660CB-ADAE25-11/16" Square Iron ADA Grate for Zip Tech® Catch Basin - Load Class E

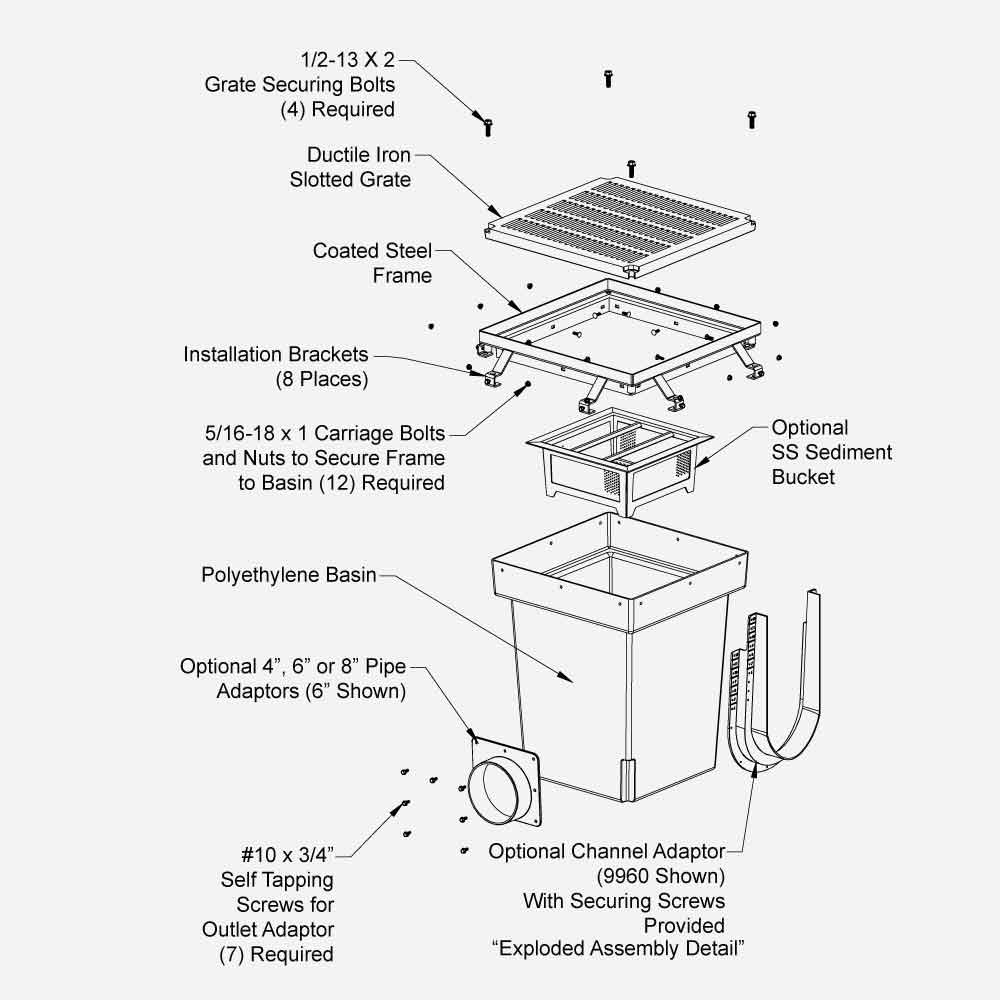

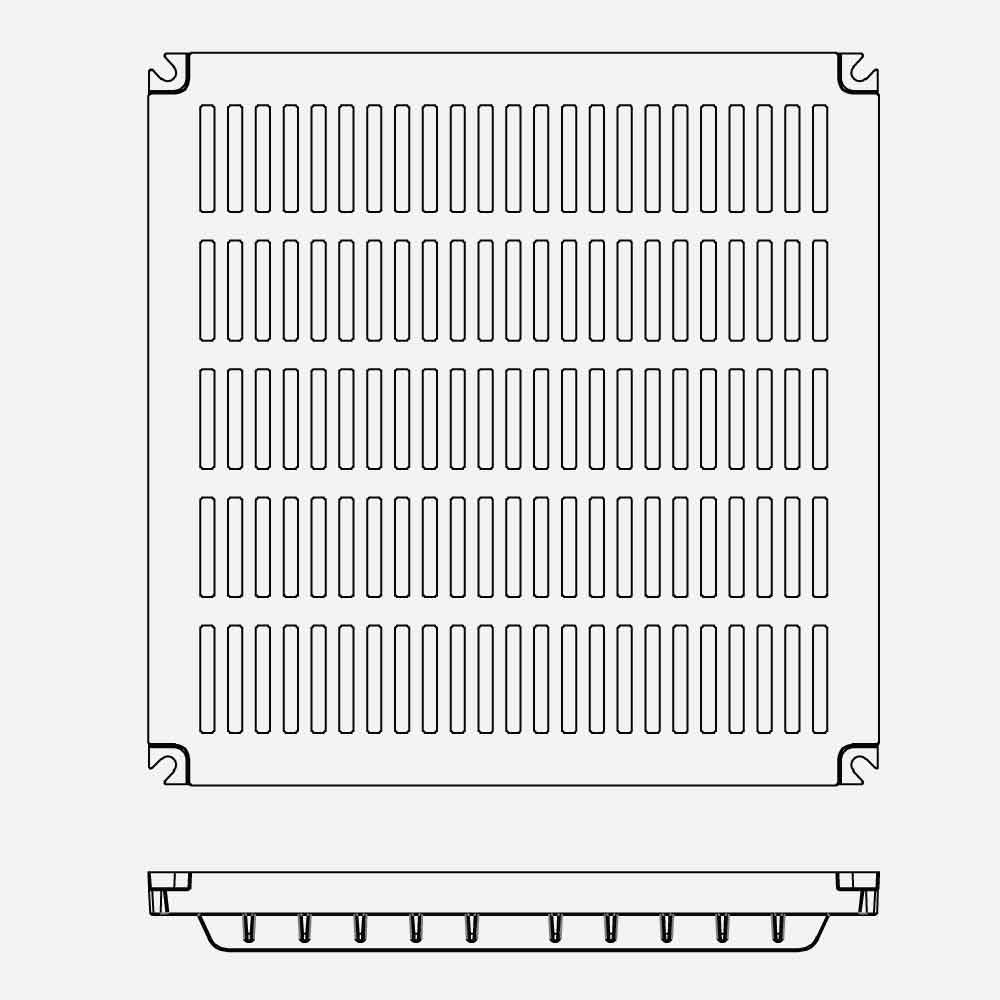

This provides an ADA ductile iron grate for the Zip Trench® 9960CB Trench Drain Catch Basin. The grate measures 25-11/16" (652 mm) x 25-11/16" (652 mm) x 1-1/2" (38 mm) to fit in the coated steel frame for the catch basin.

The ADA grate is a drainage grate designed to meet the standards of the Americans with Disabilities Act (ADA). It features small openings to prevent wheelchair wheels, canes, or other mobility aids from getting stuck. Typically, these openings are no larger than 1/2 inch (12.70 mm) wide and are positioned perpendicular to the direction of travel. This grate features 5/16" x 1-1/8" (7.94 mm x 28.58 mm) slots providing 131.5 sq inch (848.39 sq cm) open area.

This grate is rated for Class E and weighs 185 lbs (83.91kg).
