Figure Number: 2694
Contact a Representative

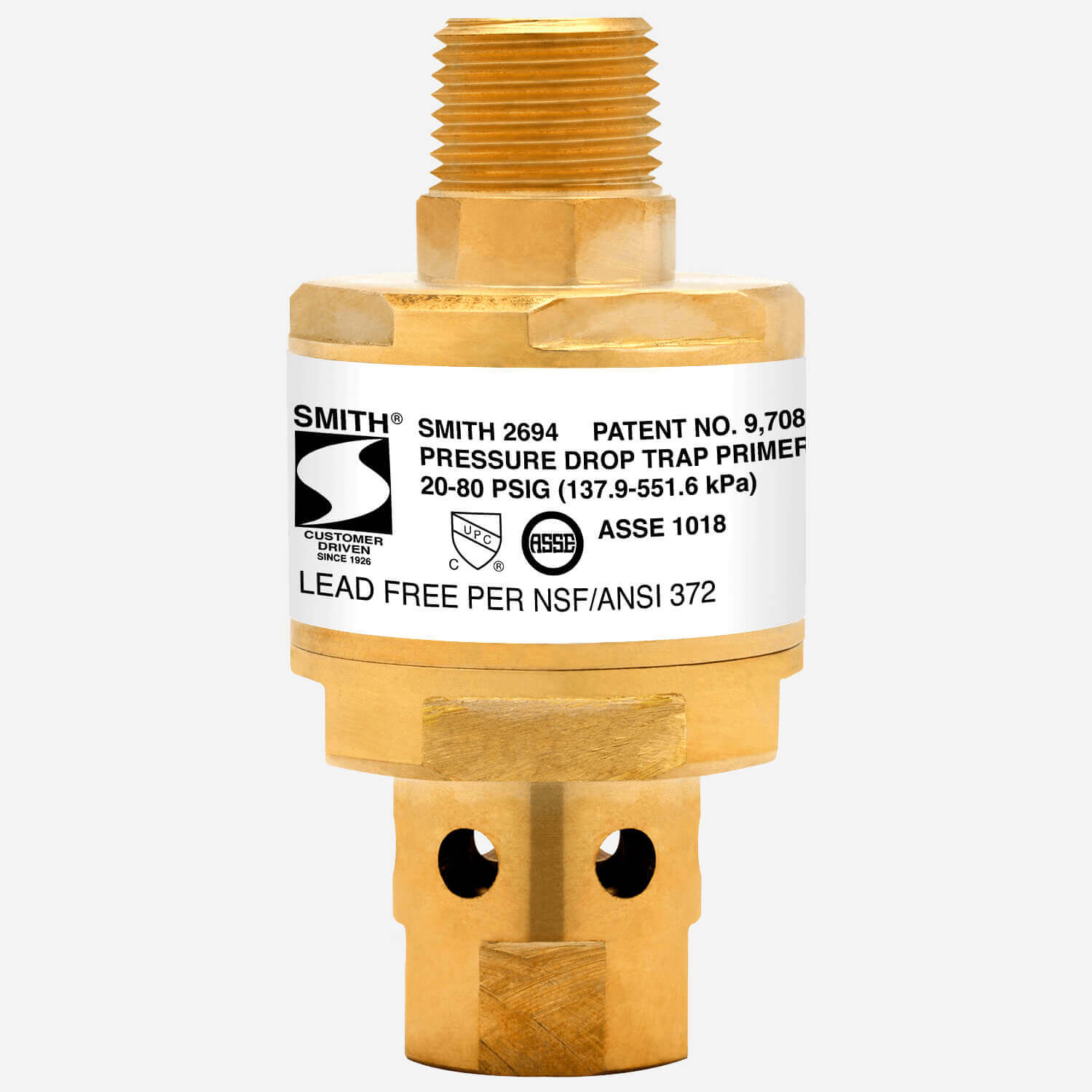

2694Trap-Defender® Pressure Drop Automatic Trap Primer

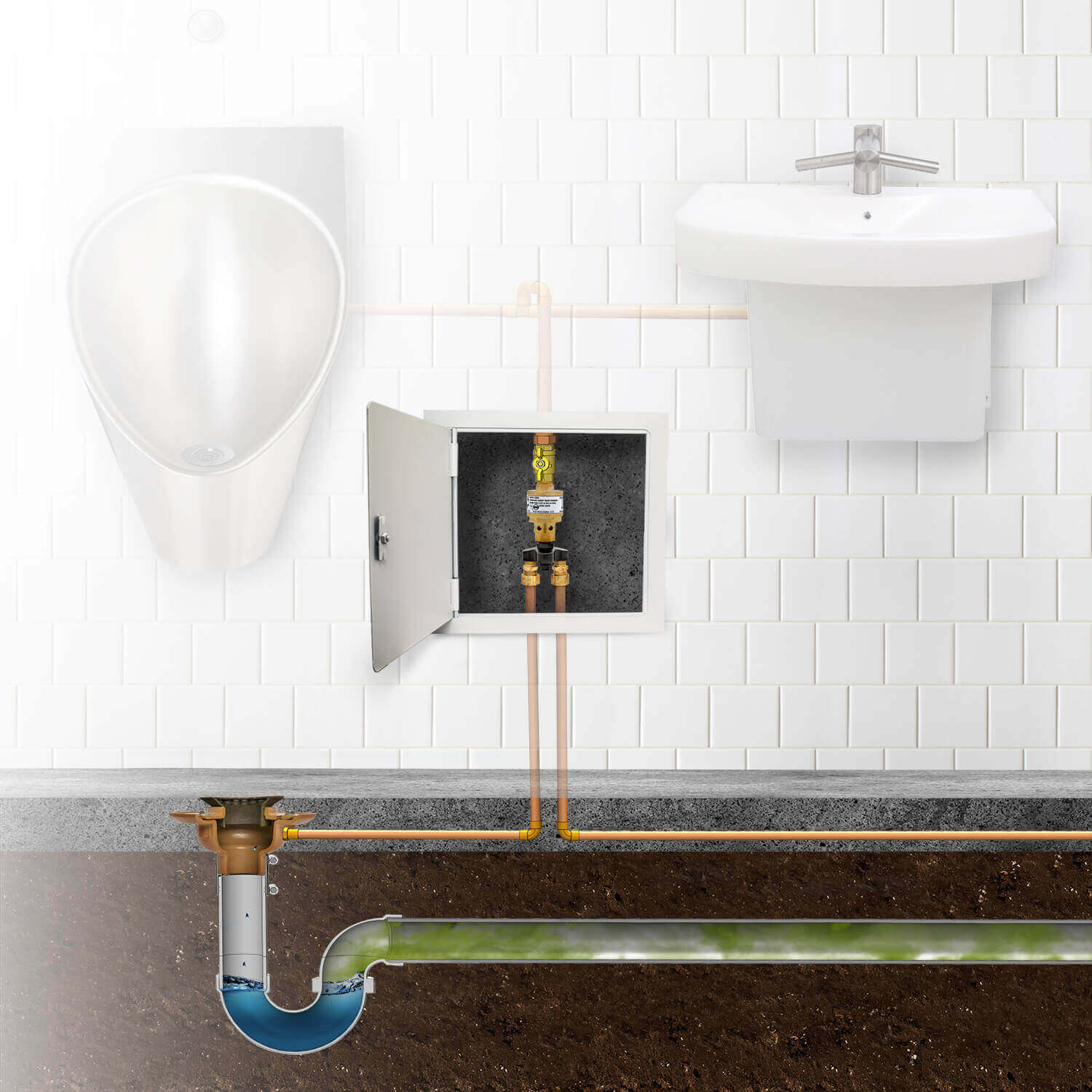

Trap-Defender® is a pressure drop-activated automatic trap primer designed to be connected to any potable cold water line. It is automatically activated when a pressure drop as low as 3 PSI occurs. The control valve releases water into the floor drain’s P-trap to maintain a seal.

Automatic Trap Primers feature:

  • Operates with 3 PSI pressure drop
  • Operates at pressures from 20–80 PSI
  • Fully automatic
  • Lead-free brass with 1/2" NPT
  • 1/2" NPT Union and 1/2" Sweat Union available

Ready to Learn More?

The Smith® Fluid Controls® product line offers unique solutions to common and uncommon problems faced by industries that rely on flow control valves. Subscribe today to gain access to our full playlist of informative videos showcasing these ingenious products.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Optional Materials
    Nickel Plated -NP
  • Variations
    Fig. 2694-UN 1/2"(13) NPT Union, Fig. 2694-SW 1/2"(13) Sweat Union, (2) 3/8” (10) Tappings -TAP
  • Compliance/Certifications
    cUPC, ASSE 1018 Listed Seal No.143
  • Patent
    9,708,808 & 10,190,306
SubmittalSubmittal 2694 Trap Primer (pdf)
View

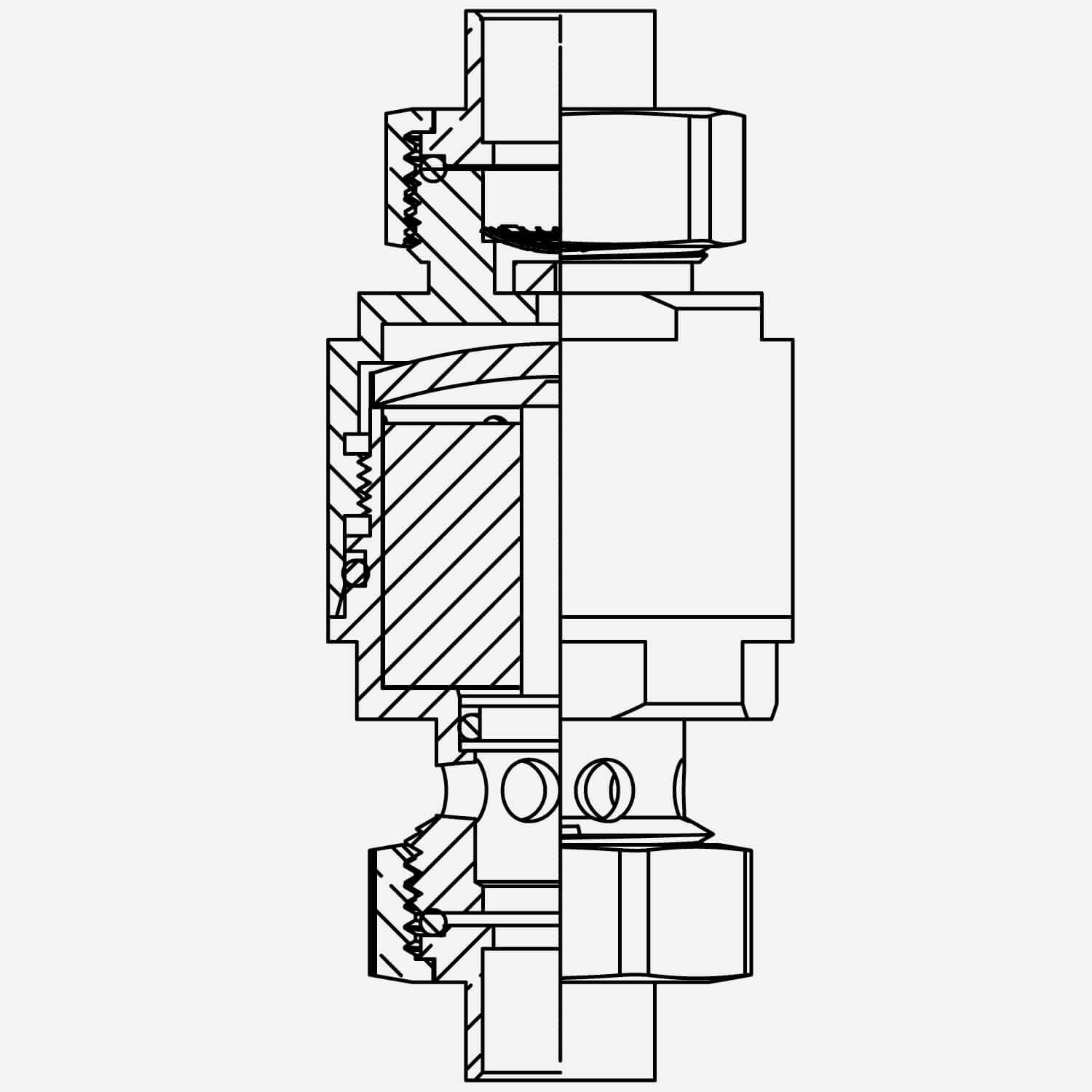

Technical Drawings
