Figure Number: 5005-5050
Contact a Representative

5005-5050Water Hammer Arrestors

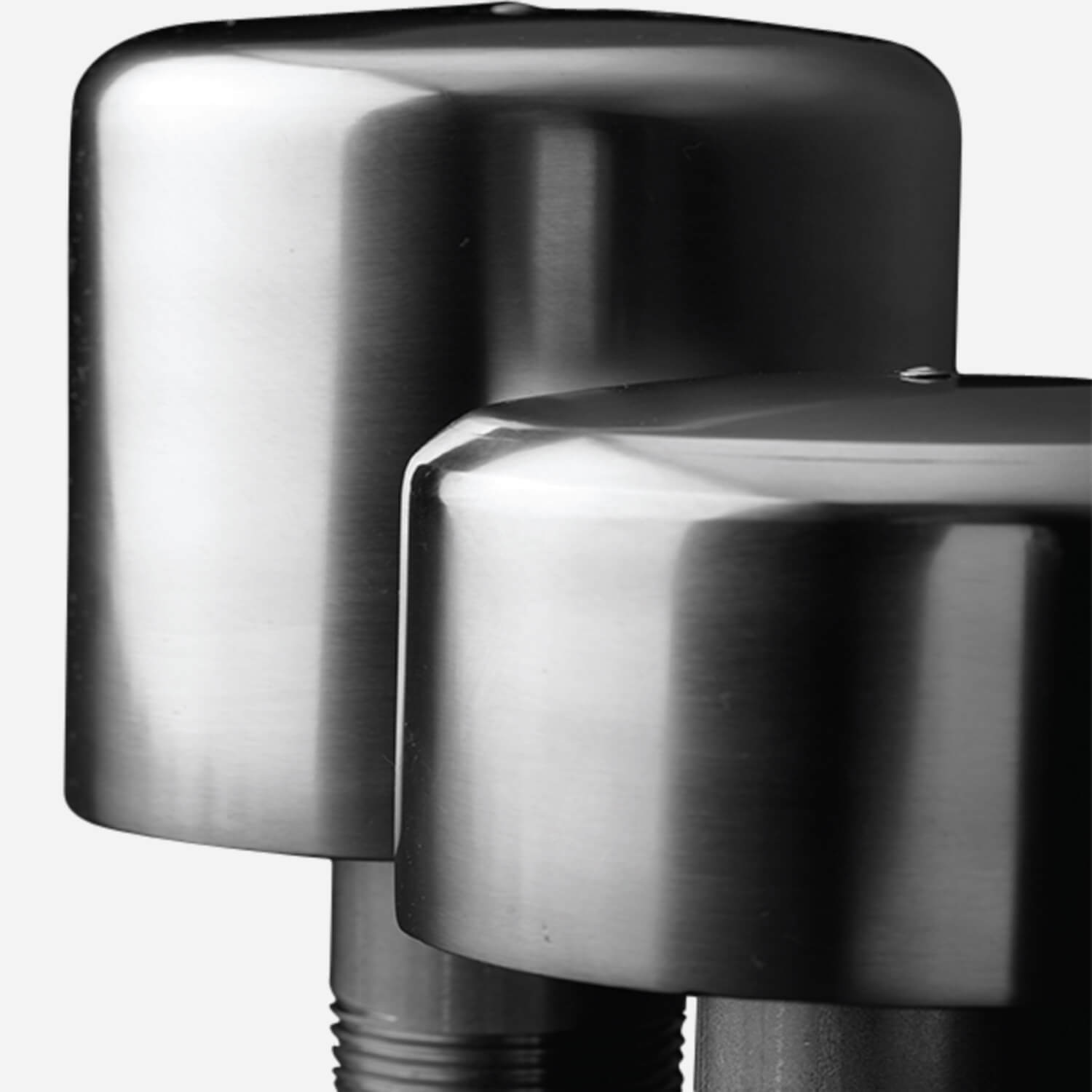

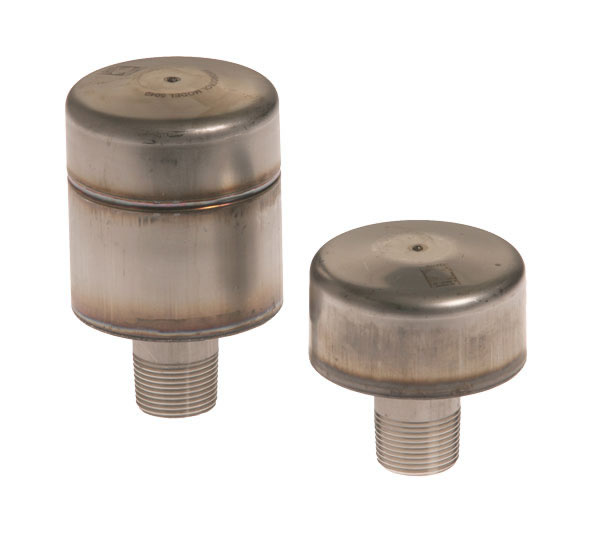

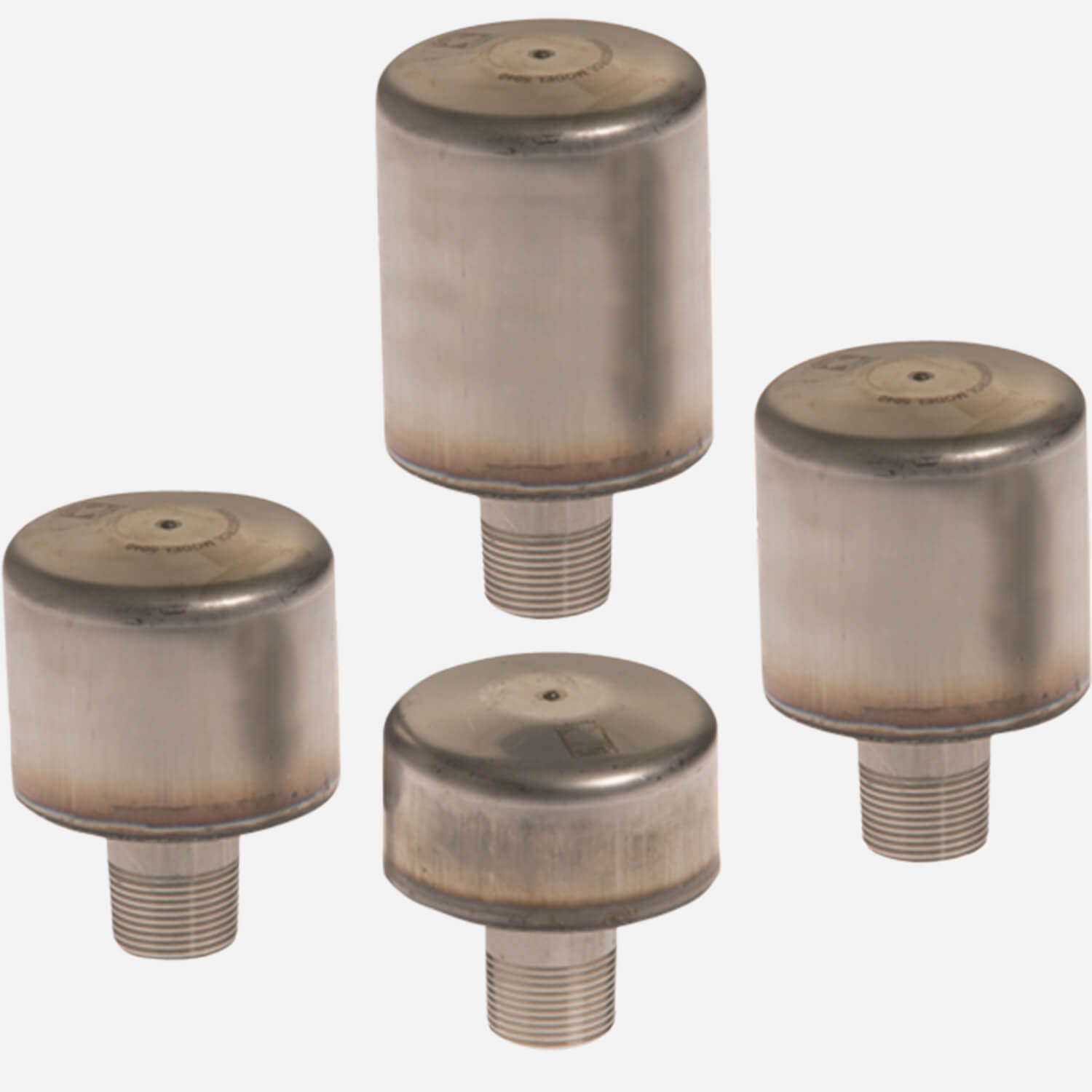

Available in 3/4" and 1" connection sizes and multiple capacities, these water hammer arrestors control the destructive shock of water hammer and reduce pressure in the piping system to safe levels. These Hydrotols arrestors are designed for installation in an upright position. Correctly sized units can be placed at specific locations throughout the water piping system.

Hydrotrols are pre-charged with nitrogen and permanently sealed at the factory. All hydrotrols are constructed entirely of stainless steel.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Water Hammer Arrester
  • Compliance/Certifications
    ASSE 1010
SubmittalSubmittal 5005 - 5050 Water Hammer Arresters (pdf)
View
Technical Drawings
5005 - 5050 Water Hammer Arrester CAD DrawingWater Hammer Arresters [5005 | 1-11 Fixtures Rating, 3/4"(19) Nipple; 5010 | 12-32 Fixtures, 1" (25) Nipple; 5020 | 33-60 Fixtures, 1" (25) Nipple; 5030 | 61-113 Fixtures, 1" (25) Nipple; 5040 | 114-154 Fixtures, 1" (25) Nipple]DWG23 KB
5005-5050 Water Hammer Arrester Revit DrawingWater Hammer Arresters [5005 | 1-11 Fixtures Rating, 3/4"(19) Nipple; 5010 | 12-32 Fixtures, 1" (25) Nipple; 5020 | 33-60 Fixtures, 1" (25) Nipple; 5030 | 61-113 Fixtures, 1" (25) Nipple; 5040 | 114-154 Fixtures, 1" (25) Nipple]RFA368 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
5005 to 5050 - Hydrotrol (hi res jpg)Water Hammer Arresters [5005 | 1-11 Fixtures Rating, 3/4"(19) Nipple; 5010 | 12-32 Fixtures, 1" (25) Nipple; 5020 | 33-60 Fixtures, 1" (25) Nipple; 5030 | 61-113 Fixtures, 1" (25) Nipple; 5040 | 114-154 Fixtures, 1" (25) Nipple] JPG23 KB
Order Guidelines for Water Hammer ArrestersOrder Guidelines for Water Hammer ArrestersPDF117 KB
Usage Guide for Water Hammer ArrestersUsage Guide for Water Hammer ArrestorsPDF306 KB
Can't find what you are looking for? Get in touch

Figure Number with their specifications shown below

Water Hammer Arrester rated for Rated for 1 to 11 fixtures

Figure 5005
Rated for 1 to 11 fixtures
Nipple 3/4" (19 mm)
Overall Height 3.18" (81 mm)

Water Hammer Arrester rated for Rated for 12 to 32 fixtures

Figure 5010
Rated for 12 to 32 fixtures
Nipple 1" (25 mm)
Overall Height 3.93" (100 mm)

Water Hammer Arrester rated for Rated for 33 to 60 fixtures

Figure 5020
Rated for 33 to 60 fixtures
Nipple 1" (25 mm)
Overall Height 4.30" (109 mm)





Water Hammer Arrester rated for Rated for 61 to 113 fixtures

Figure 5030
Rated for 61 to 113 fixtures
Nipple 1" (25 mm)
Overall Height 5.25" (133 mm)

Water Hammer Arrester rated for Rated for 114 to 154 fixtures

Figure 5040
Rated for 114 to 154 fixtures
Nipple 1" (25 mm)
Overall Height 5.57" (141 mm)

Water Hammer Arrester rated for Rated for 155 to 330 fixtures

Figure 5050
Rated for 155 to 330 fixtures
Nipple 1" (25 mm)
Overall Height 6.53" (166 mm)
