Figure Number: 0675
Contact a Representative

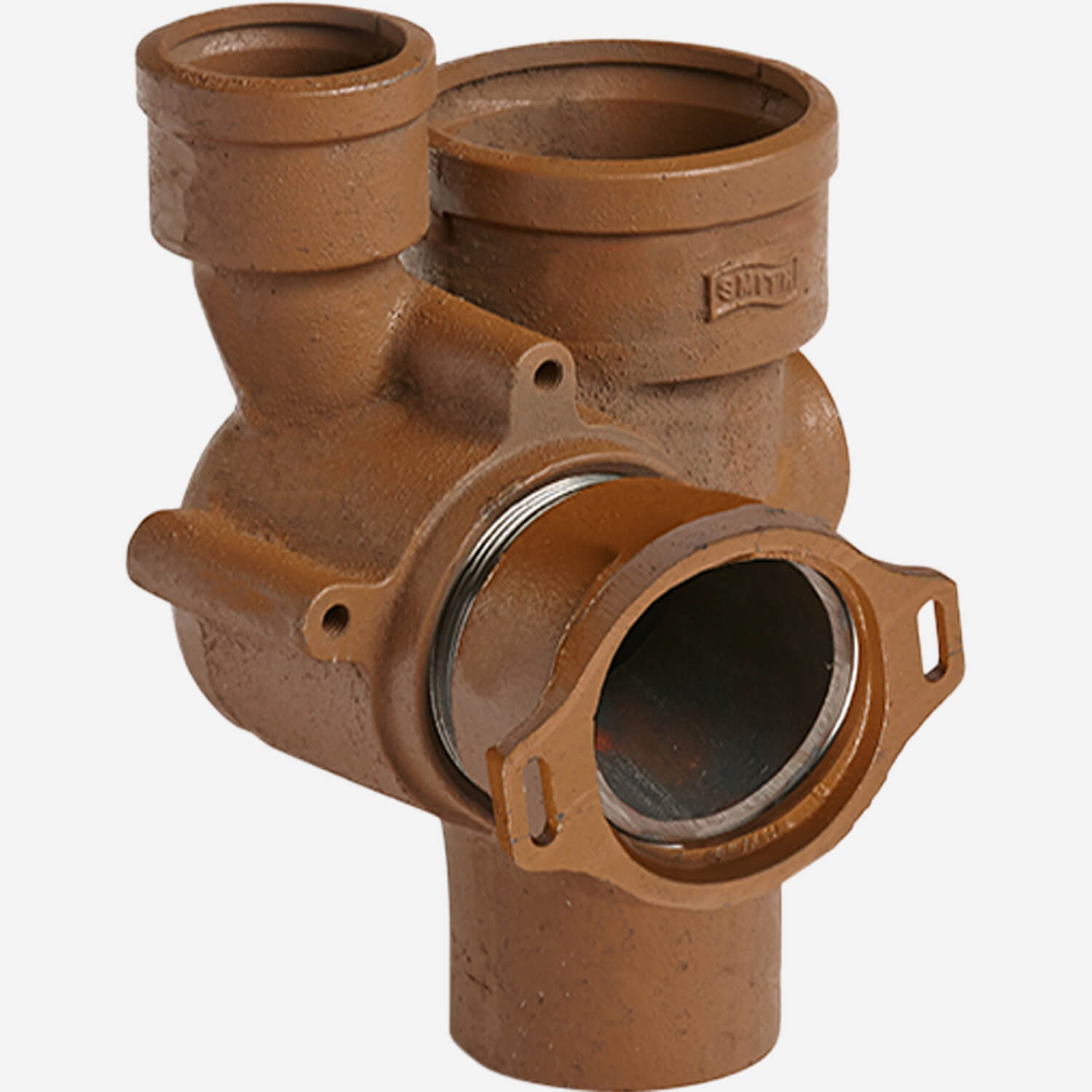

0675Floor Mounted Side Inlet Vertical Fitting with Back Outlet

This vertical offset waste fitting is designed for use with floor mounted back outlet water closets. Selecting the proper vertical stack fitting is of prime importance since that fitting with side inlets is the start of the horizontal battery of fittings and supports. To determine left or right hand fitting, face the stack from the fixture side of the wall. If the inlet is to the left of the stack, it is a left hand fitting. If the inlet is on the right of the stack, it is a right hand fitting. The vent is always located on the same side as the inlet on a single inlet stack fitting.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Water Closet Support
SubmittalSubmittal 0675, 0688 WC Waste Fitting (pdf)
View
Technical Drawings
0675, 0688 WC Waste Fitting (dwg)Vertical Offset Water Closet Waste Fitting - for use with Floor Mounted Back Outlet Water Closet [Short Barrel 0675L, 0675R, 0675D; Long Barrel 0688L, 0688R, 0688D]DWG153 KB
0688RY Waste Fitting (rfa)No-Hub Vertical Offset Waste Fitting - For Use with Floor Mounted Back Outlet Water Closet [ 0688RY | No-Hub Right Hand Long Barrel]RFA420 KB
0688LY Waste Fitting (rfa)No-Hub Vertical Offset Waste Fitting - For Use with Floor Mounted Back Outlet Water Closet [0688LY | No-Hub Left Hand Long Barrel]RFA416 KB
0688DY Waste Fitting (rfa)No-Hub Vertical Offset Waste Fitting - For Use with Floor Mounted Back Outlet Water Closet [ 0688DY | No-Hub Double (Back-to-Back) Long Barrel]RFA452 KB
Literature / Videos
Submittal 0688Y Waste Fitting (pdf)No-Hub Vertical Offset Waste Fitting - For Use with Floor Mounted Back Outlet Water Closet [0688LY | No-Hub Left Hand Long Barrel; 0688RY | No-Hub Right Hand Long Barrel; 0688DY | No-Hub Double (Back-to-Back) Long Barrel]PDF170 KB
Technical Data for Water Closet Supports (pdf)Technical Data for Water Closet SupportsPDF3 MB
Article: Water Closet SupportsArticle: Water Closet SupportsPDF2 MB
Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty ProductsArticle: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty ProductsPDF419 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Water Closet SupportsSpecifications for Water Closet SupportsDOC113 KB
Parts Order Guide for Water Closet SupportsParts Order Guide for Water Closet SupportsPDF4 MB
Order Guidelines for Water Closet SupportsOrder Guidelines for Water Closet SupportsPDF169 KB
Water Closet Supports (video)Video Water Closet SupportsVideo
