Figure Number: 2810 Series
Contact a Representative

2810 SeriesNarrow Heavy Duty Trench Drains

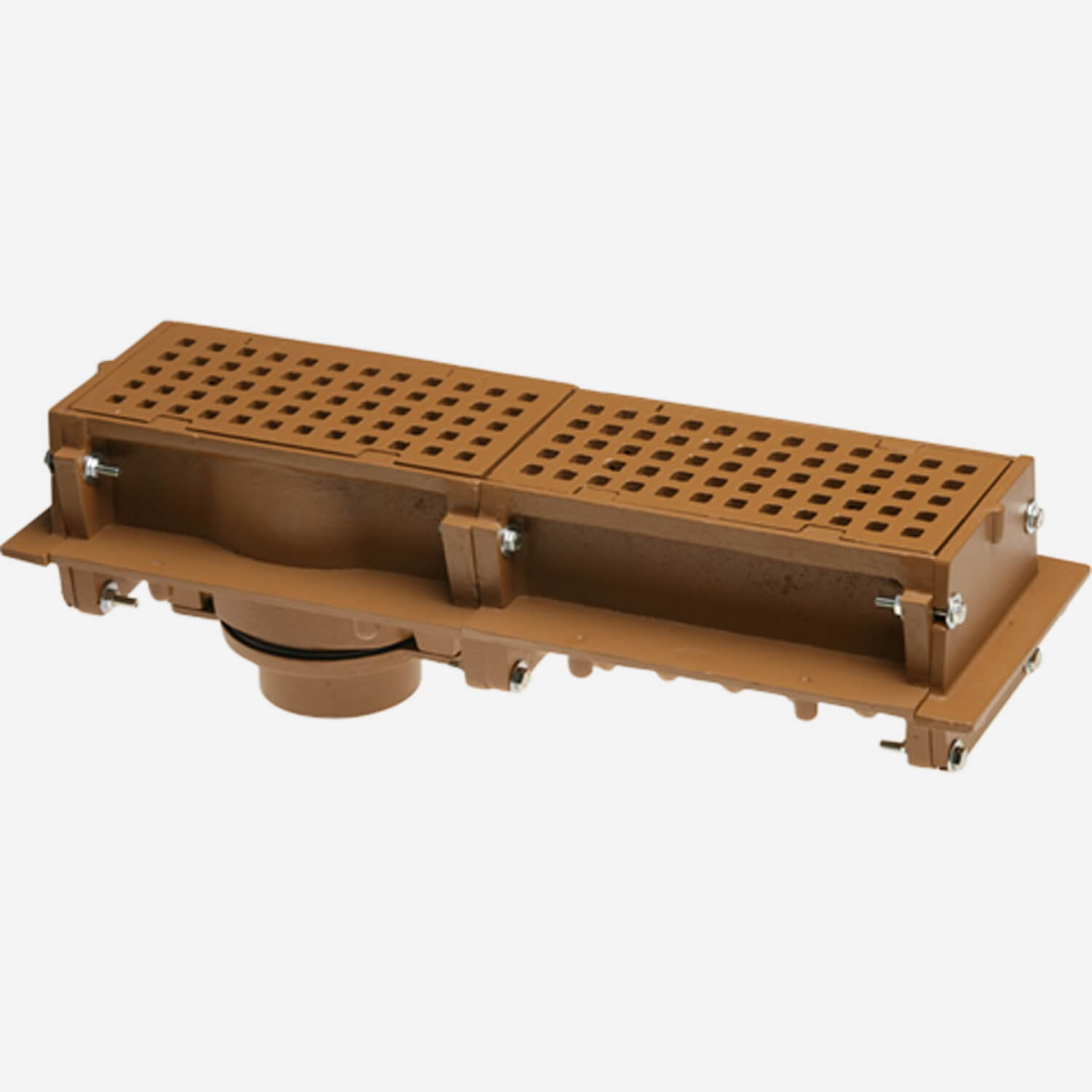

These narrow, heavy duty trench drains are for use in ramps, loading areas, and as a continuous perimeter drain. They come regularly furnished with Duco cast iron flanged body and end plates with cast iron, anti-shift, loose set, square hole grate, and dome bottom strainer.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Clamp -C, Vandal Proof -U, Backwater Valve -V 02(50) -04"(100) (Deep Hub Body Only), Deep Hub -DH, Not Available in 08"(200), Dome Bottom Strainer -DBS, Sediment Bucket -B (Deep Hub Body only), Quad Close Trap Seal (Specify Fig. 2692), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
SubmittalSubmittal 2810 Series Trench Drains
View
Technical Drawings
2810 Series Trench Drain CAD Drawing6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820 DWG290 KB
2810 Series Trench Drain Revit Drawing6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820 - Mid SectionRFA508 KB
Literature / Videos
Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)PDF497 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Trench Drain Flyer (pdf)Trench Drain Flyer (pdf)PDF2 MB
Smith Trench Drain Brochure (pdf)Your complete trench drain source. Solutions and materials PDF13 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
2810 Series Trench Drain (hi res jpg)6" (150 mm) Narrow Medium Duty Modular Duo Cast Iron Trench Drains Figures 2810, 2811, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819, 2820JPG43 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
