Figure Number: 2710 Series

2710 SeriesHeavy Duty Modular Cast Iron Trench Drains

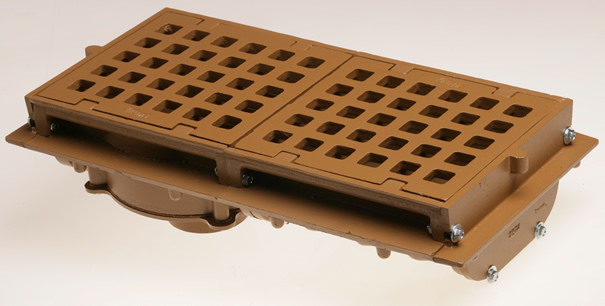

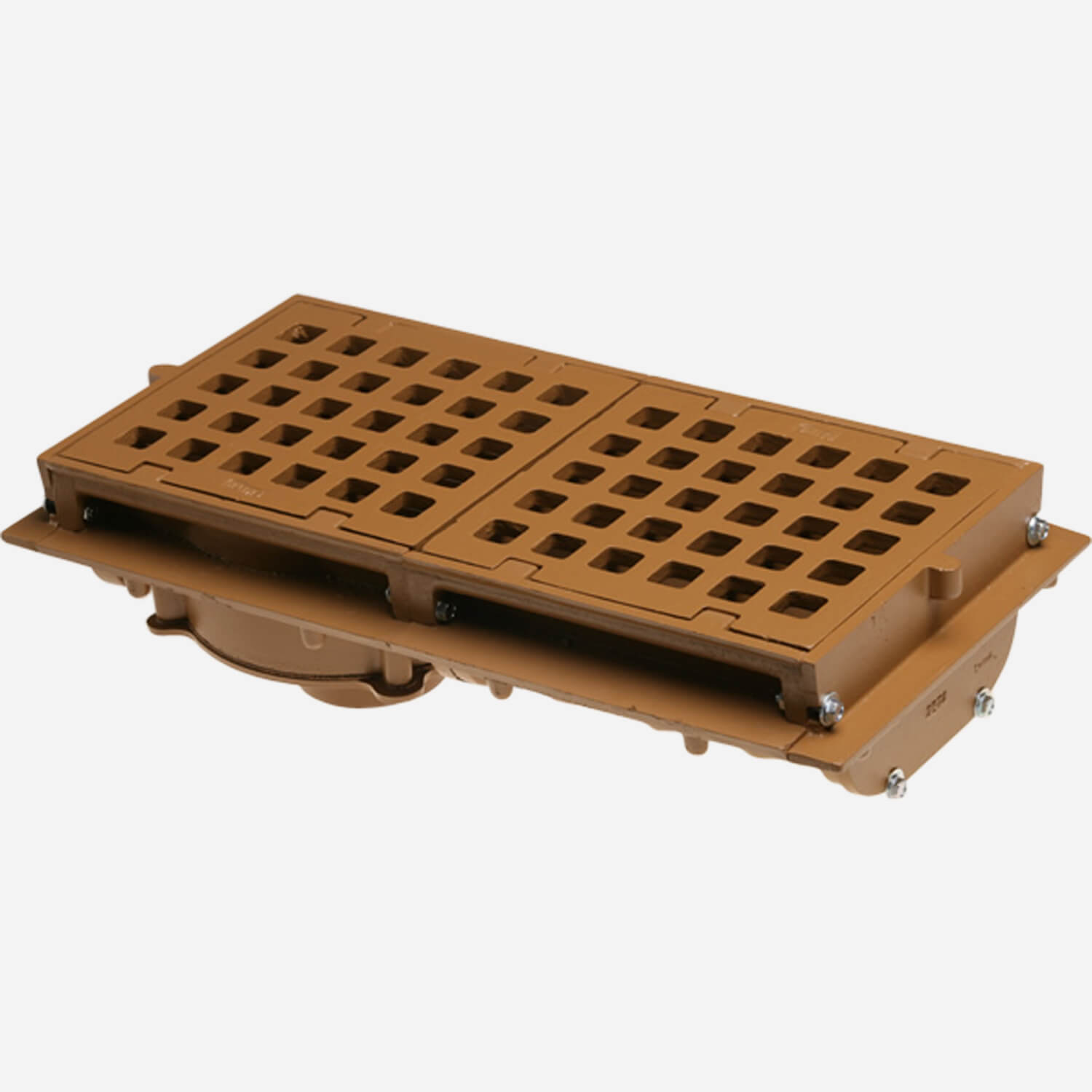

This 12.25" (310 mm) Width x 12" (305 mm) heavy duty Duco cast iron trench drain can be used as a ramp drain in loading docks, garages, or parking areas where a wide continuous trench drain is required to handle moderate traffic loads and can serve as a reservoir for large water runoff. It can also be used individually as an area drain. It is furnished with a cast iron flanged body outlet section A and flanged end plate with cast iron anti-shift loose set square hole grate.

Features

  • Heavy duty cast iron construction
  • Provides a wide, continuous trench
  • Serves as a reservoir for large water runoff
  • Available with flange and clamping collar
  • Heavy duty grate rating per ASME A112.6.3

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Backwater Valve -V 02(50), -04"(100) Deep Hub Body Only, Deep Hub -DH, Not Available in 08" (200), Dome Bottom Strainer -DBS, Flashing Clamp -C, Sediment Bucket -B - (Deep Hub Body Only), Quad Close Trap Seal (Specify Fig. 2692), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top -NB, Polished Bronze Top -PB, Ductile Iron Grate -M
  • Product Type
    Floor Drain
Technical Drawings
2710 Series Trench Drain CAD Drawing12" (305 mm) Medium Duty Modular Duo Cast Iron Trench Drains Figures 2710, 2711, 2712, 2713, 2714, 2715, 2716, 2717, 2718, 2719, 2720 DWG262 KB
2710 Series Trench Drain Revit Drawing12" (305 mm) Medium Duty Modular Duo Cast Iron Trench Drains Figures 2710, 2711, 2712, 2713, 2714, 2715, 2716, 2717, 2718, 2719, 2720 - End PieceRFA256 KB
Literature / Videos
Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)PDF497 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Trench Drain Flyer (pdf)Trench Drain Flyer (pdf)PDF2 MB
Smith Trench Drain Brochure (pdf)Your complete trench drain source. Solutions and materials PDF13 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
2710 Series Trench Drain (hi res jpg)12" (305 mm) Medium Duty Modular Duo Cast Iron Trench Drains Figures 2710, 2711, 2712, 2713, 2714, 2715, 2716, 2717, 2718, 2719, 2720 JPG63 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Can't find what you are looking for? Get in touch
FigureDrain Section
Section "A"
Non-Drain Section
Section "B"
2710 12" x 12"
2711 12" x 12" Single 12 x 12"
2712 12" x 12" Two 12 x 12" Sections
2713 12" x 12" Three 12 x 12" Sections
2714 12" x 12" Four 12 x 12" Sections
2715 12" x 12" Five 12 x 12" Sections
2716 12" x 12" Six 12 x 12" Sections
2717 12" x 12" Seven 12 x 12" Sections
2718 12" x 12" Eight 12 x 12" Sections
2719 12" x 12" Nine 12 x 12" Sections
2720 12" x 12" Ten 12 x 12" Sections
