Figure Number: 276 Series
Contact a Representative

276 SeriesTrap Primer Adapter

Trap primer adapters are connected to the floor drain outlet prior to the P-trap.

Trap primer adapter features:

  • Provides a trap primer connection when the floor drain and P-trap are not tapped
  • Allows flexibility, can be rotated in any direction prior to bonding, offering a quick and cost-saving installation

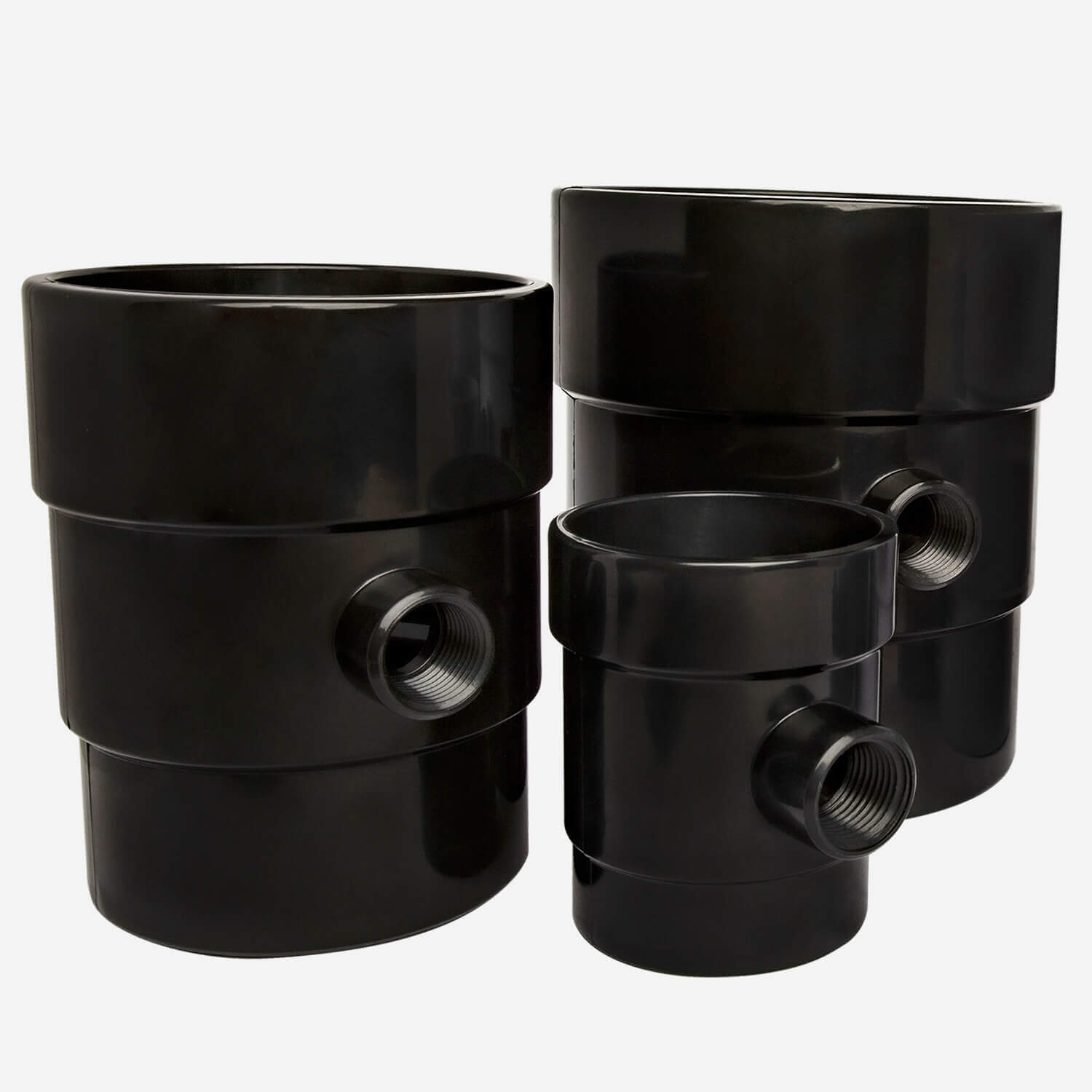

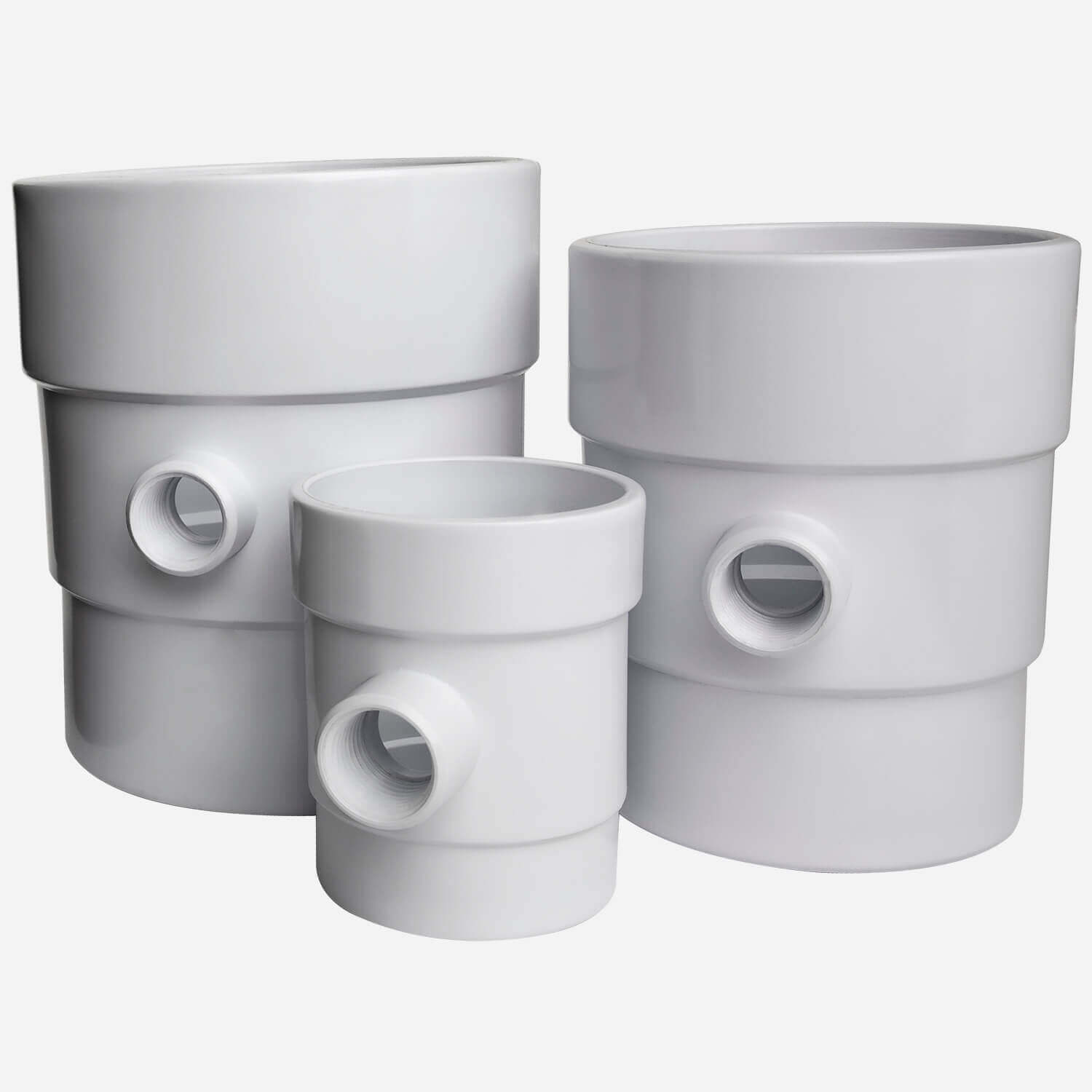

  • Available in PVC or ABS
  • Available in 2", 3" or 4" pipe sizes

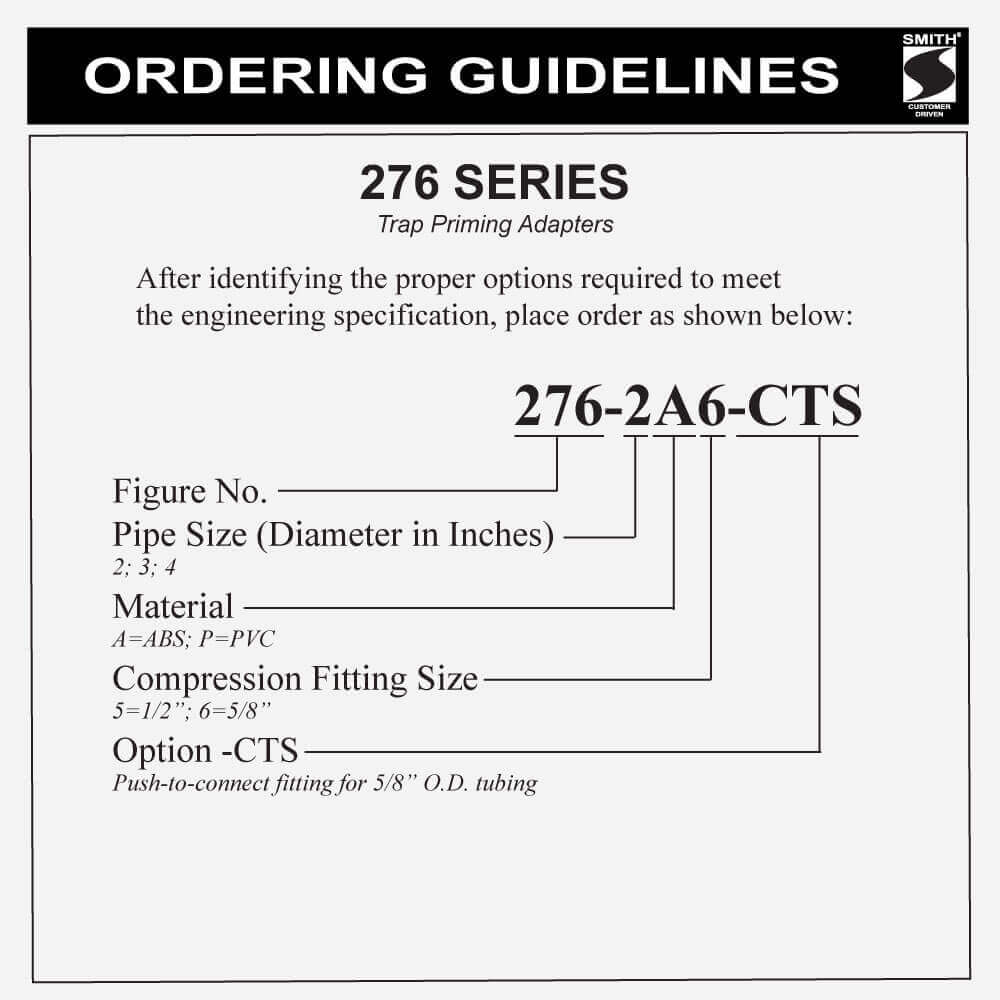

  • Availalbe connection sizes/type
    • 1/2 inch NPT female
    • 1/2 inch OD copper compression
    • 5/8 inch OD copper compression

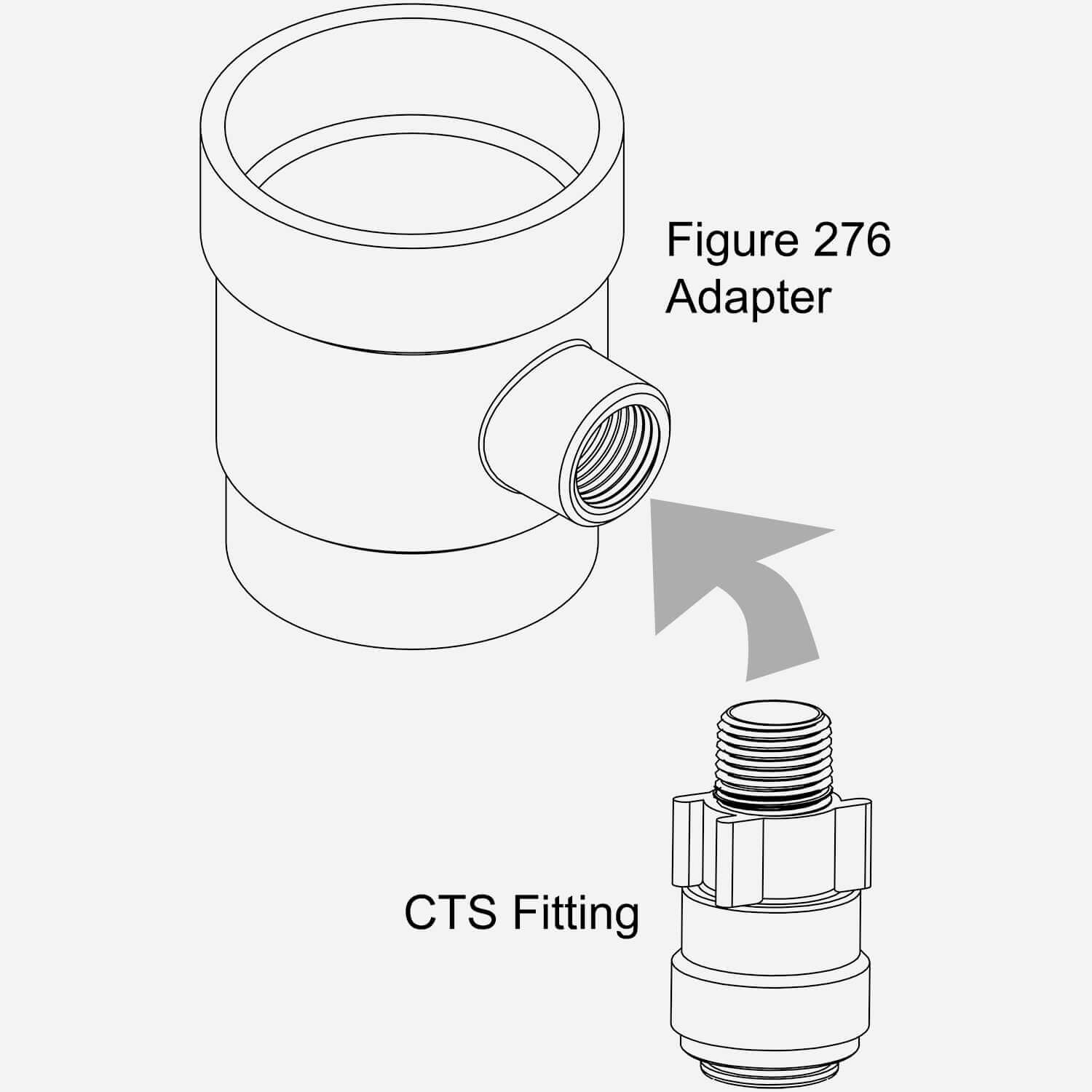

    • 5/8 inch OD -CTS push-in fitting

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    (2) 3/8” (10) Tappings -TAP
SubmittalSubmittal 276 Series Trap Primer Adapter
View

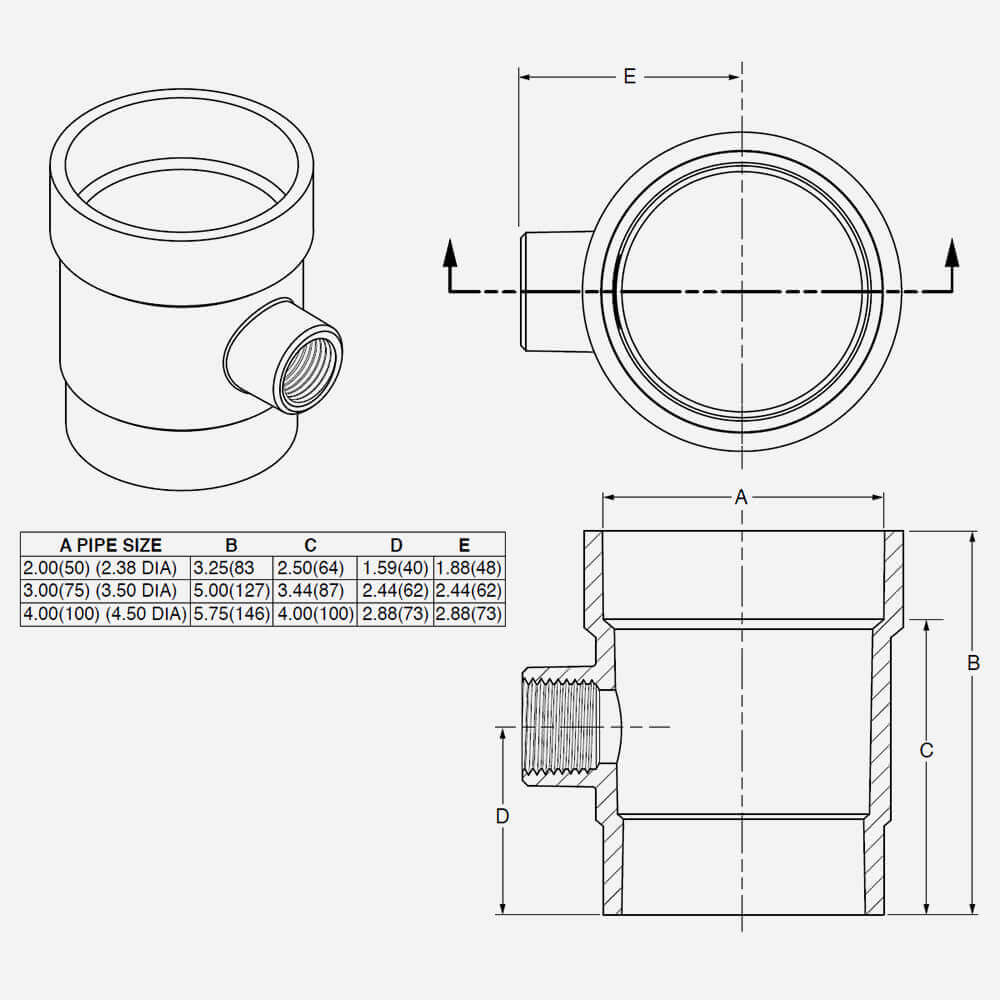

Technical Drawings
DWG 276 Series Trap Primer AdapterTrap Primer AdapterDWG95 KB
RFA 276 Series Trap Primer AdapterTrap Primer AdapterRFA444 KB
Literature / Videos
Smith Fluid Controls Brochure (pdf)Brochure - Trap Primers, Distribution Units and other AccessoriesPDF3 MB
Smith Fluid Controls FlyerFlyer - Trap Primer, Distribution Units and other AccessoriesPDF2 MB
Fluid Controls with Chris RylantFluid Controls with Chris RylantVideo
Fluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringFluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringVideo
Fluid Controls Trap Primers Overview with Chris LevinsFluid Controls Trap Primers Overview with Chris LevinsVideo
Fluid Controls - Trap Primers & Distribution Units with Chris LevinsFluid Controls - Trap Primers & Distribution Units with Chris LevinsVideo
Can't find what you are looking for? Get in touch
ABS or PVC Trap Primer Adapter Fitting as seletected providing a 360º adjustment prior to permanent installation, a 1/2" or 5/8" brass compression fitting as selected is provided with each adapter for the connection to a trap priming line from a trap primer valve.
