Figure Number: 4434 & 4435
Contact a Representative

4434 & 4435Taper Thread Plug with Square Frame and Cover

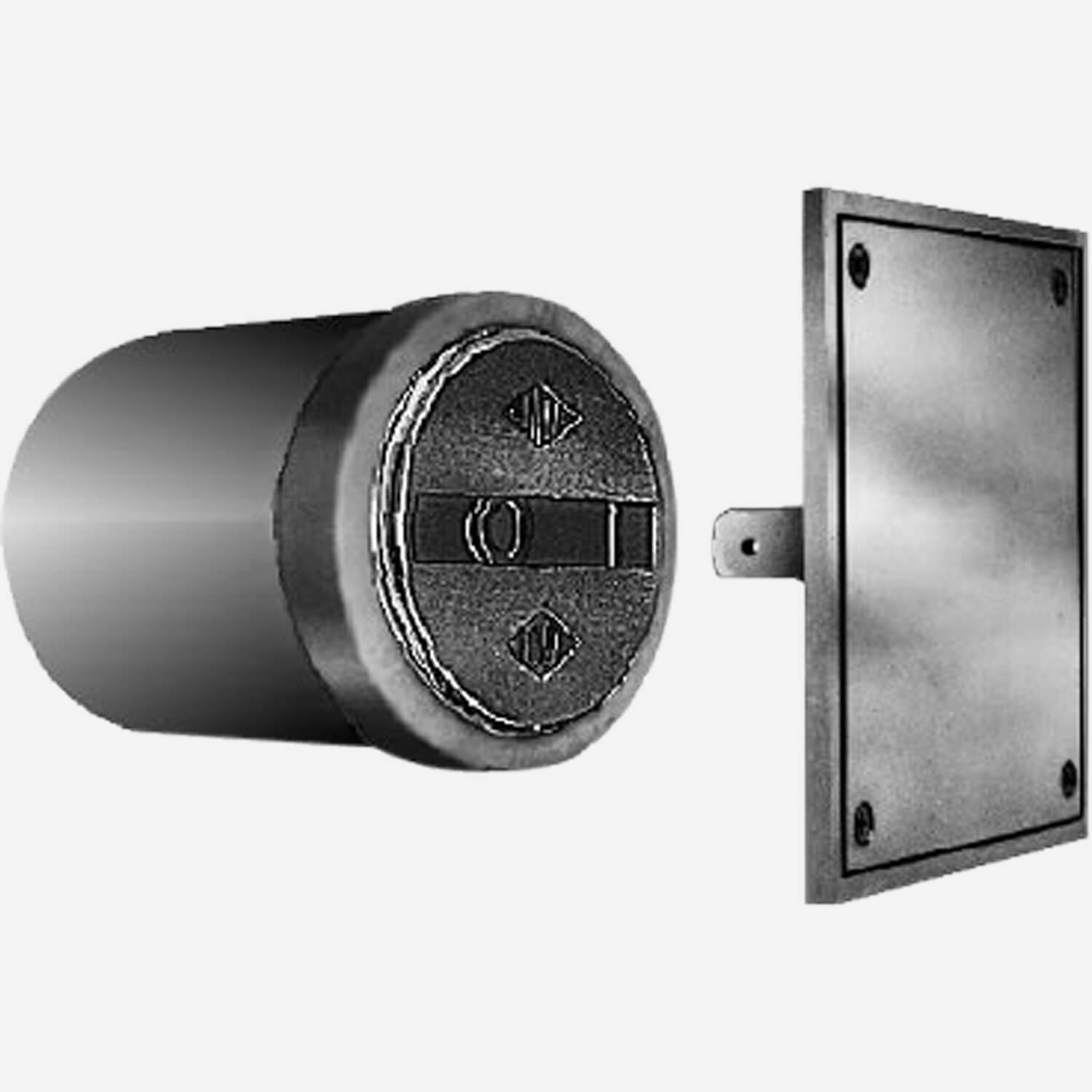

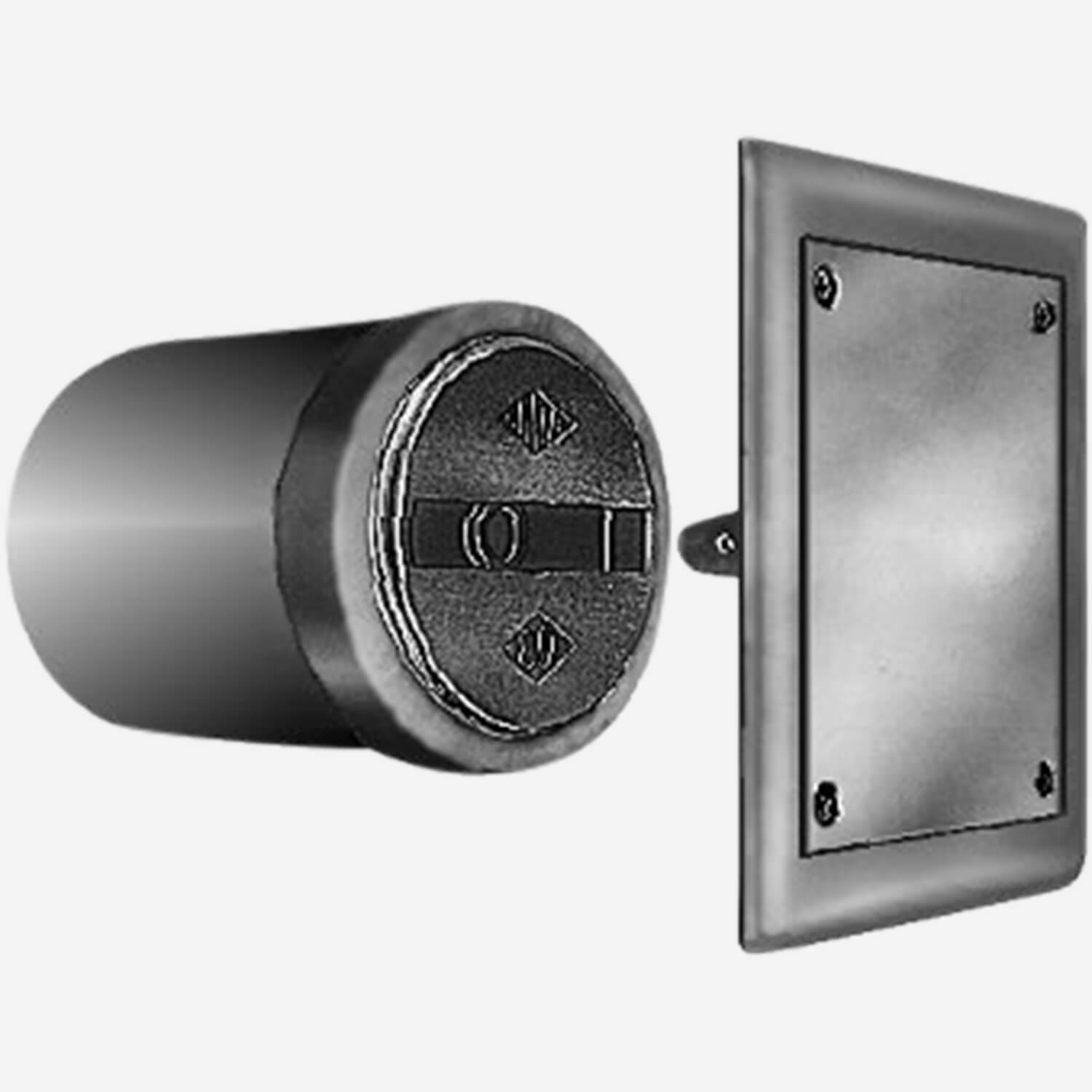

These cast bronze taper thread closure plugs are used in caulk ferrule cleanouts that require a taper thread plug. They can be fitted with one of two square chrome plated bronze covers for a finished appearance on surfaces with straight line patterns. Fig. 4434 is designed for face-of-wall installation in tile, masonry, or dry wall construction. It is usually installed on an opening in the finished wall. Fig. (4435) is intended for flush-with-wall installation in plaster or wet wall construction and is installed during the wall construction. Both are fitted with anchoring lugs that secure the frame to the wall.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    T-Handle Plug -TP Plug Tapped 1/4"(6)-20 Thread, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Nickel Bronze -NB - Frame and Cover, Polished Bronze -PB - Frame and Cover
  • Product Type
    Cleanout
SubmittalSubmittal 4434, 4435 Cleanout (pdf)
View
Technical Drawings
4434, 4035 Cleanout (dwg)Caulk Ferrule Cleanouts with Frame and Cover, Cast Iron Taper Thread Plug - Chrome Plated Bronze Square Frame and Cover [4434 | Face-of-Wall Cover; 4435 | Flush-with-Wall Cover]DWG66 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Can't find what you are looking for? Get in touch

Caulk Ferrule Cleanouts with Frame and Cover -
Cast Iron Taper Thread Plug - Chrome Plated Bronze Square Frame and Cover

Face-of Wall Square Cover
4434C02 | 2" Pipe Size, 7-3/4" Frame Size
4434C03 | 3" Pipe Size, 7-3/4" Frame Size
4434C04 | 4" Pipe Size, 7-3/4" Frame Size
4434C05 | 5" Pipe Size, 9-3/4" Frame Size
4434C06 | 6" Pipe Size, 9-3/4" Frame Size
4434C08 | 8" Pipe Size, 11-3/4" Frame Size
13-3/4", 16-3/4" Square Frames Sizes Available

Flush-with-Wall Square Cover
4431C02 | 2" Pipe Size, 6-1/2" Cover Size
4431C03 | 3" Pipe Size, 6-1/2" Cover Size
4431C04 | 4" Pipe Size, 6-1/2" Cover Size
4431C05 | 5" Pipe Size, 8-1/2" Cover Size
4431C06 | 6" Pipe Size, 8-1/2" Cover Size
4431C08 | 8" Pipe Size, 10-1/2 Cover Size
12-1/2", 15-1/2" Square Cover Sizes Available
