Figure Number: 6040
Contact a Representative

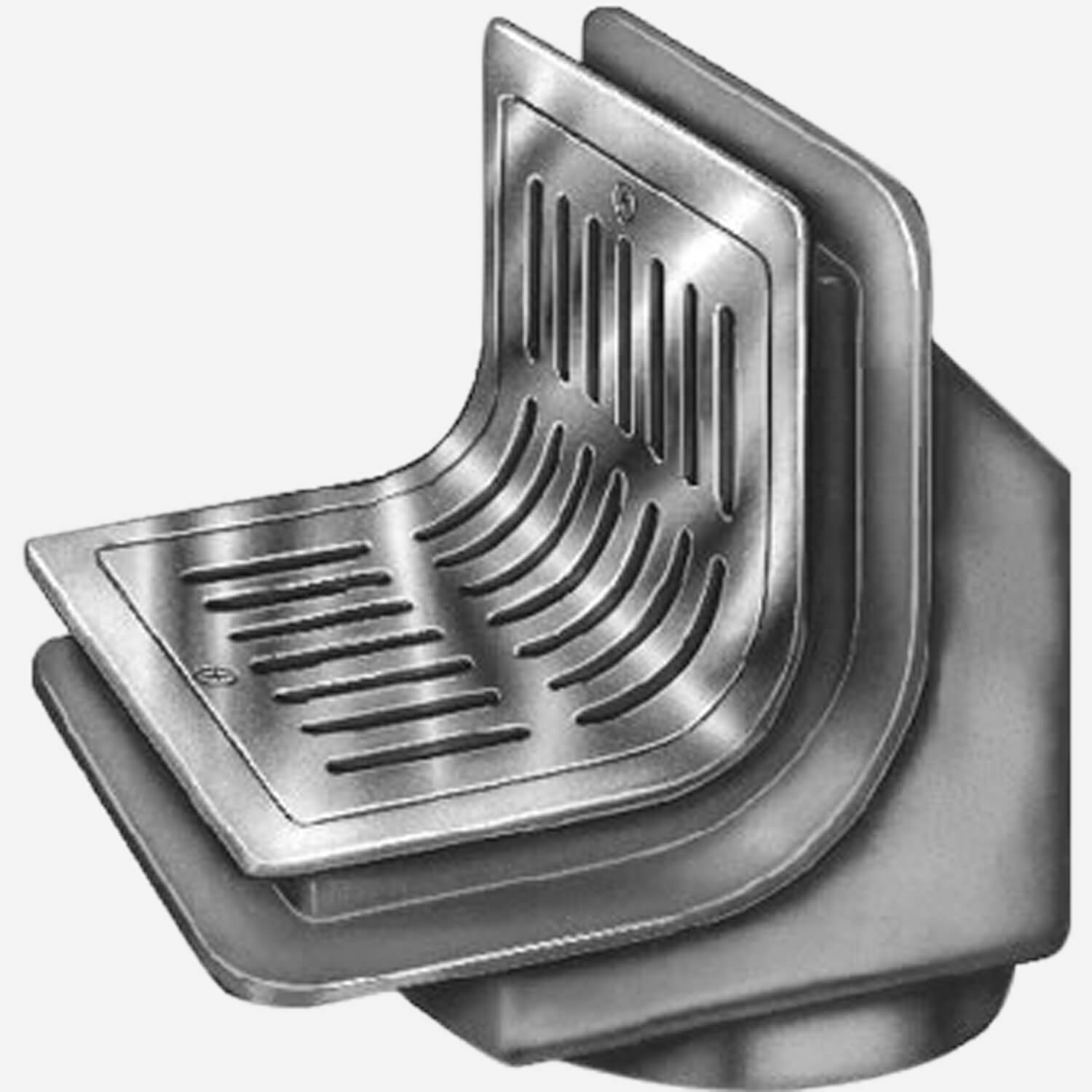

6040Special Purpose Pit/Sump Drains

This special purpose pit/sump drain provides complete drainage of low areas in sumps and pits. Angle type design of grate makes this drain reversible, so that it can be used for either a bottom or side outlet installation. AVailable with 2", 3", 4" outlet connection.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Clamp -C, NO-HUB Adaptor, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Duco Cast Iron -CI - Grate, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Drain
SubmittalSubmittal 6040 Drain
View
Technical Drawings
6040 Drain CAD DrawingsSpecial Purpose Pit/Sump Drain - Reversible Angle [6040 | 2",3",4" Outlet, 1-3/4" Radius; 6045 | 4",5",6" Outlet, 1-3/4" Radius; 6048 | 4", 5", 6" Outlet, 5" Radius]DWG120 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Special Purpose DrainsSpecifications for Special Purpose DrainsDOC110 KB
Can't find what you are looking for? Get in touch
6040 | 2",3",4" Outlet, 1-3/4" Radius
6045 | 4",5",6" Outlet, 1-3/4" Radius
6048 | 4", 5", 6" Outlet, 5" Radius
  • 6045 4", 5", 6" Outlet Connection (1 3/4" Radius)
  • 6048 4", 5", 6" Outlet Connection (5" Radius)
