6010Special Purpose Drains

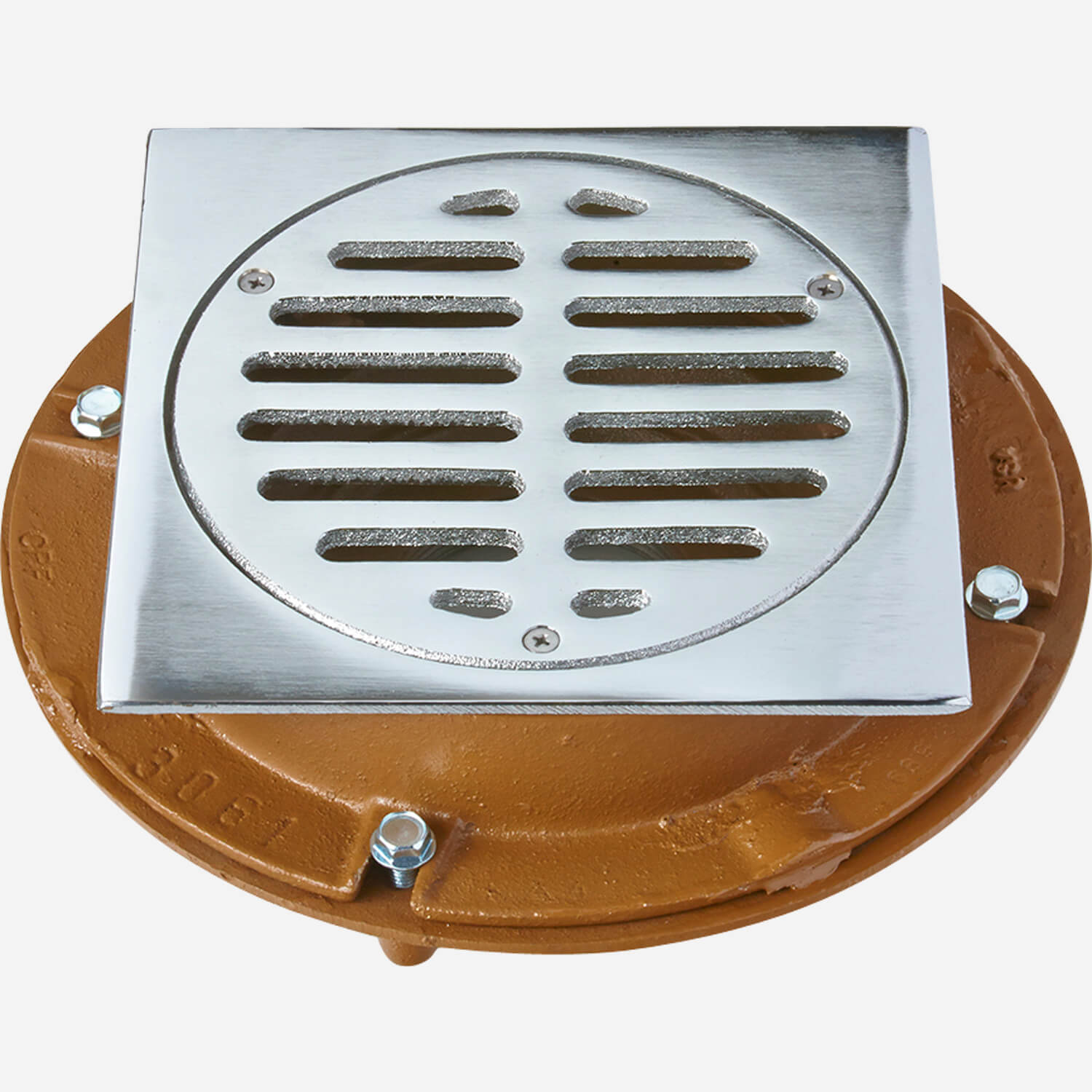

Figure 6010 special purpose drain is available with a 2", 3", 4" Bottom Outlet Connection. It has a cast iron body and anchor flange with secured chrome plated bronze grate and frame. Threaded and caulk connection options are available.

Larger Figure 6020 special purpose drain is available with a 4", 5", 6" Bottom Outlet Connection. It has a cast iron body and anchor flange with secured chrome plated bronze grate and frame. Threaded and caulk connection options are available.

Figure 6025 special purpose drain is available with a 4", 5", 6" Side Outlet Connection. It has a cast iron body and anchor flange with secured chrome plated bronze grate and frame. Threaded and caulk connection options are available.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    NO-HUB Adaptor, Vandal Proof -U - Screws, Y NO-HUB - Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Duco Cast Iron -CI - Grate, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Drain
SubmittalSubmittal 6010 Drain (pdf)
View
Technical Drawings
6010 Drain (dwg)Special Purpose Drain [Smaller Drain with Bottom Outlet 6010C | Caulked; 6010T | Threaded; Larger Drain with Bottom Outlet 6020C | Caulked; 6020T | Threaded; Side Outlet 6025C | Caulked; 6025T | Threaded]DWG47 KB
Literature / Videos
Specifications for Special Purpose DrainsSpecifications for Special Purpose DrainsDOC110 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Can't find what you are looking for? Get in touch

Typical models are shown below

Small Drain

Figure 6010
Smaller Drain, Bottom Outlet
6010C | Caulked Outlet
6010T | Threaded Outlet
Pipe Sizes Available (A Dimension)
02" (50 mm), 03" (75 mm),
04" (100 mm)

Larger Drain

Figure 6020
Larger Drain, Bottom Outlet
6020C | Cauked Outlet
6020T | Threaded Outlet
Pipe Sizes Available (A Dimension)
04" (100 mm),  05" (125 mm),
06" (150 mm)

Typical models are shown below

Side Drain Outlet

Figure 6025
Larger Drain, Side Outlet
6025C | Caulked Outlet
6025T | Threaded Outlet
Pipe Sizes Available (A Dimension)
04" (100 mm),  05" (125 mm),
06" (150 mm)
