Figure Number: 8710

8710Solids Interceptors-Flush with Floor or on the Floor Types

This white duco-coated, cast iron solids interceptor provides a means of collecting solids such as metal chips, plaster, and stones before entering the drain line, preventing line stoppage.

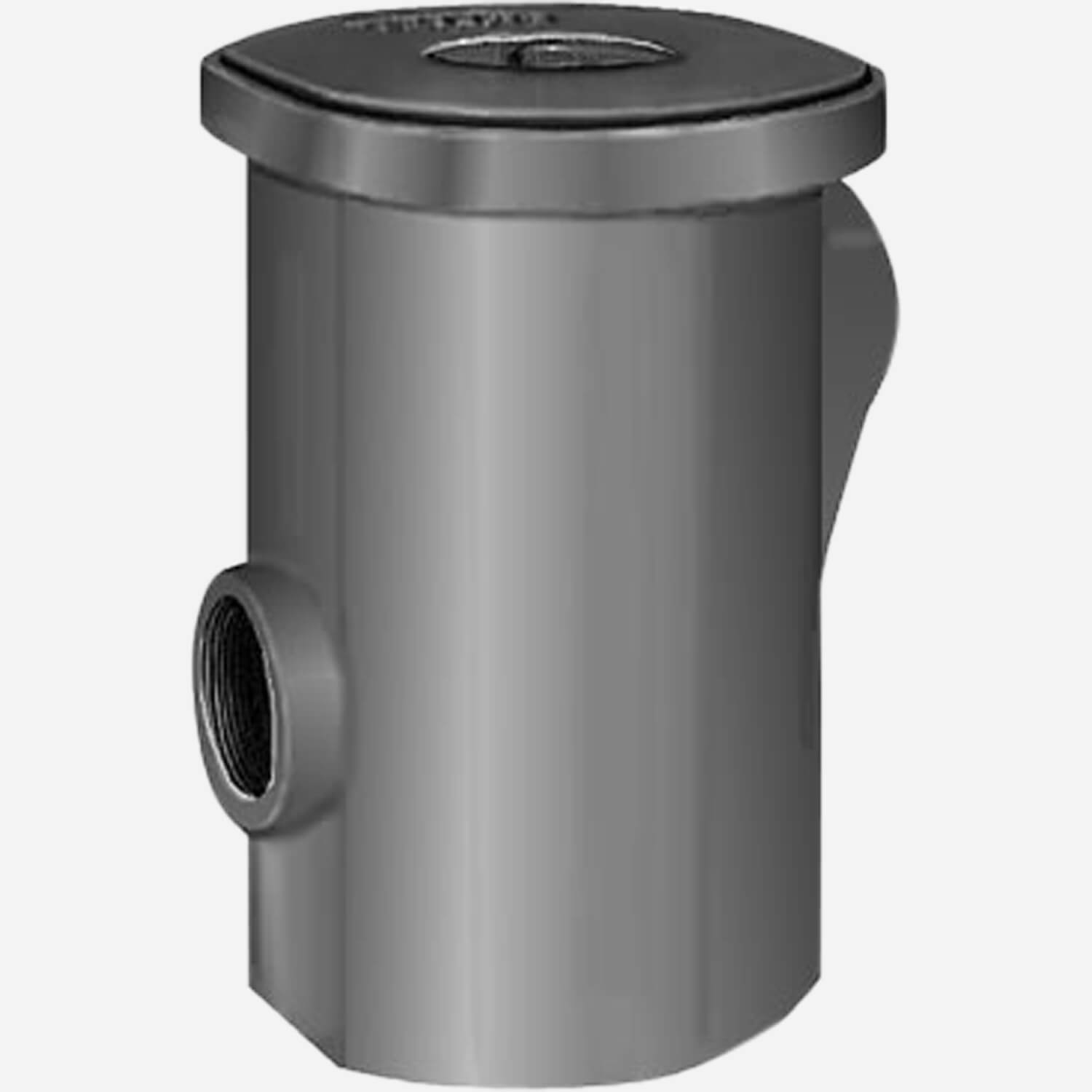

This small capacity interceptor, Figure 8710 is ideal for dental offices or similar establishments where the unit can be mounted directly under the sink to recover precious metals as well as intercept harmful debris. Figure 8710 measures 7-3/4" Wide x 10-3/4" height (195 x 275 mm).

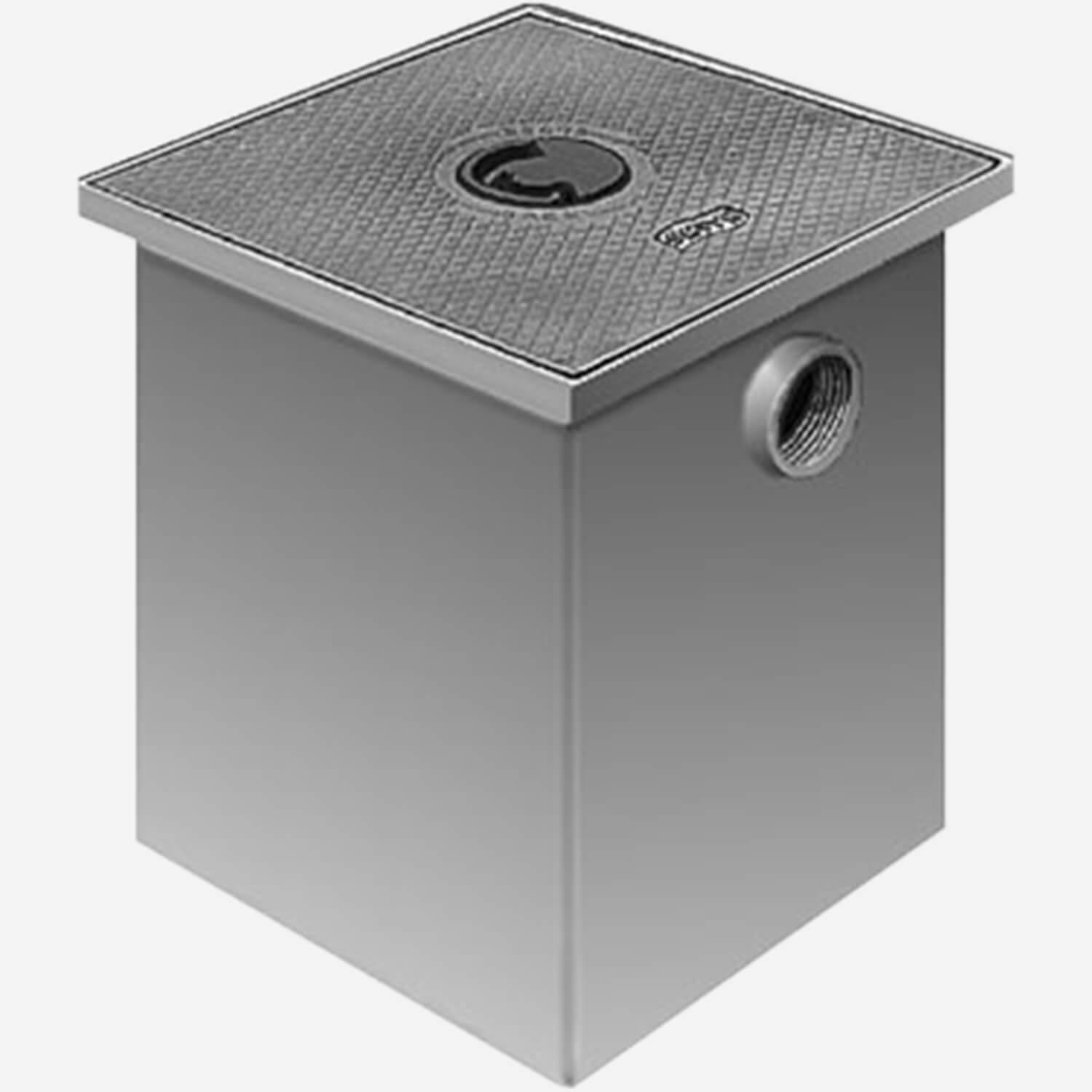

Figure 8715 is a larger capacity interceptor overall measures 13-1/8" Wide x 13-1/8" Front-to-Back x 16-1/2" (333 x 333 x 420 mm). It is ideal for hospitals where a greater amount of solids is anticipated in the drainage water. These units are cleaned by removing the cover and lifting the strainer and screen assembly vertically out of the body.

A specialized ABS model is available in Figure 8710-ABS where the unit can be mounted directly under the sink to recover precious metals as well as intercept harmful debris. 8710-ABS overall measures 8-1/2" x 7-1/2" x 12-1/2" Height (215 x 190 x 318 mm).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Optional Materials
    Acid Resistant Coating Inside -ARI, Acid Resistant Coating Outside - ARO, Acid Resistant Coating Inside and Outside -ARIO, All Aluminum Body -AA
  • Product Type
    Interceptor
Technical Drawings
8710 Interceptor CAD DrawingSolids Interceptors-Flush with Floor or on the Floor Types - Overall Size 7-3/4" Wide x 10-3/4" height (195 x 275 mm)DWG113 KB
8710-ABS Interceptor CAD DrawingSolids Interceptors-Flush with Floor or on the Floor Types - ABS Plastic, Overall Size 8-1/2" x 7-1/2" x 12-1/2" Height (215 x 190 x 318 mm) DWG237 KB
8715 Interceptor CAD DrawingSolids Interceptors-Flush with Floor or on the Floor Types - Large Box - Overall Size 13-1/8" Wide x 13-1/8" Front-to-Back x 16-1/2" (333 x 333 x 420 mm)DWG33 KB
8710 Interceptor Revit DrawingSolids Interceptors-Flush with Floor or on the Floor Types - Overall Size 7-3/4" Wide x 10-3/4" height (195 x 275 mm)RFA236 KB
Literature / Videos
Submittal 8710-ABS InterceptorSolids Interceptors-Flush with Floor or on the Floor Types - ABS Plastic, Overall Size 8-1/2" x 7-1/2" x 12-1/2" Height (215 x 190 x 318 mm) PDF493 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Guide to Interception Brochure (pdf)Brochure Guide to InterceptionPDF250 KB
Technical Data for InterceptorsTechnical Data for InterceptorsPDF195 KB
Parts Order Guide for InterceptorsParts Order Guide for InterceptorsPDF2 MB
Order Guidelines for InterceptorsOrder Guidelines for InterceptorsPDF120 KB
Submittal (Canada) 8710-SS InterceptorSolids Interceptors-Flush with Floor or on the Floor Types - Stainless Steel Box 7-3/4" Wide x 7-3/4" Front-to-Back x 10-3/4" height (195 x 195 x 275 mm)PDF622 KB
