Figure Number: 9870-478-ADA

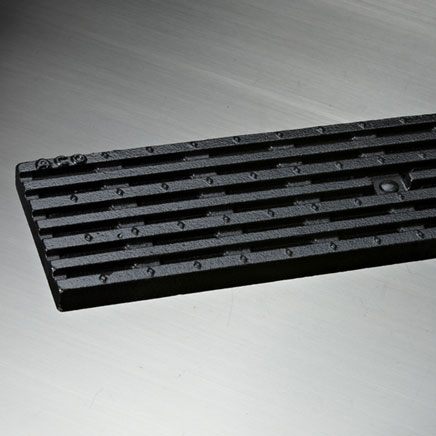

9870-478-ADAADA Compliant Slotted Ductile Iron Trench Drain Grate (Extra Heavy Duty)

This extra heavy duty ADA compliant slotted ductile iron grate is made for use with any 6" wide Smith trench drain system. It is ideal for use in areas with commercial solid tire traffic patterns, forklifts, and impacts from steel struts or metal wheels while also being wheelchair, pedestrian, and bicycle friendly.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Trench Drain Grates
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Trench Drain Chemical Resistance Guidelines (pdf)The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.PDF154 KB
9870-478-ADA - Drain Grate for Parking Lots, Garages, and Buildings in Heavy Duty Traffic Areas -ADA (hi res jpg)JPG28 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
