Figure Number: 4782

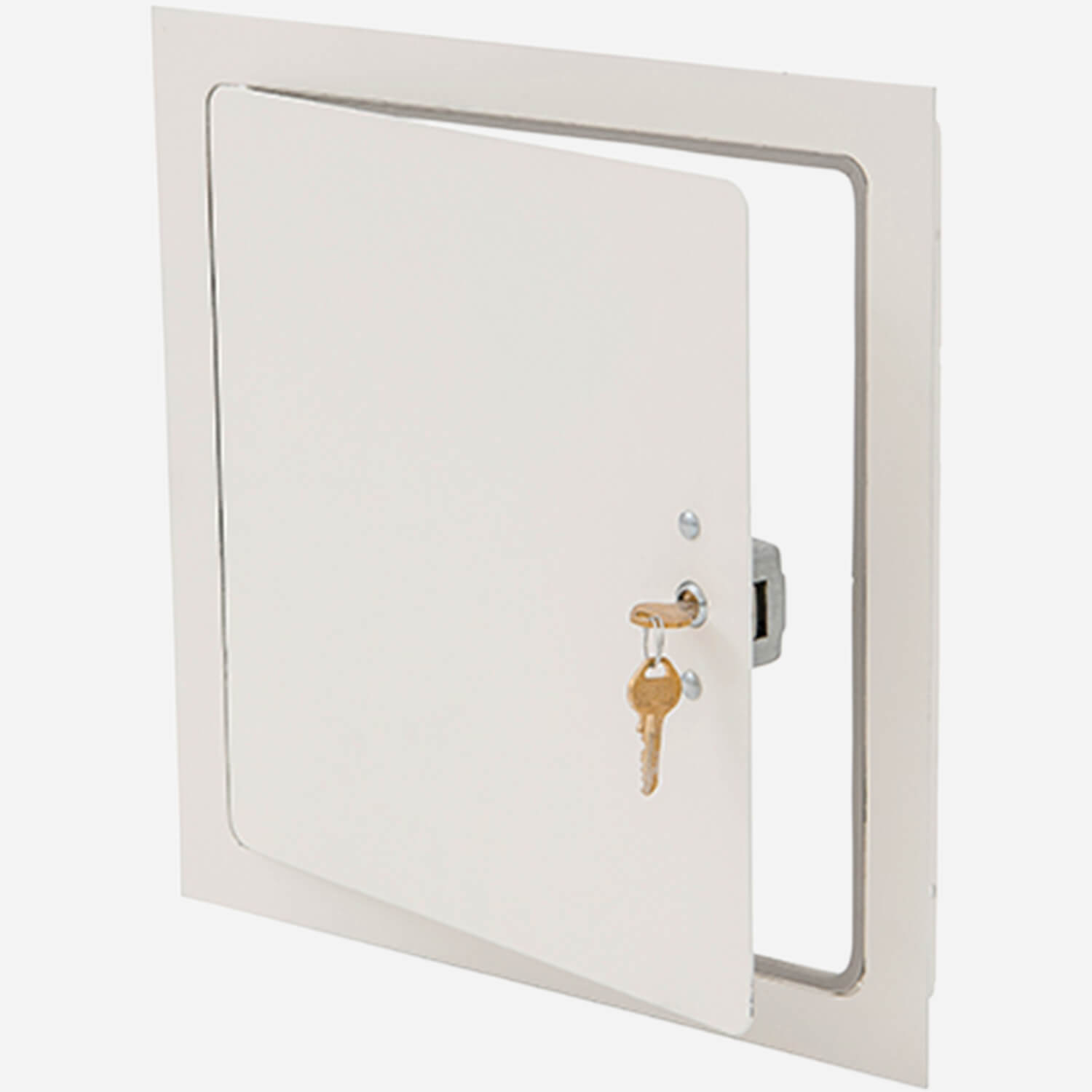

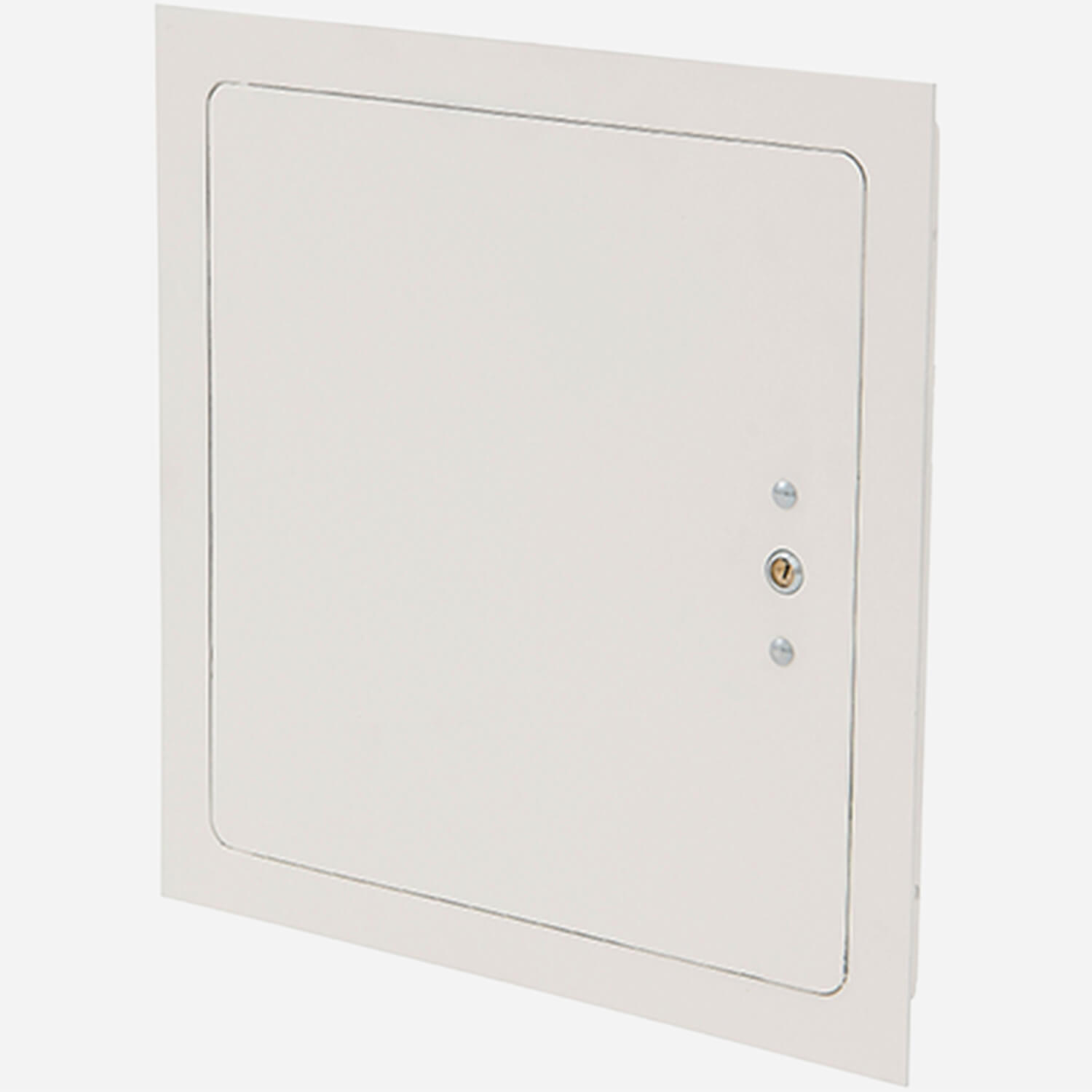

4782Shur-Lok Automatic Springbolt Lock Access Door

These durable access doors provide the security required in todays schools, hospitals, hotels and correctional institutions. The door and frames are fabricated of 14 gauge, galvannealed steel with a tamper resistant concealed hinge and are designed for installation in drywall, masonry and concrete walls. The door is strengthened with a 16 gauge vertical reinforcement channel. The supplied automatic spring bolt lock has a specially designed angled cam that automatically engages when the door is closed. The key can only be removed when the cam is in the locked position. Doors larger than 24” are fitted with a continuous piano hinge. The door assembly is delivered primed and ready for paint.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Automatic Spring Door Closer -AS, Stainless Steel Construction -SS Type 304 No. 4 Satin Finish, (2) 3/8” (10) Tappings -TAP
Technical Drawings
DWG 4782 Access DoorDWG131 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Access Door Brochure (pdf)Access Door Product BrochurePDF5 MB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Specifications US Govt ComplianceItems complying with U.S. government specificationsPDF34 KB
Can't find what you are looking for? Get in touch
GUIDE SPECIFICATION:
Provide 4782 Series, Shur-Lok Access Doors (specify options). Access door and frame shall be fabricated from 14 gage, galvannealed steel with a prime coat finish. Door shall have a 16 gage vertical reinforcement channel, a concealed hinge, and an automatic locking, spring bolt lock. Finish shall be a prime coat suitable for painting.
