Figure Number: 9685
Contact a Representative

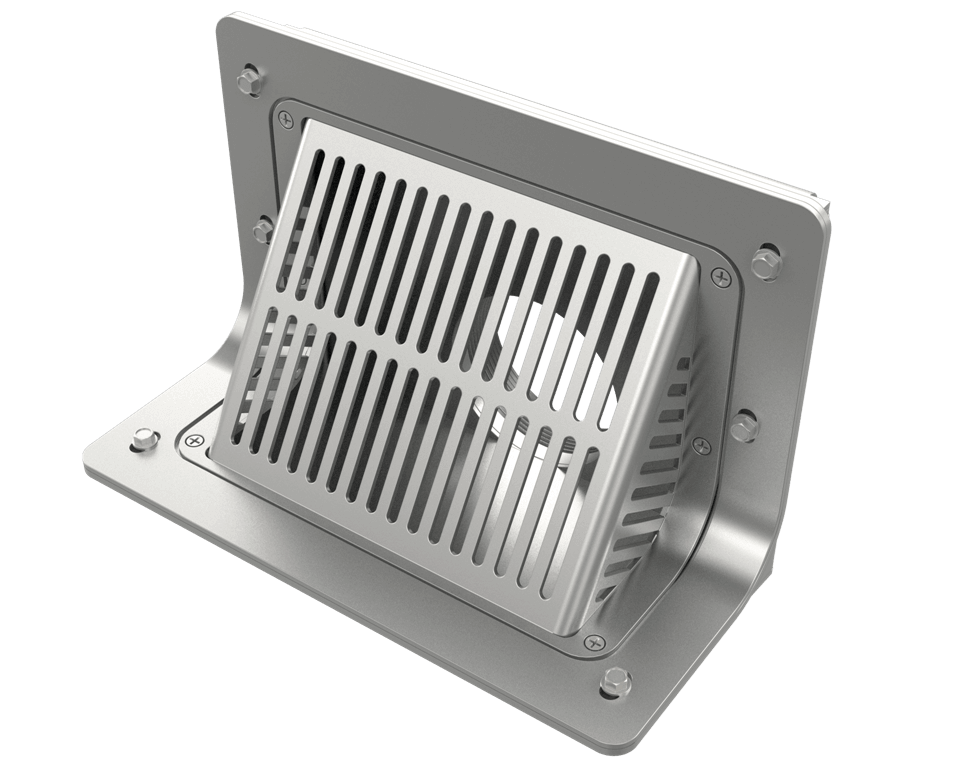

9685Scupper Drain

This corrosion resistant scupper drain is entirely constructed of 14 Gauge Type 304 stainless steel for a very long, maintenance free, service life. The 90° side outlet design installs at the junction of roof and parapet (sidewall) where the drain's outlet attaches to an outside downspout. The drain is protected from debris by a secured angle grate.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Vandal Proof Dome -U, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Type 316 Stainless Steel -316
  • Compliance/Certifications
    NSF
SubmittalSubmittal 9685 Stainless Steel Scupper Drain
View
Technical Drawings
DWG 9685 Stainless Steel DrainDWG355 KB
RFA 9685 Stainless Steel DrainRFA780 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Stainless Steel Drainage Products Brochure (pdf)Stainless Steel Drainage ProductsPDF4 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Competitive Cross Reference for Stainless Steel Drains (pdf)Competitive Cross Reference for Stainless Steel Drains (pdf)PDF67 KB
Stainless Steel Drainage Products - Production and Fabrication (video) Stainless Steel Drainage ProductsVideo
