Figure Number: 3710 thru 3725
Contact a Representative

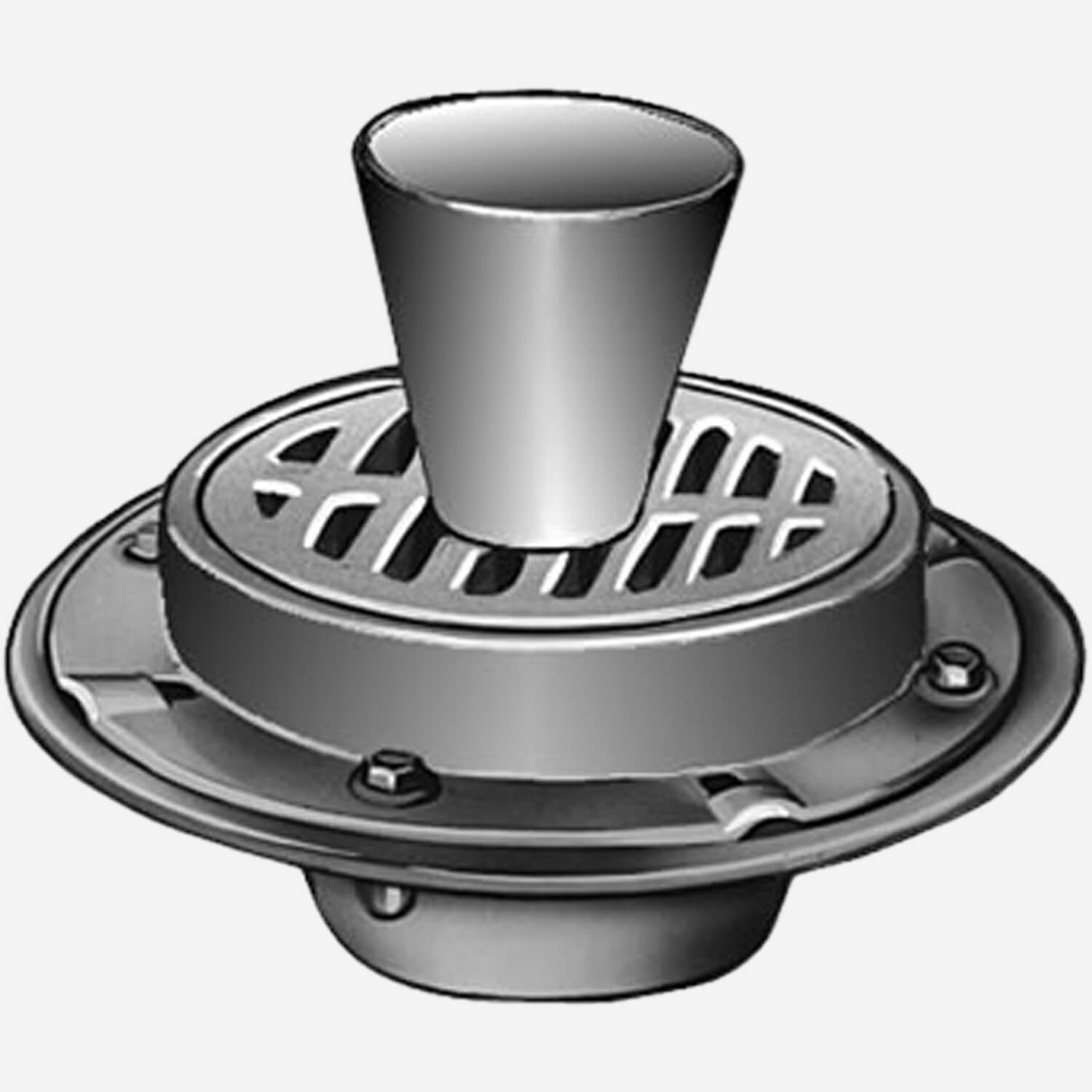

3710 thru 3725Round Top and Round Funnel

The 4” diam. funnel provided with this drain may be secured anywhere to the drain’s 8-1/2”, or 12” diam. strainer head and is designed to catch wastewater from above (an indirect connection) while the remainder of the strainer serves the surrounding floor area. The Duco coated cast iron drain has an integral collar that can be specified for use as a flashing clamp for a watertight seal with flooring materials and is available with down or side outlet.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only on Bottom Outlet Drains, Secured Grate -SG, Sediment Bucket -B, 6"(150) Dia. Funnel (Fig. 3581), 6(150) x 2 1/2(64) x 1"(25) High Oval Funnel (Fig. 3590), Vandal Proof -U - Secured Grate, Y NO-HUB - (Available on Bottom Outlet Drains), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Chrome Plated -CP - Grate and Funnel, Nickel Bronze -NB - Grate and Funnel, Polished Bronze -PB - Grate and Funnel
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
SubmittalSubmittal 3710-3725 Drain
View
Technical Drawings
3710-3725 Funnel Drain CAD DrawingFunnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Round Funnel [3710C, 3710T, 3715C, 3715T, 3720C, 3720T, 3725C, 3725T]DWG60 KB
2685 Planting Area Drain Round Type Series (rfa)2685 Planting Area Drain Round Type Series RFA772 KB
3710 Funnel Drain Revit DrawingFunnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Round Funnel Bottom Outlet, 8-1/2" Round Top [3710C | Caulk Outlet; 3710T | Threaded Outlet]RFA544 KB
3725 Funnel Drain Revit DrawingFunnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Round Funnel, Side Outlet, 12" Round Top [3725C | Caulk Outlet 3725T | Threaded Outlet]RFA572 KB
3715 Funnel Drain Revit DrawingFunnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Round Funnel 12" Round Top, Bottom Outlet [3715C | Caulk Outlet; 3715T | Threaded Outlet]RFA580 KB
3720 Funnel Drain Revit DrawingFunnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Round Funnel Side Outlet, 8-1/2" Round Top [3720C | Caulk Outlet; 3720T | Threaded Outlet]RFA560 KB
Literature / Videos
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Sanitary Floor DrainsSani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data PDF599 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Parts Order Guide for Sanitary Floor DrainsPDF2 MB
Can't find what you are looking for? Get in touch

Funnel-Ceptor® Indirect Waste Drain - Round Top, Medium Duty Grate, Round Funnel

Bottom Outlet
8-1/2" Round Top
3710C | Caulk Outlet
3710T | Threaded Outlet

12" Round Top
3715C | Caulk Outlet
3715T | Threaded Outlet

Side Outlet
8-1/2" Round Top
3720C | Caulk Outlet
3720T | Threaded Outlet

12" Round Top
3725C | Caulk Outlet
3725T | Threaded Outlet

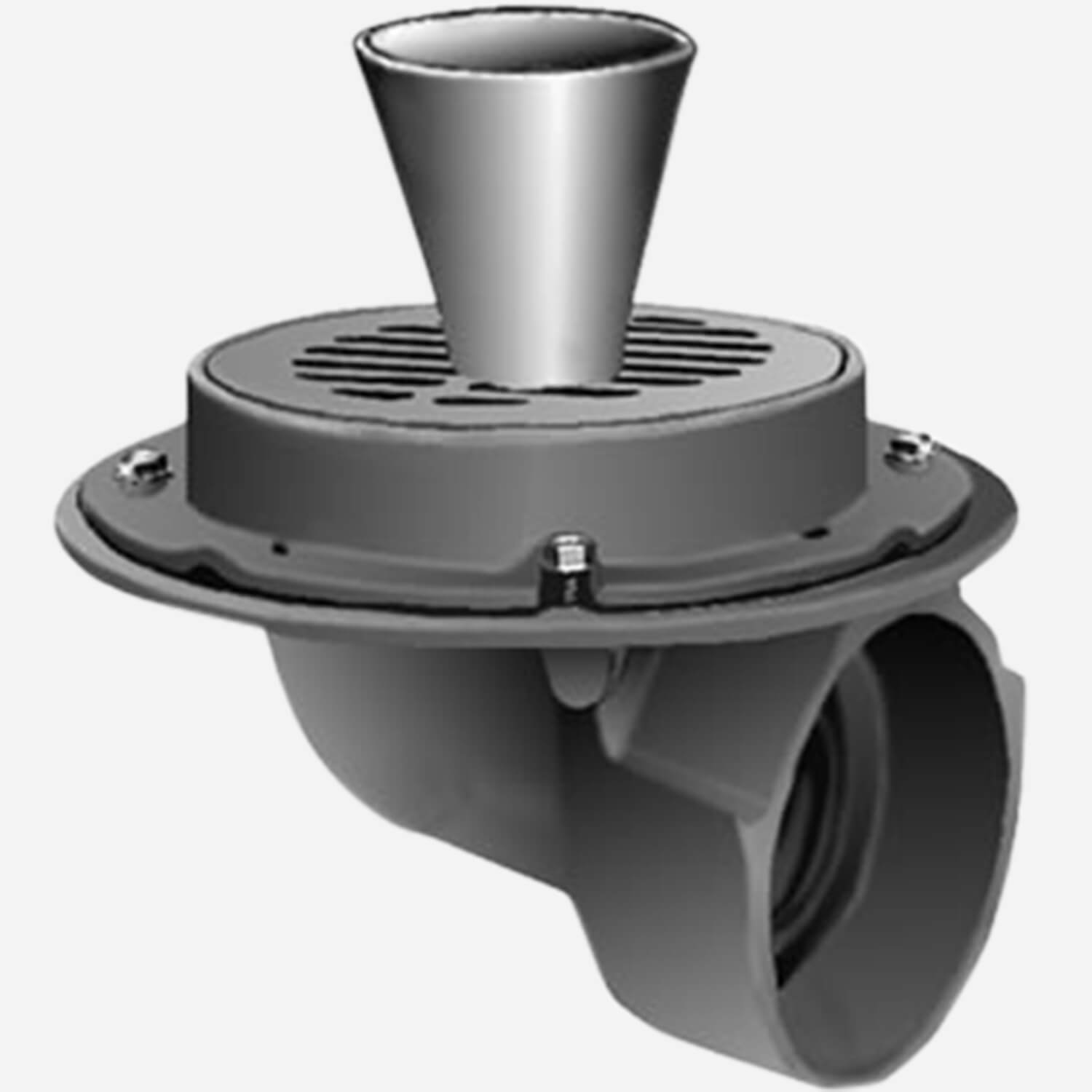

  • 3720-3725 With Side Outlet
