Figure Number: 5906
Contact a Representative

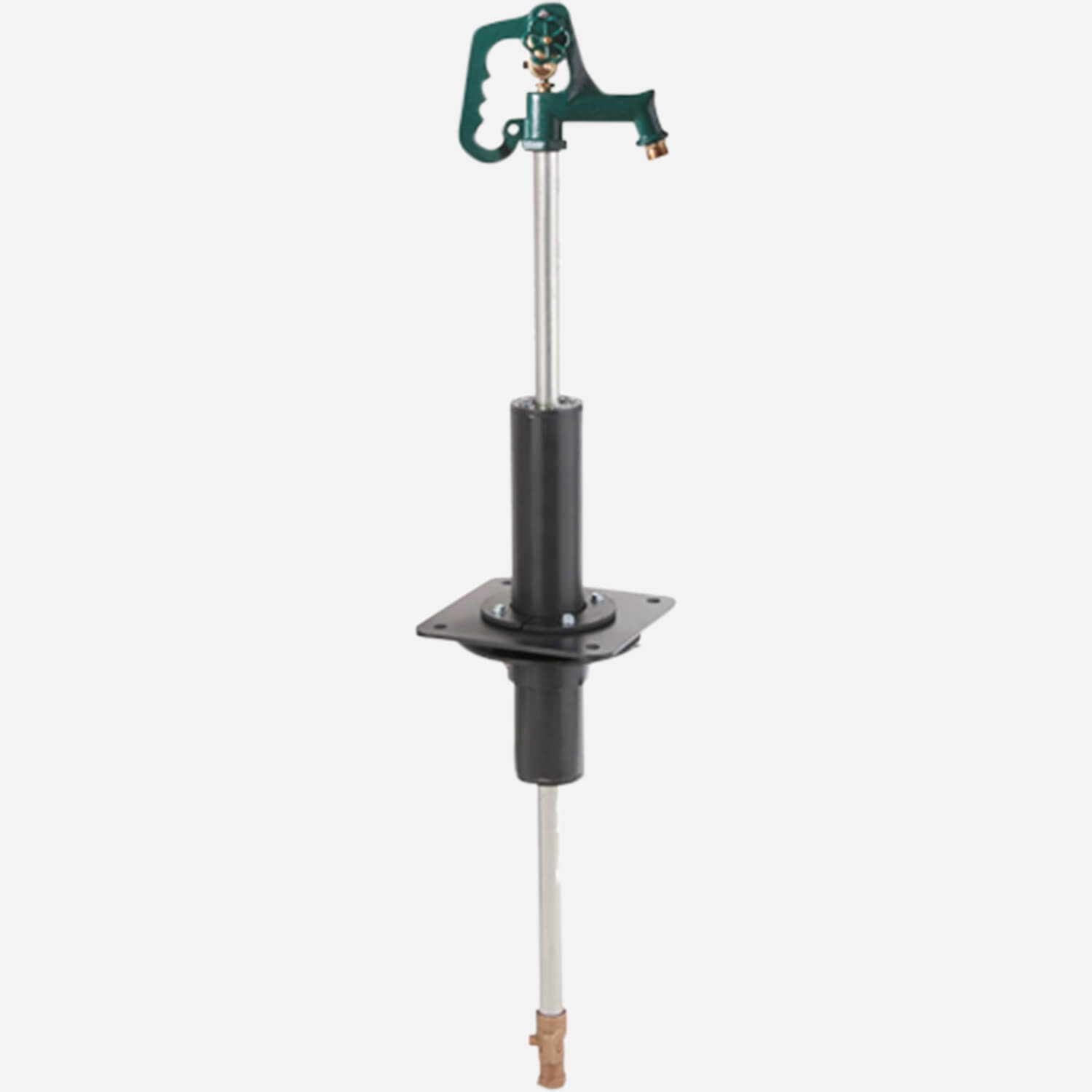

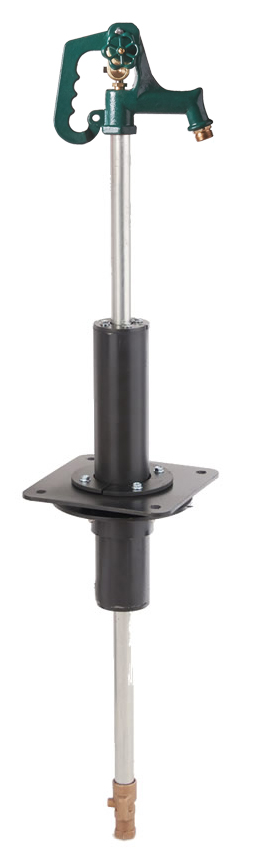

5906Non-Freeze Roof Hydrant

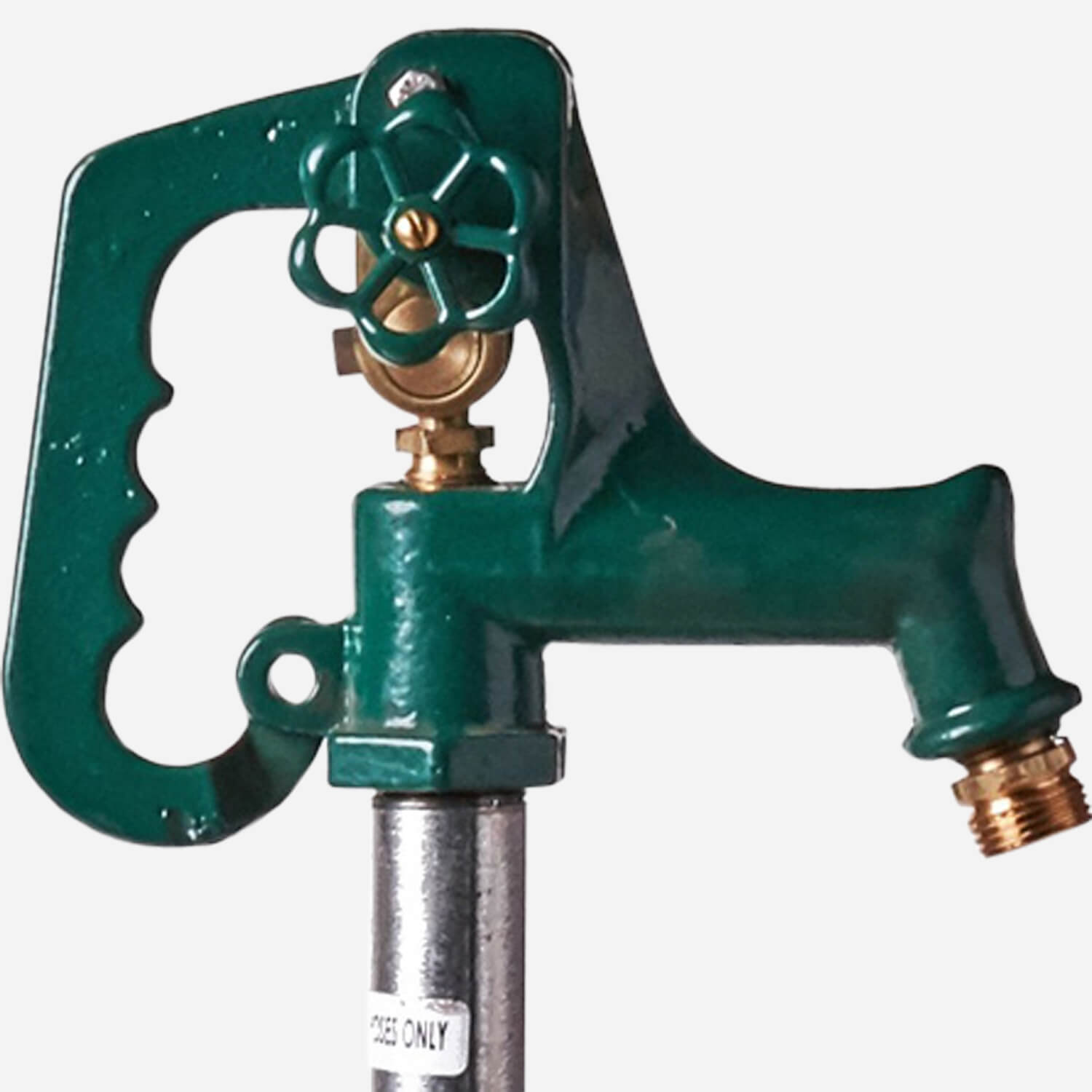

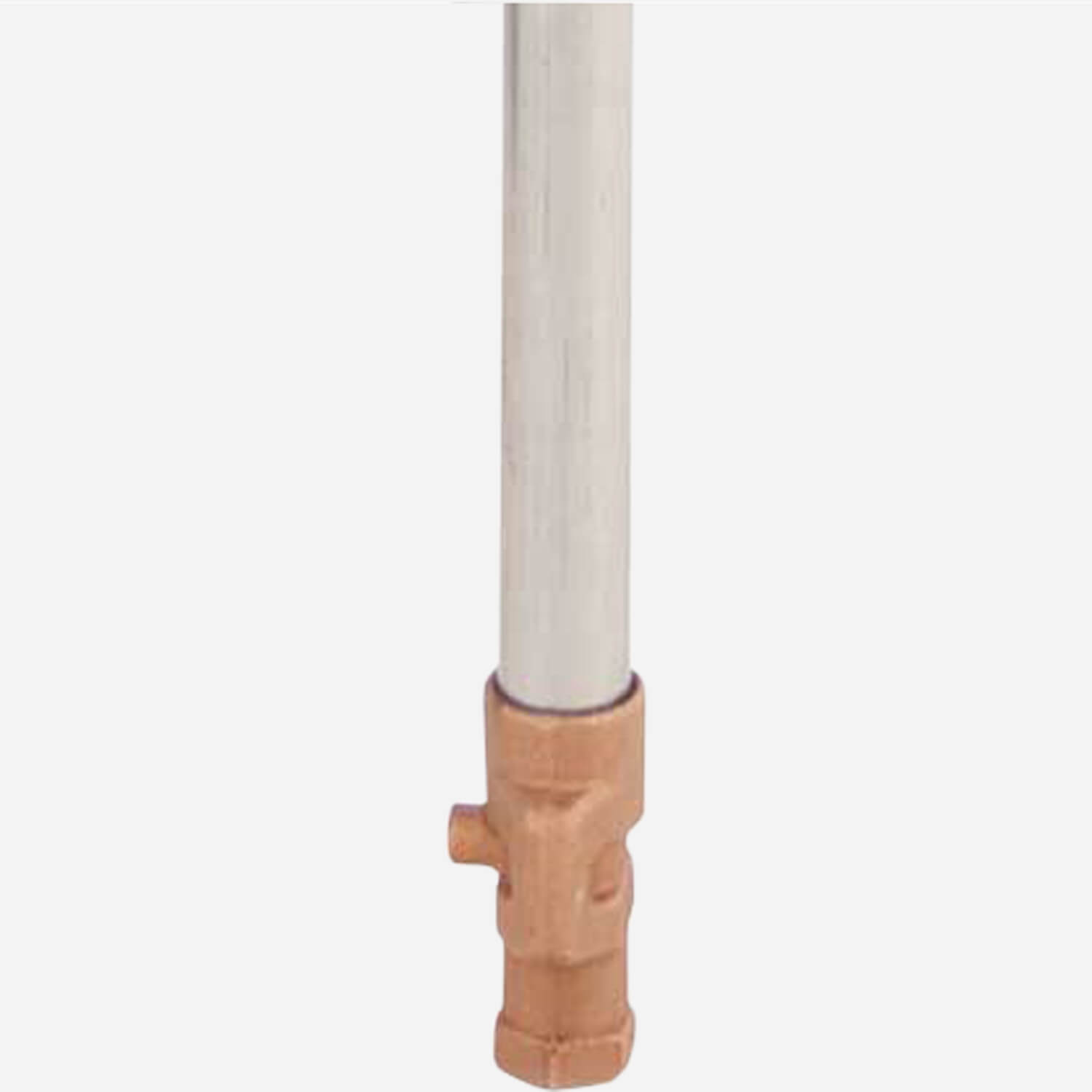

For freeze-resistant reliability in all climates, the valve housing and 3/4" inlet of this roof hydrant are positioned in the warm area below the roof. Water is channeled to the hydrant's locking cast iron head and 3/4" hose connection through galvanized casing that is secured to roof decking and waterproofing materials with flashing and underdeck clamps for leakproof installation. To clear the valve casing and protect it from bursting in freezing temperatures, it is drilled and tapped with a 1/8" drain hole which must be piped to a drain location.

FOR IRRIGATION PURPOSES ONLY

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations

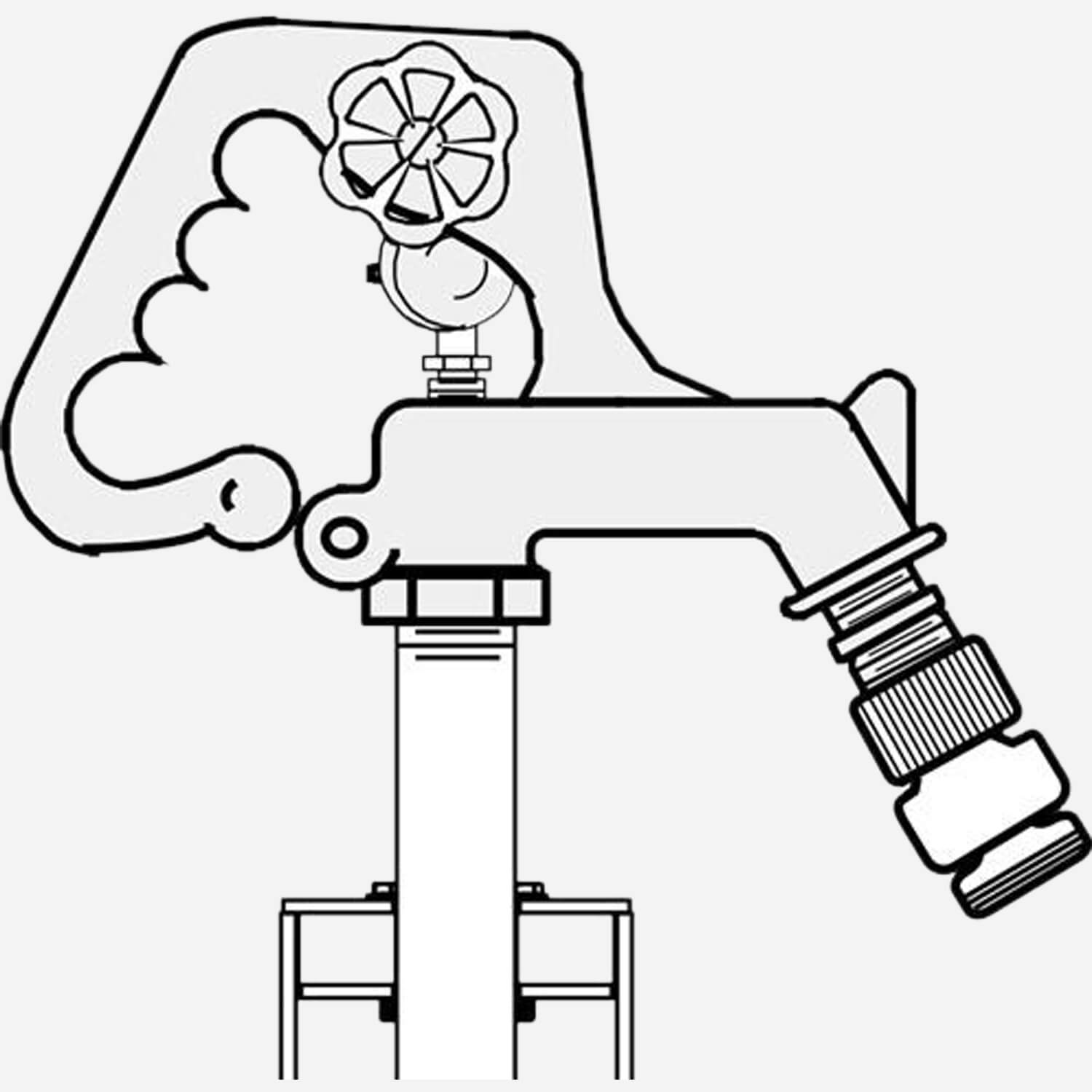

    Vacuum Breaker -H, (2) 3/8” (10) Tappings -TAP
  • Product Type
    Hydrant
SubmittalSubmittal 5906 Hydrant (pdf)
View
Technical Drawings
5906 Hydrant (dwg)Non-Freeze Roof HydrantDWG577 KB
5907 Hydrant (dwg)Non-Freeze Roof Hydrant with Dual Check ValveDWG581 KB
5906 Hydrant (rfa)Non-Freeze Roof HydrantRFA644 KB
5907 Hydrant (rfa)Non-Freeze Roof Hydrant with Dual Check ValveRFA716 KB
Literature / Videos
Submittal 5907 Hydrant (pdf)Non-Freeze Roof Hydrant with Dual Check ValvePDF731 KB
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB
5906 Hydrant (hi res jpg)Non-Freeze Roof HydrantJPG68 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Parts Order Guide for HydrantsParts Order Guide for HydrantsPDF3 MB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Can't find what you are looking for? Get in touch

Typical models are shown below

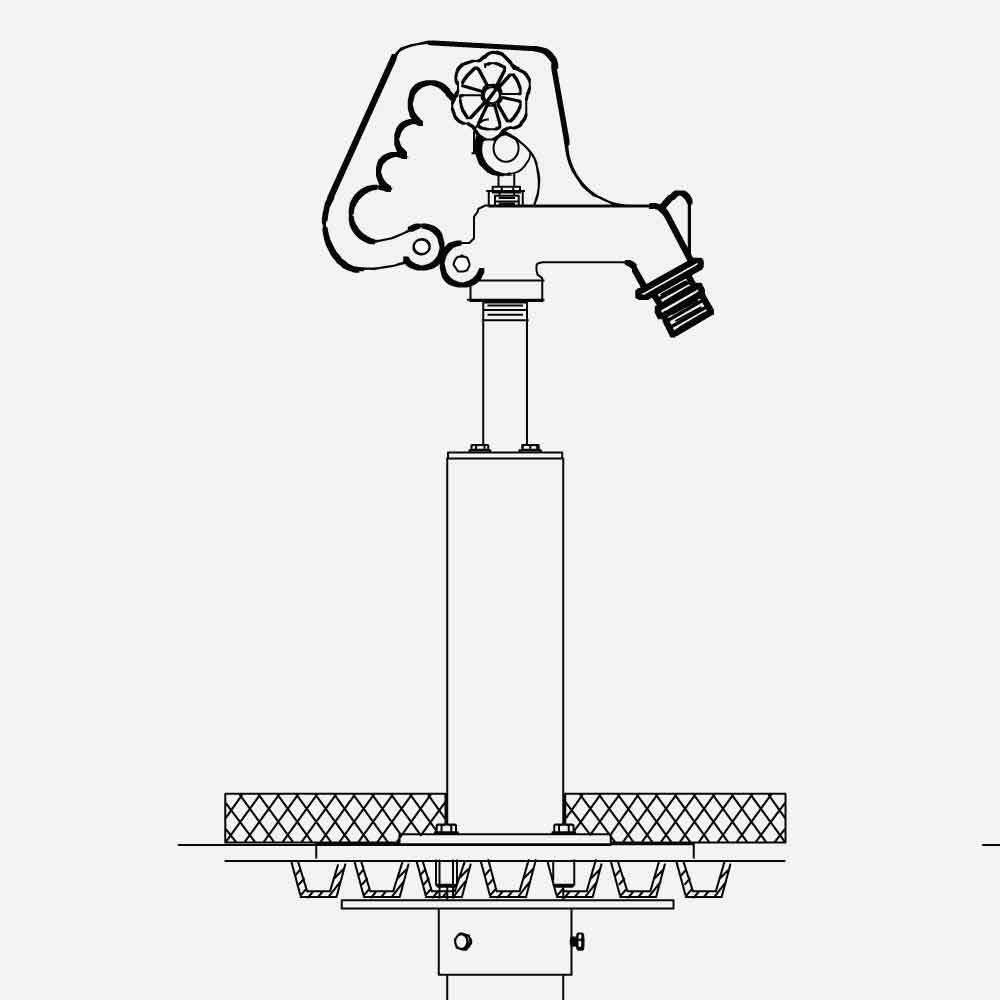

Non-Freeze Roof Hydrant

Figure 5906
Hydrant
[ submittal ]

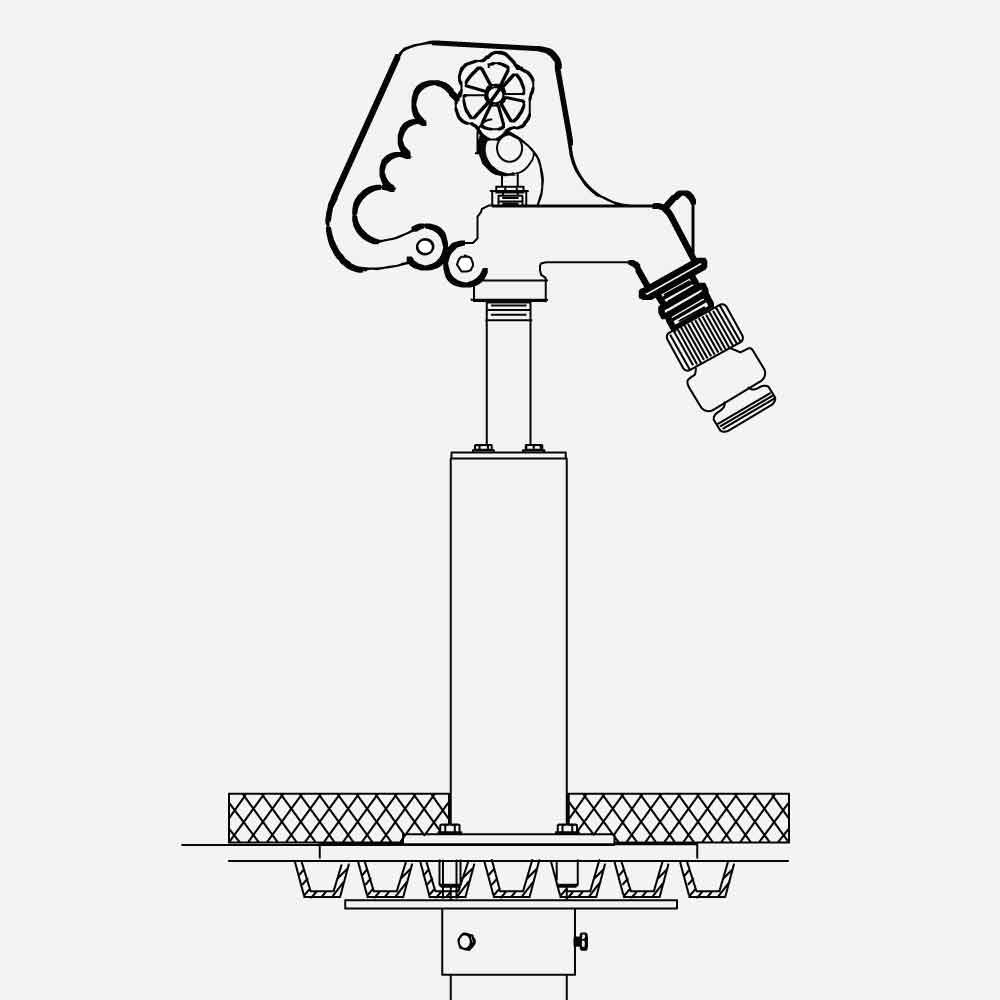

Non-Freeze Roof Hydrant with Dual Check Valve

Figure 5907
Hydrant with Dual Check Valve
[ submittall ]
