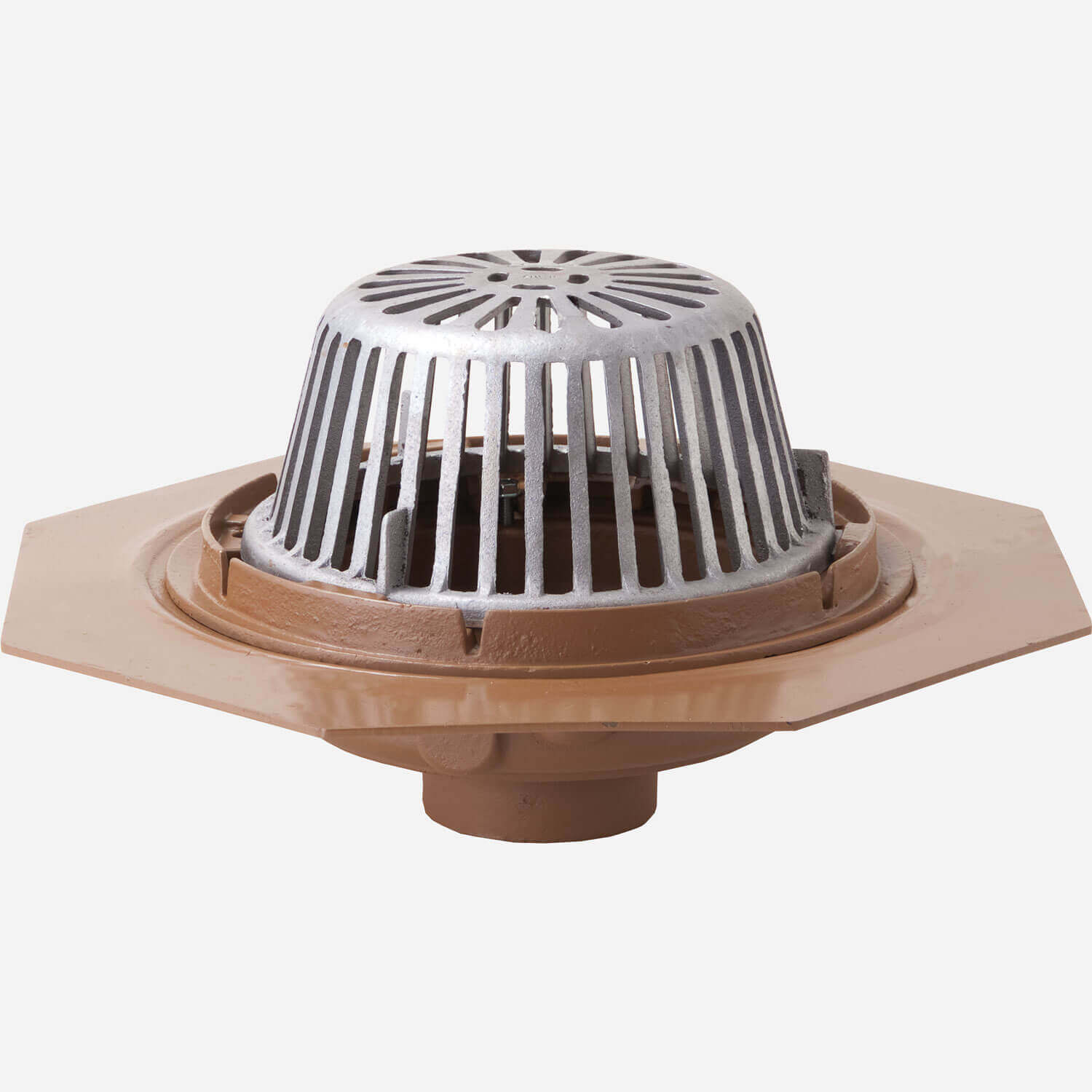

DX1010Wide Flange Body Roof Drain with Secured Dome

This 11" diam. corrosion resistant Duco coated cast iron drain is designed for installation in rooftop decks and recreational areas where a traffic bearing roof deck covering is to be applied. A combined flashing clamp and gravel stop protects drain lines from debris and tightens down to the drains 20" diam. flange, securely gripping roofing materials without puncturing them for a leak proof installation. It can be easily and economically installed from above roof decking by a single technician saving on labor expensess. The drain is protected from debris by a secured polyethylene dome.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Securing Holes -SH, Underdeck Clamp -C, Vandal Proof - Dome - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron Dome -CIDG, Galvanized Cast Iron -G - Body & Collar, Rough Bronze Dome -RBD
  • Product Type
    Roof Drain
SubmittalSubmittal DX1010 Roof Drain
View
Technical Drawings
DWG DX1010 Roof DrainDWG DX1010 Roof DrainDWG37 KB
DX1010-LPDM Roof Drain CAD DrawingLarge Low Profile Dome Roof Drain [Fig. 1010C-LPDM | Caulk Outlet; Fig. 1010Y-LPDM | No-Hub Outlet]DWG83 KB
Literature / Videos
Submittal DX1010-LPDM Roof DrainLarge General-Purpose Roof Drain with Wide Flange Body and Low-Profile Dome [Fig. DX1010C-LPFM | Caulk Outlet; Fig. DX1010Y-LPFM | No-Hub Outlet] PDF558 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
