Figure Number: 2692

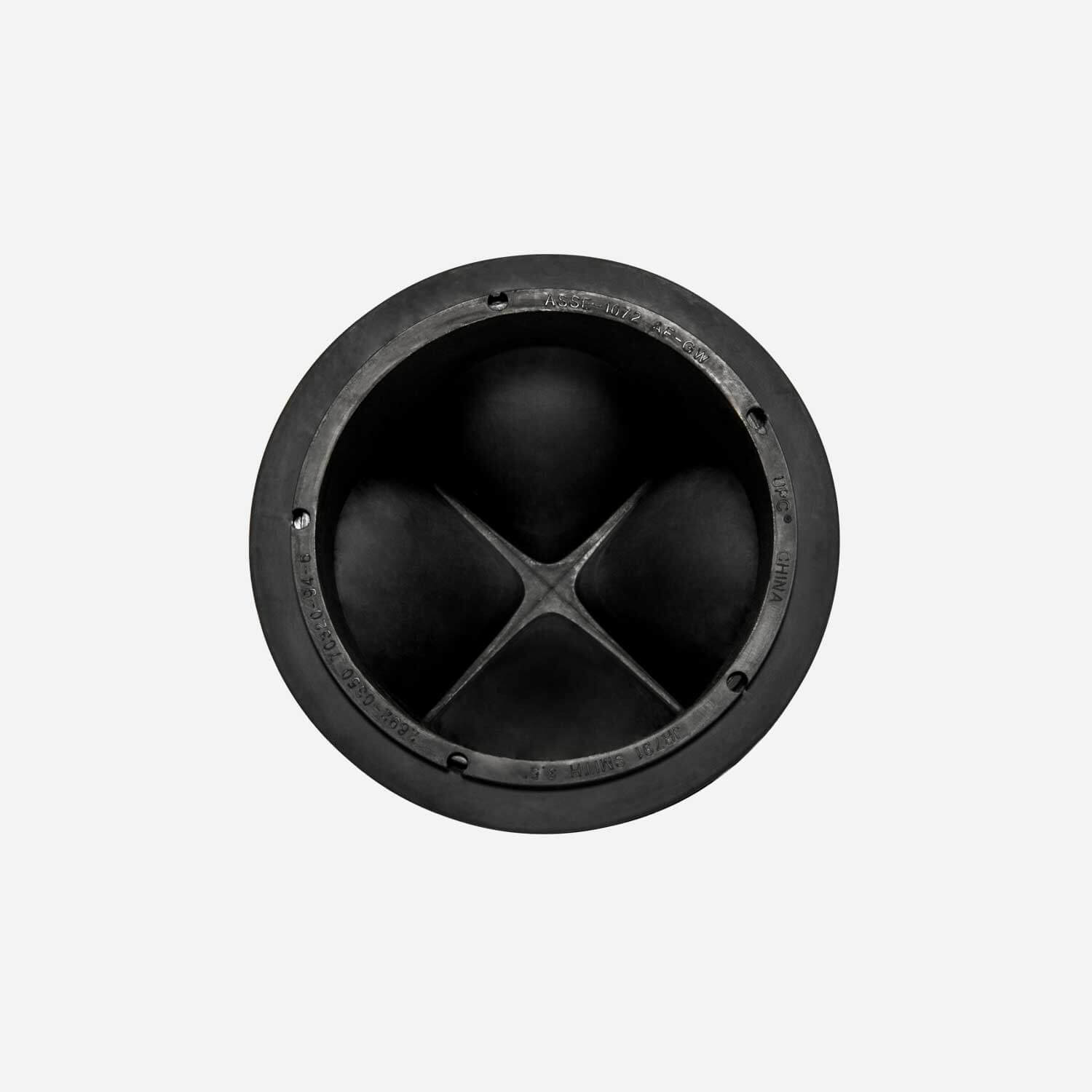

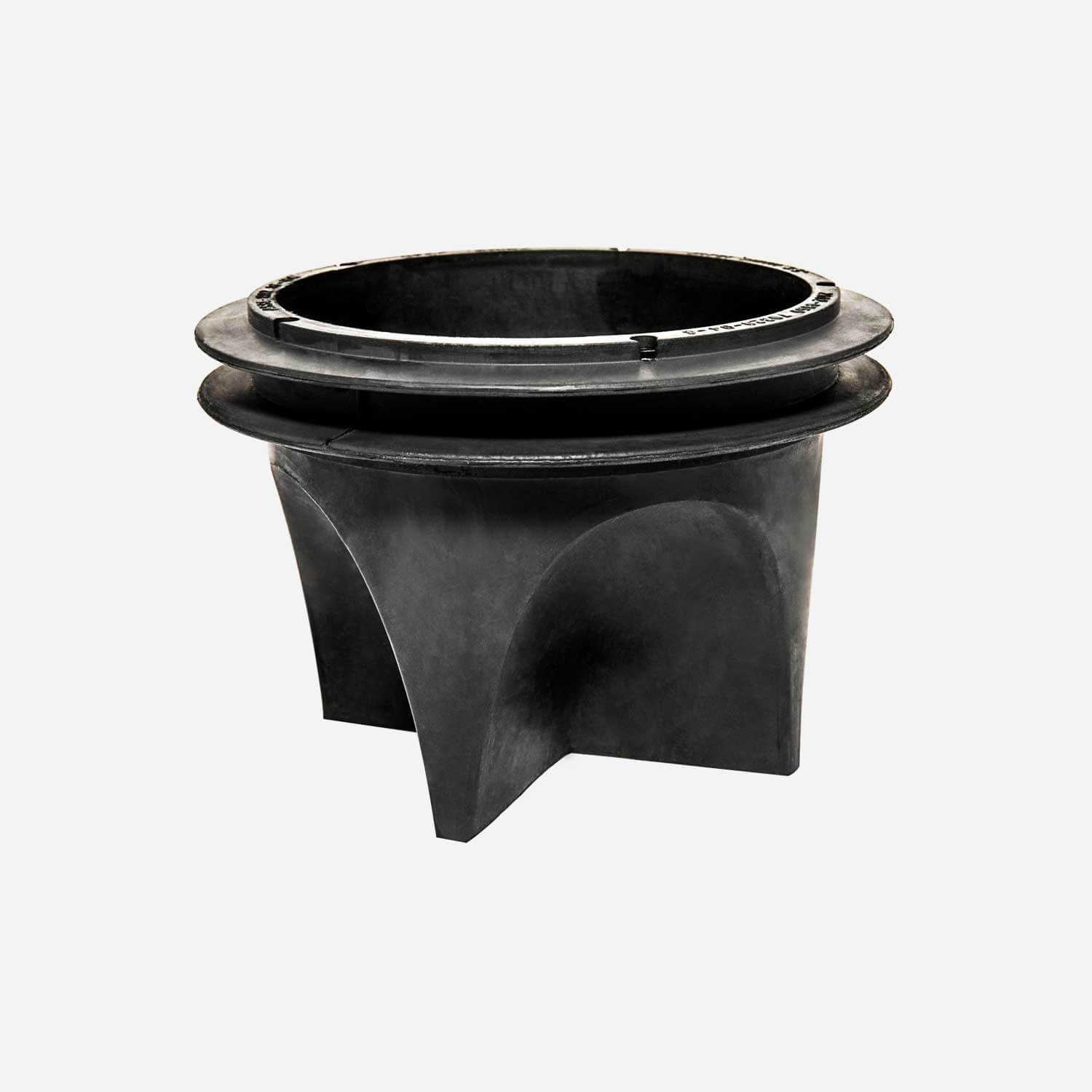

2692Quad Close "Stink Stopper" Trap Seal Device

10 Year Warranty, Simple to Install and Easy to Remove—No Special Tools Needed, Fits Almost Any Floor Drain

Installed to keep sewer gasses from escaping infrequently used drains, our labor-saving "Stink Stopper" Quad Close Trap Seal closes to minimize trap seal evaporation in floor drains and opens when needed to allow drainage. Made of a chemically resistant elastomer in several sizes, installation and removal require no special tools.

Pro Tip: Instead of waiting for the inevitable call from a building owner complaining of sewer gas odor, it is better to be proactive and install the “Stink Stopper” in any drain that may be used infrequently. An often overlooked application for a trap seal device is in institutions that close for the summer or long holidays. During these times, drains that usually don’t pose a problem will dry up and students and staff are greeted upon their return by a noxious odor.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Floor Drain
  • Benefit
    Labor Saving
  • Compliance/Certifications
    ASSE, IAPMO, Ontario
  • Patent
    8,844,572
Technical Drawings
2692 Trap Seal Device (dwg)Quad Close "Stink Stopper" Trap Seal Device [2692-0150, 2692-02, 2692-03, 2692-0350, 2692-04, 2692-06]DWG352 KB
Literature / Videos
Article: Ease of Installation MCAA Quad Close (pdf)Article: Ease of Installation MCAA Quad ClosePDF150 KB
Article: Saving Time and Money with The Quad Close Trap Seal Device MCAA (pdf)Article: Saving Time and Money with The Quad Close Trap Seal Device MCAAPDF123 KB
Quad Close Trap Seal Device Flyer (pdf)Flyer Quad Close Trap Seal DevicePDF4 MB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
2692 Trap Seal Device (hi res jpg)Quad Close "Stink Stopper" Trap Seal DeviceJPG127 KB
Engineering Newsletter: Vol. 2, Issue 9 (Nov. 2012)Fig. No. 2692 Quad Close® Trap Seal DevicePDF2 MB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Quad Close® Trap Seal Ad (pdf)Quad Close® Trap Seal Ad (pdf)PDF693 KB
Quad Close "Stink Stopper" Trap Seal Device Installation Overview (video)The Quad Close "Stink Stopper" Trap Seal Device is your solution to infrequently used floor drains that emit an unpleasant smell. Video
Trap Seal Device vs the Competition (video)Trap Seal Device vs the Competition HD Video
Quad Close "Stink Stopper" Trap Seal Installation Overview (video)The Quad Close "Stink Stopper" Trap Seal Device is your solution to infrequently used floor drains that emit an unpleasant smell. They are available in all sizes. This device can be easily removed for inspection and cleaning. Video
Can't find what you are looking for? Get in touch

2692-0150 | Pipe Size 1-1/2" (38 mm), Overall Height 2.09" (53 mm), 6 gal (22.7 liter) per minute flow rate
2692-02 | Pipe Size 2" (50 mm), Overall Height 2.66" (68 mm), 12 gal (45 4. liters) per minute flow rate
2692-03 | Pipe Size 3" (75 mm), Overall Height 2.66" (68 mm), 34 gal (128.7 liters) per minute flow rate
2692-0350 | Pipe 3-1/2" (89 mm), Overall Height 2.66" (68 mm), 51 gal (193.06 liters) per minute flow rate
2692-04 | Pipe Size 4" (100 mm), Overall Height 2.66" (68 mm), 73 gal (276.4 liters) per minute flow rate
2692-06 | Pipe Size 6" (150 mm), Overall Height 3.66" (93 mm), 135 gal (511 liters) per minute flow rate

Compliances:
All Figures are compliant to Ontario - BMEC (Authorization No. 19-06-392)
Figures 2692-02, 2692-03, 2692-0350, 2692-04 are all  IAPMO Listed (File #7479), ASSE Listed (REC $1435 AF-GW)

The Fig. 2692 Barrier Type Floor Drain Trap Seal Protection Devices comply with all sections of the ASSE 1072 Standard.

The 2692-0350 Quad Close Trap seal size installs in the throat of Smith adjustable strainers. See reverse side of submittal for illustration.

Required flow rates per ASSE Standard #1072, Section I. All sizes meets or exceeds these flow rates.

AF-GW represents floor designation/rated for all floor types per ASSE 1072, Section II.
