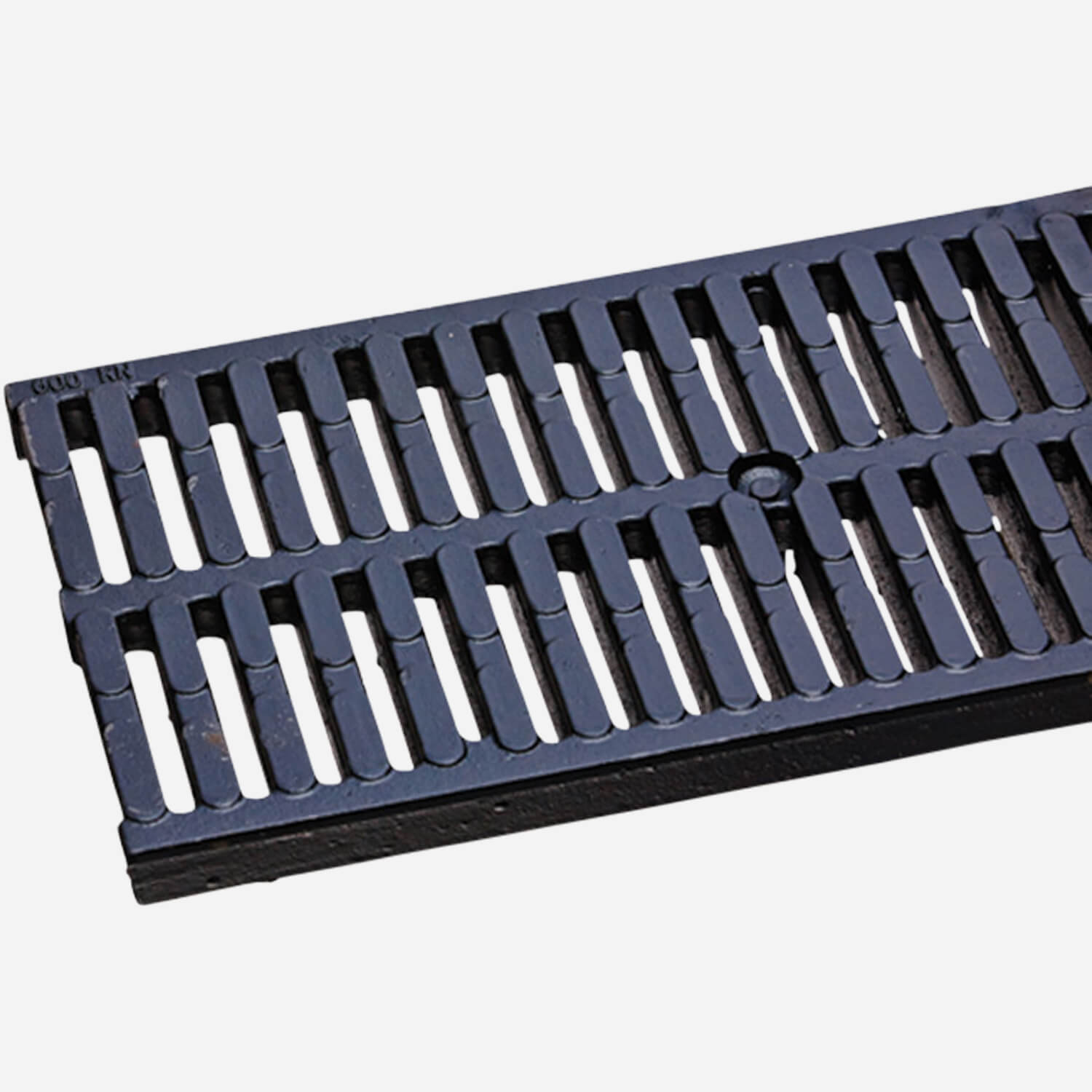

Ductile Iron Slotted Grate (Load Class E: Extra Heavy Duty)

Figure 9890-861-M

Submittal

Submittal d9890-861-m Ductile Iron Slotted Grate (pdf)

Model 9890-861-M

Ductile Iron Slotted Grate (Load Class E: Extra Heavy Duty)

This extra heavy duty, slotted ductile iron grate is compatible with Smith 9897 and 9899 polymer concrete trench drain system. Ideal for areas with commercial solid tire traffic patterns, forklifts and impacts from steel struts or metal wheels.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
Submittals	9890-861-M Grate Submittal (pdf)	13-5/16" (338 mm) Wide Ductile Iron Extra Heavy Duty Slotted Grate - Load Class E [9890-861-M.5G \| 1/2 meter (19-11/16")]	369 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
Submittals	9890-861-M Grate Submittal (pdf)	13-5/16" (338 mm) Wide Ductile Iron Extra Heavy Duty Slotted Grate - Load Class E [9890-861-M.5G \| 1/2 meter (19-11/16")]	369 KB
