Wave Ductile Iron (Load Class E: Extra Heavy Duty Grate)

Name: Wave Ductile Iron (Load Class E: Extra Heavy Duty Grate)
Brand: Jay R. Smith Mfg. Co.
SKU: 9880-678-MADA

Find A Representative

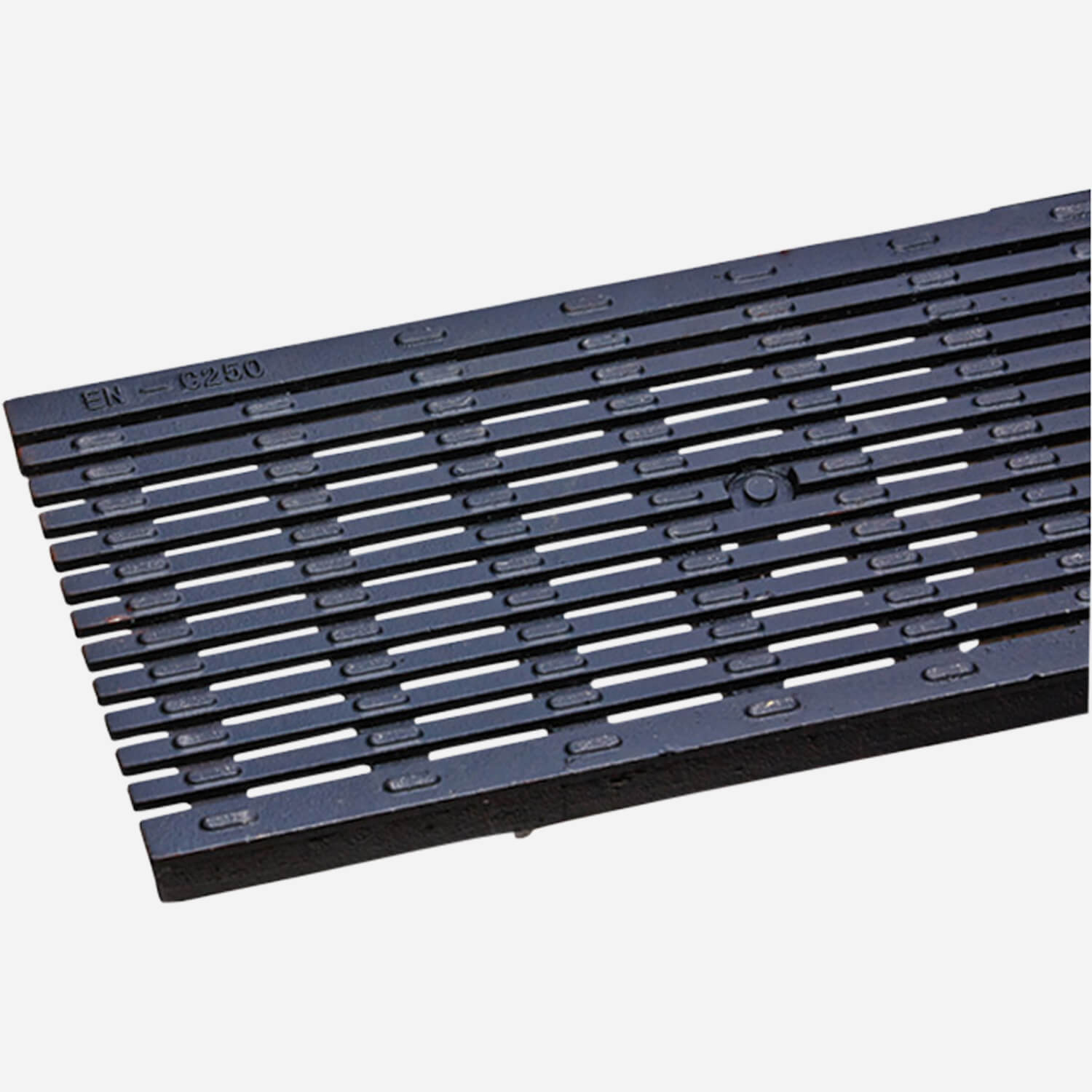

Figure 9880-678-MADA

Submittal

9880-678-MADA Grate Submittal (pdf)

Model 9880-678-MADA

Wave Ductile Iron (Load Class E: Extra Heavy Duty Grate)

This extra heavy duty, wave ductile iron grate is compatible with Smith 9878, 9806, 9898, and 9896 polymer concrete trench drain system. ideal for areas with commercial solid tire traffic patterns, forklifts and impacts from steel struts or metal wheels.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	9880-678-MADA Grate Submittal (pdf)	9-3/8" (238 mm) Wide Ductile Iron Extra Heavy Duty ADA Compliant Grate - Heelproof, Class E [9880-678-MADA.5G \| 1/2 meter (19-11/16")]	473 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
