Mosaic Ductile Iron (Load Class C: Heavy Duty Grate)

Name: Mosaic Ductile Iron (Load Class C: Heavy Duty Grate)
Brand: Jay R. Smith Mfg. Co.
SKU: 9880-679-MD

Find A Representative

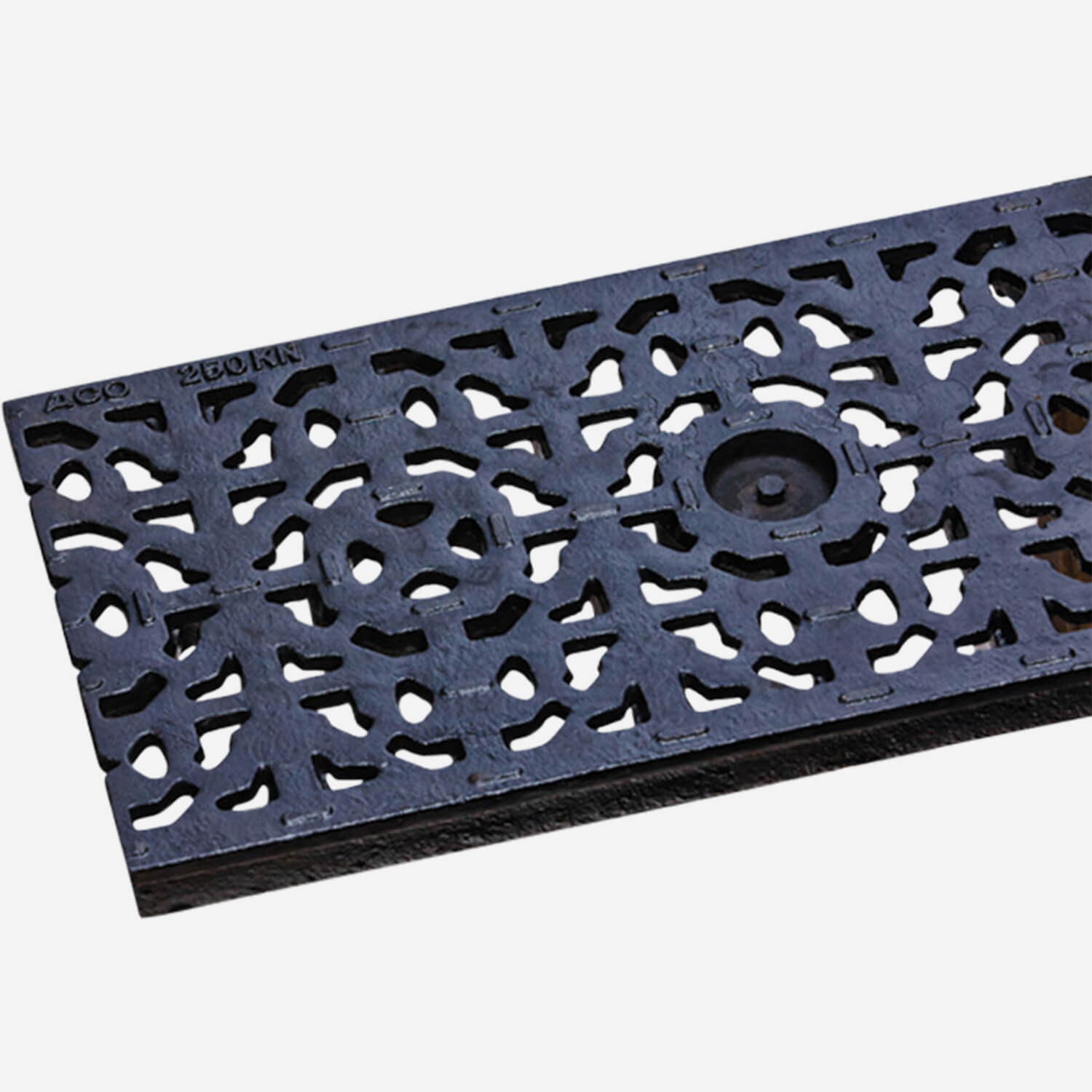

Figure 9880-679-MD

Submittal

9880-679-MD Grate Submittal (pdf)

Model 9880-679-MD

Mosaic Ductile Iron (Load Class C: Heavy Duty Grate)

This heavy duty, decorative mosaic, ductile iron grate is compatible with Smith 9898 and 9896 polymer concrete trench drain system. ideal for areas with commercial pneumatic tire traffic patterns, forklifts, and tractor trailers.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	9880-679-MD Grate Submittal (pdf)	9-3/8" (238 mm) Wide Ductile Iron Extra Heavy Duty ADA Compliant Mosaic Pattern Grate - Heelproof, Class Load E [9880-679-MD.5G \| 1/2 meter (19-11/16")]	552 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
