10" Wide High Capacity Pre-Sloped Fiberglass Trench Drain System

Find A Representative
Figure 9812
Installation Instructions
Install Guide (Technical) for Fiberglass Trench Drain
Submittal
2 available
9812 Preview
Model 9812

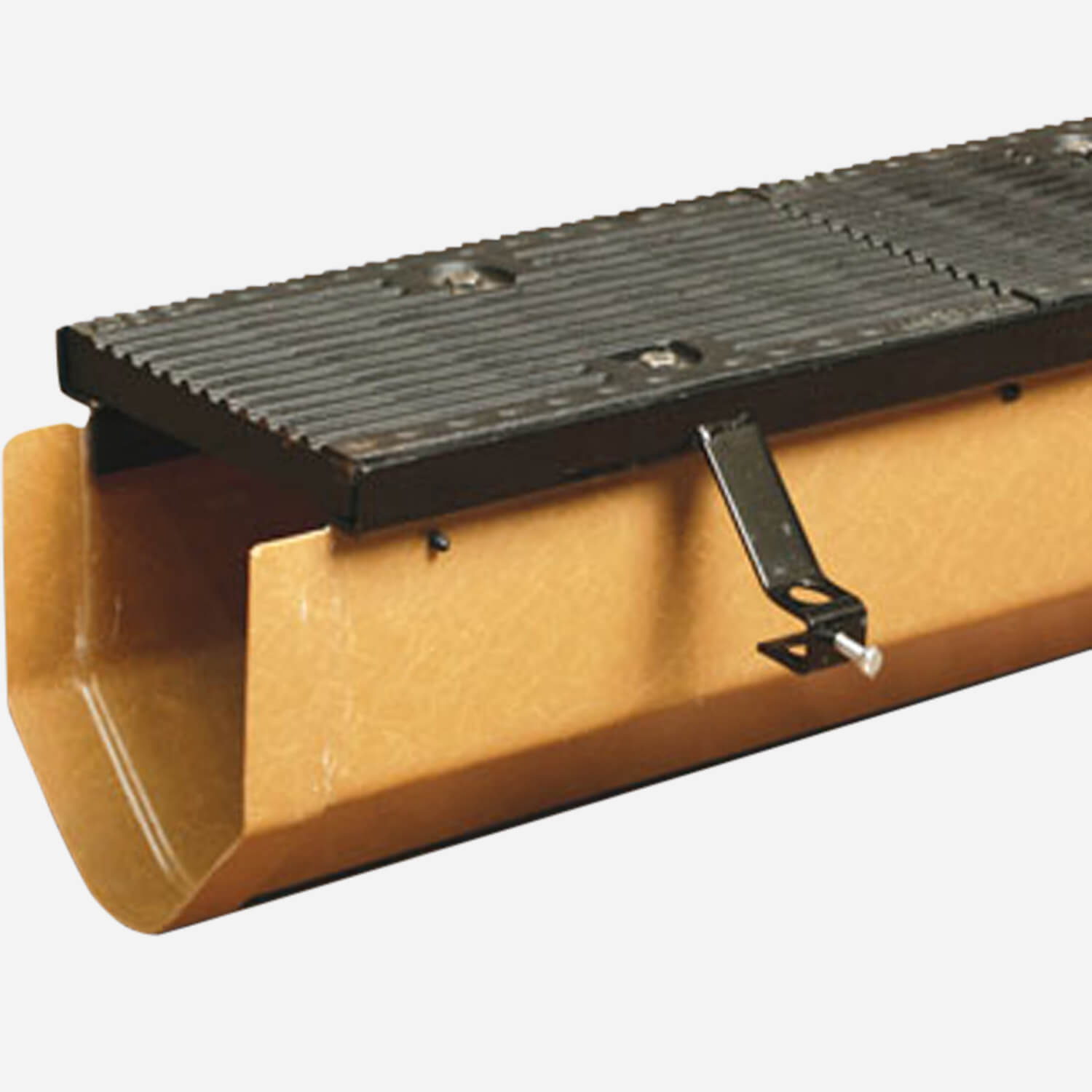

10" Wide High Capacity Pre-Sloped Fiberglass Trench Drain System

These 10” wide, high capacity, pre-sloped, fiberglass trench drains are ideal for industrial plants, warehousing, bottling plants, food service, and loading docks. They are durable, high strength, lightweight, and corrosion-resistant.

Trench Drain Features

  • 9' long, high capacity channel
  • Polyester fiberglass construction is standard; vinylester fiberglass optional for additional corrosion resistance
  • Channel depth from 6.88" to 20.38"
  • Duco coated welded steel frame support system with concrete anchors (one pair every 18 inches)
  • Painted, fabricated steel angle in Z pattern
  • Rebar/all thread elevation setting option built into frame
  • Push fit frame and channel assembly
  • Galvanized steel frame optional
  • Wide variety of grate options (see options linked below)
  • Supplied with secured load class "E" ductile iron slotted grate
  • Outlets can be located anywhere along bottom of channel

Accessory Components

  • Catch basins
  • Universal end caps
  • Universal outlet caps
  • 4”, 6” and 8” bottom outlets provide a high degree of flexibility when designing the system
  • Custom outlets are available upon customer request.

Grate Load Class C & E

  • Heavy Duty Class C: 56,000 lbs - 1,162 psi for commercial pneumatic tire traffic patterns, forklifts, and tractor tires
  • Extra Heavy Duty Class E: 135,000 lbs - 2,788 psi for commercial solid tire traffic patterns, forklifts and impacts from steel struts or metal wheels
