Iron Wave Pattern Ductile Iron Grate (Load Class C: Heavy Duty)

Name: Iron Wave Pattern Ductile Iron Grate (Load Class C: Heavy Duty)
Brand: Jay R. Smith Mfg. Co.
SKU: 9890-880-IW

Find A Representative

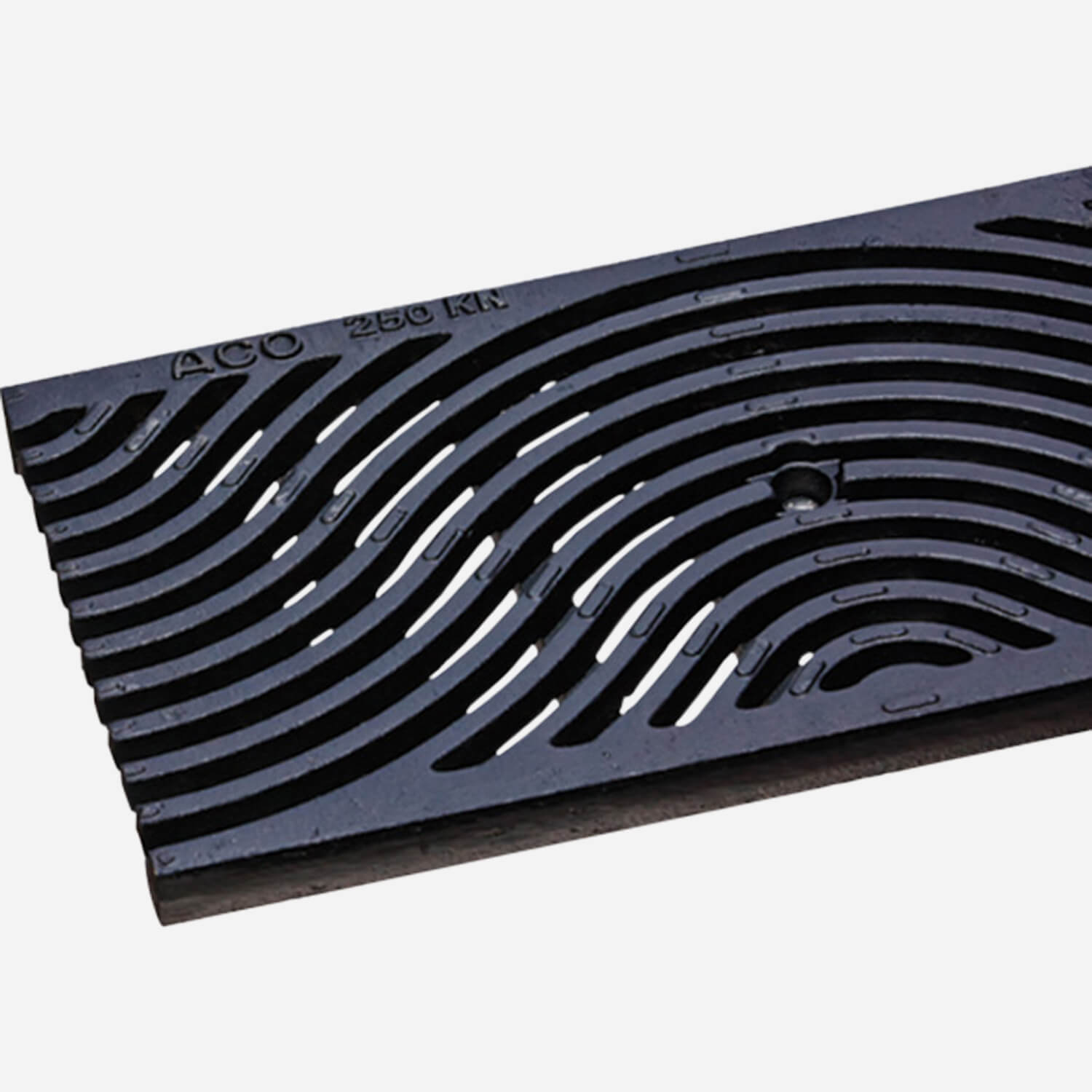

Figure 9890-880-IW

Submittal

9890-880-IW Grate Submittal (pdf)

Model 9890-880-IW

Iron Wave Pattern Ductile Iron Grate (Load Class C: Heavy Duty)

This heavy duty, decorative wave, ductile iron grate is compatible with Smith 9897 and 9899 polymer concrete trench drain system. Ideal for areas with commercial pneumatic tire traffic patterns, forklifts, and tractor trailers.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	9890-880-IW Grate Submittal (pdf)	13.35" (339 mm) Wide Ductile Iron Extra Heavy Duty Wave Pattern Slot Grate - ADA ComplaintLoad Class E [9890-880-IW.5G \| 1/2 meter (19-11/16")]	685 KB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
Technical Data Sheets	Trench Drain Chemical Resistance Guidelines (pdf)	The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.	155 KB
