Name: 12" Wide High Capacity Pre-Sloped Fiberglass Trench Drain System
Brand: Jay R. Smith Mfg. Co.
SKU: 9872

Model 9872

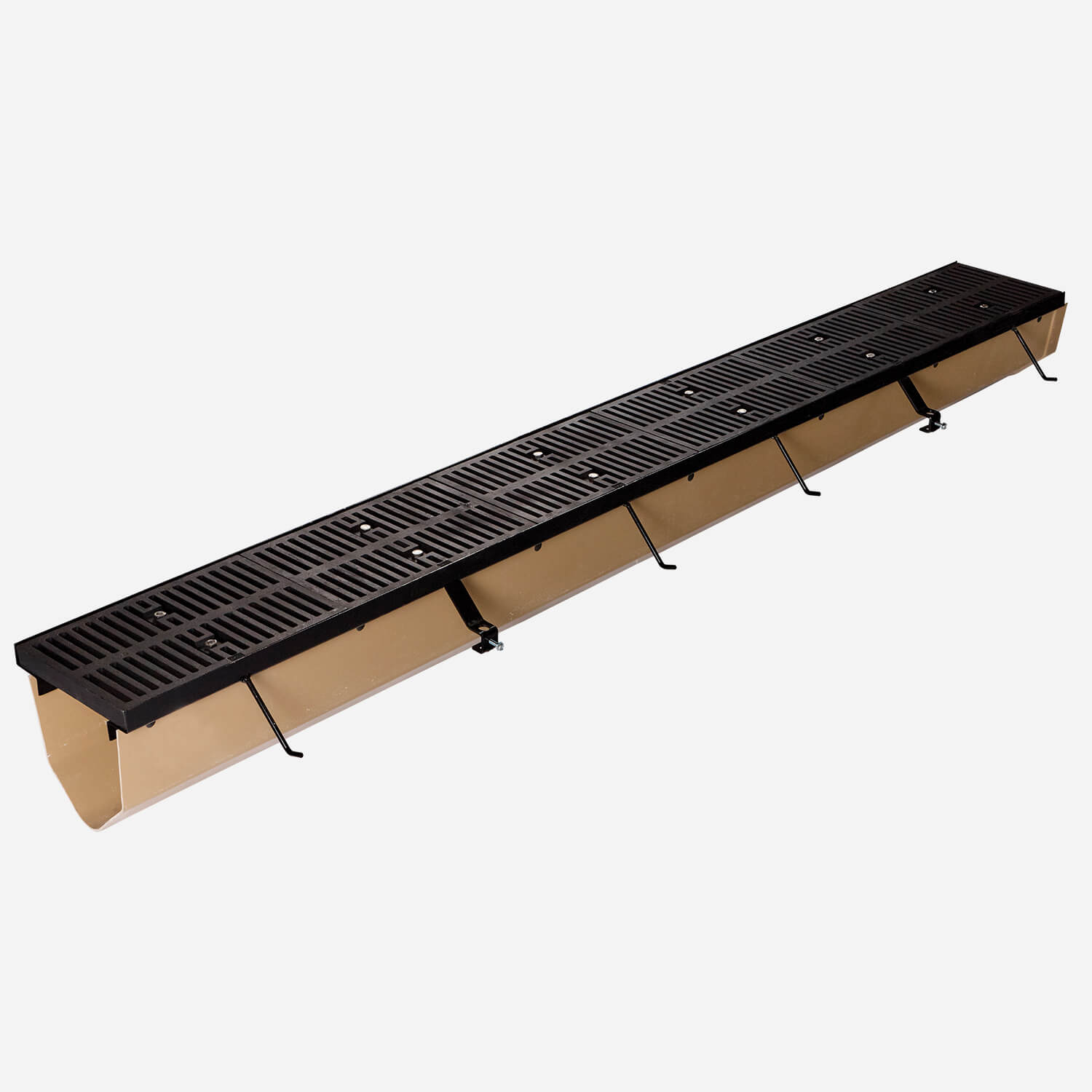

12" Wide High Capacity Pre-Sloped Fiberglass Trench Drain System

These 12” wide, high capacity, pre-sloped, fiberglass trench drains reduce installation time and labor. They are ideal for industrial plants, warehousing, bottling plants, food service, and loading docks due to their durability, high strength, light weight, and corrosion-resistance.

Trench Drain Features

9' long, high capacity channel
Polyester fiberglass construction
Sloped radius bottom surface
Duco coated welded steel frame support system with concrete anchors (one pair every 18 inches)

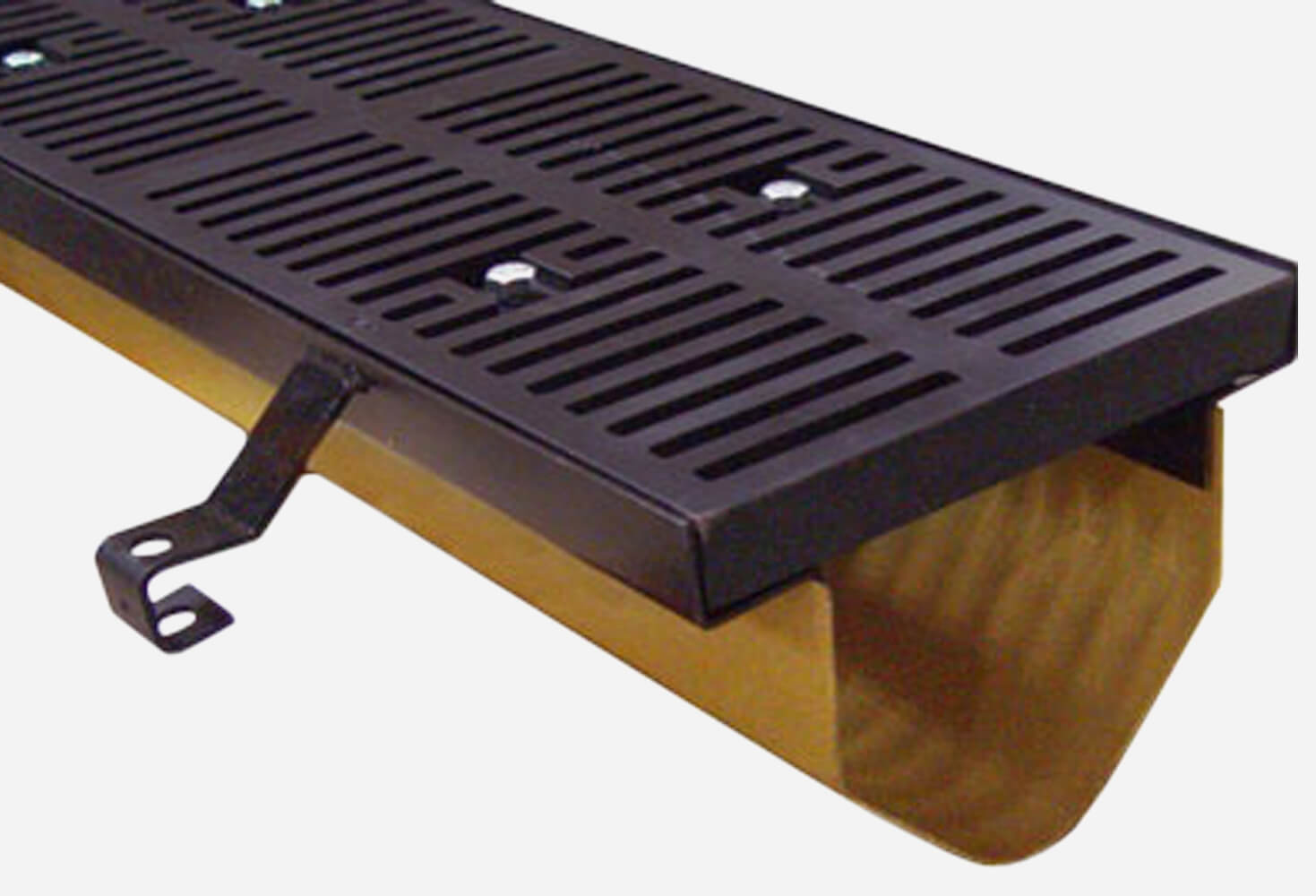

Supplied with secured load class "E" ductile iron slotted grate

Accessory Components

Catch basins
Universal end caps
Universal outlet caps
4”, 6” and 8” bottom outlets provide a high degree of flexibility when designing the system
Custom outlets are available upon customer request.

Extra Heavy Duty Grate

Load Class E: 135,000 lbs - 2,788 psi
For commercial solid tire traffic patterns, forklifts and impacts from steel struts or metal wheels

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide (Technical) for Fiberglass Trench Drain	Install Guide (Technical) for Fiberglass Trench Drain [9812 \| 10" Wide; 9872 \| 12" Wide]	1 MB
Submittals	9872 Trench Drain Submittal (pdf)	12" Wide High Capacity Pre-Sloped Fiberglass Trench Drain System [Channel Numbers 9812-801, 9812-802, 9812-803, 9812-803N, 9812-803N3, 9812-804, 9812-805, 9812-806, 9812-806N, 9812-806N3, 9812-807, 9812-808, 9812-809, 9812-809N, 9812-809N3, 9812-810, 9812-811, 9812-812, 9812-812N, 9812-812N3] [Variations 9872-ED-CS, 9872-ES-CS, 9872-HCS, 9872-V, 9872FA-03CS, 9872FA-09CS, 9812-880-B; 9812-660-B]	881 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	101 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (pdf)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	227 KB
Articles	Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)	Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)	497 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	Smith Trench Drain Complete Source Flyer (pdf)	Smith Trench Drain Complete Source Flyer (pdf)	547 KB
Brochures/Flyers	Smith Trench Drain Brochure (pdf)	Your complete trench drain source. Solutions and materials	13 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Images	9872 trench drain (hi res image)	12" Wide High Capacity Pre-Sloped Fiberglass Trench Drain System	276 KB
Images	9872-M Grate in 9872 Trench Drain (hi res)	Slotted Ductile Iron Grate (Extra Heavy Duty Grate for 9872 Drainage System) in 9872 Trench Drain	86 KB
Ordering	Quote Worksheet Smith Drainage Systems (pdf)	Quote Worksheet Smith Drainage Systems	39 KB
Articles	Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)	Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)	497 KB
Brochures/Flyers	Smith Trench Drain Brochure (pdf)	Your complete trench drain source. Solutions and materials	13 MB
Brochures/Flyers	Smith Trench Drain Complete Source Flyer (pdf)	Smith Trench Drain Complete Source Flyer (pdf)	547 KB
Images	9872 trench drain (hi res image)	12" Wide High Capacity Pre-Sloped Fiberglass Trench Drain System	276 KB
Images	9872-M Grate in 9872 Trench Drain (hi res)	Slotted Ductile Iron Grate (Extra Heavy Duty Grate for 9872 Drainage System) in 9872 Trench Drain	86 KB
Ordering	Quote Worksheet Smith Drainage Systems (pdf)	Quote Worksheet Smith Drainage Systems	39 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	101 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (pdf)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	227 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Bottom Outlet - 4, 6, 8", Horizontal Outlet Inlet 4" (802 thru 812 Channel), Horizontal Outlet Inlet 6" (803 thru 812 Channel), Horizontal Outlet Inlet 8" (805 thru 812 Channel), Universal Shallow Closing End Cap, Universal Deep Closing End Cap, 880 Catch Basin, 660 Catch Basin, Plastic Bucket 880 Catch Basin, Plastic Bucket 660 Catch Basin, (2) 3/8” (10) Tappings -TAP
Product Type	Drainage System
