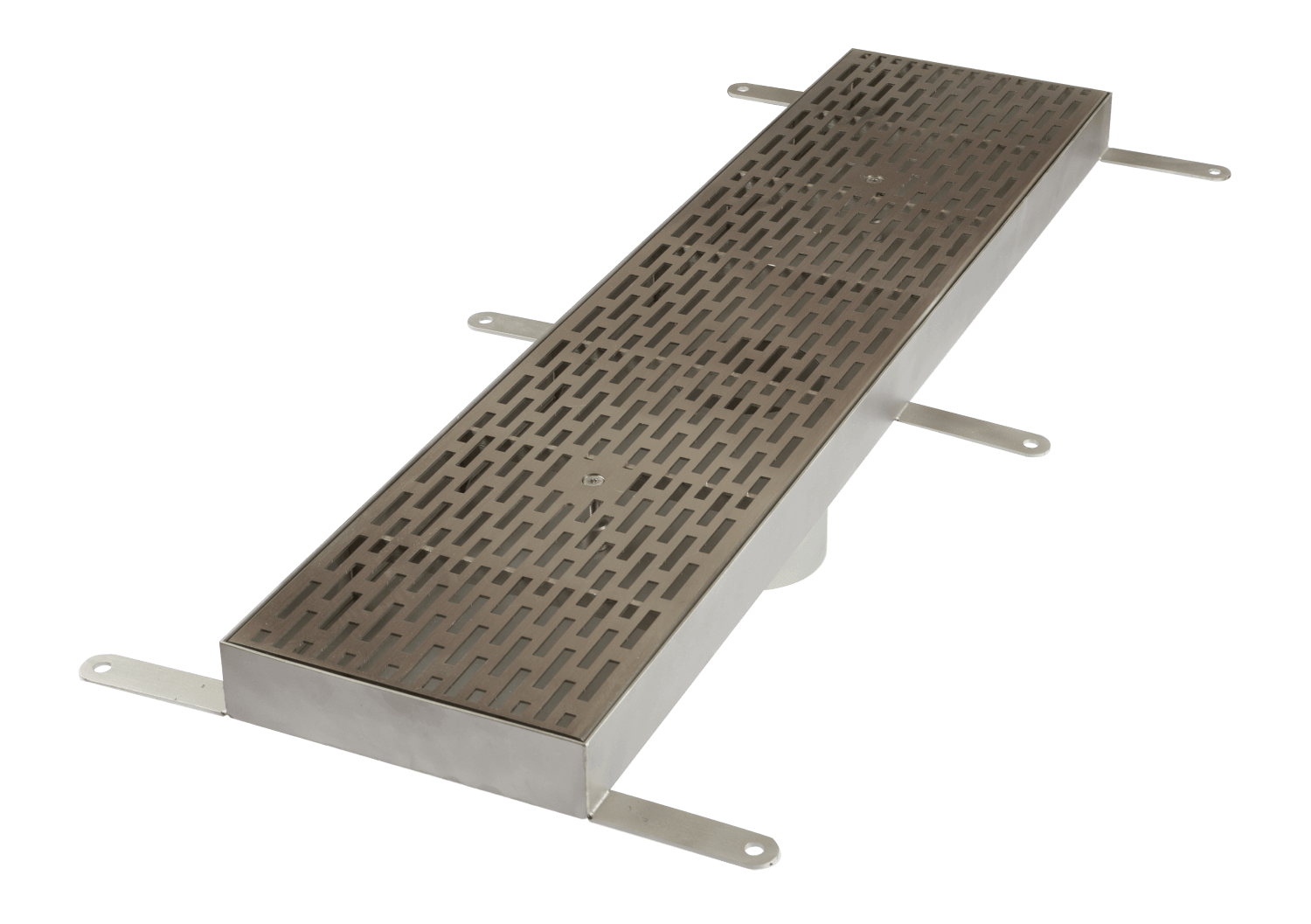

Model 9678-75
Stainless Steel Threshold Drain - 75 GPM
This stainless steel threshold drain effectively prevents water from cascading floor to floor during a fire emergency. The ADA compliant, trench drain and heel proof grate is intended for use in front of elevators, in elevator lobbies, stairways, and similar applications to receive and drain water with flow rates up to 75 GPM. At 2" deep, it does not disturb post-tension slabs. This drain complies with California building code 403.6.1, 403.6.2, 3007.4, 3008.4, and San Francisco Fire Code, Section 511.1.4.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Threshold Stainless Steel Drain - 75 GPM | 416 KB | ||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 497 KB | ||
| | The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications. | 155 KB | ||
| | Threshold Drain Flow Capacity (pdf) | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Stainless Steel Threshold Drain Heel Proof Grate Flyer (pdf) | 527 KB | ||
| | Your complete trench drain source. Solutions and materials | 12 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Stainless Steel Threshold Drain Code Flyer (pdf) | 520 KB | ||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 497 KB | ||
| | Your complete trench drain source. Solutions and materials | 12 MB | ||
| | Stainless Steel Threshold Drain Code Flyer (pdf) | 520 KB | ||
| | Stainless Steel Threshold Drain Heel Proof Grate Flyer (pdf) | 527 KB | ||
| | Threshold Drain Flow Capacity (pdf) | 5 MB |
Specifications
| Variations | Stainless Steel Bar Grate -SBG, Stainless Steel Tile-in-Lay Grate -TIG, Less Anchor Straps -LAS, Inside Black Finish -BPF, Black Powder Coated Interior, DX Flange -DX, Additional Anchor Straps, Specify Outlet Position, Anchor Straps 12 Req’d -AS, 1/2" NPT Trap Primer Connection -TP, (2) 3/8” (10) Tappings -TAP |
