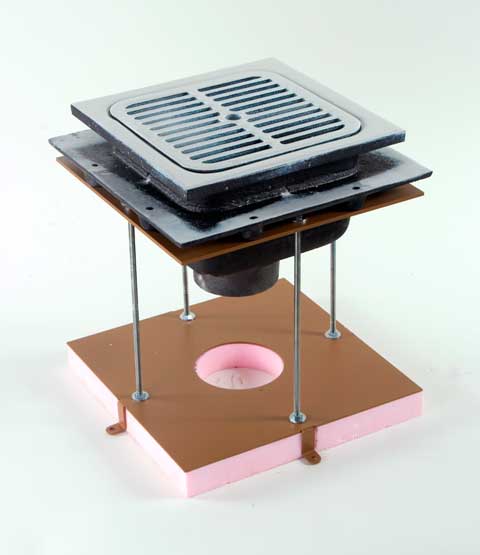

12" Square Enameled Floor Sink with FormIt® Drain Installation Device
This 12" (305 mm) square floor sink was developed to save contractor installation time and speed construction. The assembly comprises the cast iron sink, acid-resistant coating, a removable foam form, and a carriage. This sink is topped with a nickel bronze cover and protects drain lines with its aluminum dome bottom strainer.
Secured by four screws, this FormIt® sink assembly is screwed to decking so it doesn't shift when concrete is poured. Once the concrete sets, the foam is easily removed leaving an open path for connection to the waste line. The need to reset misaligned drains is eliminated.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 12" Square Enamel Floor Sink with FormIt® Drain Installation Device [3039Y | No-Hub Outlet; 3039Y-B | No-Hub Outlet with Bucket] | 1 MB | |||
| | FormIt® Drain Installation Device only for 12" Square Enameled Floor Sink | 0 | 494 KB | ||
| | Article: Considerations to be Addressed When Selecting Sanitary Floor Drains | 0 | 271 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 0 | 5 MB | ||
 | | Specifications for Sanitary Floor Drains | 0 | 328 KB | ||
 | | 12" Square Enamel Floor Sink with FormIt® Drain Installation Device [3039Y | No-Hub Outlet; 3039Y-B | No-Hub Outlet with Bucket] | 0 | 18 KB | ||
| | Order Guidelines for Sanitary Floor Drains | 0 | 116 KB | ||
| | 0 | 1 MB |
Specifications
| Variations | Acid Resistant Coated 1/2 Grate (Suffix -12), Acid Resistant Coated 3/4 Grate (Suffix -13), Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, Sediment Bucket -B, Vandal Proof -U - (Nickel Bronze Tops Only), Polished Aluminum Dome Bottom Strainer -PDBS, Y NO-HUB - Outlet, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Polished Bronze -PB - Frame and Cover, Nickel Bronze -NB - Frame and Cover, All Duco Cast Iron Receptor -CI, All Galvanized Receptor -G |
| Product Type | Sanitary Floor, Area and Indirect Waste Drain |
| Benefit | Labor Saving |
Models
12" Size Floor Sink with Installation Device [submittal]
Figure 3039Y | No-Hub Outlet
Figure 3039Y-B | No-Hub Outlet with Bucket
Additionally, specify pipe size 02(50), 03(75), or 04(100)
Figure 3039-DID | FormIt® Drain Installation Device Only [submittal]
for 12" (305 mm) and 12-1/2" (318 mm) Top Size Floor Sinks
compatible with Figures 3060, 3061, 3110, 3120, 3130, 3140, 3150, 3160, 3400, 3401, 3420, 3430, 3440.
