Name: Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Round Non-Traffic Top
Brand: Jay R. Smith Mfg. Co.
SKU: 3400

Model 3400

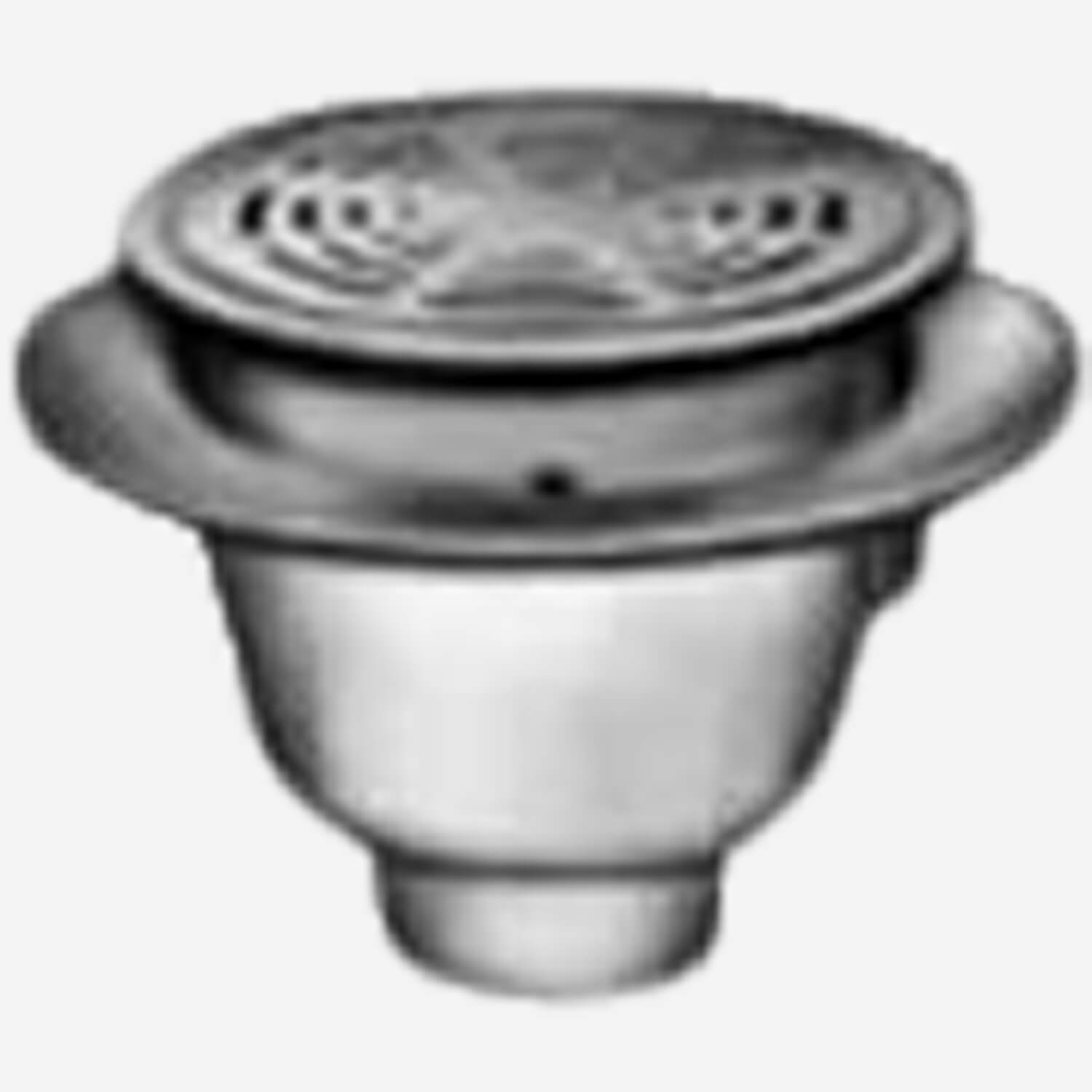

Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Round Non-Traffic Top

Engineered for long service life in food handling facilities, schools, and hospitals away from foot or other traffic, this 12” diam. Sani-ceptor® cast iron floor drain is specially coated for acid resistance where the highest standard of sanitation is required. The deep, large capacity drain body is has an integral flange which accepts an optional flashing clamp permitting it to be installed in many types of construction. This drain is covered by a loose set grate and is available with an aluminum dome bottom strainer (fig. 3400) or sediment bucket (fig. 3401) that keep drain lines debris free.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 3400 Waste Drain (pdf)	Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Round Non-Traffic Top [3400C, 3400Y, 3401C, 3401Y]	439 KB
Drawings	3400 Drain (dwg)	Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Round Non-Traffic Top	74 KB
Revit/BIM/ITM Files	3400 Drain Revit Drawing	Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Round Non-Traffic Top	232 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	101 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (pdf)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	227 KB
Technical Data Sheets	Article: Considerations to be Addressed When Selecting Sanitary Floor Drains	Article: Considerations to be Addressed When Selecting Sanitary Floor Drains	271 KB
Specifications	Specifications for Sanitary Floor Drains	Specifications for Sanitary Floor Drains	328 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Sanitary Floor Drains	Sani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data	599 KB
Ordering	Order Guidelines for Sanitary Floor Drains	Order Guidelines for Sanitary Floor Drains	116 KB
Parts Manuals	Parts Order Guide for Sanitary Floor Drains		1 MB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	101 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (pdf)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	227 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, L Speedi-Set® Service Weight, LXH Speedi-Set® Extra Heavy, Less Flange - (Specify Fig. 3405, 3406), Polished Aluminum Dome Bottom Strainer -PDBS, (2) 3/8” (10) Tappings -TAP, Drain Installation Device -DID
Optional Materials	All Duco Cast Iron Receptor and Grate -CI, All Galvanized Receptor and Grate -G
Product Type	Sanitary Floor, Area and Indirect Waste Drain

Models

Sani-Ceptor® Acid-Resistance Coating Floor and Indirect Waste Drains
Non-Traffic Tops, 12" (305 mm) Round Top, Deep Receptor

With Dome Strainer
3400C | Caulk Bottom Outlet
3400Y | No-Hub Bottom Outlet

With Sediment Bucket
3401C | Caulk Bottom Outlet
3401Y | No-Hub Bottom Outlet

Optional Top Grates, Funnels and Covers
Suffix -10 | Less Acid-Resistance Coating Grate
Suffix -12 | With A.R.C. 1/2 Grate
Suffix -13 | With A.R.C. 3/4 Grate
Suffix -14 | With A.R.C. Grate with 2-1/2" (64) Diameter Center Hole
Suffix -15 | With Aluminum Recessed Grate
Suffix -21 | With A.R.C. Grate and 4" (100) Diameter A.R.C. Funnel
Suffix -22 | With A.R.C. Grate and 6" (150) Diameter A.R.C. Funnel
Suffix -25 | With A.R.C. Grate and 8-1/4" (210) x 3-1/4" (83) x 4-1/2" (115) High Oval A.R.C. Funnel
Suffix -26 | With A.R.C. Grate and 6" (150) x 2-1/2" (64) x 1" (25) High Oval A.R.C. Funnel
Suffix -41 | With A.R.C. Solid Cover
Suffix -42 | With A.R.C. 1/2 Solid Cover
Suffix -43 | With A.R.C. 3/4 Solid Cover
Suffix -44 | With A.R.C. Solid Cover with 2-1/2" (64) Diameter Center Hole

-DID Variation:
FormIt® Drain Installation Device for 12" and 12-1/2" Top Size Floor Sinks, see Submittal 3039-DID
