Model 5560QT
Quarter Turn Non-Freeze Wall Hydrants

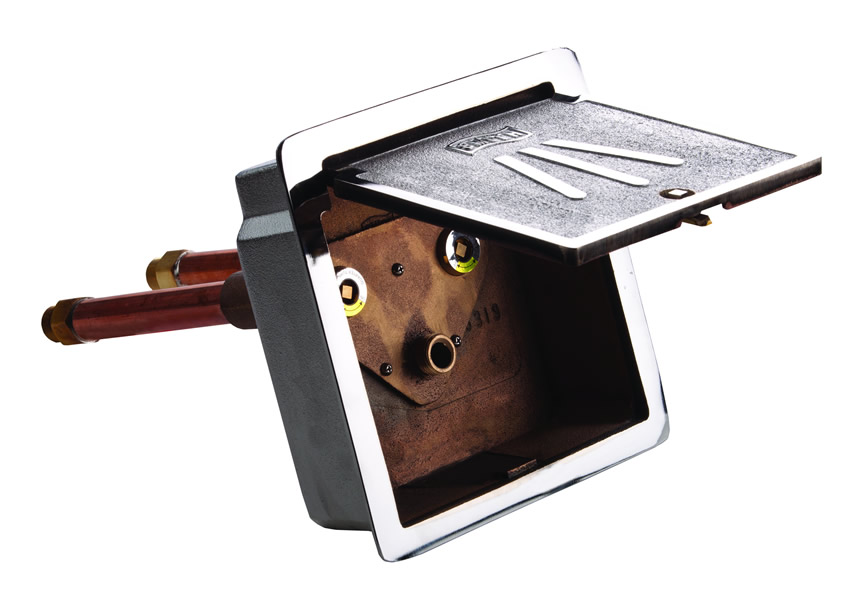

This tamper proof hydrant is designed for installation in food handling areas, dairies and other exterior walls where both hot and cold water access is needed. Concealed in the locking, chrome plated bronze enclosure are the hose connection and two Twin-Temp valve controls that require an easy quarter turn of the removable key for full flow. Several valve stem lengths are available for different wall thicknesses to ensure freeze-proof performance in cold climates.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | "Quarterhorse" Quarter-Turn Non-Freeze Wall Hydrant - Bronze Box Type "Twin-Temp" for Hot and Cold Water[5560QT |1/2" Female/3/4" Male NPT Inlet; 5561QT |1" Male NPT Inlet] | 800 KB | ||
 | | "Quarterhorse" Quarter-Turn Non-Freeze Wall Hydrant - Bronze Box Type "Twin-Temp" for Hot and Cold Water [5560QT |1/2" Female/3/4" Male NPT Inlet; 5561QT |1" Male NPT Inlet] | 121 KB | ||
 | | "Quarterhorse" Quarter-Turn Non-Freeze Wall Hydrant - Bronze Box Type "Twin-Temp" for Hot and Cold Water [5560QT |1/2" Female/3/4" Male NPT Inlet; 5561QT |1" Male NPT Inlet] | 460 KB | ||
 | | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 262 KB | ||
| | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 209 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Professional grade Hydrants for Commercial and light Commercial construction. | 2 MB | ||
| | Brochure Professional Grade Wall and Ground Hydrant | 6 MB | ||
| | Specifications for Hydrants | 179 KB | ||
 | | "Quarterhorse" Quarter-Turn Non-Freeze Wall Hydrant - Bronze Box Type "Twin-Temp" for Hot and Cold Water [5560QT |1/2" Female/3/4" Male NPT Inlet; 5561QT |1" Male NPT Inlet] | 68 KB | ||
| | Technical Data of Hydrants | 265 KB | ||
| | Parts Order Guide for Hydrants | 2 MB | ||
| | Order Guidelines for Hydrants | 118 KB | ||
 | | Overview of Smith Hydrant | 132 KB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB |
Specifications
| Variations | Adjustable Wall Clamp -WC, Cylinder Lock -CL, 1"(25) Hose Connection -HC1, 3/4"(19) Vacuum Breaker -H, Vacuum Breaker Self Draining Type -H, Cover Cast with Words "Water" -W, Wheel Handle -WH, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Polished Bronze -PB - Box Face, Nickel Bronze Top -NB, Rough Bronze Box Face -RB |
| Product Type | Hydrant |
