Model 5910
3/4"-1" Inlet and Hose Connections Non-Freeze Post Hydrants

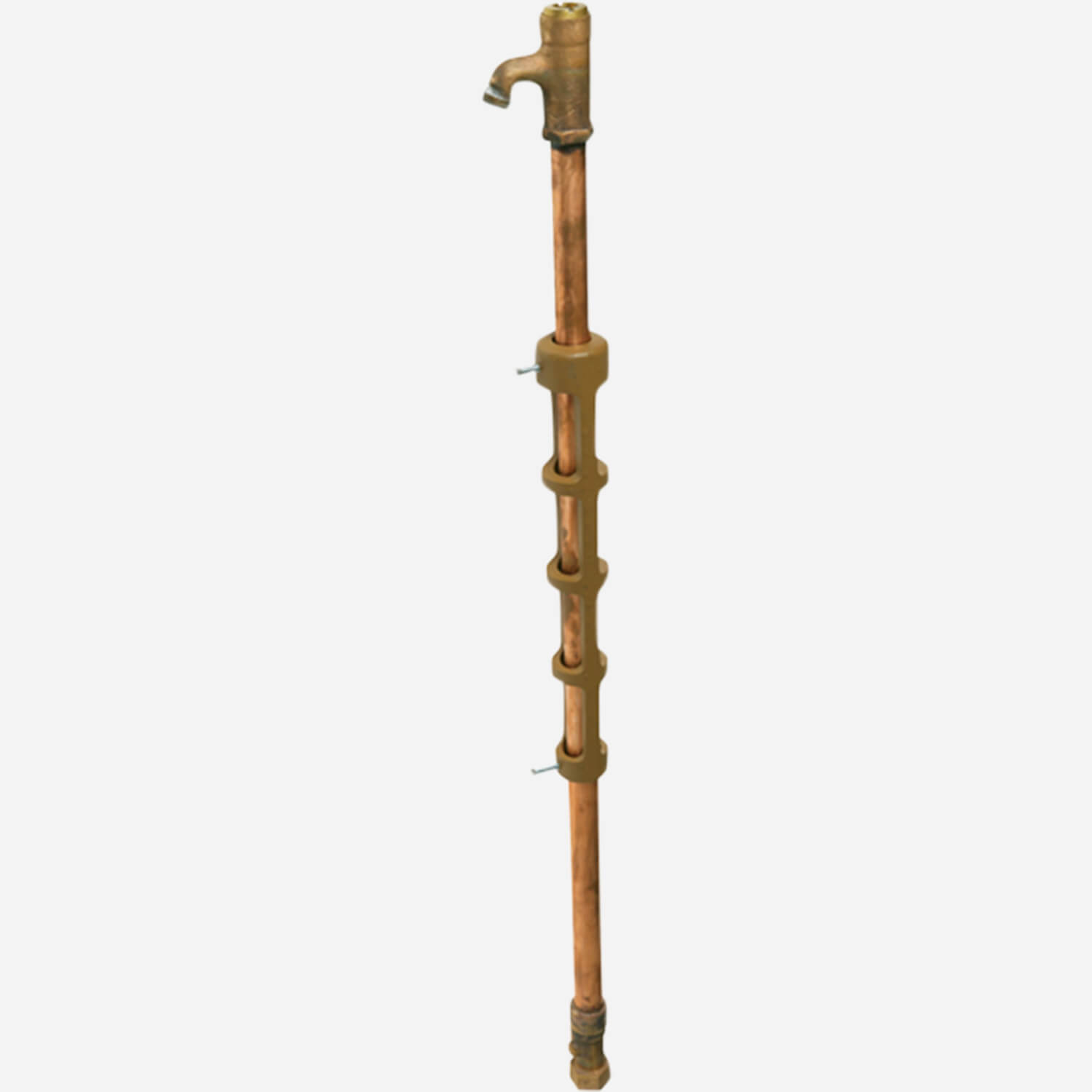

For freeze-resistant reliability in any climate, the valve casing and inlet of this corrosion-resistant bronze post hydrant are buried below the frost line. When the tamper-resistant valve is opened using the removable "t" handle key, water is channeled to the 3/4" hose connection above ground through the valve casing and protective casing guard. After use, water remaining in the pipe drains through a hole just above the valve protecting the pipe from bursting when temperatures drop below freezing.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Non-Freeze Post Hydrants [Figure 5910 | 3/4" Inlet and Hose Connection; 5911 | 1" Inlet and Hose Connection] | 840 KB | |||
 | | Non-Freeze Post Hydrants [Figure 5910 | 3/4" Inlet and Hose Connection; 5911 | 1" Inlet and Hose Connection] | 0 | 124 KB | ||
 | | 3/4" Inlet and Hose Connections Non-Freeze Post Hydrant [Figure 5910] | 0 | 284 KB | ||
 | | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 0 | 262 KB | ||
| | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 0 | 209 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Professional grade Hydrants for Commercial and light Commercial construction. | 0 | 2 MB | ||
| | Brochure Professional Grade Wall and Ground Hydrant | 0 | 6 MB | ||
| | Specifications for Hydrants | 0 | 179 KB | ||
 | | 3/4" Inlet and Hose Connections Non-Freeze Post Hydrants [Figure 5910] | 0 | 23 KB | ||
| | Technical Data of Hydrants | 0 | 265 KB | ||
| | Parts Order Guide for Hydrants | 0 | 2 MB | ||
| | Order Guidelines for Hydrants | 0 | 118 KB |
Specifications
| Variations | 1"(25) Hose Connection -HC1 - Adaptor, 1/8"(3) NPT Drain Hole -NV, Secured Wheel Handle -WH, 3/4"(19) Vacuum Breaker -H - (Fig. 5910 Only), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Aluminum Casing Guard -AG |
| Product Type | Hydrant |
