Model 5909

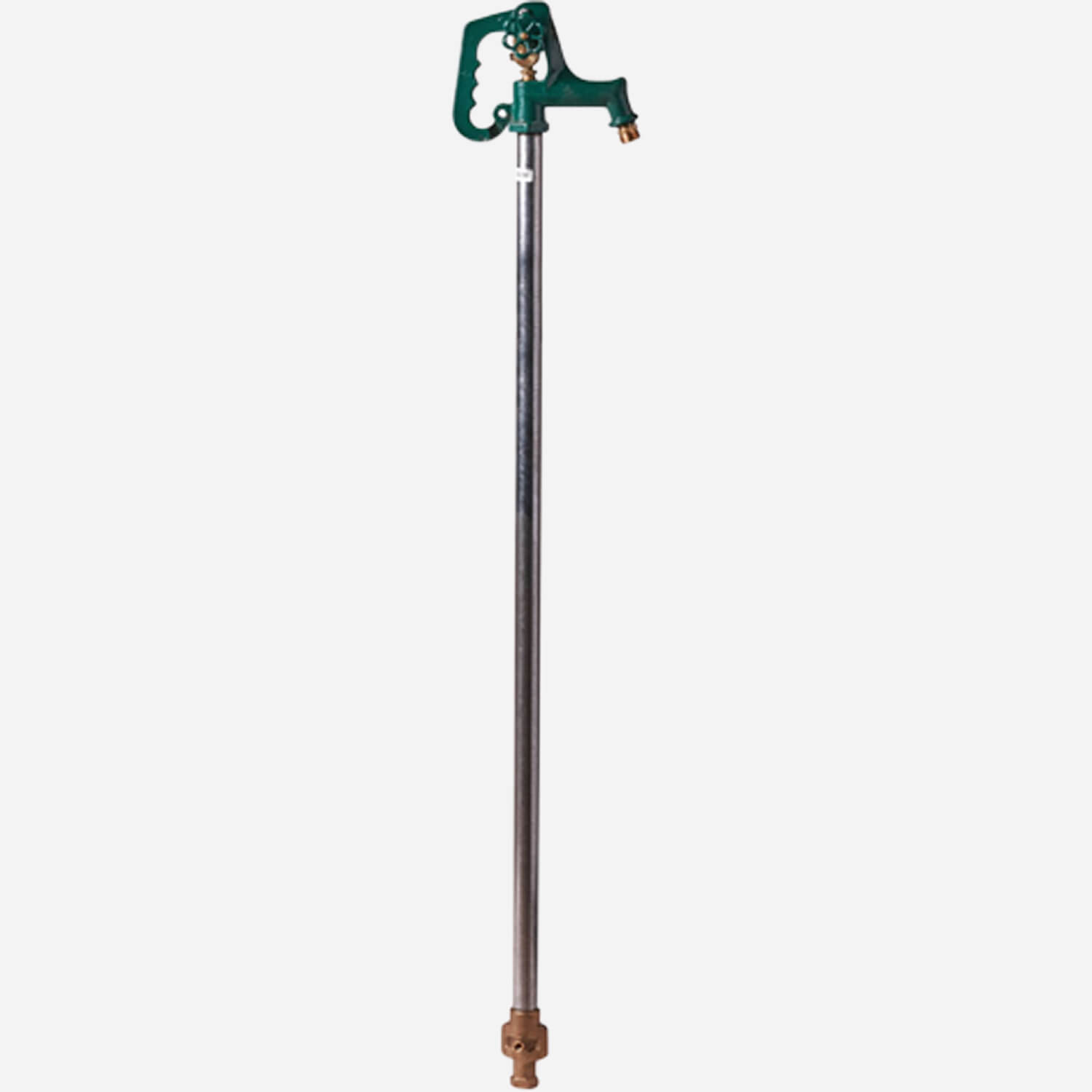

Non-Freeze Post Hydrants with 3/4" Inlet and Hose Connection

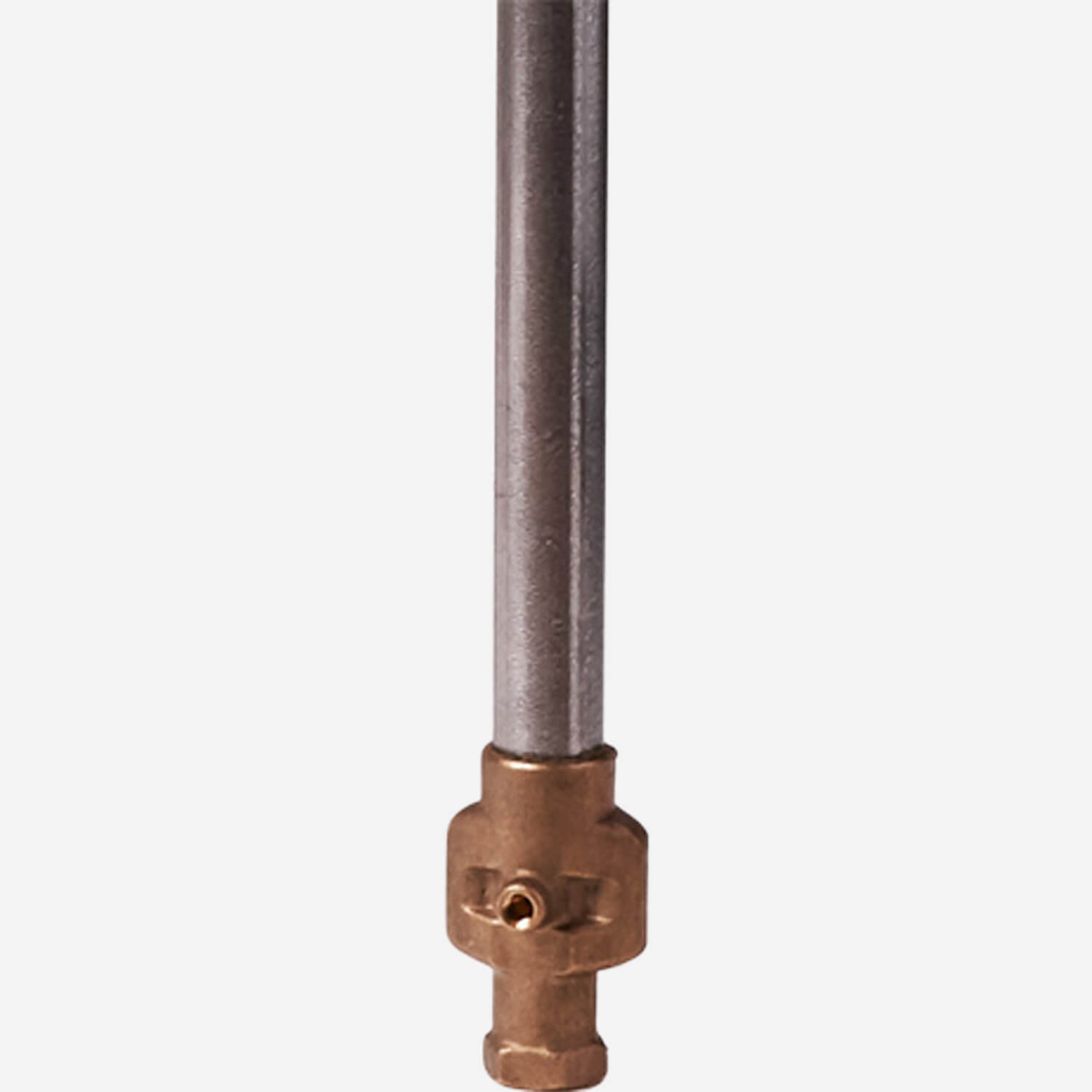

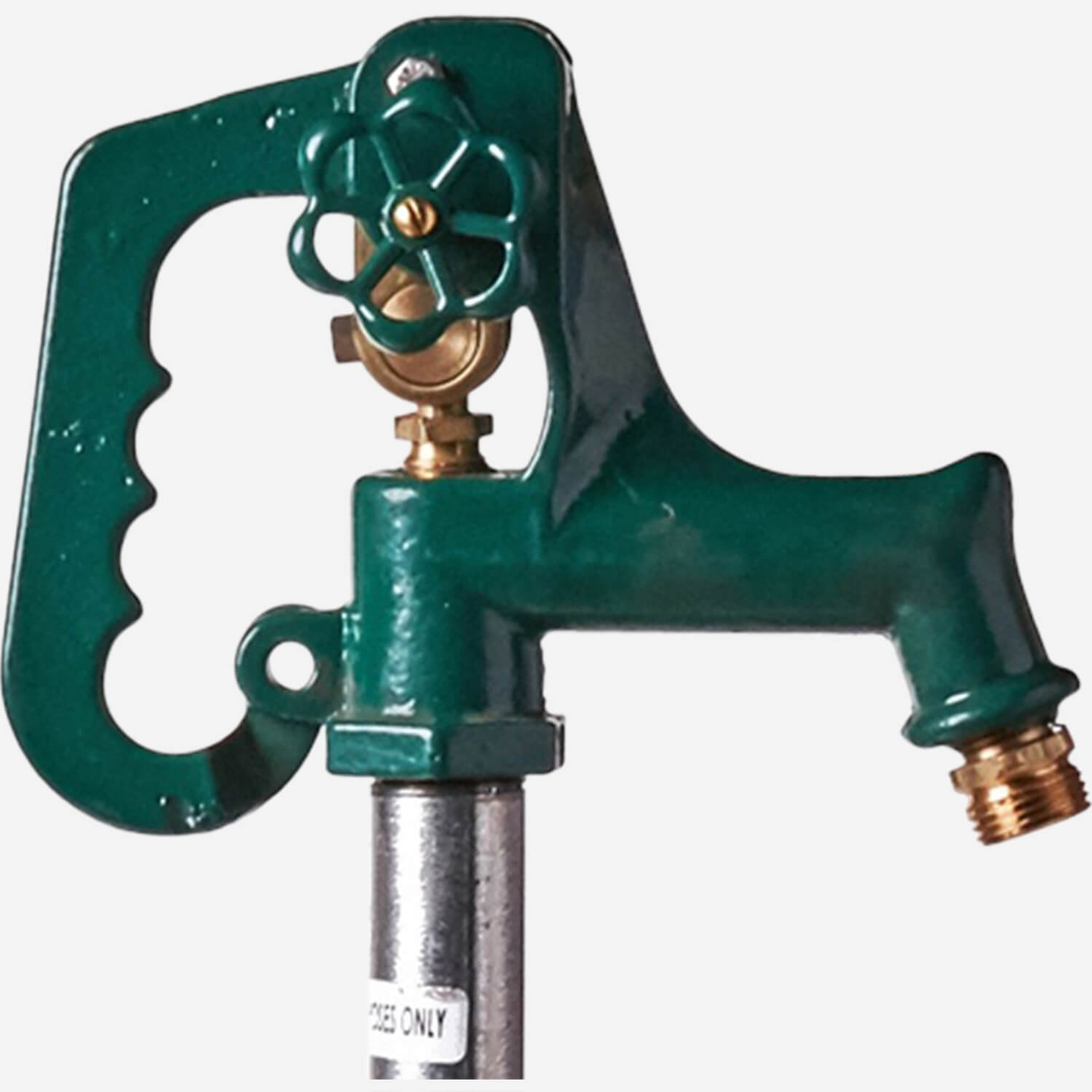

For freeze-resistant reliability in any climate, the valve housing and 3/4" inlet of this post hydrant are buried below the frost line. Water is channeled to the hydrant's cast iron head and 3/4" hose connection through a corrosion-resistant galvanized pipe. After use, water remaining in the pipe drains through a hole just above the valve protecting the pipe from bursting from freezing temperatures.
FOR IRRIGATION PURPOSES ONLY
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Non-Freeze Post Hydrants with 3/4" Inlet and Hose Connection | 757 KB | ||
 | | Non-Freeze Post Hydrants with 3/4" Inlet and Hose Connection | 481 KB | ||
 | | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 262 KB | ||
| | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 209 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Professional grade Hydrants for Commercial and light Commercial construction. | 2 MB | ||
| | Brochure Professional Grade Wall and Ground Hydrant | 6 MB | ||
| | Specifications for Hydrants | 179 KB | ||
 | | Non-Freeze Post Hydrants with 3/4" Inlet and Hose Connection | 453 KB | ||
| | Technical Data of Hydrants | 265 KB | ||
| | Order Guidelines for Hydrants | 118 KB |
Specifications
| Variations | Vacuum Breaker -H, 1"(25) Hose Connection -HC1, 1"(25) Female Inlet Connection -MF-1, (2) 3/8” (10) Tappings -TAP |
| Product Type | Hydrant |
