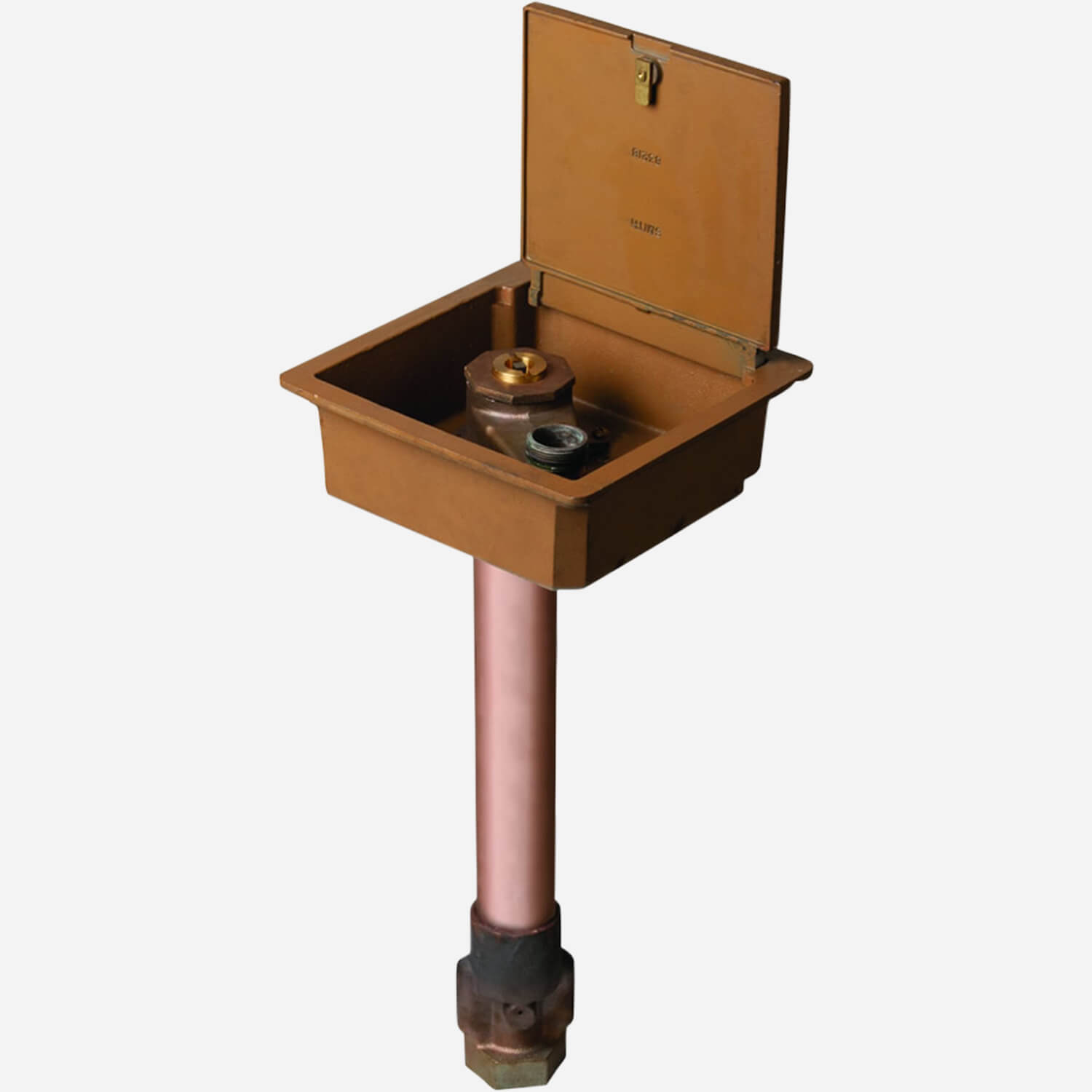

Model 5812
Non-Freeze Boxed Ground Hydrants
Corrosion and tamper resistant, the 1.25" hose connection and faucet control of this hydrant are protected inside this fixture's bronze lockbox. Engineered for exterior in-ground installation, its valve and 1.25" water inlet extend below the frost line where a small hole in the valve housing allows any residual water to drain once the valve is closed, further preventing rupture of the housing due to freezing conditions. This hydrant is operated by a removable "T" handle key stopping unauthorized use.
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
![]() | ![]() | Submittal 5812 Hydrant | 882 KB | ||
![]() | ![]() | DWG 5812 Hydrant | 135 KB | ||
![]() | ![]() | RFA 5812 Hydrant | 240 KB | ||
![]() | ![]() | RFA 5813 Hydrant | 240 KB | ||
![]() | ![]() | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 262 KB | ||
![]() | ![]() | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 209 KB | ||
![]() | ![]() | Who we are, Our History, Morris Group International Today | 27 MB | ||
![]() | ![]() | MGI Brands Flyer (pdf) | 718 KB | ||
![]() | ![]() | Professional grade Hydrants for Commercial and light Commercial construction. | 2 MB | ||
![]() | ![]() | Brochure Professional Grade Wall and Ground Hydrant | 6 MB | ||
![]() | ![]() | Specifications for Hydrants | 179 KB | ||
![]() | ![]() | 80 KB | |||
![]() | ![]() | Technical Data of Hydrants | 265 KB | ||
![]() | ![]() | Parts Order Guide for Hydrants | 2 MB | ||
![]() | ![]() | Order Guidelines for Hydrants | 118 KB |
Can't find what you are looking for? Get in touch
Specifications
Shows specifications for standard configuration. Configuration options may change specifications.
| Variations | 1/8"(3) NPT Drain Hole -NV - in Box, 1/8"(3) NPT Drain Hole -NV, Cover Cast with Words "Water" -W, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Polished Bronze -PB - Box Face, Nickel Bronze Top -NB, Rough Bronze Box Face -RB |
| Product Type | Hydrant |
Related Figure Numbers
Model | Description |
|---|---|
| 5813 | 1 1/2" (38) Inlet and Hose Connections |
| 5814 | 2" (51) Inlet and Hose Connections |
