Support Set on Steel Plate Secured in Wall

Name: Support Set on Steel Plate Secured in Wall
Brand: Jay R. Smith Mfg. Co.
SKU: 0722

Model 0722

Support Set on Steel Plate Secured in Wall

This lavatory support is intended for installation on walls before plaster, tile or other finish surface is applied. Securely welded to a heavy gauge steel plate, internally threaded sleeves are designed to protrude past the wall surface to accept adjustable threaded arms and arm lock nuts. To ensure that the high back lavatory is permanently and solidly affixed to the support arms, our Sure-set locking device adjusts from underneath the lavatory to firmly grip its inner wall while leveling screws ensure a precise installation.

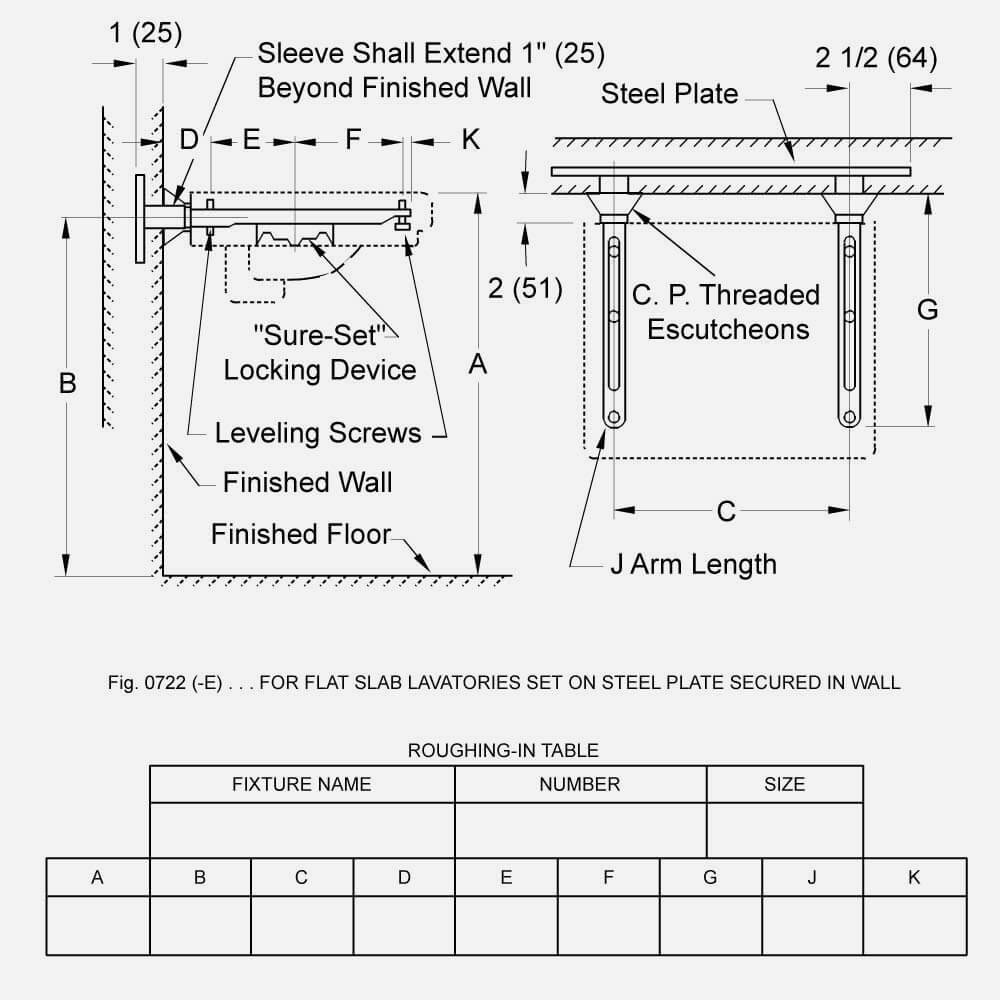

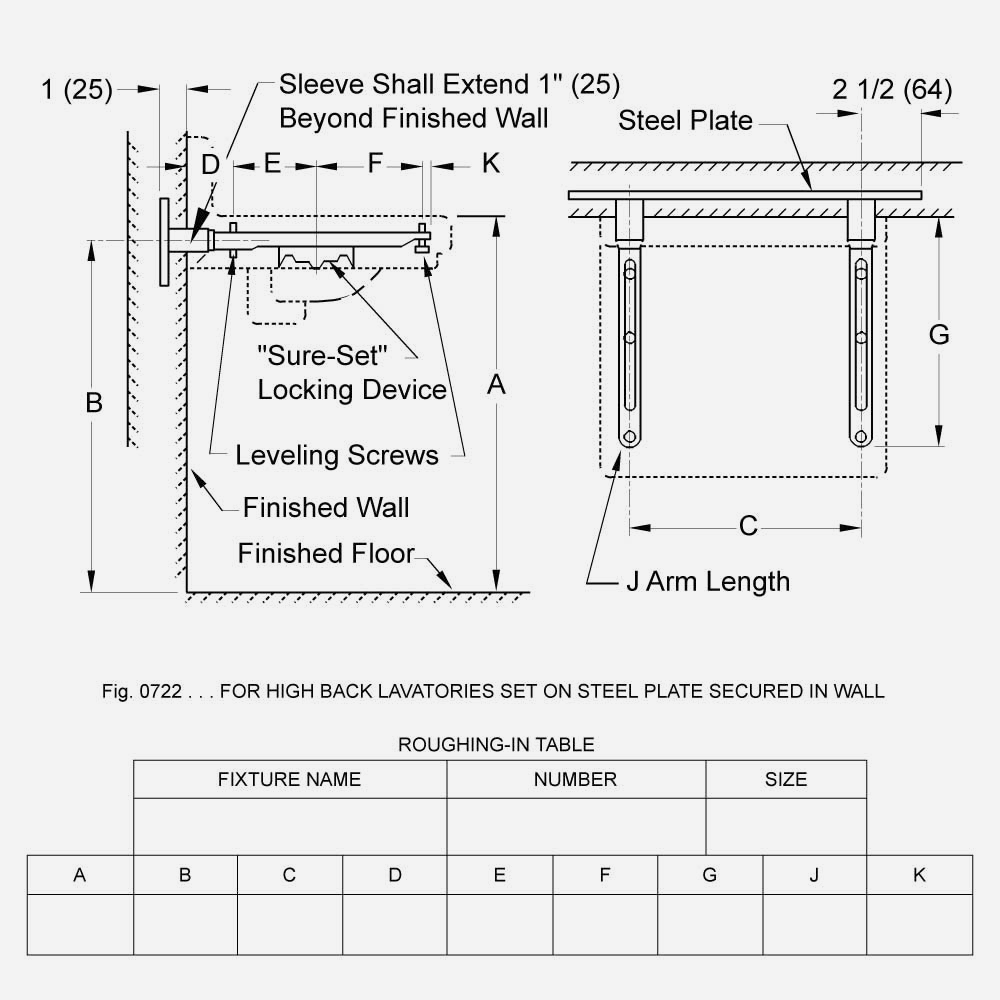

Figure 0722 accommodates lavatories with high backs; Figure 0722-E accommodates Flat Slab Lavatories.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 0722 Support (pdf)	Wall Mounted Lavatory Supports with Concealed Arm for High Back Lavatories Set on Steel Plate Secured in Wall	155 KB
Drawings	0722 Support (dwg)	Wall Mounted Lavatory Supports with Concealed Arm for High Back Lavatories Set on Steel Plate Secured in Wall	53 KB
Drawings	0722-E Support (dwg)	Wall Mounted Lavatory Supports with Concealed Arm for Flat Slab Lavatories Set on Steel Plate Secured in Wall	51 KB
Submittals	Submittal 0722-E Support (pdf)	Wall Mounted Lavatory Supports with Concealed Arm for Flat Slab Lavatories Set on Steel Plate Secured in Wall	287 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Lavatory Supports	Specifications for Lavatory Supports	142 KB
Manuals	Technical Data for Lavatory Supports	Technical Data for Lavatory Supports	493 KB
Ordering	Order Guidelines for Lavatory Supports	Order Guidelines for Lavatory Supports	120 KB
Parts Manuals	Parts Order Guide for Lavatory Supports	Parts Order Guide for Lavatory Supports	749 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Lavatory and Sink Support

Models

Wall Mounted Lavatory Supports with Concealed Arm

0722 [ submittal ]
For High Back Lavatories Set on Steel Plate Secured in Wall

0722-E [ submittal ]
For Flat Slab Lavatories Set on Steel Plate Secured in Wall

Model	Description
0722-E	For Flat Slab Lavatories

Answers

Is there a concealed arm lavatory support that can be installed on the face of a finished wall?

Anonymous

There is no support designed to mount on the face of a finished wall. Smith wall mounted (in lieu of floor mounted) supports must be attached to the wall studs for a stud mounted support (fig. 0720) or utilize a plate (fig. 0722) embedded into a masonry or block wall as the wall is built or a plate mounted (fig. 0728) to the back side of a masonry or block wall.
