Figure Number: 1905
Contact a Representative

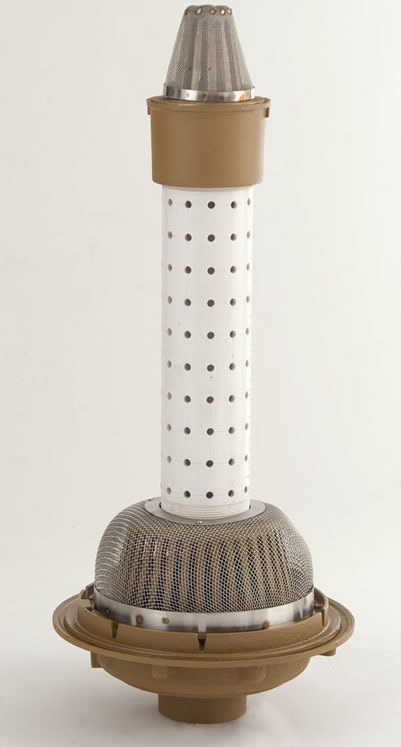

1905Multi-Level Planter Area Drain

Designed for sub-surface installation in multi-level planting areas of Intensive Green Roof Systems. This drain protects the roof and supports optimal vegetation growth.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, Roof Deck Plate -RDP
  • Optional Materials
    Galvanized Cast Iron -G, Stainless Steel Mesh Screen over Perforated Standpipe., Upper Drain as Specified.
  • Product Type
    Roof Drain
SubmittalSubmittal 1905 Roof Drain (pdf)
View
Technical Drawings
1905 Roof Drain (dwg)Multi-Level Planter Area Drain [1905C | Caulk Bottom Outlet; 1905T | Threaded Bottom Outlet; 1905Y | No-Hub Bottom Outlet]DWG132 KB
1905 Roof Drain (rfa)Multi-Level Planter Area Drain [1905C | Caulk Bottom Outlet; 1905T | Threaded Bottom Outlet; 1905Y | No-Hub Bottom Outlet]RFA796 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Green Roof and Cool Roof Drains Brochure (pdf)Brochure Green Roof and Cool Roof DrainsPDF2 MB
1905 Roof Drain (hi res jpg)Multi-Level Planter Area Drain [1905C | Caulk Bottom Outlet; 1905T | Threaded Bottom Outlet; 1905Y | No-Hub Bottom Outlet]JPG31 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Can't find what you are looking for? Get in touch

1905C | Caulk Bottom Outlet
1905T | Threaded Bottom Outlet
1905Y | No-Hub Bottom Outlet
