Figure Number: 9680
Contact a Representative

9680Large General Purpose Roof Drains

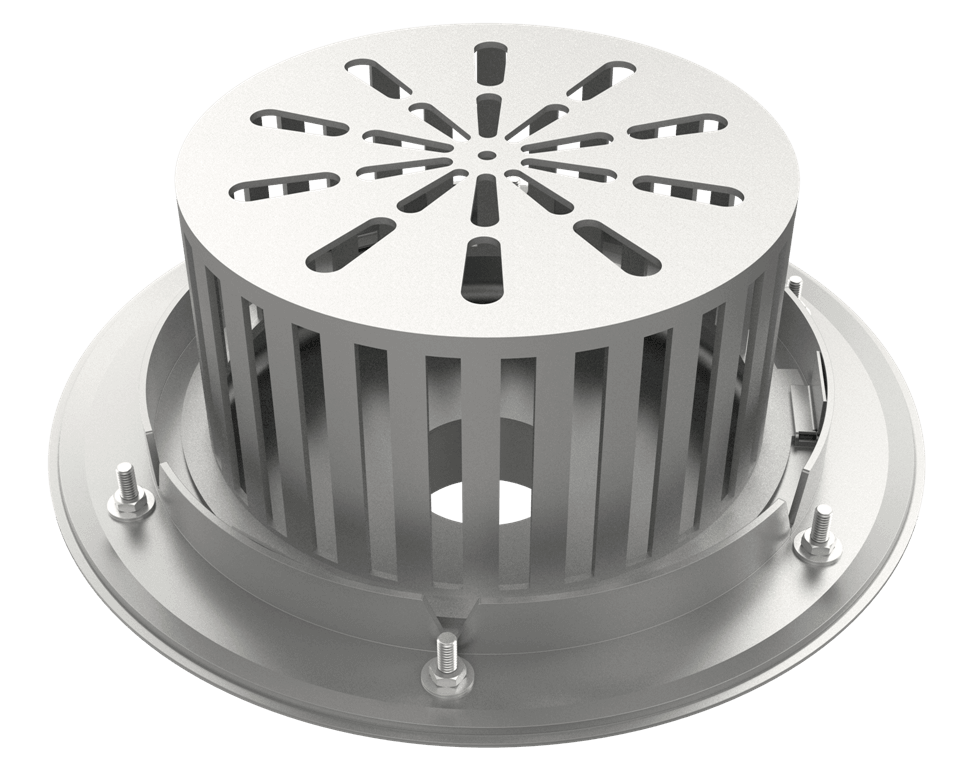

This 16" (406) diam. roof drain is fitted with a combination flashing clamp and gravel stop that creates a watertight, puncture free bond with roofing materials. All parts are constructed of 14 Gauge Type 304 stainless steel for a very long, corrosion free service life. This drain is engineered for installation in flat roofs where substantial precipitation is anticipated. It is available with 02" (50), 03" (75), 04" (100), 06" (150) or 08" (200) down outlets for connection to the drainage system.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Sump Receiver -R, Underdeck Clamp -C, Vandal Proof Dome -U, External Water Dam -WD02 (2"), -WD03 (3") or -WD04 (4"), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Type 316 Stainless Steel -316
  • Compliance/Certifications
    NSF
SubmittalSubmittal 9680 Stainless Steel Roof Drain
View
Technical Drawings
DWG 9680 Stainless Steel Drain9680 Stainless Steel DrainDWG83 KB
RFA 9680 Stainless Steel DrainRFA460 KB
